r panel roll former

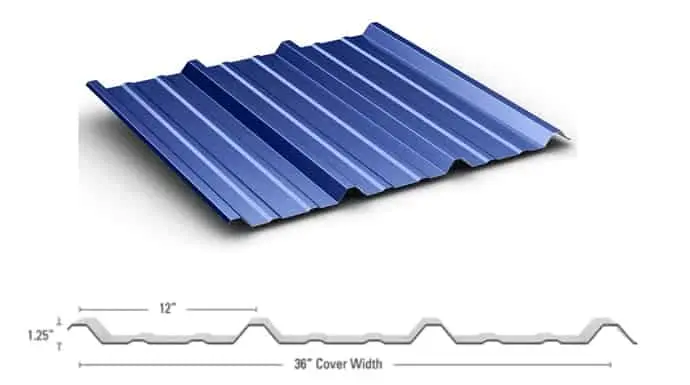

Overview of the R Panel Roll Former

The r panel roll former is a highly specialized machine designed to efficiently produce R-Panel metal roofing and wall panels. R-Panels are broadly recognized for their quality, wind resistance, and low-maintenance benefits, making them an perfect choice for a assortment of businesses counting development, horticulture, and commercial divisions. The R-Panel Roll Previous offers a dependable, high-speed arrangement for creating boards utilized in pre-engineered metal buildings, giving fabulous toughness and execution over a extend of applications.

Whether you're developing mechanical buildings, rural offices, or commercial spaces, the R-Panel Roll Previous conveys predominant quality boards that meet the hardest benchmarks for quality and flexibility.

How the R-Panel Roll Former Works?

The R-Panel Roll Former operates through a series of precision-engineered steps, transforming a metal sheet into the durable, high-performance R-Panel. Here's an overview of how the machine works:

1. Uncoiling System

The process begins with the uncoiling of the base material, typically galvanized steel or pre-painted steel. The uncoiling system ensures smooth and continuous feeding of the metal sheet into the forming system, minimizing material handling and optimizing production efficiency.

2. Pre-Punching Station (Optional)

For projects that require specific hole configurations or cutouts (such as for fasteners or ventilation), an optional pre-punching station can be included. This station allows for accurate punching of holes in the panels before they undergo the roll forming process, ensuring precise placement of fasteners or air vents.

3. Roll Forming Stages

The metal sheet then passes through multiple roll forming stations. Each stage gradually shapes the material, creating the characteristic ribs and flat sections that define the R-Panel profile. The rolls are engineered with precision to ensure consistent panel formation with optimal strength and visual appeal.

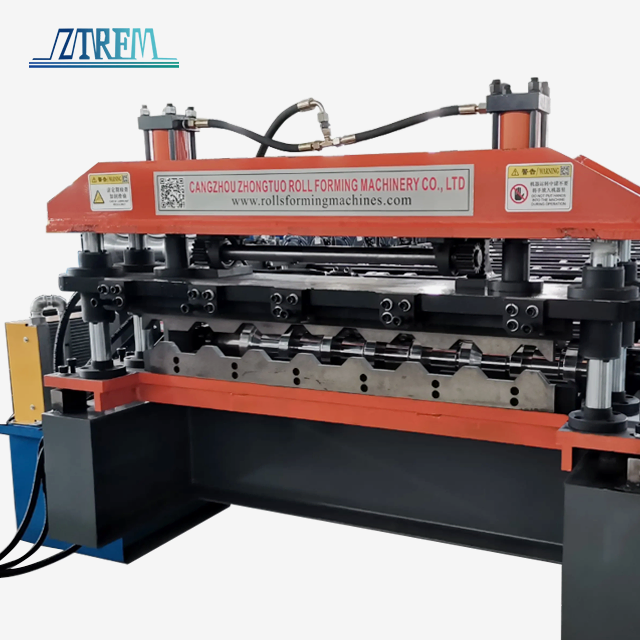

4. Cut-Off Mechanism

Once the R-Panel has reached its desired shape, the cut-off mechanism automatically cuts the panel to the required length. This can be programmed to cut at specific intervals or done manually depending on the production needs. The cut-off system ensures clean and accurate cuts, minimizing material waste.

5. Stacking and Packaging

After cutting, the panels can be either stacked or packaged for shipping or immediate installation. For greater efficiency, some r panel roll formers are equipped with automated stacking systems, allowing for quick and safe handling of finished panels.

6. Quality Control and Inspection

To ensure the highest product quality, the machine includes quality control measures. These may include thickness gauges, alignment sensors, and surface inspection systems that continually monitor the material during the forming process, ensuring that each panel meets industry standards for durability, size, and finish.

Technical Specifications

• Raw Material: Galvanized steel, Pre-painted steel

• Material Thickness: 0.3 mm – 0.8 mm (adjustable for different panel requirements)

• Uncoiling System: 5T hydraulic decoiler (manual option available)

• Roller Stations: Multiple stations (customizable based on production needs)

• Roller Material: 45# steel with hardened treatment for wear resistance

• Shaft Diameter: 80 mm solid shafts for improved stability

• Transmission: Gearbox transmission for smooth operation

• Motor Power: 5.5 kW for reliable, high-efficiency operation

• Machine Frame: 400H steel welded frame for structural integrity

• Cutting Type: Hydraulic cutting system for clean and precise cuts

• Hydraulic Power: 5.5 kW for powerful cutting performance

• Control System: PLC-based control system for ease of use and precise operation

• Cutting Tolerance: ±1 mm for accurate panel dimensions

Why Choose the R-Panel Roll Former?Efficient and Fast Production

The R-Panel Roll Former is designed to maximize productivity with high-speed operation while maintaining exceptional quality. The automated processes reduce production times and lower operational costs, allowing you to deliver roofing and wall panels quickly.

Durable and Reliable Panels

R-Panels produced by this machine are highly durable, resistant to harsh weather conditions, and have a long lifespan. The machine’s precise engineering ensures consistent results, producing panels that withstand the test of time in demanding environments.

Customizable Design and Features

Tailor the machine to your specific production needs with adjustable roller stations, material thickness options, and various additional features like pre-punching. The R-Panel Roll Former is highly flexible, ensuring it can meet the unique requirements of different projects.

Quality Assurance

With integrated quality control systems, the R-Panel Roll Former continuously monitors panel thickness, alignment, and surface quality, ensuring that every panel meets strict industry standards. This guarantees a high-quality finished product every time.

Applications of the R-Panel Roll Former

The R-Panel Roll Former is ideal for creating panels used in:

• Industrial roofing and siding

• Commercial building facades

• Agricultural structures​​​​​​​

• Warehouse and factory roofs

• Storage buildings and garages

Its versatility makes it suitable for a broad range of construction projects, offering long-lasting and visually appealing solutions for both roofing and siding applications.

Reliable After-Sales Support

To ensure continuous, smooth operation of your r panel roll former, we provide comprehensive after-sales support, including:

• Remote diagnostics for quick troubleshooting

• Operator training to enhance productivity and machine usage

• Spare parts availability for minimal downtime

• 24/7 customer service to assist with any concerns
