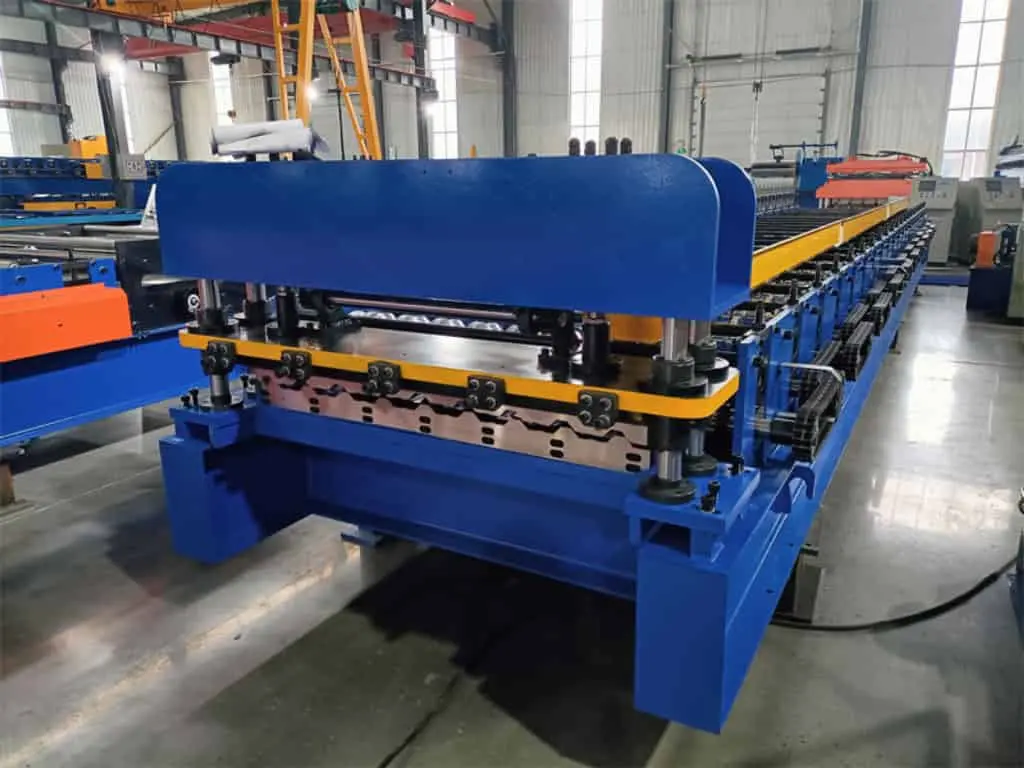

HR-36 roof panel Machine

HR-36 Roof Panel Machine: Professional Manufacturing Solution for High-Rib Metal Roofing

The HR-36 roof panel Machine from Cangzhou Zhongtuo Roll Forming Machinery Co., Ltd. delivers enterprise-level performance for structural metal panel production. This specialized cold roll shaping framework fabricates high-rib boards with a 36-inch scope at speeds up to 25 meters per minute. Highlighting 18-24 exactness roller stations, Cr12MoV hard-chromed rollers, and PLC-based controls with ±1.0mm cutting precision, it forms 0.3-0.8mm steel coils into load-bearing boards with 1.5-inch trapezoidal ribs. Our ISO 9001 certified generation guarantees steady quality for Pre-Engineered Building applications over 150+ countries.

What Makes Our HR-36 Roof Panel Machine Different?

You need reliable equipment that delivers consistent results.

Our machine transforms your production capabilities. It handles high-tensile steel coils with precision that manual processes simply cannot match.

The HR-36 roof panel Machine eliminates common fabrication headaches. No more oil canning. No more inconsistent rib heights. No more water leakage at joints.

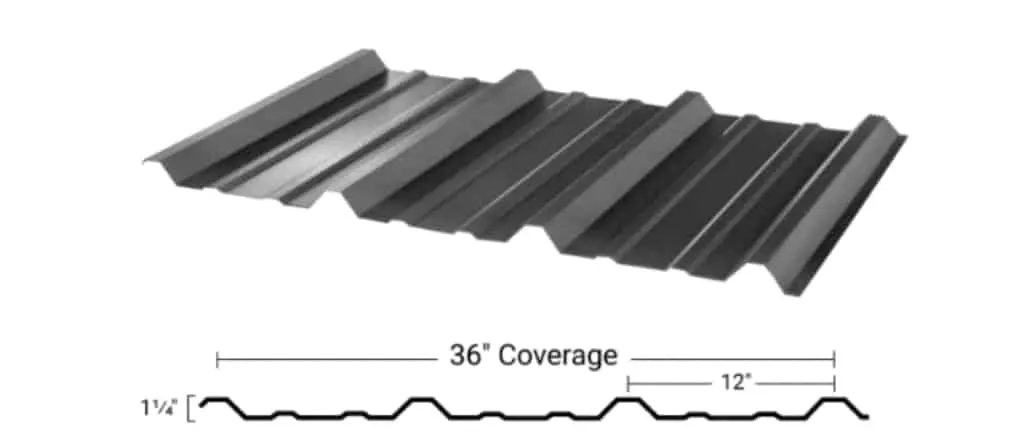

You get auxiliary boards with cumulative anti-capillary grooves each time. The profound 1.5-inch ribs give prevalent stack bearing for long-span applications.

Your boards will meet ASTM A792 guidelines and UL 580 Lesson 90 wind elevate evaluations automatically.

Why Choose Zhongtuo's Manufacturing Expertise?

We've spent over a decade perfecting cold roll forming technology.

Our partnership with Yanshan University's National Cold Rolled Strip Equipment Engineering Research Center brings cutting-edge innovation to your production floor.

You benefit from AI-powered FEA optimization and virtual commissioning technology. This means fewer trials, lower costs, and faster setup times.

We're not just selling you a machine. We're providing a complete solution backed by national-level high-tech enterprise standards.

Your investment is protected by CE, CAS, and ISO 9001 certifications.

Technical Specifications That Matter to Your Operation

How This Machine Solves Your Production Challenges

Challenge 1: Material Handling Complexity

You work with different materials daily. Galvanized steel one day, Galvalume the next, pre-painted the day after.

Our system handles all of them without changeover headaches. The adjustable roller gaps accommodate thickness variations smoothly.

Challenge 2: High-Tensile Steel Processing

Grade 50 and Grade 80 steel require special treatment. Spring-back effects ruin profiles on standard machines.

The HR-36 roof panel Machine features reinforced shafts and modified roller geometry. Your high-tensile panels come out straight and true.

Challenge 3: Production Consistency

Manual adjustments create variations. Every panel needs identical dimensions for proper installation.

Our PLC control system maintains exact specifications across thousands of panels. You get repeatability that builds your reputation.

Challenge 4: Cutting Quality

Burrs and rough edges slow down installation. They also pose safety risks for your crews.

The hydraulic post-cut shear matches panel geometry perfectly. You deliver clean, installation-ready edges every time.

Advanced Features You Can Rely On

Heavy-Duty H-Beam Construction

Your machine stays stable during continuous operation. Vibration-free performance means consistent panel quality even during 24/7 production runs.

Multi-Axis Straightening System

The turk's head straightening unit at the exit corrects both horizontal and vertical bow. Your panels arrive flat at the job site.

Aviation-Grade Hydraulics

Premium hydraulic components with integrated cooling systems support non-stop operation. You maintain production schedules even in demanding conditions.

Smart Integration Capability

Connect directly to your ERP system through Ethernet/Profinet modules. Download order specifications without manual data entry. Reduce errors and speed up job changes.

Applications Across Multiple Industries

Pre-Engineered Metal Buildings

Agricultural facilities, warehouses, and commercial structures rely on panels from this forming system. Long spans without purlins reduce construction costs.

Commercial Roofing Projects

Retail centers, manufacturing plants, and distribution facilities need durable, weather-tight roofing. Your panels provide proven performance.

Industrial Siding Applications

Both vertical and horizontal wall installations benefit from the structural rigidity. The exposed-fastener design simplifies installation while maintaining clean aesthetics.

Specialty Construction

Equipment shelters, canopies, and architectural features gain distinctive appearance from the pronounced rib pattern.

Our Commitment to Your Success

Since 2014, we've grown from a trade company to a national-level high-tech enterprise.

Our journey reflects our dedication to continuous improvement. Strategic partnerships with Siemens and six universities keep us at the forefront of roll forming technology.

You work with a team that understands global standards and local requirements. We've exported to over 150 countries. Your regional specifications are familiar to us.

Our factory serves as the Graduate Practice Base of Yanshan University. Young researchers work alongside experienced engineers. This combination drives innovation while maintaining practical focus.

Frequently Asked Questions

Can your machine process high-tensile G550 steel?

Yes, absolutely. Specify this requirement when ordering. We configure the machine with stronger shafts, higher motor power (7.5kW), and modified roller gaps. These adjustments handle the spring-back effect that high-tensile materials produce.

How do I adjust for different material thicknesses?

The profile shape stays constant, but roller gaps need micro-adjustment. Our machines include easily accessible adjustment bolts with gauges on each stand. This ensures uniform pressure across all forming stations.

What maintenance does the hydraulic system require?

Replace hydraulic oil (#46 grade) every six months or 2,000 working hours. Check cutting blade clearance monthly. Excessive gap creates burrs. Too-tight clearance accelerates blade wear.

Can I integrate the machine with my ERP system?

Advanced PLC systems feature Ethernet/Profinet connectivity. Download order lists directly from your office systems in CSV or Excel format. This eliminates manual entry errors and speeds up job setup.

What prevents panels from curving during production?

Proper alignment of forming stations is critical. The multi-axis straightening unit (turk's head) at the exit corrects both horizontal and vertical bow. Calibration during installation ensures straight panels throughout production runs.

What's included with machine delivery?

You receive complete installation support, operator training, and technical documentation. We provide video commissioning assistance for international customers. Spare parts packages are available to minimize downtime.

How long does installation take?

Typical installation requires 3-5 days with your local electrician and crane support. Our technical team provides remote guidance throughout the process. Some customers opt for on-site installation service.

What's your warranty coverage?

We provide 12-month warranty coverage on the main machine components. Wearing parts like cutting blades are consumables with separate warranty terms. Extended warranty options are available.

Ready to Transform Your Panel Production?

Get detailed specifications and a customized HR-36 roof panel Machine quote for your operation. Contact our technical team at zhongtuorollforming@gmail.com today.

Cangzhou Zhongtuo Roll Forming Machinery Co., Ltd. - Your trusted partner in cold roll forming solutions since 2014.
