trapezoidal sheet roll forming machine

Trapezoidal Sheet Roll Forming Machine - High-Performance Metal Roofing Solution

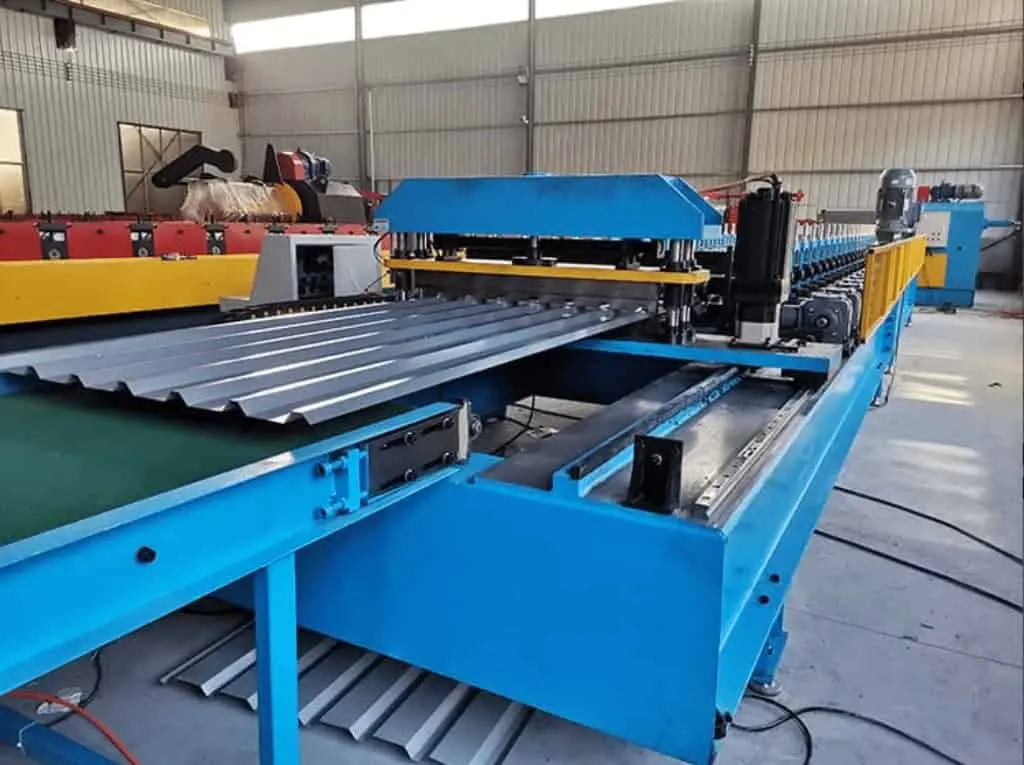

Our trapezoidal sheet roll forming machine transforms flat metal coils into high-strength roofing panels through automated cold-forming technology. Featuring 18-24 roller stations with precision-machined Cr12 kick the bucket steel rollers (HRC 58-62 hardness), this framework forms 0.3-0.8mm PPGI/GI materials at speeds up to 25m/min. You'll benefit from ±1mm length precision through PLC control, pressure-driven cutting with <0.1mm burr tolerance, and the ability to produce panels spanning up to 6 meters. Perfect for industrial warehouses and commercial buildings requiring structural durability.

What Makes Our Trapezoidal Profile System Different?

You require hardware that conveys reliable quality without consistent alterations. Our machine employments a nonstop cold-forming handle where metal strips pass through absolutely adjusted roller stations. Each station incrementally twists the fabric to make the characteristic trapezoid shape.

Here's what sets it apart:

Superior auxiliary judgment. The trapezoid profile gives amazing minute of inactivity. This implies your boards can span more extensive separations between purlins. You decrease basic steel costs whereas keeping up strength.

Elimination of oil canning. The shaping ribs we make avoid that wavy, mutilated appearance common in wide material boards. Your wrapped up item looks proficient each time.

Dual-width capability. Switch between 914mm (36") and 1220mm (48") coil widths with straightforward leveling alterations. No machine changes required. This adaptability makes a difference you serve distinctive showcase sections efficiently.

Technical Specifications You Can Count On

Why This Machine Solves Your Production Challenges

Challenge 1: Inconsistent Profile Quality

Manual bending creates variations between sheets. Your installation teams struggle with gaps and misalignment. Our machine eliminates this problem through computer-controlled forming sequences. Every panel matches perfectly for leak-proof installations.

Challenge 2: Production Bottlenecks

Traditional methods can't keep pace with large construction projects. You need speed without sacrificing precision. The automated feeding, forming, and cutting cycle processes material continuously. Your output increases by 300% compared to manual operations.

Challenge 3: Material Waste

Incorrect measurements and cutting errors eat into your margins. The PLC system calculates exact lengths and stores up to 100 profiles. You cut only what each order requires, minimizing scrap.

Challenge 4: Maintenance Downtime

Equipment failures during peak season cost you money and reputation. Our rollers undergo vacuum heat treatment and chrome plating. This surface hardness means years of operation without re-machining or replacement.

Where Your Machine Creates Value

Industrial & Commercial Roofing

Pre-engineered buildings and warehouses represent your primary market. The panels you produce span 4-6 meters between supports. This reduces the client's structural steel requirements by 25-30%. You're not just selling roofing—you're offering a complete cost-reduction solution.

Coastal Construction Projects

High-precipitation and salt-spray environments demand superior materials. When you process Aluzinc or high-grade painted coils, the non-damaging roller design preserves protective coatings. Your clients get corrosion-resistant roofing with 20+ year lifespans.

Architectural Wall Cladding

Modern commercial buildings use metal panels for facades. Your trapezoidal sheet roll forming machine produces scratch-free surfaces on decorative coatings. The consistent aesthetic linearity meets architectural standards while providing robust wind-load resistance.

Residential Roofing Markets

Custom home builders need various panel lengths. The quick-change length programming lets you fulfill orders ranging from 3 feet to over 20 feet without stopping production. You serve multiple customers in a single shift.

Quality Control Process Built Into Every Machine

You can't deliver premium products without premium equipment. Here's how we ensure your machine maintains standards:

Profile Geometry Testing

We run test batches and stack sheets to verify perfect nesting. Any gap means water leakage at installation. Our dimensional checks use precision calipers to confirm rib height, pitch, and effective width match your technical drawings exactly.

Roller Hardness Verification

Every roller undergoes portable hardness testing. We guarantee HRC 58-62 specifications. Softer rollers would distort profiles within months. You avoid costly replacements and production delays.

Shaft Alignment Inspection

Dial indicators check shaft concentricity during assembly. Excessive run-out causes periodic denting on sheet surfaces. Your finished panels remain mark-free and installation-ready.

Hydraulic System Stress Testing

The cutting mechanism runs continuous cycles under operational temperatures. We verify consistent performance and that burr height stays below 0.1mm. Sharp edges cause rust initiation and worker injuries—we eliminate both risks.

The Zhongtuo Advantage: Innovation Backed By Research

Since 2014, we've specialized in cold roll forming technology. But what truly differentiates us is our partnership with Yanshan University's National Cold Rolled Strip Equipment and Process Engineering Research Center.

AI-Powered Design Optimization

Our PhD researchers use finite element analysis to perfect roller patterns before manufacturing. You get machines that form complex profiles without trial-and-error adjustments. This reduces your startup time from weeks to days.

Virtual Commissioning Technology

We test your machine in a digital environment first. Remote debugging and cloud-based monitoring mean our engineers can troubleshoot issues anywhere in the world. You minimize downtime and maximize production uptime.

Continuous Innovation

We hold two patents in pattern roller design and automatic slitting technology. These aren't just certificates on a wall—they're integrated into your machine's performance. You benefit from cutting-edge technology unavailable from standard manufacturers.

Our Certifications Mean Your Peace of Mind

As a national high-tech enterprise, we maintain international quality standards:

·  ISO 9001 - Consistent manufacturing processes and quality control

·  CE Certification - Meets European Union safety and environmental requirements

·  CAS Certification - Complies with North American technical standards

These aren't just badges. They represent third-party verification that your investment meets global regulatory requirements. You can confidently serve clients in any market.

Global Trust From 150+ Countries

Our equipment operates across Europe, North America, the Middle East, Southeast Asia, and South America. This international experience means we understand different voltage requirements, material standards, and production preferences.

You're not buying from a local supplier with limited perspective. You're partnering with a manufacturer that has solved production challenges in diverse climates and market conditions. That knowledge gets built into your machine.

Frequently Asked Questions

How long does it take to switch between different coil widths?

Simple adjustments to the leveling bench let you change from 914mm to 1220mm input width in under 30 minutes. No roller changes required. You can serve different customer specifications within the same production day.

What happens if a roller gets damaged?

Our rollers are individually replaceable. We maintain spare parts inventory and can ship critical components via express delivery. The modular design means you replace only the affected station, not the entire set. Average replacement time is 2-4 hours.

Can the machine handle pre-painted materials without scratching?

Yes. The chrome-plated roller surface (0.05mm layer) provides a smooth, non-abrasive contact point. Combined with proper tension control, your decorative coatings remain intact through the forming process. We recommend test runs with your specific material for optimal tension settings.

How accurate is the cut-to-length function?

The PLC system maintains ±1mm tolerance across all panel lengths. Encoder feedback continuously monitors production speed and adjusts the cutting timing. For a 20-foot panel, you're looking at less than 0.004% variation—well within construction tolerances.

What training do operators need?

Basic operation requires 2-3 days of training. We provide comprehensive manuals and video tutorials. Your team learns material loading, length programming, and routine maintenance procedures. Advanced troubleshooting training is available for your maintenance staff.

Do you provide remote technical support?

Absolutely. Our cloud-based monitoring system allows engineers to view your machine's performance data in real-time. We can diagnose issues remotely and often resolve them without site visits. For complex situations, we guide your team through repairs via video call.

What's the expected lifespan of the machine?

With proper maintenance, 15-20 years of continuous operation is standard. The hardened rollers and robust shaft construction resist wear. We've seen machines in demanding industrial environments exceed 10 million linear meters of production without major component replacement.

Can you customize the profile design?

Yes. Our engineering team works from your technical drawings to create custom roller sets. The finite element analysis process ensures your profile forms correctly before manufacturing begins. Typical custom design and production timeframe is 6-8 weeks.

Ready to Upgrade Your Production Capability?

Get a customized solution for your specific trapezoidal sheet roll forming machine requirements. Contact our technical team at zhongtuorollforming@gmail.com to discuss your project needs today.
