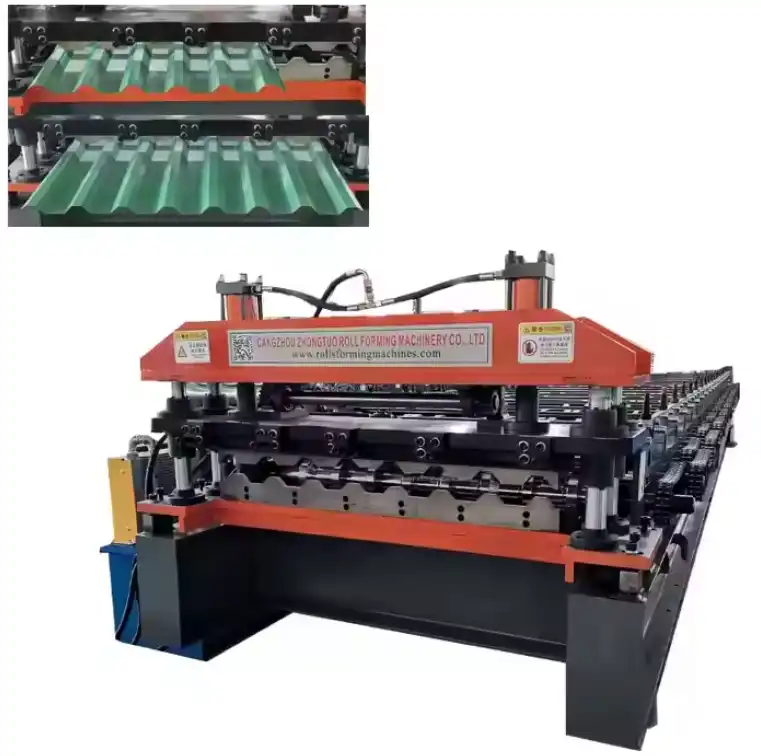

IBR Roof Sheet Making Machine – Precision Cold Roll Forming Solution

Cangzhou Zhongtuo delivers enterprise-grade cold roll forming systems engineered for precision and durability. Our ibr roof sheet making machine feature 10–20 roller stations with 70mm strong shafts, handle 0.3–0.8mm PPGI/GI/Al coils, and accomplish cutting exactness inside ±1mm utilizing Delta or Siemens PLC control. With ISO 9001, CE, and CAS certifications, additionally trade to over 150 nations, we combine a decade of fabricating ability with university-backed R&D. Each framework incorporates pressure driven decoilers, chrome-plated Cr12 rollers, and customizable width configurations—delivering steady, high-volume IBR profiles for mechanical, commercial, and coastal applications.

What Is an IBR Roof Sheet Making Machine?

An ibr roof sheet making machine is a specialized cold roll forming system designed to produce Inverted Box Rib (IBR) roofing profiles.

Unlike standard folded sheets, IBR profiles highlight square fluted geometry. This plan conveys prevalent waste and great strength-to-weight ratios.

The machine changes crude steel coils into wrapped material sheets with negligible waste. Progressed PLC control guarantees fabric surrender misfortune remains beneath 1%.

You get steady, leak-proof material perfect for heavy-rainfall districts. High-end models coordinated pressure-driven decoilers and auto-stacking units for consistent production.

From galvanized to pre-painted steel, this gear handles different materials. It's built to meet high-volume requests with exactness and reliability.

Key Technical Properties

Understanding the technical backbone of our machine helps you make informed decisions.

Core Structural Parameters

Why These Specs Matter

Durability Beneath Weight: The 70mm strong shaft stands up to twisting indeed amid persistent operation. Chrome-plated rollers ensure pre-painted coils are free from scratches.

Precision Control: PLC frameworks synchronize shaping speed and cutting length. You dodge fabric squander and keep up tight tolerances.

Versatile Fabric Taking care of: Whether you're handling G550 high-tensile steel or color-coated PPGI, the machine adjusts effortlessly.

High Strength-to-Weight Proportion: Profound trapezoidal woodwinds shaped by the machine offer great load-bearing capacity. This decreases the require for extra auxiliary support.

Where You Can Apply This Machine

Our ibr roof sheet making machine serves diverse construction scenarios where performance and reliability are non-negotiable.

1. Large-Scale Industrial Warehousing

Produce long-span material sheets for industrial facilities and coordinations centers. The profound woodwinds give predominant inflexibility, permitting more extensive purlin dividing. This decreases auxiliary steel costs whereas keeping up stack integrity.

2. Coastal Residential Cladding

Ideal for destructive coastal situations. The machine forms Aluzinc and color-coated coils without harming defensive layers. Cleaned rollers guarantee both tasteful request and long-term erosion resistance.

3. Low-Pitch Shopfronts & Carports

IBR profiles perform especially well on low-pitch rooftops (down to 5 degrees). Custom-length sheets dispense with flat laps, guaranteeing watertight execution in urban structural designs.

4. Commercial & Residential Construction

From cutting edge lodging to shopping centers, the machine produces nonstop long-length sheets. Less end-laps cruel diminished spill dangers and speedier establishment times.

5. Side Wall Cladding in Harsh Environments

Deep woodwinds guarantee quick water shedding and self-cleaning. This is basic for keeping up auxiliary judgment in chemical plants or heavy-rainfall zones.

Why Choose Zhongtuo's IBR Roof Sheet Making Machine?

We've spent over a decade refining our manufacturing process. Here's what sets us apart.

Certified Quality Standards

·  ISO 9001: Consistent product quality through strict control processes

·  CE Certification: Meets stringent EU safety and environmental standards

·  CAS Certification: Complies with advanced North American technical requirements

University-Backed R&D

We partner with Yanshan University's National Cold Rolled Strip Equipment and Process Engineering Research Center. This collaboration brings cutting-edge research into practical application.

Core Innovations Include:

·  AI-assisted finite element analysis (FEA) for roll design optimization

·  Virtual commissioning to reduce trial costs and ensure precision

·  Cloud-based remote monitoring for predictive maintenance

Global Export Experience

Our machines operate successfully in over 150 countries. From Europe to Southeast Asia, we've earned trust through reliable performance and responsive technical support.

Customizable One-Stop Service

Need ODM or OEM solutions? We've got you covered. From raw materials to accessories, everything is available through us. Tailored designs align with both international standards and local preferences.

How the Machine Works: Step-by-Step Process

Let's walk through the forming process so you understand exactly how your investment delivers results.

Step 1: Material Loading

Steel coils are loaded onto the hydraulic automatic decoiler. Ordinary decoilers are included free of charge.

Step 2: Material Feeding

The coil feeds smoothly into the first forming station. Precision guides ensure alignment.

Step 3: Cold Roll Forming

The material passes through 10–20 roller stations. Each station gradually shapes the steel into the square-fluted IBR profile. No stress fractures occur thanks to optimized forming paths.

Step 4: PLC-Controlled Cutting

Once the desired length is reached, the PLC system triggers the cutting mechanism. Accuracy stays within ±1mm.

Step 5: Auto-Stacking & Quality Check

Finished sheets are auto-stacked or manually collected. Visual inspection ensures profile consistency and surface quality.

Machine Components Breakdown

Why Invest in Quality Roll Forming Technology?

Choosing the right ibr roof sheet making machine impacts your bottom line. Low-quality equipment leads to frequent breakdowns, inconsistent output, and costly downtime.

Our machines are built for life span. Difficult chrome-plated rollers stand up to wear. Strong steel shafts anticipate avoidance beneath stack. PLC frameworks diminish human blunder and speed up generation cycles.

You moreover get to our R&D mastery. AI-powered FEA optimization and virtual commissioning cruel less trial runs. Inaccessible checking lets you analyze issues some time recently they escalate.

When you contribute to Zhongtuo, you're not fair buying a machine. You're collaborating with a group committed to your success.

About Cangzhou Zhongtuo Roll Forming Machinery Co., Ltd.

Established in 2014, we've developed into a national-level high-tech venture. Our mission is straightforward: give all inclusive trusted hardware driven by quality, advancement, and client success.

We manufacture a wide range of cold roll forming machines, including:

·  Roof tile making machines

·  CZ purlin forming systems

·  Light steel keel machines

·  Metal embossing equipment

·  Door and ceiling system formers

·  High-frequency pipe welding machines

·  Slitting and cut-to-length lines

Our generation base combines progressive fabrication with university-backed investigation. Graduate analysts from Yanshan College work on-site, quickening advancement and advanced transformation.

Strategic organizations with Siemens and numerous colleges guarantee we remain ahead of industry patterns. Our commitment to greatness has earned us confirmed provider status on Alibaba.com and long-term client connections in over 150+ countries.

Frequently Asked Questions (FAQ)

What materials can the machine process?

The machine handles PPGI (pre-painted galvanized press), GI (galvanized press), and Aluzinc coils. Thickness ranges from 0.3mm to 0.8mm. Width is completely customizable based on your profile requirements.

How precise is the cutting system?

Our PLC-controlled cutting framework keeps up exactness inside ±1mm. This guarantees negligible fabric squander and steady sheet lengths.

Can I customize the number of roller stations?

Absolutely. You can select between 10 and 20 roller stations depending on your generation needs and profile complexity.

What's the normal generation speed?

Production speed shifts based on fabric thickness and profile complexity. On normal, anticipate 8–12 meters per miniature for standard IBR profiles.

Do you give establishment and training?

Yes. We offer on-site establishment, commissioning, and administrator preparing. Farther back is moreover accessible by means of cloud-based checking systems.

What certifications does the machine have?

Our machines are certified beneath ISO 9001, CE, and CAS benchmarks. These guarantee compliance with universal security and quality benchmarks.

How long is the guarantee period?

We give a 12-month guarantee covering major components. Expanded guarantees and support bundles are accessible upon request.

Can the machine create other profiles?

While optimized for IBR profiles, the machine can be reconfigured for other material profiles. Contact us to examine your particular requirements.

What's the lead time for delivery?

Standard models dispatch inside 30–45 days. Custom arrangements may require 60–75 days depending on complexity.

Do you offer save parts and after-sales support?

Yes. We keep up a comprehensive save parts stock. Our worldwide organize guarantees quick conveyance and responsive specialized support.

Ready to Upgrade Your Production?

Transform raw steel coils into high-quality IBR roofing profiles with precision and efficiency. Our ibr roof sheet making machine delivers the reliability, accuracy, and support your business needs.

Get in touch today to discuss your project requirements. Email us at zhongtuorollforming@gmail.com and let's build something great together.
