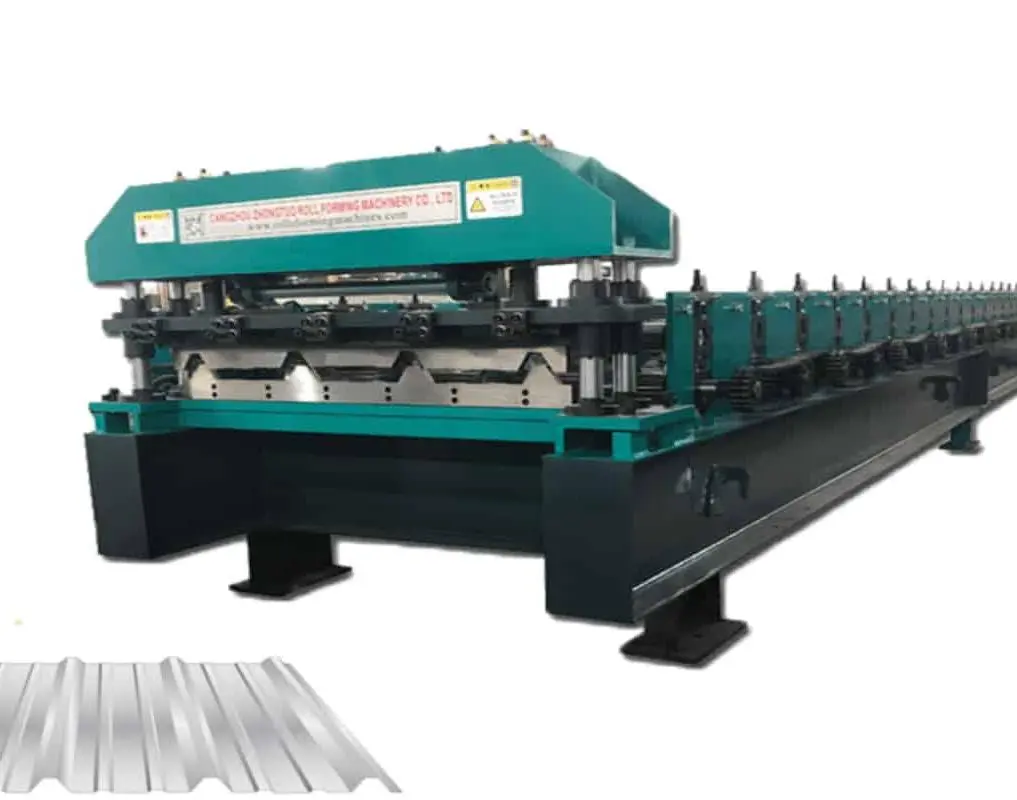

PV4/PV5 Roof Sheet Machine: Precision Cold Roll Forming for Superior Roofing Solutions

Our enterprise-grade PV4/PV5 roof sheet machine system produces high-precision trapezoidal roofing profiles with 18-22 forming stations, processing 0.3-0.8mm thickness materials at 15-25 meters per minute. Built with 45# steel rollers featuring hard chrome plating and powered by 5.5-7.5kW motors, our machine ensures ±1.0mm cutting accuracy through advanced PLC control. With over 10 years of manufacturing expertise and exports to 150+ countries, Cangzhou Zhongtuo delivers the industrial-grade performance you need for large-scale production.

Why Choose Our PV4/PV5 Roof Sheet Machine

Built for Demanding Production Environments

Your roofing production demands precision and reliability. Our forming system addresses the critical challenges you face daily.

Eliminate Oil-Canning Defects

Advanced leveling technology prevents those frustrating flat-pan distortions that compromise your finished product appearance. You get structurally sound sheets every time.

Perfect Overlap Every Time

Adjustable spacers and side-roll stands let you fine-tune male and female ribs. This ensures tight, snap-fit overlaps that guarantee weatherproof installations your clients depend on.

Protect Your Material Investment

Hard chrome-plated rollers preserve pre-painted coatings without scratching or stripping. Your PPGI warranties remain intact.

Technical Excellence You Can Trust

Robust Construction

·  Heavy-duty H-beam welded frame provides stability during high-speed operation

·  80mm solid shaft diameter handles high-tensile G550 steel without flex

·  Chain transmission system ensures consistent power delivery

Intelligent Control System

·  PLC automation delivers millimeter-grade cutting precision

·  Quick parameter adjustment for different material thicknesses

·  Real-time monitoring reduces waste and downtime

Versatile Material Processing

Process PPGI, GI, and Aluzinc materials from 0.3-0.8mm thickness. Whether you're working with standard galvanized sheets or high-coating materials for coastal environments, our machine maintains forming quality.

Technical Specifications

Real-World Applications That Drive Your Business

High-Altitude Mining Infrastructure

In regions with heavy snow loads and high wind uplift forces, PV4 profiles produced by our machine withstand extreme conditions. The distinctive rib geometry allows wider purlin spacing, cutting your structural steel costs significantly for large hangars and processing plants.

Coastal Industrial Warehousing

Operating near the ocean? Our machine processes high-coating Aluzinc materials without damaging protective layers. Precise forming creates hermetic side-laps that prevent salt mist intrusion—the leading cause of corrosion in coastal logistics centers.

Commercial and Residential Cladding

Beyond roofing, PV5 profiles serve as architectural wall cladding. Our PV4/PV5 Roof Sheet Machine delivers the defect-free surface aesthetics your commercial facades demand. The modern 5-rib design brings visual appeal to urban developments while maintaining structural integrity.

Quality Assurance at Every Stage

Dimensional Precision Testing

Every profile undergoes overlay verification against master templates. We ensure your sheets mate perfectly during installation with no gaps—protecting your reputation with every order.

Surface Integrity Protection

Our rollers pass rigorous scratch tests. You can confidently process pre-painted materials knowing the polyester coating remains intact, preserving your raw material warranties.

Shear Quality Control

Hydraulic cutters produce clean, flat cut ends with zero lip distortion. Your team handles sheets safely, and installations achieve perfect aesthetic alignment at eaves.

Long-Run Stability Verification

We conduct extended testing beyond 10-meter sheets to confirm zero twist or camber. Your production runs maintain profile consistency from first sheet to last.

Innovation Through Research Partnership

We've partnered with Yanshan University's National Cold Rolled Strip Equipment and Process Engineering Research Center. This collaboration brings cutting-edge technology directly to your production floor.

AI-Powered Optimization

Finite element analysis continuously refines forming accuracy, reducing trial costs and ensuring high-precision profile formation.

Virtual Debugging Capabilities

Remote commissioning and maintenance minimize your downtime. Cloud-based monitoring supports long-distance diagnostics—especially valuable if you operate internationally.

Patented Technologies

Our two proprietary innovations in roller design and slitting automation deliver the competitive edge your business needs.

Frequently Asked Questions

Can one machine produce both PV4 and PV5 profiles?

Yes. We offer cassette-type designs with 15-minute profile changes via overhead crane, or double-layer machines with instant switching through PLC control. You get maximum production flexibility.

How does your machine handle high-tensile G550 steel?

Our increased shaft diameter and optimized roller distribution prevent spring-back issues. Over-bending technology in final stations neutralizes steel memory, ensuring accurate profile formation.

What's the cutting blade lifespan?

Blades manufactured from Cr12MoV steel and heat-treated to HRC 58-62 sustain approximately 1 million cuts. With proper maintenance, you'll minimize replacement frequency and costs.

Do I need complex foundation work?

No. Our heavy-duty H-beam base structure makes installation plug-and-play. You only need level concrete flooring—no expensive underground foundation bolting required.

How do you prevent overlap rib mismatch?

Adjustable spacers and dedicated side-roll stands at the final forming pass let your operators fine-tune male and female rib angles. You achieve the tight, snap-fit overlap essential for weatherproofing.

Global Trust, Local Support

Since 2014, we've grown into a national-level high-tech enterprise. Our machines operate successfully in over 150 countries across Europe, North America, the Middle East, Southeast Asia, and South America.

Certified Quality Standards

·  ISO 9001 Quality Management System

·  European CE Safety Certification

·  North American CAS Certification

Comprehensive Service

We provide ODM, OEM, and complete one-stop solutions. From raw materials to machinery and accessories, you can source everything through us.

Partnership You Can Count On

Our strategic collaboration with Siemens and recognition as a Verified Pro Supplier on Alibaba.com demonstrate our commitment to excellence. We've also established graduate practice programs with six universities, ensuring continuous innovation.

Start Your Production Journey Today

Ready to upgrade your roofing production capabilities with a proven PV4/PV5 roof sheet machine? Let's discuss how our solution fits your specific requirements.
