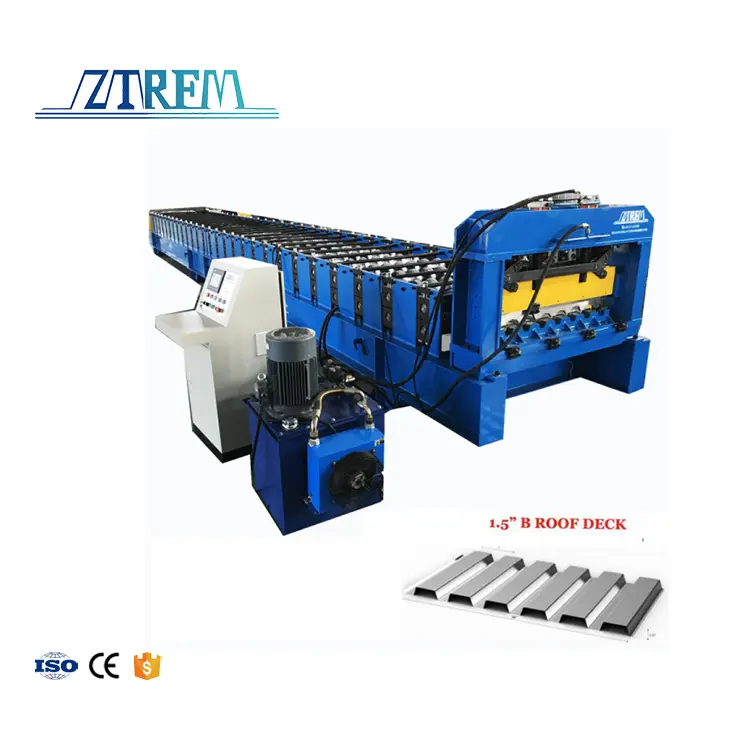

1.5″ B Wide Rib Roof Deck Machine

1.5″ B Wide Rib Roof Deck Machine

The 1.5″ B Wide Rib Roof Deck Machine from Cangzhou Zhongtuo is your industrial-grade arrangement for creating auxiliary metal decking that meets North American and European commercial material guidelines. Our machine forms high-tensile galvanized steel from 0.8-1.2mm thickness at speeds coming to 10-20m/min. Built with 95mm breadth shaping roller shafts and a effective 3x11kw fundamental engine framework, this gear conveys exact profiles with reliable 1.5-inch profundity ribs. With PLC and converter control frameworks, you get dependable robotization that keeps up tight resiliences fundamental for basic keenness. Our chromium-treated No.45 steel rollers guarantee long benefit life indeed when handling grating galvanized coatings continuously.

Why Choose Our Wide Rib Roof Deck Machine?

You require gear that equalizations generation speed with basic precision. Our machine addresses your center challenges head-on.

Engineered for Heavy-Duty Performance

We planned this framework particularly for nonstop mechanical operation. The strong outline development avoids diversion amid high-pressure shaping. You'll prepare materials with abdicate qualities up to 235Mpa without compromising profile quality.

The 120mm embossing shaft gives additional unbending nature where you require it most. This avoids the "oil canning" impact that plagues lighter machines.

Precision That Protects Your Investment

Your wrapped up boards must interlock impeccably on-site. Our CR12 form steel cutters experience extinguished treatment for clean, burr-free cuts. This implies your establishment groups won't battle with misaligned seams.

The water-powered cutting framework conveys steady comes about. You'll diminish fabric squander and dispense with expensive callbacks.

Production Capacity That Meets Market Demands

Time things in fabricating. Our framework works at 10-20 meters per diminutive whereas keeping up profile precision. You can scale generation without relinquishing quality standards.

The converter-controlled drive framework guarantees smooth speeding up and deceleration. This ensures your fabric from push marks amid processing.

Technical Specifications

How Our Machine Solves Real Production Challenges

Challenge 1: Maintaining Profile Consistency

You can't bear varieties that influence auxiliary stack appraisals. Our multi-station shaping handle slowly shapes the metal. This anticipates micro-cracking in high-yield materials.

The chrome-treated rollers stand up to wear from zinc coatings. You'll keep up dimensional exactness over thousands of generation cycles.

Challenge 2: Processing Different Material Grades

Market demands change. Sometimes you need to run standard galvanized. Other times, you're processing galvalume or composite materials.

Our 1.5″ B Wide Rib Roof Deck Machine handles this flexibility. The adjustable forming stations accommodate varying material characteristics. You won't need separate equipment for different specifications.

Challenge 3: Integration with Existing Workflows

You need equipment that fits your production line. Our PLC control system accepts standard industrial protocols. This simplifies integration with upstream coil handling and downstream packaging systems.

The converter drive allows fine-tuning of production speed. You can synchronize with other processes without bottlenecks.

Advanced Manufacturing Backed by Research

We don't just build machines—we innovate them. Our partnership with Yanshan University's National Cold Rolled Strip Equipment and Process Engineering Research Center brings cutting-edge technology to your production floor.

What This Means for You

· Finite Element Analysis: We've optimized every roller profile to minimize material stress

· Virtual Commissioning: Your machine is debugged digitally before physical assembly

· AI-Assisted Design: Pattern rollers are engineered using simulation tools that predict real-world performance

These aren't just technical terms. They translate to machines that start producing quality panels faster and maintain accuracy longer.

Quality Control You Can Verify

We understand you need confidence before investing. Our inspection process covers the checkpoints that matter to your operation.

Pre-Delivery Testing

Every machine undergoes rigorous validation:

Profile Geometry Check: We verify rib depth holds within tight tolerances. Your panels will nest properly during shipping.

Coverage Width Validation: Finished panels maintain consistent width specifications. This prevents alignment issues during installation.

Cut Quality Assessment: Hydraulic shear cuts are inspected for clean edges. No burrs means safer handling and professional finished appearance.

Material Stress Testing: We run samples at your specified thickness and yield strength. You'll see actual performance before shipment.

Certifications That Matter

Our manufacturing facility holds ISO 9001 Quality Management System Certification. This isn't just paperwork—it means documented processes at every production stage.

We've earned European CE Safety Certification and North American CAS Certification. Your equipment meets international safety and technical standards out of the box.

Real-World Applications

This machine serves diverse industries and project types.

Commercial Construction

Large-scale buildings require reliable structural decking. Our panels provide the load-bearing capacity engineers specify. You'll meet project deadlines with consistent daily output.

Industrial Facilities

Warehouses and manufacturing plants need robust roofing systems. The wide rib profile supports insulation and built-up roofing assemblies. Your panels handle heavy loads without deformation.

Infrastructure Projects

Transportation facilities and public buildings demand long-span capabilities. Our machine produces profiles that bridge structural steel spacing efficiently. You reduce material costs while maintaining safety factors.

Operational Advantages

User-Friendly Controls

Your operators won't need weeks of training. The PLC interface uses intuitive logic. Length settings, speed adjustments, and batch counts are clearly displayed.

Emergency stop functions are positioned for quick access. Safety interlocks prevent operation when guards are open.

Maintenance Simplicity

Downtime costs money. We designed accessibility into every system.

Roller changes use standard tooling. Your maintenance team can swap forming stations without specialized equipment.

Hydraulic components are readily serviceable. Filter access and pressure gauges are positioned for easy monitoring.

Energy Efficiency

The distributed 3x11kw motor system provides power where needed. You're not overdriving components that don't require it.

The converter control optimizes energy consumption during different production phases. This reduces your operational costs per panel produced.

Support Beyond Installation

You're not just buying equipment—you're gaining a manufacturing partner.

Technical Assistance

Our engineering team understands cold forming processes deeply. When you have questions about material behavior or profile adjustments, we provide practical solutions.

We offer remote diagnostics through cloud-based monitoring. Many issues can be resolved without site visits, minimizing downtime.

Spare Parts Availability

Critical wear components are stocked for immediate shipping. Rollers, cutters, and hydraulic seals won't keep you waiting.

We provide detailed parts diagrams with your machine documentation. Ordering replacements is straightforward.

Process Optimization

As your production requirements evolve, we help you adapt. Whether you're changing material suppliers or adjusting panel specifications, our team provides guidance.

We've exported to over 150 countries and regions. This experience means we understand regional standards and customer preferences that might affect your specifications.

Frequently Asked Questions

What material thicknesses can this machine actually process?

Our standard configuration handles 0.8-1.2mm thickness galvanized or galvalume coils. The forming stations are spaced to accommodate this range without adjustment. If your application requires thinner or heavier gauges, we can customize the roller configuration during manufacturing.

How long does installation and commissioning take?

Typically, installation requires 5-7 working days with a team of three technicians. This includes mechanical assembly, electrical connections, hydraulic system setup, and initial test runs. We provide detailed installation manuals and can supply technicians for on-site commissioning if needed.

Can the machine produce other deck profiles?

The product is specifically tooled for the B-deck profile. Changing to different profiles (like A-deck or N-deck) would require complete roller changeover. We recommend discussing your profile needs before ordering so we can supply the correct tooling or suggest multi-profile solutions.

What are the facility requirements for this equipment?

You'll need approximately 15 meters of length and 2 meters of width for the main machine line. Ceiling height should accommodate coil loading (typically 3 meters minimum). Electrical requirements are three-phase power for the 3x11kw main motors and 5.5kw hydraulic system. We provide detailed facility preparation specifications with your order.

How do you ensure the machine meets our local safety standards?

Our machines carry CE certification for European markets and CAS certification for North America. We also hold ISO 9001 quality certification. For specific regional requirements, we can provide technical documentation and work with your local inspectors to ensure compliance. Many customers have successfully certified our equipment in their jurisdictions.

What's included in the warranty and what does it cover?

Standard warranty covers 12 months from commissioning date or 18 months from shipment, whichever comes first. This includes all structural components, motors, hydraulic systems, and control electronics. Normal wear items like cutting blades are excluded. We provide detailed warranty terms with your quotation.

Can we visit your factory before purchasing?

Absolutely. We welcome factory visits and encourage them for significant investments. You can observe machines in production, meet our engineering team, and discuss customization needs directly. We're located in Cangzhou, easily accessible from Beijing. Many customers combine factory visits with testing their specific materials on similar machines.

How quickly can you deliver after order confirmation?

Standard production time is 60-90 days depending on customization requirements and current order queue. This includes manufacturing, quality testing, and preparation for shipping. Rush orders may be accommodated with adjusted scheduling. Sea freight typically adds 30-45 days depending on destination port.

Your Next Step

Ready to enhance your production capabilities with proven technology? Our team is prepared to discuss your specific 1.5″ B Wide Rib Roof Deck Machine requirements and provide detailed quotations.

Contact us today: zhongtuorollforming@gmail.com

Cangzhou Zhongtuo Roll Forming Machinery Co., Ltd. - Your trusted partner in cold roll forming solutions since 2014.
