Metal Wall Panel Machine - High-Performance Cold Roll Forming Solution

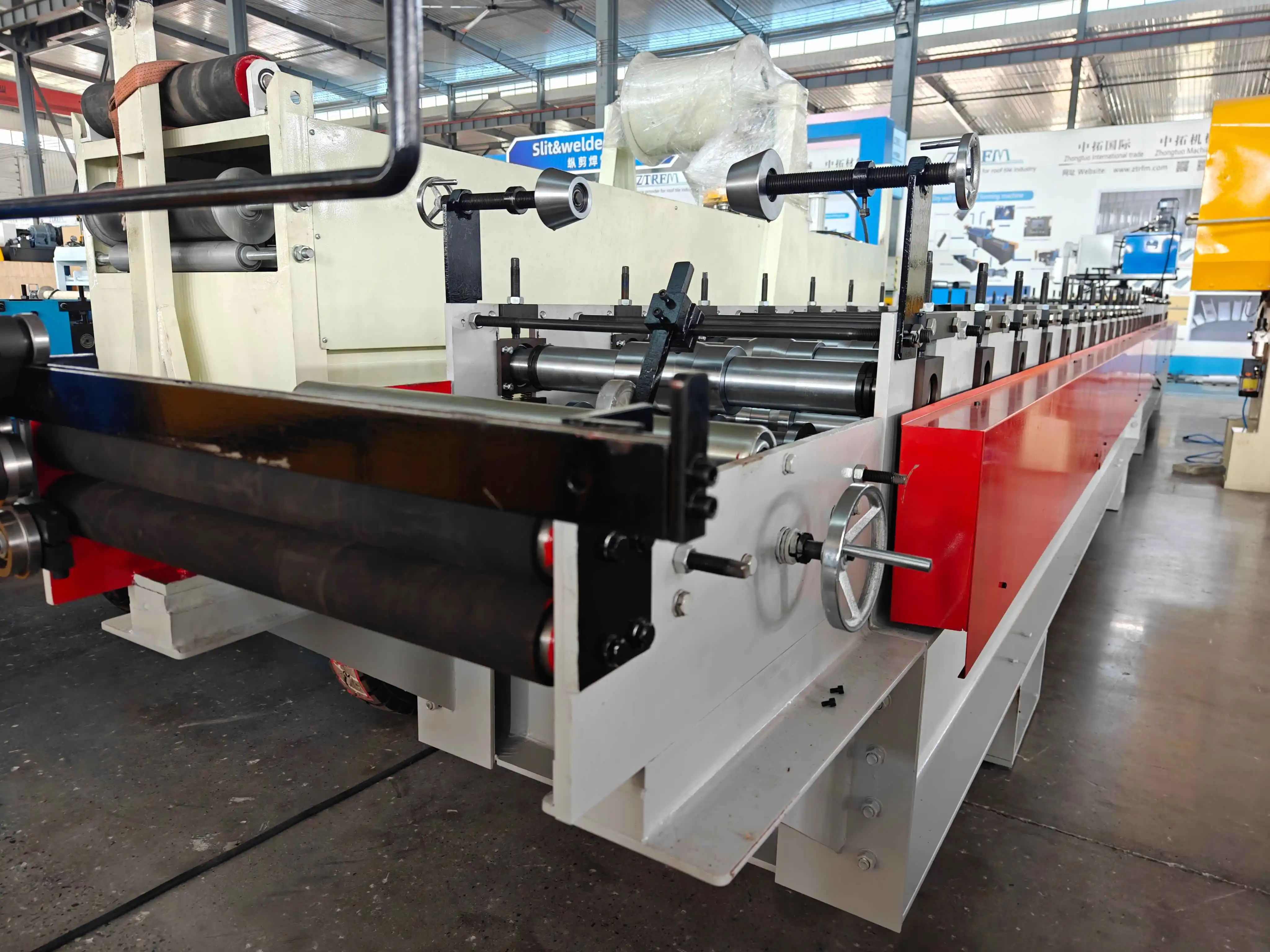

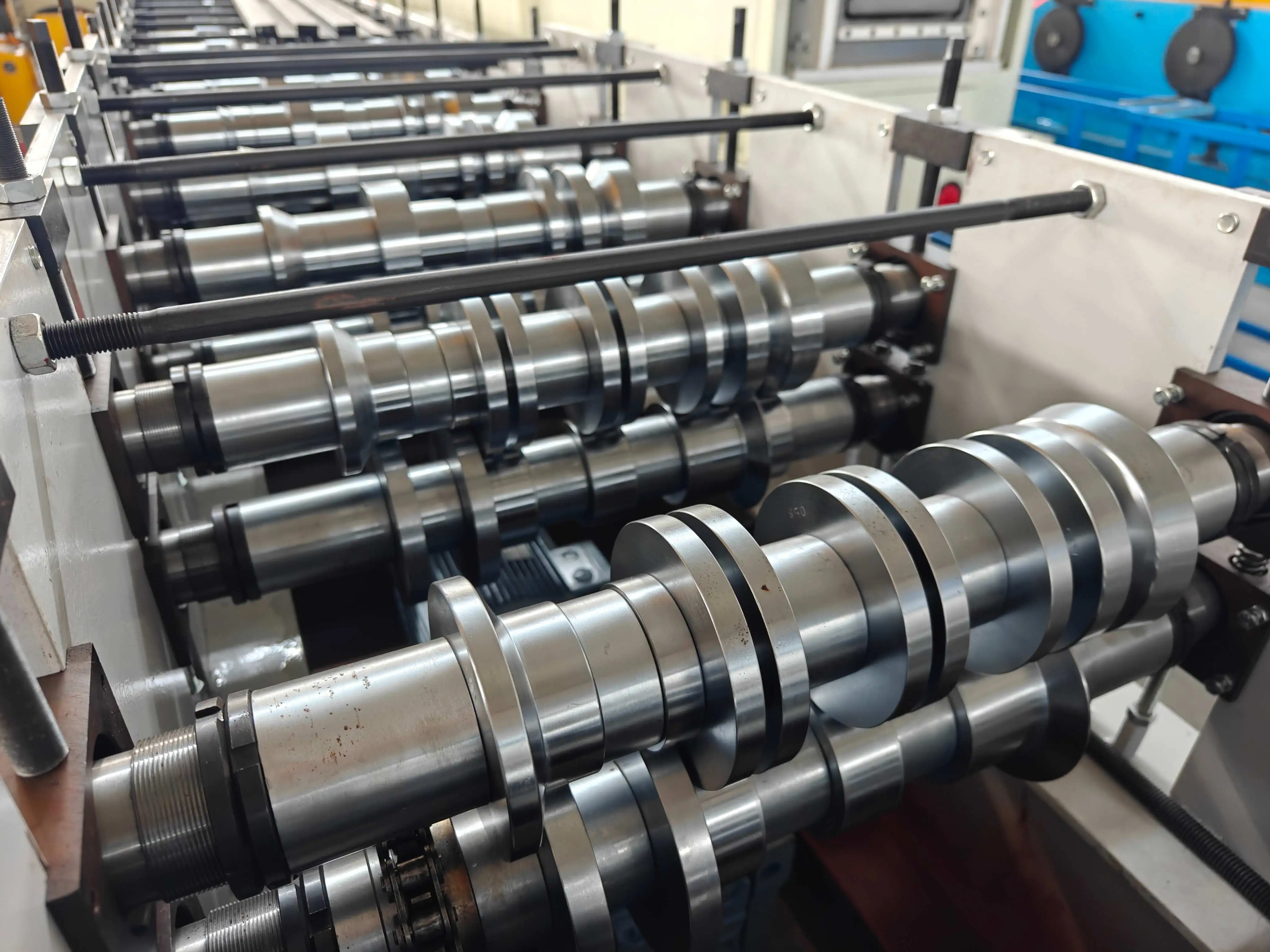

Cangzhou Zhongtuo Roll Forming Machinery delivers enterprise-grade metal wall panel machine solutions engineered for precision and productivity. Our forming systems feature 18-row roller stations with 80mm solid shaft construction, processing PPGI and PPGL materials from 0.3-0.6mm thickness. The robust 350mm H-beam structure incorporates 18mm welded steel middle support plates, ensuring zero deflection during high-speed operation. Manufactured with high-grade 45# forged steel rollers, each surface receives 0.05mm hard chrome plating to protect pre-painted coatings. Our dual-chain transmission system delivers consistent forming speeds up to 25 meters per minute, significantly reducing production time while maintaining ±1.0mm cutting accuracy for architectural and industrial applications.

Core Technical Advantages with the metal wall panel machine

Heavy-Duty Construction Framework

The machine body utilizes reinforced H-beam architecture rather than conventional wall-plate designs. This engineering approach provides superior torsional rigidity under continuous rolling pressure.

Each roller station undergoes precision machining to HRC 58-62 hardness standards. The heat-treated surfaces resist deformation even after processing hundreds of tons of material.

The drive system employs industrial-grade gears paired with double-chain transmission. This configuration eliminates slippage issues common in single-chain systems, ensuring synchronized roller movement across all stations.

Intelligent Control Integration

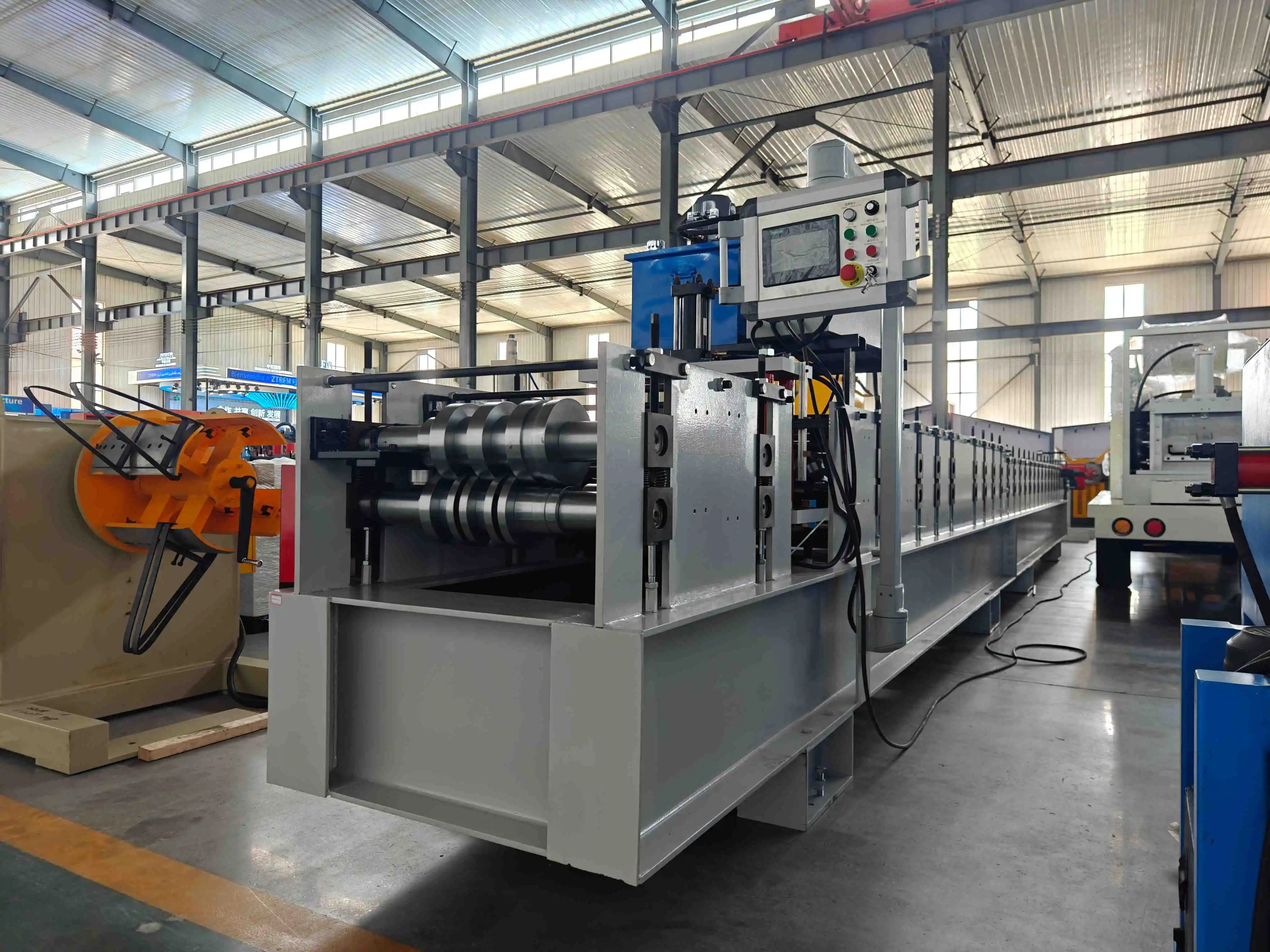

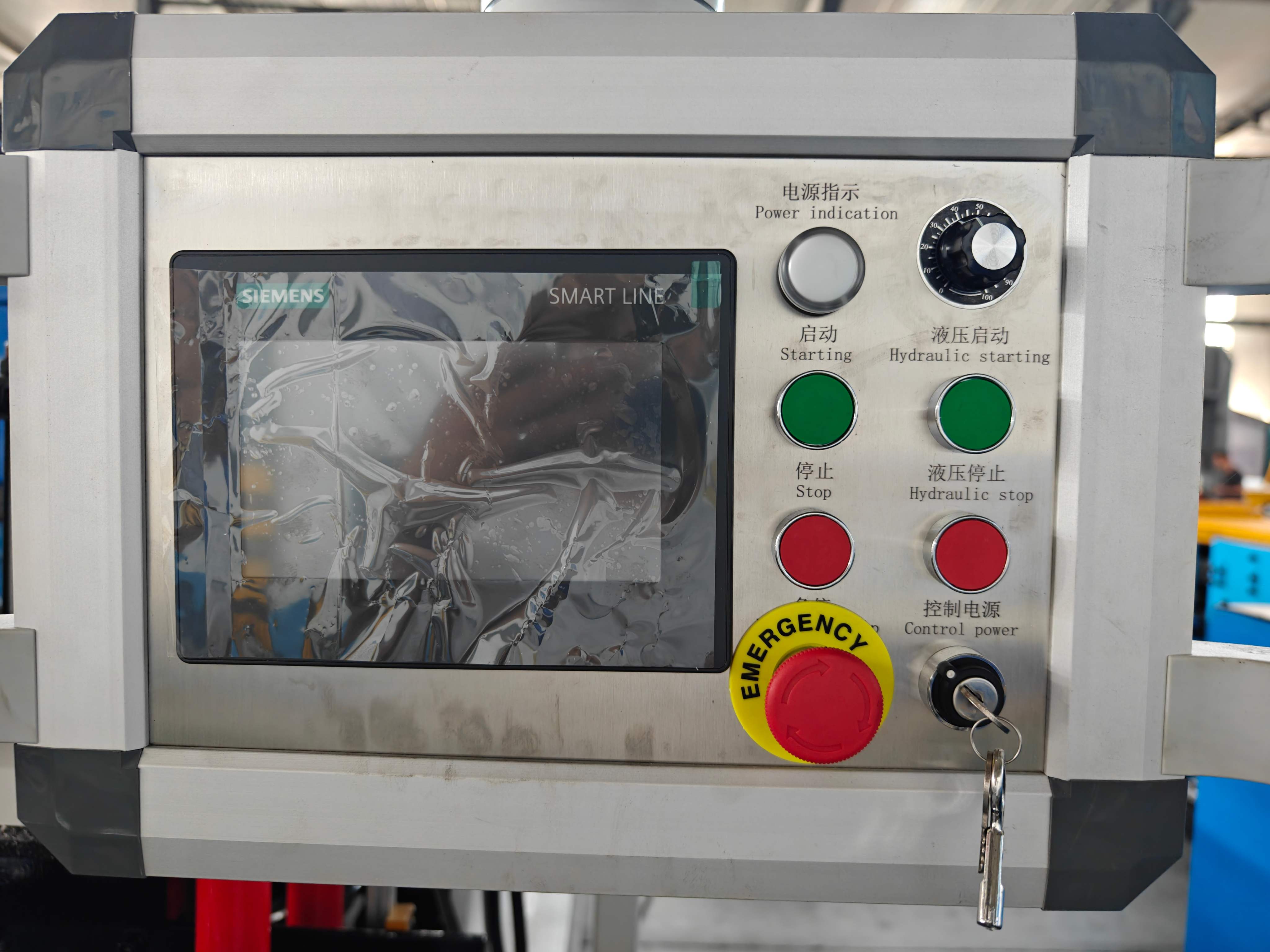

Industrial PLC systems manage the entire production sequence from coil feeding to panel cutting. Operators can preset cutting lengths with digital precision, eliminating manual measurement errors.

The hydraulic cutting mechanism incorporates cooling channels to prevent blade overheating during extended production runs. This thermal management extends blade service life to approximately two years under normal operation.

Automatic stacking systems can be integrated to reduce labor requirements. Finished panels are organized sequentially, ready for immediate transportation to construction sites.

Technical Specifications

Quality Assurance Protocol

Material Processing Standards

Before delivery, every metal wall panel machine undergoes full-load running tests using actual coil materials. This verification process confirms that the hydraulic system maintains stable pressure throughout extended production cycles.

Shaft run-out inspection ensures rotational deviation remains below 0.05mm. Measurements exceeding this threshold result in immediate roller recalibration to prevent vibration-induced profile inconsistencies.

The shear burr check evaluates cutting blade performance using Cr12MoV steel standards. Finished panel edges must meet burr-free criteria to prevent installation injuries and edge corrosion.

International Certification Compliance

Our manufacturing facility maintains ISO 9001 quality management certification, ensuring systematic quality control at every production stage. CE certification validates compliance with European safety and environmental directives.

North American CAS certification demonstrates adherence to advanced technical standards required for export to demanding markets. These credentials provide assurance when selecting equipment for mission-critical projects.

Versatile Application Scenarios

Industrial Construction Projects

Pre-engineered building manufacturers rely on our machines to produce high-rib trapezoidal profiles for warehouse exteriors. The G550 high-yield steel compatibility ensures panels withstand extreme wind loads in coastal industrial zones.

The continuous forming process eliminates the material waste associated with traditional press brake methods. Construction contractors report up to 15% material savings compared to manual fabrication approaches.

Commercial Architectural Facades

Concealed-fixing wall panel production requires exceptional surface flatness to prevent visual oil canning effects. Our precision roller alignment systems maintain uniform pressure distribution across the entire material width.

Architectural firms specify our equipment for projects requiring consistent color matching across thousands of square meters. The chrome-plated roller surfaces protect pre-painted coatings from scratching during the forming process.

Modular Building Manufacturing

Container house producers utilize our metal wall panel machine to manufacture lightweight wall cladding from 0.3mm materials. Despite the thin gauge, the multi-station forming sequence prevents spring-back deformation common with thinner metals.

The rapid profile changeover capability supports diverse product lines within compact factory spaces. This flexibility proves essential for manufacturers serving both domestic and export markets with varying design requirements.

Expert Research Partnership

Zhongtuo maintains strategic collaboration with Yanshan University's National Cold Rolled Strip Equipment and Process Engineering Research Center. This partnership integrates finite element analysis (FEA) and AI-assisted simulation into roll design optimization.

PhD researchers conduct on-site equipment development at our production facility. Their work focuses on asymmetric profile forming mechanisms and intelligent automation control systems that enhance machine responsiveness.

Virtual debugging technology enables remote commissioning for international installations. Cloud-based monitoring platforms provide real-time diagnostics, reducing downtime for customers operating in regions with limited technical support infrastructure.

FAQ

Q：Can one machine produce multiple wall panel profiles?

A：Standard configurations produce one specific profile to maximize precision. However, cassette-change roller systems allow profile switching within 4-6 hours for manufacturers requiring product variety.

Q：How do you prevent material scratches on pre-painted coils?

A：Our rollers receive hard chrome plating and mirror polishing to minimize surface friction. Entry guide systems align materials to the roller centerline, preventing edge contact that causes coating damage.

Q：What maintenance schedule should operators follow?

A：Perform daily inspections of chain tension and lubrication points. Quarterly checks should include roller surface examination and cutting blade gap measurement. Annual professional servicing ensures optimal long-term performance.

Q：Does the system support aluminum coil processing?

A：Yes, with specialized roller surface treatments and adjusted forming pressures. Aluminum's softer composition requires reduced station pressure to prevent material galling during the forming sequence.

Q：What causes dimensional variations in finished panels?

A：Inconsistent material entry angles typically produce twisted or bowed panels. Proper leveling shaft adjustment and feed guide calibration eliminate these geometric deviations before material enters forming stations.
