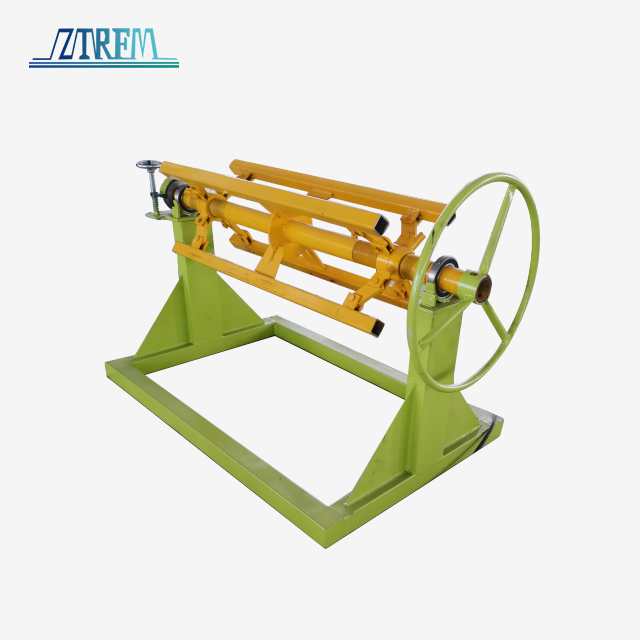

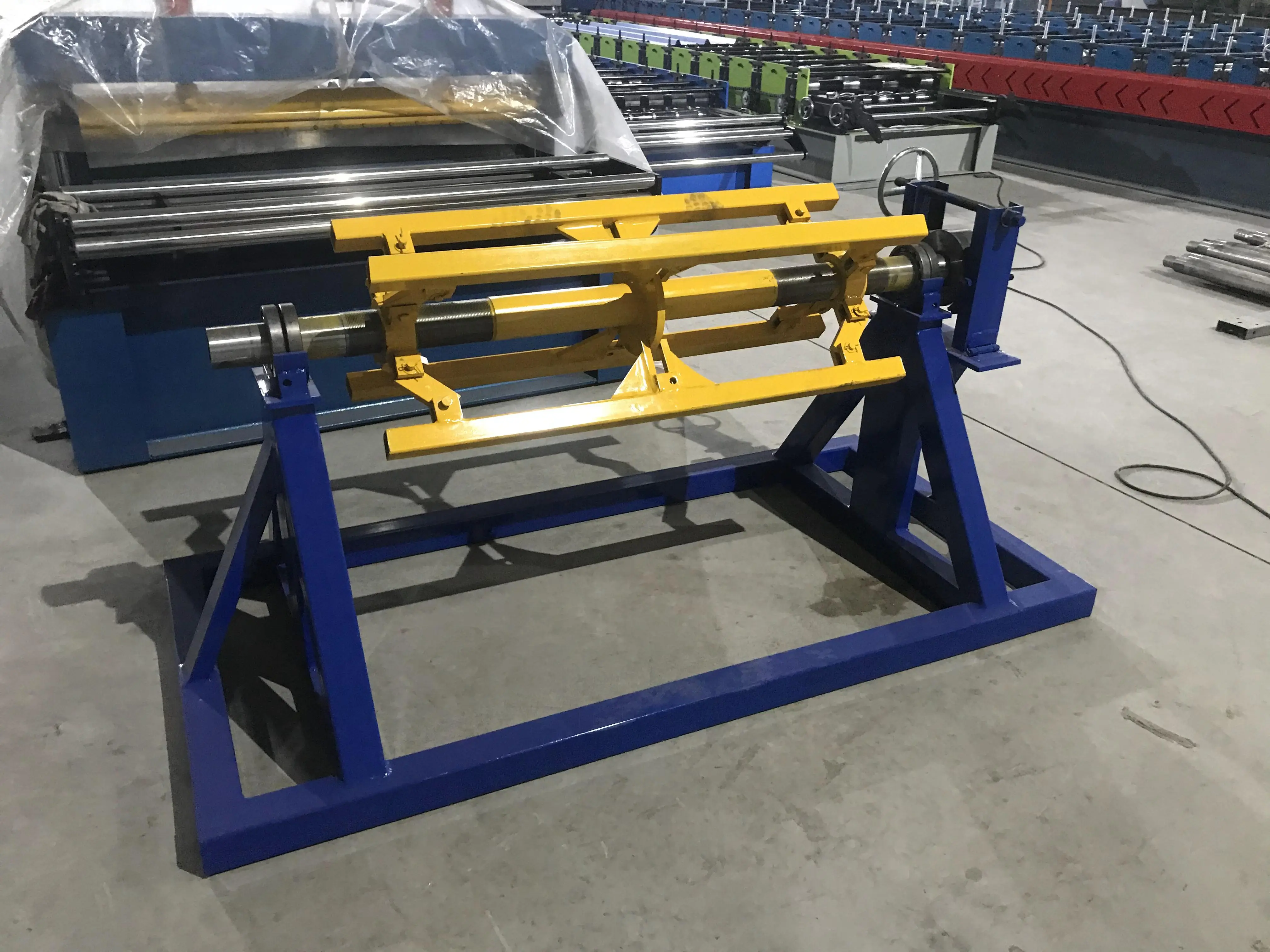

Manual decoiler

Manual Decoiler – Durable & Cost-Effective Coil Unwinding Solution

Cangzhou Zhongtuo Roll Forming Machinery Co., Ltd. offers a robust Manual decoiler engineered for reliable metal coil handling in light to medium production environments. This passive-type uncoiling system features a loading capacity of 5-10 tons, accommodates inner diameters from 450-550mm through manual adjustment, and operates entirely without electricity or hydraulics. Equipped with an adjustable friction brake and precision-machined mandrel expansion mechanism, our product delivers controlled material pay-off for steel, aluminum, and copper coils, making it the preferred choice for cost-conscious manufacturers seeking zero-energy operation and maintenance-free durability in roll forming, stamping, and construction applications.

What Makes Our Manual Decoiler Essential for Your Production Line

Metal fabricators working with coil materials face a critical challenge: how to unwind heavy coils safely and consistently without the complexity of motorized systems. Our product solves this by providing a stable rotational axis that prevents coil collapse, material tangling, and surface scratching.

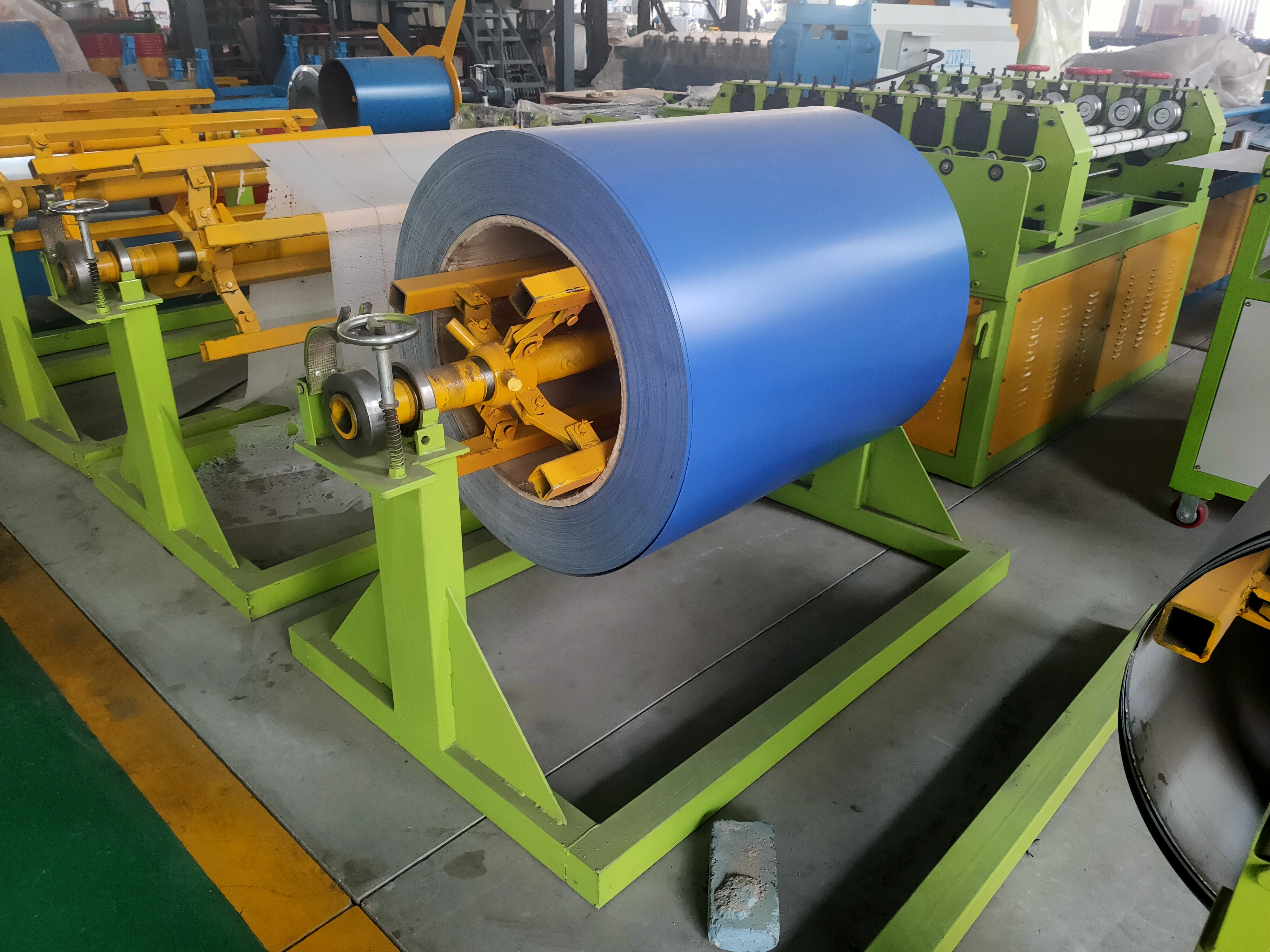

Unlike floor-based unwinding methods that create workplace hazards, this equipment holds the coil securely on an expanding mandrel. The drag brake system applies adjustable resistance to counteract rotational inertia, stopping the coil instantly when your roll former or press pauses.

This simple mechanical design eliminates the capital expenditure of hydraulic systems while maintaining professional-grade performance. For job sites without reliable power or workshops prioritizing lean operations, this solution delivers exactly what you need—nothing more, nothing less.

Technical Specifications

Key Advantages for Metal Fabrication Operations

Zero Operating Costs

This equipment requires no electricity, compressed air, or hydraulic power. You eliminate ongoing energy expenses while gaining the flexibility to operate in remote locations or temporary job sites.

Simplified Maintenance Protocol

Heavy-duty tapered roller bearings handle radial loads with minimal wear. Grease the spindle every 3-6 months depending on usage intensity—that's the entire maintenance schedule. No sensors, motors, or control panels to troubleshoot.

Universal Coil Compatibility

The manual expansion system accommodates standard mill coils within the 450-550mm ID range. For larger diameter cores, optional A-frame adapters extend the range to 610mm without replacing the base unit.

Precise Tension Control

The side-mounted handwheel adjusts brake friction in real-time. Tighten it to prevent coil coasting when your machine stops; loosen it to reduce drag during high-speed feeding. This direct mechanical feedback gives operators tactile control that electronic systems can't replicate.

Robust Structural Integrity

Welded heavy-gauge steel construction withstands the moment-arm stress of full-capacity coils. Our design passes static load testing at 1.25x rated capacity with deflection tolerances within industry standards.

Ideal Applications Across Industries

Portable Roofing & Construction Equipment

Pair this decoiler with standing seam machines or gutter roll formers on construction sites. The mechanical operation functions reliably on uneven ground without needing power hookups, making it indispensable for outdoor fabrication.

Stamping & Hardware Production

Feed narrow strip coils into progressive dies for brackets, clips, or hinges. The friction brake maintains constant strip tension, ensuring consistent pitch accuracy in your stamping operations without material jerking.

HVAC Ductwork Fabrication

Support intermittent cut-to-length operations for galvanized steel. When your shear cycles, the instant-stop brake prevents loose sheet loops from accumulating on the floor—improving both safety and material handling efficiency.

Light Gauge Roll Forming

Works seamlessly with purlin machines, decking formers, or panel lines processing 0.3-1.2mm materials with the Manual decoiler. The passive unwinding complements feeder systems without adding complexity to your line synchronization.

Professional Quality Control Standards

Every unit undergoes rigorous inspection before shipment. We verify mandrel concentricity to ±0.5mm runout tolerance—poor alignment causes material bouncing that creates surface defects in your finished products.

Weld integrity receives visual and penetrant testing. The pillar-to-base connection and spindle housing must withstand full-capacity moment loads without stress cracking over thousands of operation cycles.

Brake torque consistency testing ensures linear tension adjustment from full release to full lock. We eliminate sticking or slipping points that would compromise your operators' ability to dial in perfect material tension.

As an ISO 9001 certified manufacturer with CE compliance, we apply the same quality standards to this manual equipment as our automated production lines. Your investment receives the protection of internationally recognized manufacturing protocols.

Why Choose Zhongtuo Roll Forming Machinery

Since 2014, we've specialized in cold roll forming equipment design and manufacturing. Our partnership with Yanshan University's National Cold Rolled Strip Equipment Engineering Research Center brings advanced simulation and optimization technology into every product we build.

We've exported machinery to over 150 countries, earning ISO 9001, CE, and CAS certifications that demonstrate our commitment to quality and safety. Our technical team understands the specific requirements of different industries and regions, allowing us to provide customized solutions that match both international standards and local operational preferences.

When you work with us, you receive more than equipment—you gain access to engineering expertise, responsive technical support, and the reliability that comes from a decade of manufacturing excellence.

FAQ

Q：How do I prevent the coil from spinning out of control when the machine stops?

A：Adjust the tension bolt on the friction brake until you feel moderate resistance. The brake must overcome the coil's rotational inertia without straining your roll former's pulling motor. Test this balance during initial setup with your specific coil weight and line speed.

Q：Can this handle coils with different inner diameters?

A：Yes, within the 450-550mm range through the manual expansion mechanism. For significantly larger IDs like 610mm, order optional A-frame extension plates that bolt onto the existing mandrel segments.

Q：What's the difference between manual expansion and hydraulic expansion?

A：Manual expansion uses a hand-crank to push a tapered wedge that spreads the mandrel leaves outward. Hydraulic systems use cylinder pressure for the same function. The hand-crank maintains portability and eliminates the need for a power pack.

Q：Is there a tipping risk with heavy coils?

A：Stability depends on base footprint and proper installation. Always bolt the unit to the floor in permanent installations. For temporary job sites, ensure the base width accommodates your maximum coil weight, or add counter-weights to the rear legs.

Q：How often should bearings be serviced?

A：Grease the tapered roller bearings every 3-6 months based on usage volume. This prevents seizing, which is the primary failure mode in neglected products. High-volume shops should inspect bearing play annually.
