1.5″ A Narrow Rib Roof Deck Machine: Professional Cold Roll Forming Solution

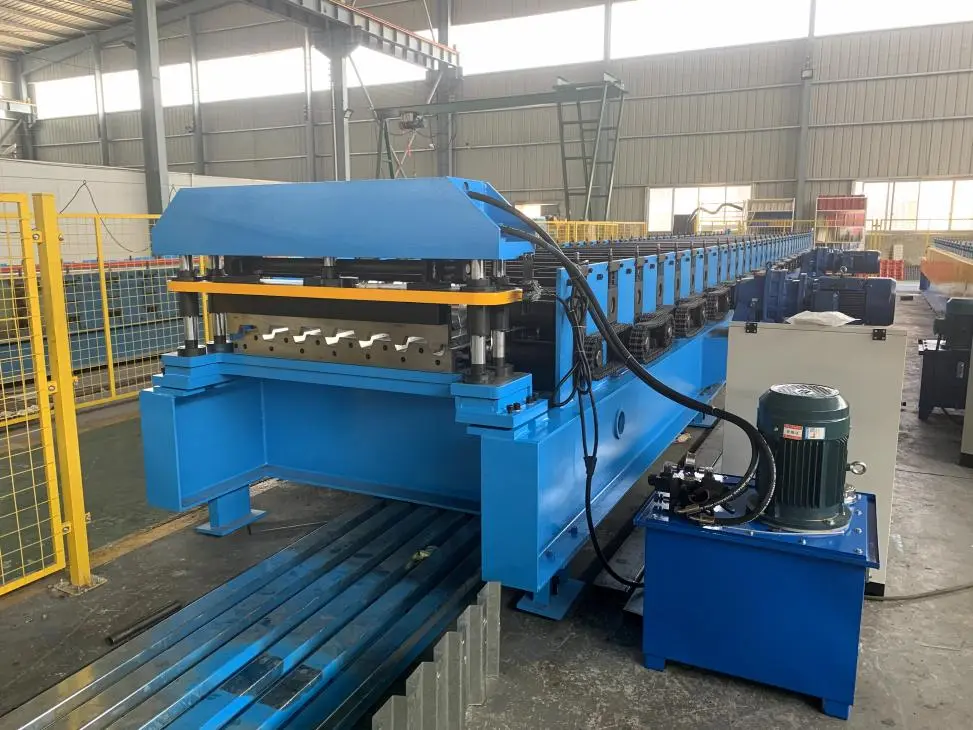

The 1.5″ A Narrow Rib Roof Deck Machine from Cangzhou Zhongtuo represents precision engineering designed for commercial roofing contractors. This specialized equipment produces Type A metal roof deck profiles with 1.5-inch depth and distinctive narrow rib openings. Operating at speeds up to 20 m/min across 28 forming stations, our machine processes 18-22 gauge galvanized steel with exceptional accuracy. Built on a robust 400# H-steel frame with 20mm steel plate construction, it features Gcr12mov chromium-treated rollers and 110mm diameter hard chrome-plated shafts. This industrial-grade system ensures precise profile formation while maintaining tolerances within ±1mm for demanding commercial applications.

What Is a 1.5″ A Narrow Rib Roof Deck Machine?

This specialized cold roll forming system creates Type A metal roof deck panels. The profile features narrow top ribs—typically around 1 inch wide—combined with wider bottom valleys.

Why does this matter to you?

The narrow rib design solves a critical problem. When you're installing rigid insulation on commercial flat roofs, softer materials can sag into wide flutes. The 1.5″ A Narrow Rib Roof Deck Machine produces panels that maximize contact surface area. Your insulation stays flat and properly supported.

Professional roofing contractors choose this profile when working with non-structural insulation systems. It prevents dishing and bridging issues that compromise thermal performance. The result? Better roof integrity and longer-lasting installations for your clients.

Technical Specifications & Parameters

Our machine delivers enterprise-level performance through precision engineering:

Core Advantages for Your Business

Precision Engineering

Our machine features Gcr12mov rollers hardened to HRC 58-62. This means you get consistent profile dimensions throughout production runs. No mid-shift adjustments. No rejected panels.

Heavy-Duty Construction

The 20mm middle plate welded structure with 400# H-steel frame handles continuous operation. You can run multi-shift production schedules without worrying about frame fatigue or alignment drift.

Process High-Tensile Steel

Many standard machines struggle with yield strengths above 50 ksi. Our 110mm diameter shafts and rigid frame design prevent shaft deflection. You can process higher-grade materials without spring-back issues.

Long Tooling Life

Chrome treatment on rollers provides anti-corrosion protection and increased hardness. Your maintenance costs stay predictable. Tooling lasts through extended production cycles before requiring re-chroming.

Speed Flexibility

Variable speed control from 0-20 m/min lets you optimize for different scenarios. Run slower for thicker gauges or high-tensile materials. Increase speed for standard 22-gauge production runs.

Key Applications

Commercial Flat Roof Construction

When your project specifications call for rigid insulation over metal decking, the narrow rib profile becomes essential. The panels provide continuous support that prevents soft insulation from sagging between ribs. This maintains thermal integrity and creates a proper substrate for TPO or EPDM membranes.

Renovation and Retrofit Projects

Many buildings constructed before 1980 used Type A decking. If you specialize in commercial renovations, you need exact-match replacement panels. Our 1.5″ A Narrow Rib Roof Deck Machine produces profiles that integrate seamlessly with existing roof structures. No need for costly complete roof replacements.

Acoustical Roofing Systems

For gymnasiums, manufacturing facilities, and industrial buildings, sound control matters. When equipped with perforation capabilities, the machine produces panels that trap sound within the narrow flutes. Fill these with fiberglass batting, and you significantly reduce noise reverberation.

Our Manufacturing Excellence

Since 2014, Zhongtuo has specialized in cold roll forming machinery. We're not just equipment suppliers—we're manufacturing partners.

Research-Backed Innovation

Our collaboration with Yanshan University's National Cold Rolled Strip Equipment and Process Engineering Research Center brings cutting-edge technology to your production floor. Graduate researchers work directly in our factory, developing:

·  AI-assisted finite element analysis for roll design optimization

·  Virtual commissioning systems that reduce debugging time

·  Cloud-based remote monitoring for predictive maintenance

Quality You Can Verify

As a national-level high-tech enterprise, we maintain certifications including ISO 9001, European CE, and North American CAS standards. These aren't just badges—they represent rigorous quality control at every manufacturing stage.

Global Experience

We've exported equipment to over 150 countries. This experience means we understand regional power requirements, local building codes, and climate-specific material considerations. You get machines configured for your specific operating environment.

Technical Support and Customization

Pre-Purchase Consultation

Not sure if Type A profiles fit your market? Our technical team helps you analyze local building specifications, insulation systems, and contractor preferences. We provide sample profiles before you commit.

Installation and Training

Remote commissioning capabilities mean faster setup. Our engineers can diagnose and optimize your machine through cloud-based systems. Your operators receive comprehensive training on operation, maintenance, and troubleshooting.

Ongoing Partnership

Equipment ownership is a long-term relationship. We provide technical support, replacement parts, and process optimization guidance throughout your machine's operational life.

Frequently Asked Questions

Q1: Can this machine also produce Type B deck profiles?

No, Type A and B profiles require different tooling geometry. Type A features narrow top ribs with wide bottom valleys. Type B is the inverse. While dual-profile machines exist, they add complexity. Dedicated machines provide better stability and consistency for your specific production needs.

Q2: What's the expected tooling life?

With proper lubrication and maintenance, GCr15 chromed rollers typically produce 1-3 million meters before requiring re-chroming or replacement. Keep lubrication protocols consistent, and you'll maximize this lifespan.

Q3: How do you handle high-tensile steel with yield strength above 50 ksi?

Our machine uses larger 110mm shaft diameters and reinforced frame construction to prevent deflection. For materials with significant spring-back characteristics, we can incorporate over-bending stations into the forming sequence during machine configuration.

Q4: What power supply does the machine require?

This is heavy industrial equipment. Standard configuration requires 3-phase power at 380V or 480V, 50/60Hz. Total power consumption typically exceeds 30kW when you account for hydraulic systems and main motors. We'll work with you to ensure compatibility with your facility's electrical infrastructure.

Q5: Can you integrate hole punching for plug welding?

Yes. Many customers add pre-punching or post-punching press units to create standard weld washer patterns. This reduces manual preparation time during installation and ensures consistent hole placement according to structural engineering specifications.

Q6: How does the machine compare to your Type B deck equipment?

Both produce 1.5-inch deep profiles, but serve different applications. The product excels when you're working with softer insulation materials that need maximum support. Type B machines produce wider top ribs better suited for certain structural loading conditions. Your choice depends on your target market and typical project specifications.

Why Choose Zhongtuo?

Complete Solutions

We provide more than machinery. Raw materials, accessories, and technical support come from a single source. This simplifies your supply chain and ensures compatibility across your production system.

Proven Track Record

Strategic partnerships with Siemens and recognition as an Alibaba Verified Pro Supplier demonstrate our industry standing. Our graduate practice base status with Yanshan University shows commitment to continuous innovation.

Customer-Centered Approach

We operate on three core principles: Time is money. Quality is life. Customer is God. These aren't empty phrases—they guide every decision from design through after-sales support.

Continuous Innovation

Our 2022 designation as a national high-tech enterprise reflects ongoing investment in R&D. We don't just build machines—we develop smart manufacturing solutions that evolve with industry demands.

Investment in Your Future

Purchasing a product represents a strategic decision. You're entering or expanding in a specialized market segment. The narrow rib profile serves specific applications that command premium pricing from contractors who understand its technical advantages.

Our machine gives you the production capability to serve this market with consistent quality. The robust construction ensures years of reliable operation. The precision engineering means your panels meet strict tolerances that professional contractors demand.
