Advantages of the R101 Trapezoid Sheet Forming Machine

The R101 Roofing Sheet Making Machine is a big step forward in industrial metal-making technology. It has a lot of great benefits for makers who want stable, high-performance equipment. This high-tech trapezoid sheet-making system uses precise engineering and automatic controls to make high-quality roofing shapes that are always the same. The machine is very good at being operationally efficient. It keeps the accuracy of its shapes while cutting down on production costs and waste. Its strong construction and smart design make it a great choice for companies in the competitive roofing industry that need reliable, long-term manufacturing solutions.

How the R101 Roofing Sheet Making Machine Works: Core Features and Technical Insights?

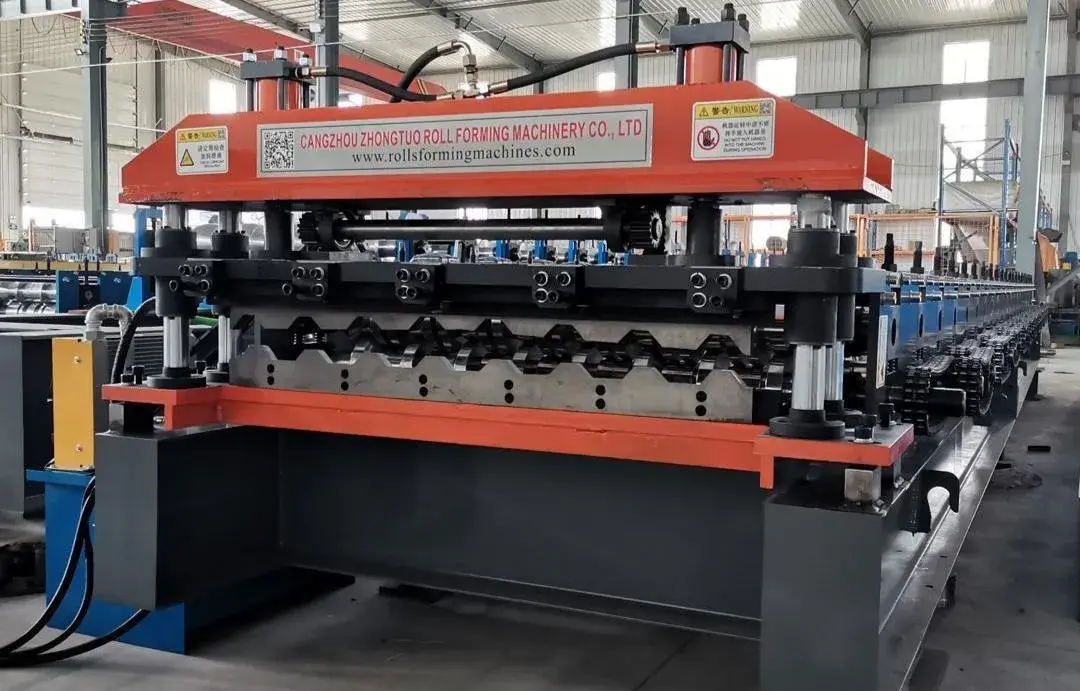

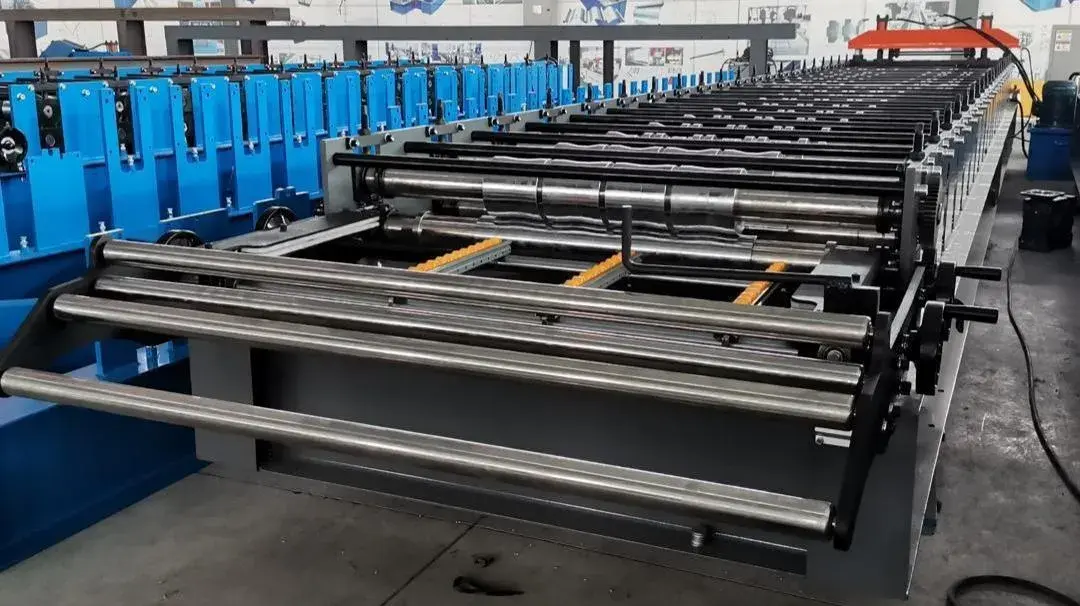

A complex cold roll forming process turns raw metal coils into exact roofing shapes on the R101 machine, which makes roofing sheets. It does this by using advanced trapezoid sheet-forming technology. The machine works with materials that are between 0.3 mm and 0.8 mm thick. It has 18 carefully designed making stations that shape the metal gradually without damaging its structure.

Advanced Automated Workflow Integration

Step-by-step automatic processes on the machine make a smooth production setting where feeding, roll making, cutting, and packing can all be done with little help from a person. The built-in 5-ton decoiler, which can be used manually or with a motor, makes sure that the material feed rates stay the same, which keeps production going. This automatic method cuts down on the need for workers while improving quality control and accuracy in production.

When joined with an easy-to-use 5.7-inch tablet display, the Delta PLC control system gives workers simple ways to handle machines. This high-tech control system lets makers precisely program lengths and set quantities, which makes it easy to meet the needs of a wide range of orders.

Technical Specifications and Energy Efficiency

Some important technical details about the machine show how energy-efficient it is and how well it is built. The 5.5 kW main motor gives the machine the right amount of power for constant use, and the 4 kW hydraulic unit lets you control the cutting precisely. The machine can work at speeds of up to 15 meters per minute and keeps up high levels of production without lowering quality.

The machine is very stable even when it's working at high speeds, thanks to its 70 mm shaft width and 16 mm wall-plate H-beam frame construction. These technical features keep the pressure constant across all 18 places and reduce shaking, which leads to better profile accuracy and surface finish quality.

Advantages of the R101 Roofing Sheet Making Machines: Benefits That Matter to Businesses

The R101 Roofing Sheet Making Machine has many benefits that are meant to help industrial makers in a variety of fields with their operating problems. Businesses can make smart investment choices that help them reach their production and financial goals when they know about these perks.

Enhanced Production Efficiency and Reliability

Because the machine can work at high speeds and with few breaks, it can make a lot of things. The R101 can form at up to 15 meters per minute, which is a lot faster than the old ways of doing things, but still to the same high standards. The strong build and carefully chosen high-quality parts make sure that the machine always works, even when time is of the essence for production.

The machine's high-tech parts, like the precisely ground wheels and stronger cutting edges, make output stable. All of these parts work together to make the machine last longer and require less maintenance. This makes it possible to make production plans that can be relied on to meet customer service responsibilities.

Superior Cost-Effectiveness and Return on Investment

One of the best things about the R101 system is that it is cost-effective. This is possible thanks to a number of operating changes that lower total manufacturing costs. Compared to older making technologies, the machine's energy-efficient design uses less power. Its automatic operation cuts down on labor costs and waste by controlling cutting precisely.

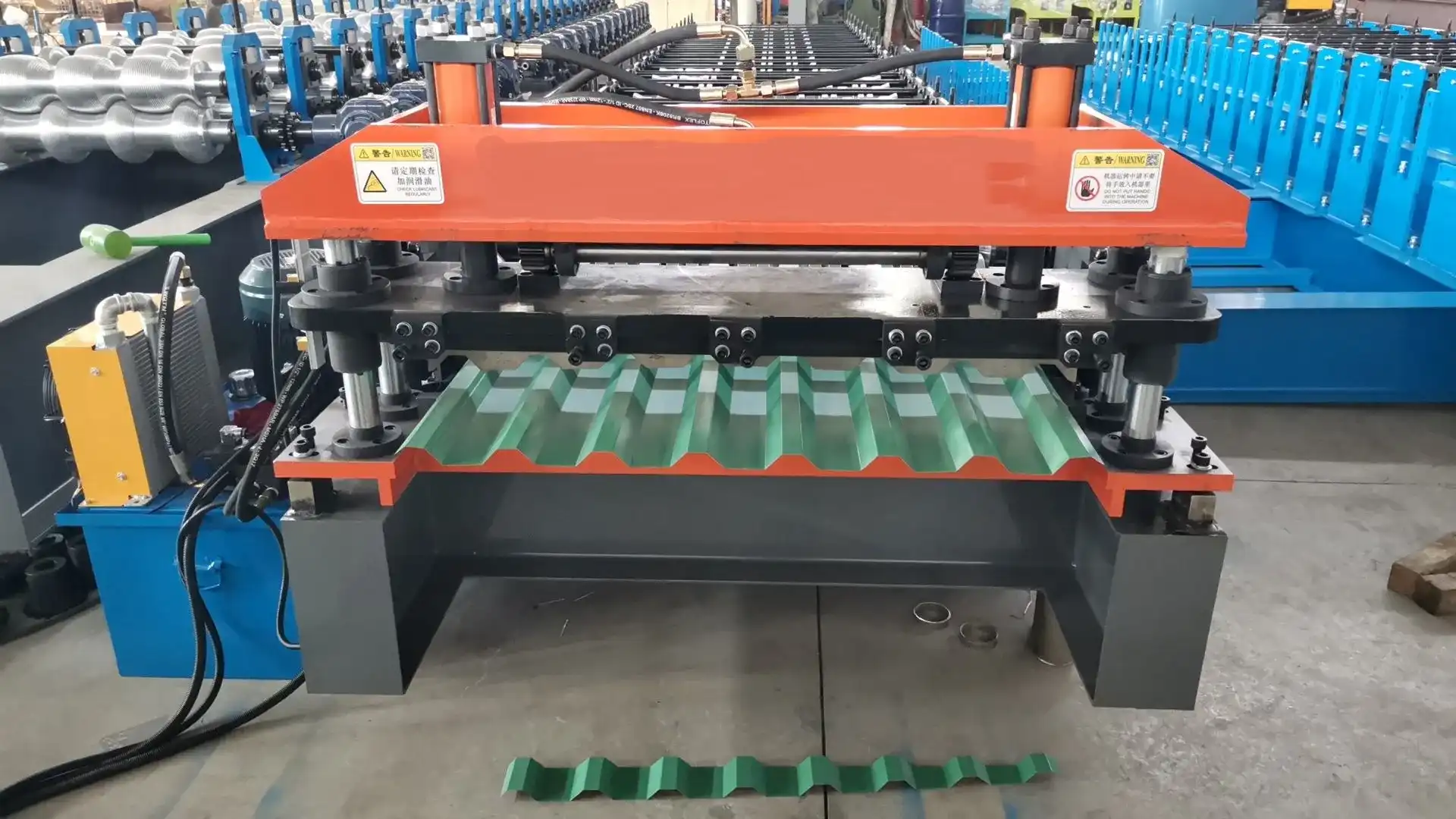

The hydraulic shear system keeps the quality of the cuts within ±2 mm, so there is no need for expensive repair or material loss. When this level of accuracy is paired with regular making quality, makers who handle big amounts of roofing materials can get higher output rates and make more money.

User-Centric Design and Maintenance Simplicity

The R101 was designed with the user in mind, so it's easier to use and maintain. This means that less training is needed, and it's easier to run. The easy-to-use tablet interface lets workers quickly change settings and keep an eye on production factors. The modular design makes it easy for repair staff to get to the machine.

Simple maintenance procedures, like easy debugging steps and easily available new parts, make machines last longer and cause fewer interruptions in production. This design theory backs up the need for ongoing operation, which is necessary to meet customer demand plans.

R101 vs. Other Roofing Sheets Making Machines: Making the Right Choice for Your Business

When looking at different types of making equipment, the R101 Roofing Sheet Making Machine stands out because it is more advanced in terms of technology and works with more materials than other systems. The machine's 18-station forming process shapes the material gradually, which stops stress cracks and keeps the material's qualities stable during the forming process.

Comparative Performance Analysis

When you compare the R101's performance, you can see that it is faster, more accurate, and more flexible in how it works. The machine can work with different kinds of materials, like stainless steel and prepainted frames. This lets makers respond more quickly to market changes and make more products.

The R101 is more advanced than basic making equipment because it has built-in quality tracking, customizable length control, and automatic cutting routines. These features lower the level of skill needed by operators while also increasing accuracy in production and lowering waste.

Investment Considerations and Operational Savings

The starting cost of the machine is in line with what is expected of high-end industrial equipment. However, it will save the company a lot of money in the long run by cutting down on labor costs, energy use, and wasted materials. Manufacturers who want to improve their production skills can get the help they need with financial choices that are flexible and full of support services.

Long-term practical savings, like higher product quality that gets higher prices on the market, more efficient operations, and lower upkeep costs, more than cover the initial investment costs. These things help make estimates of a good return on investment, which supports buying tools.

Procurement Guide: Purchasing and After-Sales Services for the R101 Machine

Acquiring an R101 machine involves comprehensive procurement support designed to ensure successful implementation and long-term operational success. The procurement process includes technical consultation, customization options, and extensive after-sales service commitments that protect manufacturer investments.

Comprehensive Warranty and Support Services

The R101 Roofing Sheet Making Machine comes with comprehensive warranty coverage that protects against manufacturing defects and provides peace of mind for industrial buyers. Professional installation services ensure proper machine setup and calibration, while in-depth technical training prepares operators for efficient, safe operation.

Genuine spare parts availability supports long-term machine maintenance requirements, with component upgrades available to enhance performance capabilities as production needs evolve. This comprehensive support framework reinforces confidence for B2B clients investing in industrial roofing production solutions.

Global Distribution and Service Network

The machine is available through authorized distributors and direct manufacturer channels, providing streamlined ordering processes and secure international shipping capabilities. The global service network ensures prompt technical support and parts availability regardless of installation location.

Procurement flexibility includes customization options to meet specific production requirements and integration capabilities that accommodate existing production line configurations. This adaptability ensures optimal equipment matching with manufacturer's operational needs and facility constraints.

Conclusion

The R101 Trapezoid Sheet Forming Machine represents an exceptional investment opportunity for manufacturers seeking reliable, high-performance forming equipment. Its combination of advanced automation, superior build quality, and comprehensive support services addresses the critical needs of modern roofing manufacturers. The machine's proven track record of operational efficiency, cost-effectiveness, and production reliability makes it an ideal choice for businesses committed to maintaining competitive advantages in demanding markets while achieving sustainable growth objectives.

FAQ

1. What material thicknesses can the R101 process handle effectively?

The R101 handles material thicknesses from 0.3 to 0.8 mm with consistent forming quality across this range. This versatility accommodates various substrate specifications commonly used in roofing applications, from lightweight residential materials to heavy-duty commercial substrates.

2. How does the machine's cutting accuracy compare to industry standards?

The hydraulic shear system maintains cutting accuracy within ±2 mm tolerances, exceeding typical industry standards for forming equipment. This precision reduces material waste and ensures consistent product dimensions for downstream assembly operations.

3. What training requirements are needed for operators?

Operator training typically requires 2-3 days of comprehensive instruction covering machine operation, safety procedures, and basic maintenance tasks. The intuitive control interface and automated features minimize learning curves while ensuring safe, efficient operation.

4. Can the machine integrate with existing production lines?

The R101's compact dimensions and flexible configuration options enable integration with most existing production environments. Technical consultation during the procurement process ensures proper planning for seamless integration with current manufacturing workflows.

Partner with ZTRFM for Advanced Manufacturing Solutions

Transform your roofing production capabilities with ZTRFM's industry-leading R101 Roofing Sheet Making Machine. As a trusted R101 Roofing Sheet Making Machine manufacturer with over a decade of engineering excellence, we provide comprehensive solutions that drive manufacturing success. Our ISO9001, CE, and CAS certified equipment delivers exceptional performance backed by global service support across 150+ countries. Contact our technical team at zhongtuorollforming@gmail.com to discuss your specific production requirements and explore customized configurations that optimize your manufacturing operations.
