AG Panel Roll Forming Machine Applications in Construction

AG panel roll forming machines are specialized cold-processing production lines designed to make Agricultural-profile metal roofing and wall panels from steel strips that have already been painted or galvanized. These machines get rid of important manufacturing problems like oil canning in thinner gauges, make sure weathertight side-laps by precisely forming anti-siphon grooves, and increase coil yield efficiency. By automating constant panel production, they greatly improve the quality and regularity of their work on large building projects.

Introduction

The building industry is still changing quickly because people want faster build times, better quality standards, and more cost-effective ways to use materials. As the world changes, AG panel roll forming machine technology has become an important part of making solid metal pieces that meet strict engineering and architecture standards. Purchasing managers, project engineers, wholesalers, and OEM clients now know that picking the right forming tools has a direct effect on the speed of production, the quality of the panels, and the company's long-term profits.

Our guide is tailored to the needs of B2B procurement professionals who are looking at advanced forming solutions. We look at how these specialized tools make manufacturing more efficient while still meeting the high standards for quality control set by current building codes. Understanding the technical specs and operational benefits of this equipment helps you make better investment decisions that are in line with your long-term goals, whether you're expanding operations for large agricultural complexes, residential barndominiums, or industrial facilities.

Understanding AG Panel Roll Forming Machines in Construction

Construction uses of AG panel roll forming machines represent a significant advancement over conventional metal fabrication methods. These production lines are a big step forward from the old ways of making things out of metal.

What Makes These Machines Unique

They're not like other bending tools because they're specifically designed to make the 36-inch net coverage shape with major ribs that are 3/4-inch high and spaced 9 inches apart. For post-frame building applications all over North America, this standard configuration has become the gold standard.

Progressive cold-forming is how the machine works. Metal coil stock moves through a series of roller stages that make the flat material into the final shape. This small-step bending process keeps the material's stress from building up, which can cause cracks or damage to the surface. This is especially important when working with smaller steels like 29-gauge or 26-gauge, which are often used in low-cost projects.

Core Components and Operational Workflow

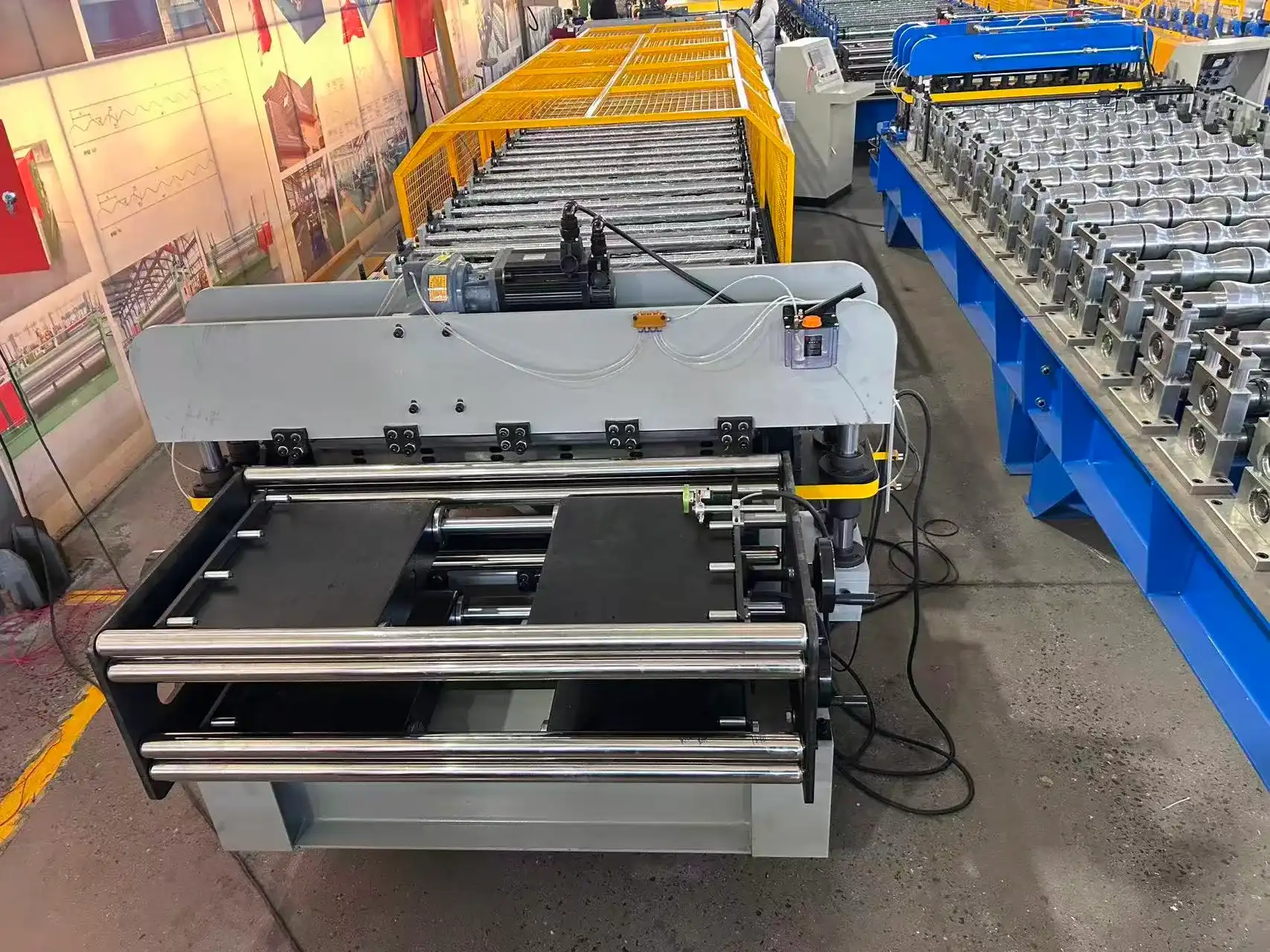

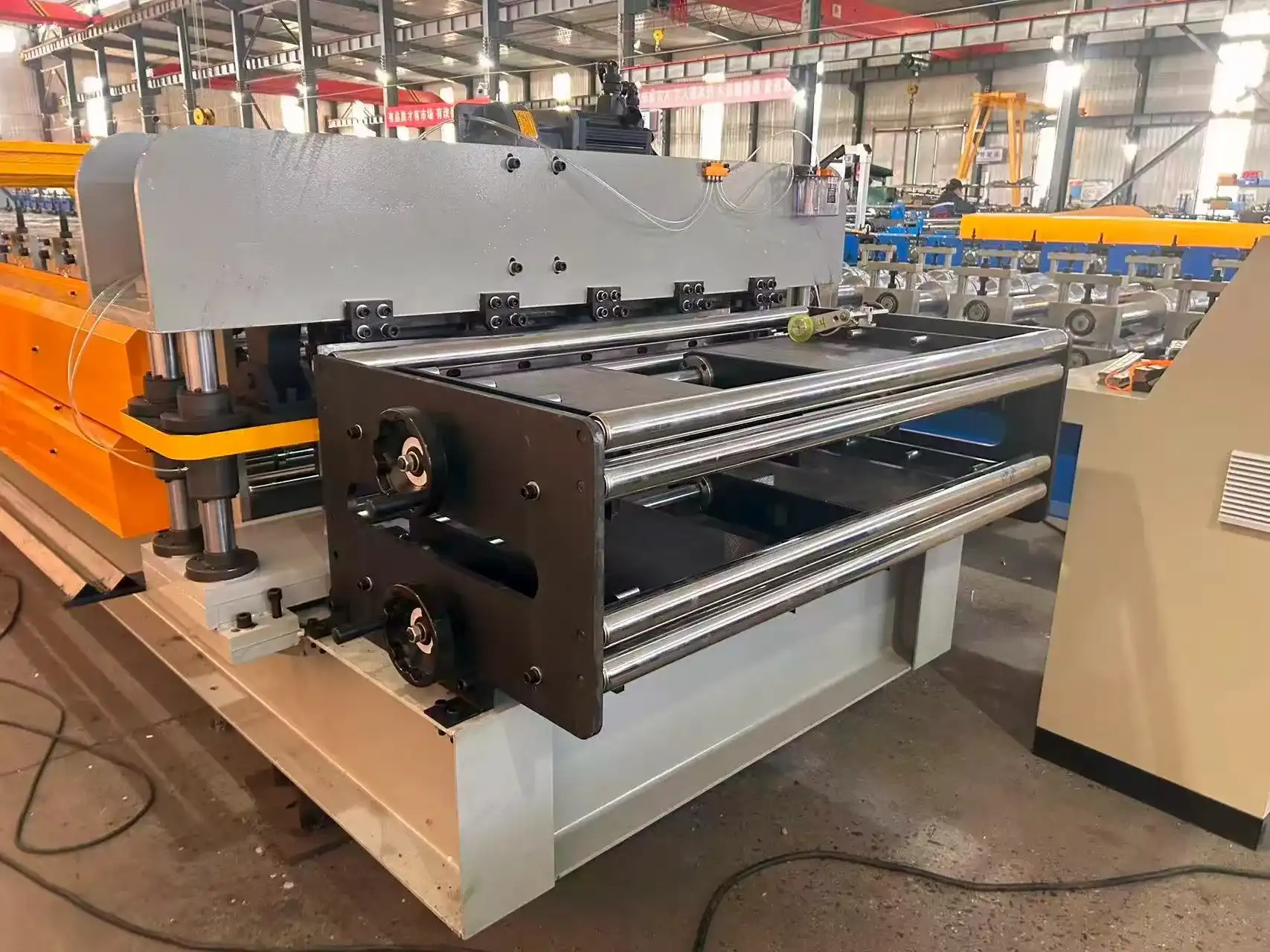

The architecture of the equipment combines several important subsystems that work together in sync. The decoiler gives pre-painted or galvanized coil stock with controlled strain, which stops the material from stretching and losing its shape. Before the material goes into the forming section, entry guides make sure it is perfectly lined up. The forming section usually has 16 to 22 roller stations made of heat-treated 45# steel or Cr12MoV alloy.

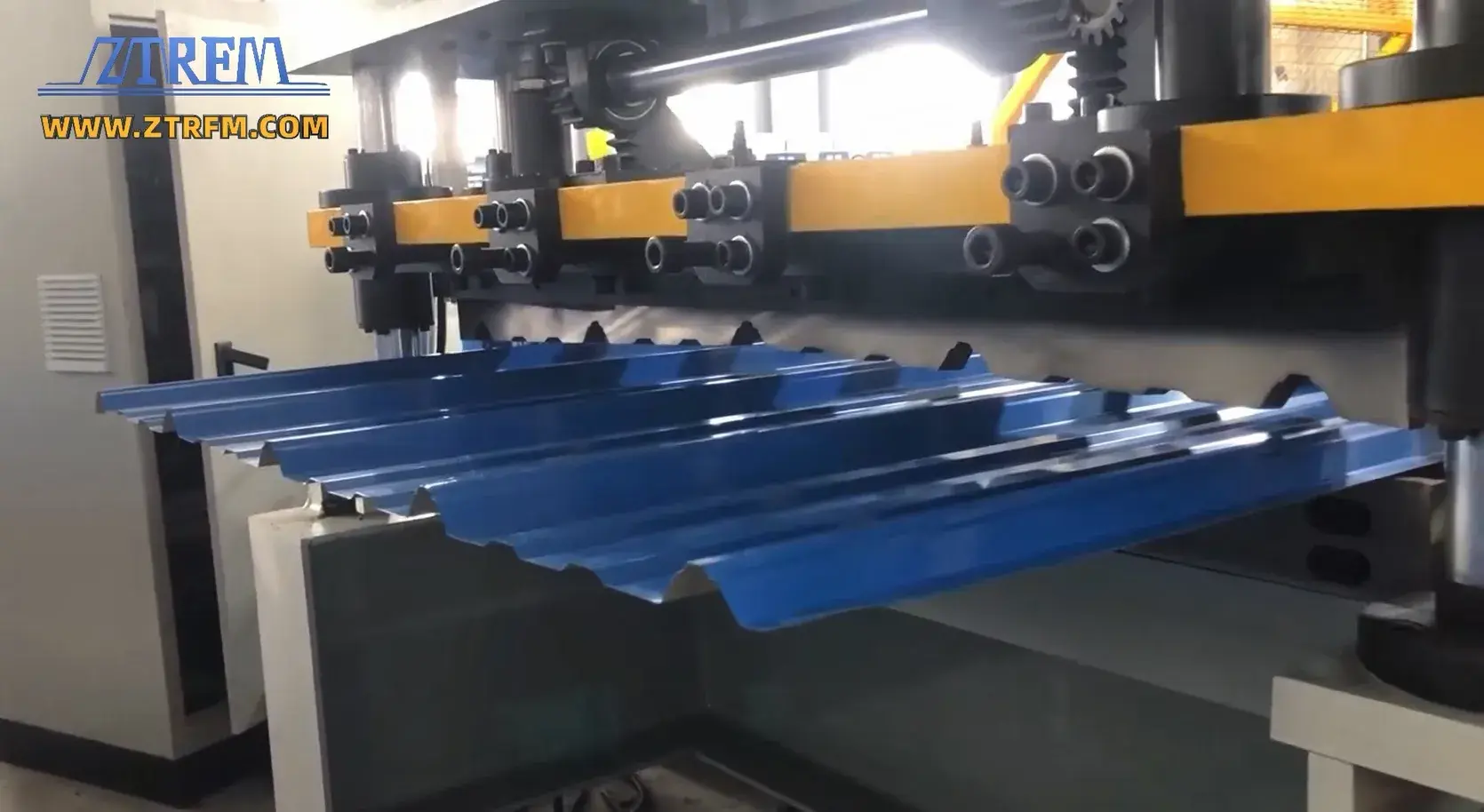

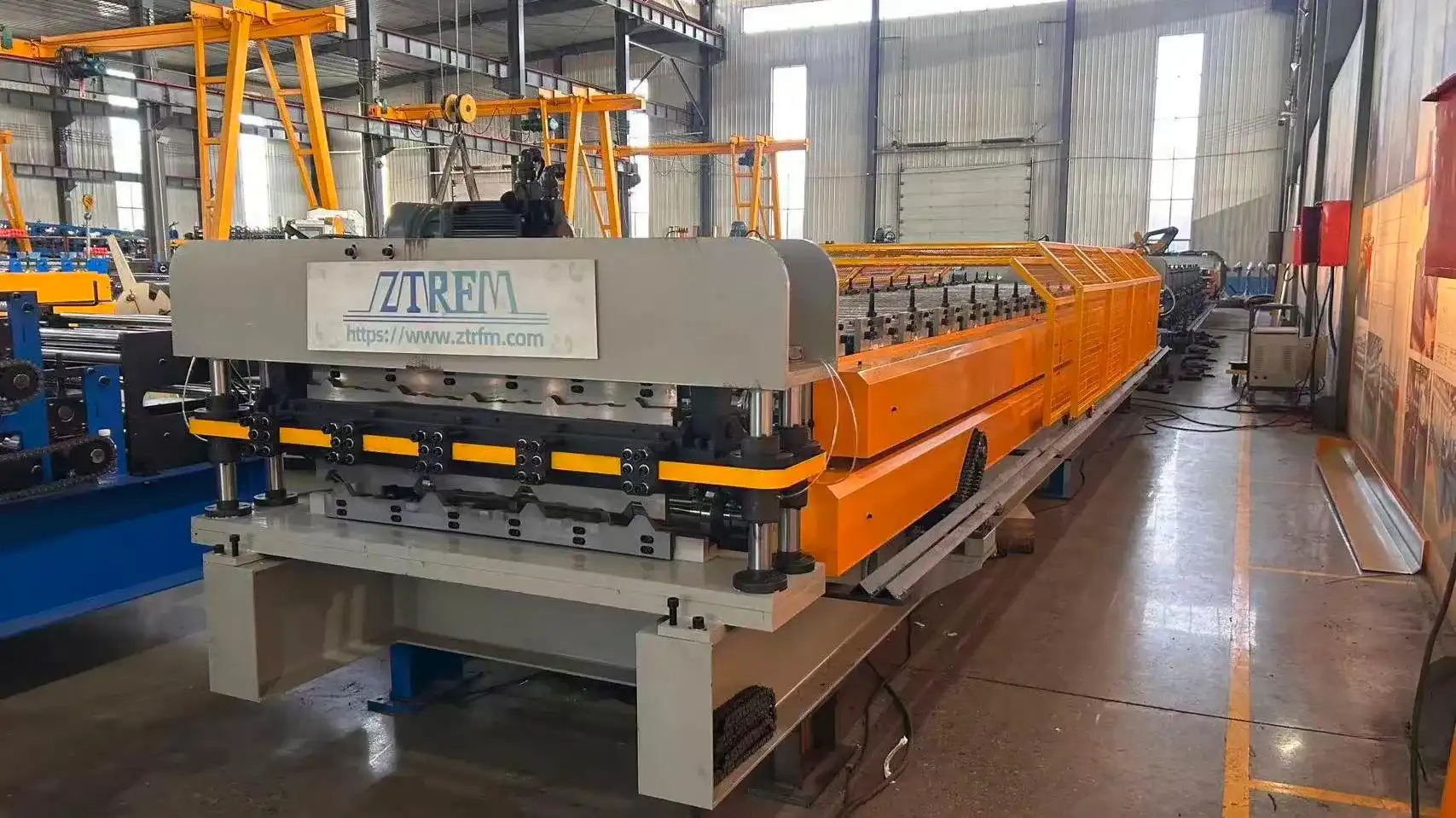

At each roller station, a certain incremental bend is made, which slowly changes the flat sheet into the complicated AG profile geometry. The rollers are hard chrome-plated to a thickness of 0.05 mm. This keeps areas that have already been finished from getting scratched during the forming process. Heavy-duty chain drive or gearbox transmission systems make sure that all stations work in perfect sync with each other. They can go at speeds of 30 to 60 meters per minute, depending on the quality and gauge of the material.

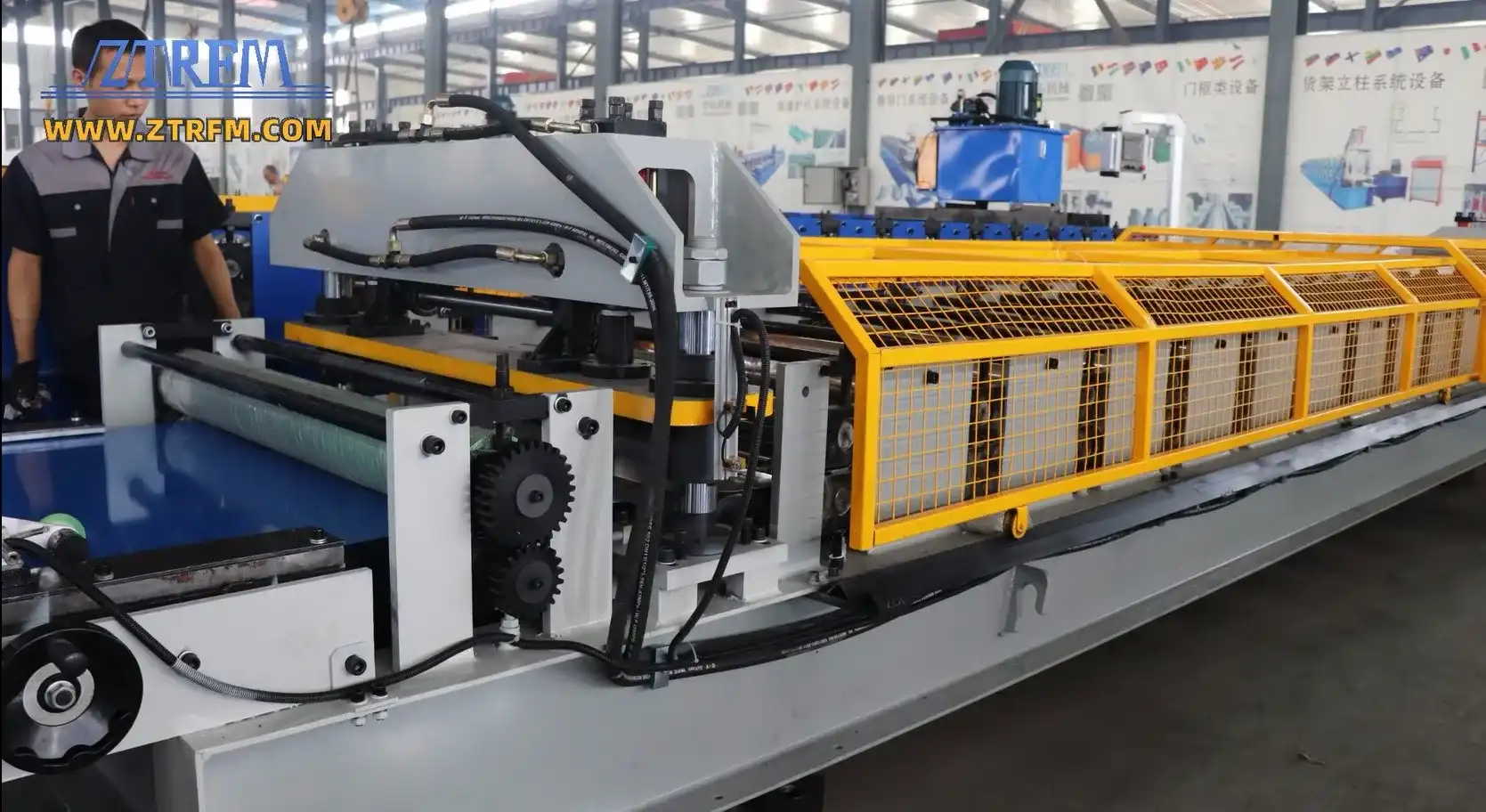

Panels can be cut to predetermined lengths with an accuracy of ±1.0 mm using hydraulic cutting systems with Cr12MoV blades (hardness HRC 58–62). Mitsubishi or Siemens PLC control systems have encoder input for accurate length measurement, and user interfaces let you make quick changes to the profile and keep an eye on the production line.

Automatic vs. Hydraulic vs. Electric Models

Knowing the differences between the power and control systems of AG roofing panel machines helps procurement teams match the capabilities of equipment to the needs of operations. Automatic lines have servo-driven length measuring and hydraulic cutting, so a single person can oversee continuous production runs. These configurations work best in high-volume settings where consistent output and little work are enough to justify the extra cost.

Fluid power is used for both cutting and forming in hydraulic models, which makes them very strong and suitable for high-tensile materials like Grade 80 steel. Heavy-duty applications can rely on hydraulic systems because they are strong, but they usually use more energy than electric options and need regular fluid repair.

Electric drive systems are better at saving energy and running quietly, which makes them appealing to places that want to cut costs. Modern electric servomotors can precisely control speed and accelerate quickly, but their force capacity might make them inconvenient for use with very thick gauges or ultra-high-strength alloys.

Core Applications of AG Panel Roll Forming Machines in Construction

This technology for forming shapes is useful in many areas of building because it can make consistent, high-quality panels in large quantities that would not be possible with traditional methods of manufacturing. The main ways that AG panel roll forming machines are used in construction span agricultural, residential, and industrial sectors.

Large-Scale Agricultural Structures

Post-frame structure is the traditional use for AG profile panels that gave them their name. These panels make buildings like chicken coops, dairy barns, equipment storage areas, and grain processing plants stronger and more resistant to the weather. The ability to be a continuous length is especially useful for large structures with a lot of square footage, because fewer end-lap joints mean fewer possible leak points and faster installation time.

The fact that the material is compatible with galvanized and Galvalume substrates means that it will not rust for decades, even in chemically harsh farming settings. Precision rib formation makes panel nesting uniform, which lets workers get the right side-lap contact even on long roof runs where thermal expansion is a factor.

Residential Barndominium Roofing

Rural-style home building is becoming more and more popular, which has created a big need for metal roofs that look good and operate well. The panels made by these tools have clean, uniform rib lines that look good with modern design tastes and are known to last against hail, snow, and wind uplift.

Precise anti-siphon groove formation stops water from capillary action between overlapping panels, which is an important performance feature in residential applications where ceiling damage from water getting in would not be acceptable. The machine can work with special coats like PVDF and Kynar without harming the protected finish. This gives architects and builders more colour choices.

Industrial and Commercial Applications

AG profile panels are being used more and more in warehouse liner panels, industrial park outer siding, and business building envelopes because they are cost-effective and easy to install. The gentle forming action of the machinery protects the integrity of coatings on corrosion-resistant finishes, which is important for long service life in coastal or chemically-rich areas.

The standard profile geometry makes sure that it works with closure strips, fastening systems, and accessory parts that are easy to find through construction supply channels. This interoperability makes projects simpler and lets workers get supplies from more than one supplier, which gives them an edge in bids.

Material Compatibility and Quality Control

Manufacturers who care about quality do profile overlay testing by stacking 10 to 20 made sheets to make sure there are no creep or fan-out effects. Coverage width tolerance kept within 1/8 inch makes sure panels line up perfectly with roof framing layouts, so changes that need to be made in the field don't waste time and materials. This strict quality control means that building owners will save money on scrap and callback service.

Comparing AG Panel Roll Forming Machines with Alternative Solutions

Putting AG panel roll forming machines next to other options reveals clear advantages in speed, consistency, and operational cost.

Roll Forming vs. Press Brake Fabrication

Traditional press brakes bend metal by applying localized force at set times. This method works well for small-scale custom work, but is expensive for making panels over and over again. Roll forming is faster than press forming. Modern lines can make 100 to 200 linear feet per hour, while press forming can only make 20 to 40 feet per hour for the same shapes.

Roll forming is an ongoing process that keeps dimensions more consistent across production runs. This is because the material moves through fixed roller shapes instead of relying on the skill and accuracy of the operator setting up the machine. Roll forming also takes up less space than press bending, as production lines only need 40 to 50 feet of horizontal floor space, while press bending needs a lot more space for coil staging and finished panel storage.

A study of operational costs shows that roll forming makes large gains in labour efficiency. Automated lines are run by a single operator, but press brake fabrication usually needs two workers to move materials and run the machine. Electric roll forming systems use 30 to 40 percent less energy per linear foot of product than hydraulic press brakes that are cycling under load.

Hydraulic vs. Electric Drive Systems

More and more, choosing equipment is based on how energy efficient it is. This is especially true in places where electricity costs a lot or in places that want to get sustainability certifications. Electric drive systems usually use 15kW to 22kW of total power, which includes any extra systems they may have. On the other hand, hydraulic systems may use 25 to 30 percent more power because the pumps have to run all the time and the fluid heats up.

Different technologies have very different maintenance needs. Every 500 to 1,000 hours of use, hydraulic systems need to have their fluids analysed, their seals replaced, and their filters serviced. Electric servo drives need to be oiled, and their bearings checked every so often, but they don't need any upkeep related to fluids. Based on normal working schedules, this cuts yearly service costs by $2,000 to $3,500.

Because of their speed and responsiveness, electric systems are better for uses that need to change lengths often or make quick production changes. Servo motors speed up and slow down instantly, but hydraulic systems have a small delay when changing direction because of how the fluid compresses.

Manual vs. Automatic Control Systems

Productivity research makes it clear that automatic control systems are good for scaling up. For practical reasons, output speeds can only reach 25 to 35 meters per minute on manual lines because a person is needed to measure the length and start the cutting action. Automatic setups with PLC control and encoder feedback reliably work at 50 to 60 meters per minute, which doubles the output per hour.

Automation has perks for accuracy that go beyond speed. When measuring by hand, mistakes can happen. Lengths can vary by ±3mm to ±5mm on average, depending on how experienced the person is and how well they pay attention. Automated systems keep a tolerance of ±1mm over millions of cuts, which cuts down on problems during installation and waste of materials.

When businesses have a lot of work, the effects on labour costs become important. An automatic line that makes 8,000 linear feet per shift with only one operator overseeing it has a 40–50% lower labour cost per foot than manual configurations that need constant operator attention and often need a second worker to check the quality and length.

Selection and Procurement Guide for Construction Industry Buyers

A guide for buyers in the construction industry on how to choose and buy AG panel roll forming machines involves evaluating performance factors and supplier reliability.

Essential Technical Criteria

When buying making equipment, people in charge of procurement have to look at a number of important performance factors that have a direct effect on how much can be made and the quality of the finished product. Forming accuracy affects how easily panels can be swapped out and how quickly they can be installed. Top makers keep rib height errors within ±0.5mm and coverage width consistency within ±2mm across production runs.

Your production speed should match the amount of work you need to do and how much labour costs. 30 to 40 meters per minute equipment may be enough for operations that produce less than 3,000 linear feet per day. High-volume facilities, on the other hand, benefit from 50 to 60 meter-per-minute configurations that maximize throughput per labour hour invested.

Energy efficiency has a direct effect on how profitable a business is. Figure out how many kilowatt-hours you will use based on your work plan and the cost of electricity in your area. At normal industrial rates, a 5kW efficiency edge that works 2,000 hours a year saves $1,000 to $2,000 in energy costs, which adds up to big savings over the life of the equipment.

When thinking about scalability, you should pay close attention. Machines with quick-change roller cassettes or flexible forming stations can adapt to changes in future profiles or the growth of the gauge range without having to replace the whole line.

After-Sales Support and Warranty Provisions

Comprehensive after-sales help often has strategic value that goes beyond the original purchase price. When equipment breaks down, it costs between $500 and $2,000 an hour in missed production, wasted labour, and late deliveries. These losses are kept to a minimum by manufacturers who offer responsive technical support by fixing problems quickly and making parts available.

Warranty coverage changes a lot from one provider to the next. Standard warranties usually cover mechanical parts for 12 months. Premium manufacturers offer protection for 24 or 36 months, which includes electrical systems, PLC parts, and even wear items like cutting blades. The small price premiums for the extra benefits are worth it because it protects against unexpected repair costs during the critical ramp-up time for production.

Training services make sure that your team knows how to use the equipment to its fullest from the start. On-site installation supervision, operator training, maintenance procedures, and troubleshooting protocols are all part of comprehensive programs. Manufacturers that offer video paperwork and online diagnostic tools let your staff fix small problems without having to wait for a worker to come out.

Market Pricing and Acquisition Options

The current state of the market in 2024 is a result of the cost of raw materials, the progress made in technology, and the need to ship goods around the world. Basic manual systems with hydraulic cuts start at about $25,000 to $35,000. These are good for new businesses or low-volume companies that want to save money at first. Automatic lines in the middle price range, with PLC control and high-quality parts, cost between $45,000 and $75,000. These are great for businesses that are already up and running and want to boost their productivity.

Premium versions with servo drives, advanced control systems, and better build quality cost between $80,000 and $120,000, but they have lower running costs and last longer, which makes the investment worth it for makers who make a lot of machines.

Buying strategies are more than just buying new equipment. Quality used equipment from reliable rebuilders can save you 40 to 60 percent on the cost of new equipment. This is a good option when the application needs more advanced technology or when you can't afford new equipment. Leasing equipment from specialized finance companies helps you keep your working capital and save on taxes. Depending on the value of the equipment and the length of the term, most programs offer $800 to $1,500 monthly payments.

Supplier Evaluation and Partnership Building

There are a few things that set reliable equipment sellers apart that can help you predict long-term relationships that work. Experience in manufacturing is very important. Companies that have been in business for ten years or more have improved their ideas by listening to customers and collecting data on how they work in the field. Cangzhou Zhongtuo, which was founded in 2014, is a good example of this combination of experience and ISO9001, CE, and CAS certificates that show the quality system is mature.

The ability to deliver goods around the world shows that you have the operational sophistication and customs knowledge that are needed for international transactions to go smoothly. Suppliers with established logistics networks in more than 150 countries can help with paperwork, combining shipments, and coordinating delivery times to keep projects running smoothly.

Offering a wide range of services, such as providing raw materials, full machine packages, and replacement parts, makes the buying process easier. OEM and ODM capabilities allow makers to make solutions that fit specific customer needs or that can work with current production systems. This is helpful for companies that serve niche markets.

Maintenance, Troubleshooting, and Safety for Construction Use

Repair, maintenance, and safety for use in construction require disciplined protocols to keep AG panel roll forming machines operating at peak performance.

Routine Maintenance Protocols

Disciplined preventive maintenance schedules are needed to extend the life of equipment while keeping the quality of the output. Every day, the rollers should be aligned, the hydraulic fluid levels should be checked, and the coil supply tension should be confirmed. These five-minute steps keep small problems from getting worse and stopping production.

As part of the weekly maintenance, the cutting blade surfaces are cleaned, and the rollers are carefully checked for damage or buildup of coatings. The chain drives and bearing units are also oiled. Over time, material waste builds up and makes forming less precise, so it's important to clean regularly to keep the dimensions the same.

Every month, when the rollers need to be serviced, they need to be fully aligned using precise measuring tools. Through cumulative mistakes, even a 0.5 mm misalignment lowers the quality of the panel over time. To keep pumps from breaking down during production runs, hydraulic systems need to be serviced regularly. This includes replacing filters and checking the pressure.

How often you need to sharpen your cutting blade depends on how much you're making and how hard the material is. Every six to eight months, companies that work with 8,000 to 10,000 linear feet of standard galvanized steel every day usually sharpen their Cr12MoV blades. High-tensile Grade 80 materials speed up wear, so you only need to do it every four to six months to get consistent cuts without burrs.

Common Issues and Solutions

Manufacturers and customers are both annoyed by oil canning, which is the wavy look in flat panel sections. This flaw is caused by either too much roller pressure or uneven coil tension. For resolution, the entry guide tension brake needs to be adjusted to keep the material feed steady. Then, the gaps between the middle rollers need to be fine-tuned to lower the forming pressure while keeping the profile measurements the same.

Most of the time, problems with length variation are caused by encoder calibration drift or cutting blade wear. Check the encoder's accuracy by measuring by hand ten panels in a row that were all cut to the same length. Differences bigger than ±2mm mean that the encoder needs to be recalibrated or replaced. When a blade wears out, the cut edges get rough instead of changing length, so it needs to be sharpened or replaced.

When forming, surface scratches are usually caused by dirty roller surfaces or not enough chrome plating. Material transfer and covering residue can be removed by cleaning the rollers well with the right fluids. Scratches that won't go away even after cleaning mean that the chrome is wearing down and the roller needs to be fixed or replaced.

Operator Safety and Compliance

Safety rules for construction equipment keep workers from getting hurt, make sure that OSHA rules are followed, and limit the company's liability exposure. All pinch points where material enters roller stations must be covered by machine guarding, and interlock switches must stop production right away if guards open during production.

The emergency stop controls need to be placed so they are easy to reach along the length of the equipment. This way, the operator can quickly shut it down from anywhere. Colour-coded buttons and clear signs in multiple languages make it easier for a diverse group of people to work together, which is common in construction and manufacturing settings.

Lockout/tagout measures keep machines from starting up by mistake while maintenance is being done. Energy isolation for electrical, hydraulic, and pneumatic systems is part of comprehensive programs. Personal locks make sure that only the service worker can resume power. Annual training refreshers keep the team informed and make sure they follow the rules.

Personal protective equipment guidelines require steel-toed shoes, safety glasses, and hearing protection in places with noise levels above 85 decibels. Glove rules say that cut-resistant materials must be used when handling coils, but gloves must not be worn near spinning machinery where they could get tangled up.

Conclusion

Precision engineering, high production efficiency, and consistent quality output have changed the way building parts are made, thanks to AG panel roll forming machine technology. This thorough investigation shows how these specialized machines solve important problems in the residential, commercial, and agricultural building sectors. Professionals in procurement now have the technical knowledge to look at equipment specs, compare different technologies, and choose sources that can help their businesses succeed in the long run. It is very important for businesses to work with experienced makers that offer full service, reliable global shipping, and the ability to make changes to meet specific needs.

FAQ

1. Can machines handle both 29-gauge and 26-gauge steel without adjustments?

Standard gauges from 29 to 26 can be used with premium equipment because it has a fixed variation tolerance that doesn't need to be adjusted by hand. The roller gap design takes into account the normal changes in width that happen within this range. This keeps the profile accurate even when the material changes. When going from 16-gauge to 24-gauge or heavier, small gap adjustments may be needed based on the material's yield strength. However, good makers make this less of a problem by engineering with large tolerances.

2. How do hydraulic and electric models compare for energy consumption?

When they are running, electric drive systems typically use between 15kW and 22kW of power, which includes the main motor and any other systems that are connected to it. Similar hydraulic configurations use 20 to 30 percent more energy because the pump has to run all the time, and the hydraulic fluid loses heat. Over 2,000 hours of operation a year, this difference in efficiency saves between $1,500 and $3,000 in electricity costs at standard industrial rates. Electric systems also help the environment and make production facilities cooler, which saves even more money.

3. What after-sales services should reliable suppliers provide?

Reputable makers offer full support, including supervision during installation, training programs for operators, written records of upkeep procedures, and repair guides. Remote diagnostics make it possible to quickly fix problems without having to wait for technicians to travel, which cuts down on production downtime. Important parts will get to your building within 24 to 48 hours if the parts are available and there are fast shipping choices. An extended warranty that covers mechanical and electrical systems for 24 to 36 months shows that the maker trusts the reliability of the equipment and protects your investment during the time when production is ramping up.

Partner with ZTRFM for Superior AG Panel Roll Forming Solutions

Your production success for years to come will depend on which AG panel roll forming machine manufacturer you choose. ZTRFM has ten years of specialized engineering experience and full OEM and ODM capabilities, so they can give you unique solutions that are perfectly matched to your business needs. Our equipment is certified by ISO9001, CE, and CAS, and it is used by people in more than 150 countries. We offer quick expert help and full spare parts availability. We take care of everything, from finding the raw materials to setting up the machines and teaching the operators, so they work seamlessly with your production process.

Whether you're starting a new panel-making business or upgrading old equipment, our engineering team can help you with guidance based on your unique material needs, volume goals, and budget. Get in touch with our experts at zhongtuorollforming@gmail.com to talk about your needs for an AG panel roll forming machine. Find out why some of the biggest companies in the world that make construction parts choose ZTRFM as their chosen equipment source.
