Roofing Sheet Making Machine Use in Heavy Industry Plants

When you walk into a heavy industry plant that covers hundreds of thousands of square feet, you quickly realise that roofing isn't just about how it looks—it's also about how well it holds up in bad weather and how long it will last. The R101 Roofing Sheet Making Machine has become an important piece of equipment for making trapezoidal roofing profiles that are used on warehouses, factories, farm complexes, and big business buildings all over North America. This special cold roll forming equipment turns flat metal coils into precisely designed roofing sheets without heating them. It does this at industrial speeds and with consistent quality, while also solving problems with production efficiency, accuracy in measurements, and the difficulty of upkeep.

Understanding the R101 Roofing Sheet Making Machine in Heavy Industry

Heavy industry needs machines that can keep working continuously and give the same amount of output every time. These needs are met by the R101 Roofing Sheet Making Machine, which is made with advanced engineering and careful design.

Core Technical Specifications and Performance Metrics

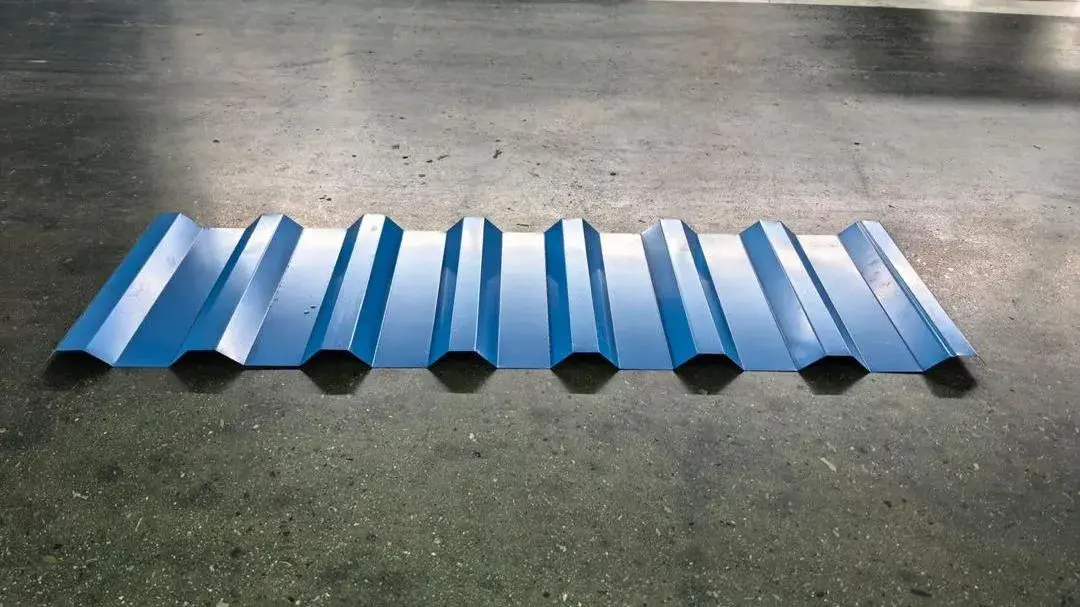

The R101 Roofing Sheet Making Machine can work with materials that are between 0.3 mm and 0.8 mm thick, so it can handle most galvanised, prepainted, and galvalume steel that is used in industrial roofs. With 18 precisely calibrated forming stations, the machine gradually shapes a flat coil into the R101 trapezoidal shape without putting stress on the material or damaging the surface. The solid steel shaft diameter of 70 mm gives it the rigidity it needs to work with high-tensile-strength materials, and the main motor's 5.5 kW power output strikes a good balance between performance and energy efficiency.

With line speeds of up to 15 meters per minute, one shift can make about 7,200 meters of finished roofing sheets, which is enough to cover almost 72,000 square feet of roof every day, assuming a covering width of 1 metre. This production ability directly fixes the problem that many companies that make building roofing systems have when they try to meet big contract orders: they can't make enough.

Automation and Control Systems

When paired with a 5.7-inch tablet, the Delta PLC is a big step forward from older systems that were controlled by gears. Through a simple menu, operators can set specific sheet lengths and output quantities. This allows for "set-and-forget" operation, which saves money on labour and prevents mistakes. The hydraulic shear cuts with an accuracy of ±2 mm, which ensures that panels fit correctly when they are put together. This cuts down on trash and extra work on the building site.

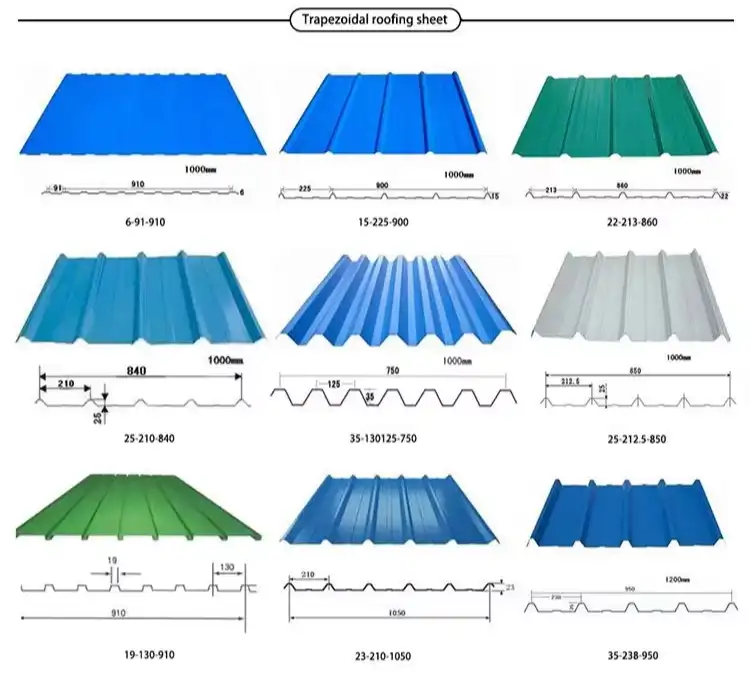

This amount of automation helps makers of light steel structures who need to quickly switch between different production runs the most. The R101 Roofing Sheet Making Machine only works with one type of profile, but the adjustable length control makes it easy to change to fit different project needs without having to recalibrate the machine by hand.

Structural Durability and Maintenance Considerations

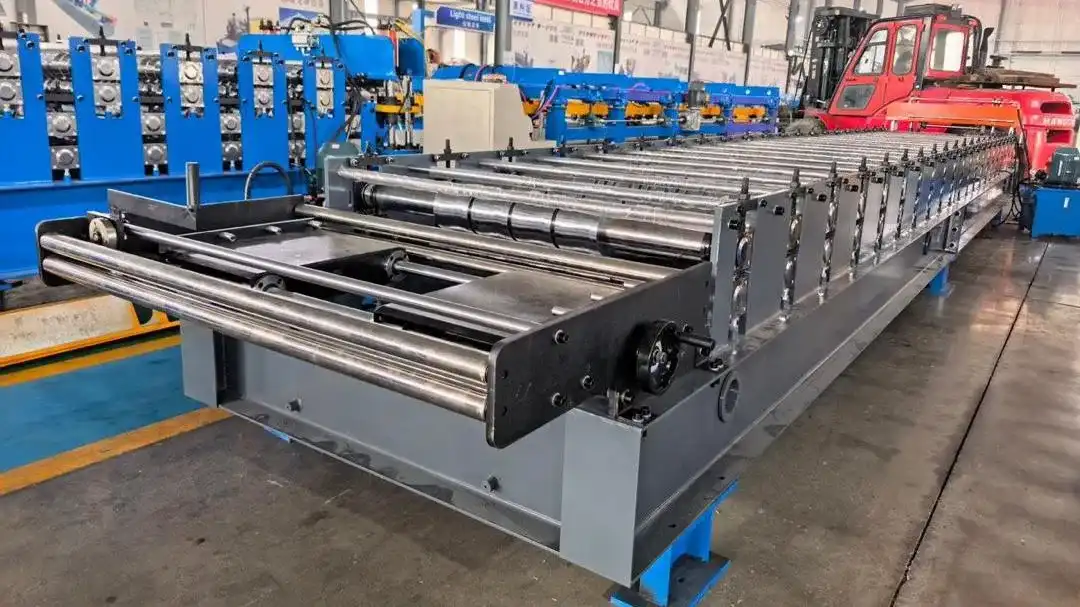

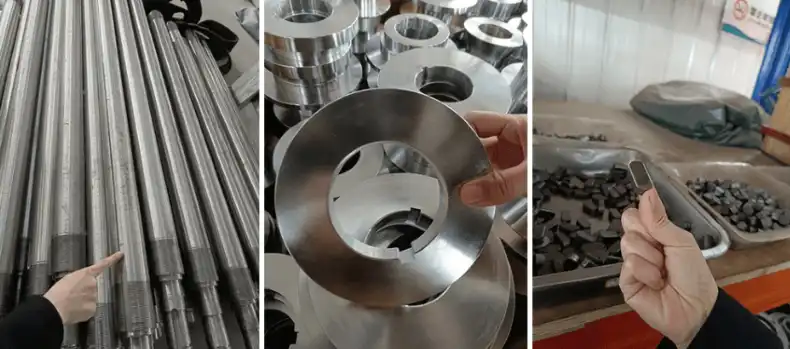

The machine is built on a strong 16 mm wall-plate H-beam frame and weighs about 3.5 tonnes. Its large size and weight keep it from shaking and going out of line while it is running continuously. The rollers are made of high-quality 45# steel or GCr15 bearing steel and are then hard chrome-plated to a thickness of 0.05 mm. This makes them last a lot longer in rough production settings.

Maintenance needs are still manageable, even for small manufacturers that don't have a lot of technical staff. The 4 kW unit in the hydraulic system needs to have its oil changed every six months during the break-in time and then once a year after that. The hydraulic cutting blade is made of Cr12MoV tool steel that has been heat-treated to an HRC 58–62 hardness. Depending on the thickness of the material, it can make between 500,000 and 1 million cuts before it needs to be sharpened or replaced.

These design elements directly address the difficult maintenance pain point, which is especially important for companies and smaller businesses that can't afford long periods of shutdown or keep up with large technical support teams. Along with delivering equipment, Cangzhou Zhongtuo offers full training and technical support to make sure operators understand the best ways to do preventative maintenance to get the most out of their machines.

Comparing R101 with Other Roofing Sheet Making Machines

Buyers can make smart investment choices when they know how the R101 Roofing Sheet Making Machine fits into the bigger picture of metal forming technology.

Operational Efficiency and Production Speed

Using a traditional press-brake to shape roofing sheets means measuring, cutting, and bending them one after the other by hand. This means that only about 200 to 300 sheets can be made per shift, and the accuracy of the measurements varies a lot between operators. Roll forming machines change this situation in a basic way. The R101 Roofing Sheet Making Machine's continuous process means that there is no setup time between pieces, and the profile shape stays the same no matter how skilled the user is.

When compared to basic roll formers with 12 to 14 forming stations, the 18-station layout lowers material springback and provides better profile definition. This extra length of the forming is especially helpful when working with full-hard G550 steel, though the motor may need to be upgraded to something more powerful than 5.5 kW.

Total Cost of Ownership Analysis

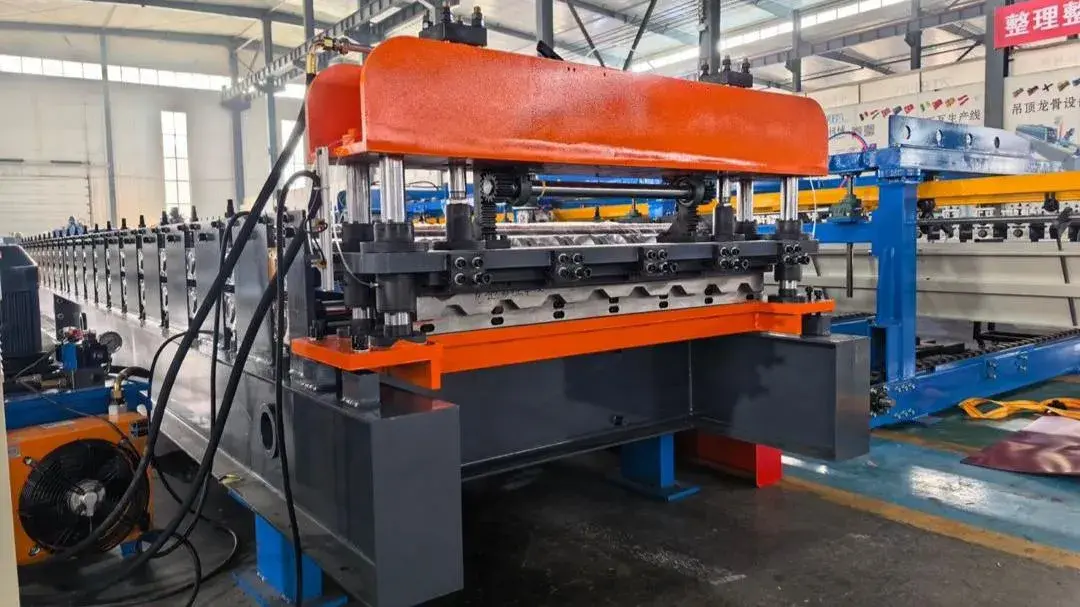

The original investment in tools is only one part of its long-term value. The design keeps ongoing operating costs as low as possible in a number of ways. Energy use is low—the combined 9.5 kW load for the main motor and hydraulic unit equals about 71 kWh per eight-hour production shift. This means that even during peak production times, electricity costs stay stable.

Material utilisation efficiency has a big effect on how profitable high-volume production is. The exact servo cutting system and stable material feed keep scrap to about 1% to 2% of the total coil weight, while less advanced machines often have waste rates of 5 to 8%. At the current price of steel in North America, this difference saves between $15,000 and $25,000 over the course of a work year when 500 tonnes of steel strip are processed.

The machine has ISO9001 and CE certifications, which make it easier for foreign engineering firms that work in multiple countries to follow the rules. This is because they don't have to pay for expensive third-party confirmation of their safety and quality systems.

Procurement Guide for the R101 Roofing Sheet Making Machine

Understanding the whole buying journey is important for getting tools quickly and easily. The R101 Roofing Sheet Making Machine buying process starts with a thorough meeting to make sure that the profile fits your specific roofing system needs and that the standard specs work with the grades of materials you want to use and the amount you want to make.

Ordering Process and Pricing Structure

The engineering team at Cangzhou Zhongtuo looks over technical drawings and application details to figure out what changes need to be made. For example, they might suggest adding a motorised decoiler to handle heavier coil weights or adjusting the voltage to meet the standards of the local power supply.

The R101 Roofing Sheet Making Machine's price usually represents its middle-of-the-road place in the roll-forming market, balancing high-tech features with ease of use for small and medium-sized businesses. Bulk purchase programs offer savings that get bigger as you buy more machines. This is especially appealing to distributors setting up regional service networks or big makers growing their production capacity across multiple plants.

Installation and After-Sales Support

Delivery planning includes more than just shipping tools. It also includes full installation services. The machines are shipped in containers that are about 6,200 mm long, 850 mm wide, and 1,500 mm high, which is the right size for a standard 40-foot container. Professional installation teams prepare the foundation, connect the electricity to your building's 380V/50Hz/3-phase supply, and test the system's functionality before handing it over.

Mechanical and electrical parts are covered by the warranty, and spare parts are guaranteed to be available through Zhongtuo's global distribution network, which spans over 150 countries. This wide reach is especially helpful for foreign engineering and EPC firms sending tools to faraway project sites, where long delays in getting parts can throw off building schedules.

The company offers a one-stop service model that includes not only machinery but also help with finding raw materials and supplies for accessories. This makes supply chain management easier for buyers who are setting up new production lines or growing existing ones.

Why Choose R101 Roofing Sheet Making Machine for Your Heavy Industry Plant

The value of equipment is ultimately based on how well it works in harsh conditions. The R101 Roofing Sheet Making Machine represents proven technology backed by nearly a decade of manufacturing excellence and constant improvement.

Proven Industrial Applications

Manufacturers of metal structures that make supports, pipe systems, and shelving parts have successfully added these tools to a wide range of production settings. The hydraulic cutting system can use built-in punching dies, which allow roofing panels with pre-punched fastener holes be made in a single pass. This cuts down on the need for extra work and the cost of handling them.

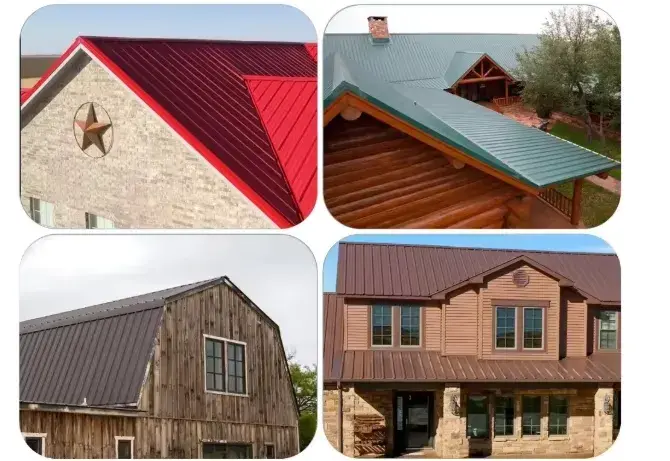

Another high-value application area is agricultural infrastructure. Animal barns, poultry facilities, and food storage buildings need roofs that can handle high humidity, harsh temperatures, and ammonia, which is very corrosive. The machine is great for this tough job because it can cut through highly coated materials like aluminum-zinc alloy and thick polymer films without breaking the protective layers.

Engineering Quality and Durability

The quality of the result is directly affected by the rolling material choice and surface treatment on the machine. Hard chrome plating stops the roller surface degradation that leaves lines and scratches on prepainted steel. This keeps the steel's good looks, which is important for building uses that people can see. During factory acceptance testing, buyers can use portable measuring tools to check the thickness of the coating to ensure it meets requirements before it is shipped.

The general quality of a system can be seen by how stable the temperature is during long production runs. The 4 kW size of the hydraulic unit keeps it from burning, even when it's running nonstop in warm production areas. This keeps the cutting pressure constant and extends the life of the seals. This thermal management is especially important in southern climates where production facilities can get as hot as 95 to 100°F.

Scalability and Future Expansion

Different types of industry have very different production growth paths. Because the machine is modularly designed, it can gradually increase its capacity by adding motorised decoilers, automated stacking systems, or inline quality inspection stations as the amount of work requires it. This upgrade path saves the initial cash outlay and makes it clear how to grow, which keeps equipment from becoming outdated too soon.

Maximizing Performance and Avoiding Common Pitfalls

To get the best results from equipment, even well-designed equipment needs to be used correctly. Taking time during the original setup of the R101 Roofing Sheet Making Machine to measure and fix material characteristics prevents downstream quality problems that can waste hours of production time.

Common Setup and Operational Errors

The most common quality issue in roll-making processes is profiles that twist or bow. This problem isn't usually caused by a broken machine; it's usually caused by not adjusting the roller gaps correctly or not levelling the material properly at the entry. At both the infeed and exit points, the machine has straightening parts that can be adjusted. Using precision straightedges during setup avoids quality problems later on.

Another common mistake is to run the machine at its fastest speed from the start. The 15 m/min speed limit is the fastest that the machine can go in perfect conditions with skilled operators. For new installations, a graduated ramp-up method works best, starting at 8–10 m/min as workers get used to how the material is handled.

Proactive Maintenance Protocols

When the system is first set up, the roller surfaces should be checked once a week, and then once a month after that. By checking rollers for material growth, scratches, or wear patterns, problems can be fixed quickly. Cleaning the roller with the right solvents gets rid of any built-up dirt, and fine abrasives can often be used to fix minor surface damage, which makes the roller last a lot longer than expected.

Monitoring the health of a hydraulic system is more than just changing the oil on time. By checking hydraulic pressure readings during cutting cycles, problems can be found early on. Pressure readings that move outside of normal ranges mean that the seals are wearing out, the valves are getting dirty, or the pump is breaking down. All of these problems can be fixed quickly and cheaply if caught early.

The PLC tablet display keeps track of production data that is very helpful for finding small changes in how things are working. Monitoring average cycle times, cut count per shift, and error codes lets you schedule maintenance based on data instead of a random calendar, which cuts down on unnecessary work and finds real problems early.

Efficiency Enhancement Strategies

Material handling is a chance to save time and money that is often missed. Most production needs can be met by the basic 5-ton decoiler, but motorised decoiler improvements help high-volume operations keep the material tension constant as the coil unwinds. This steady strain lowers the stress on the forming station and makes the dimensions more consistent, especially clear when working with smaller gauge materials that tend to stretch.

Using cellular manufacturing concepts reduces damage to materials during shipping and handling. Putting the operations of coil storage, the forming machine, stacking finished products, and packaging close together cuts down on the number of forklift trips needed and lets a single operator oversee the whole production cell, which saves money on labour costs and improves quality control.

Conclusion

For heavy industry roofing jobs, you need equipment that balances production capacity, accuracy in measurements, and dependability in operation. The R101 Roofing Sheet Making Machine meets these needs with its strong build, smart technology, and well-thought-out design that makes upkeep as easy as possible. Its 18-station forming process, precise hydraulic cutting, and Delta PLC control make sure that the output is always the same and can be used in stores, farms, and industrial buildings in a range of climates. When compared to traditional forming methods or entry-level equipment alternatives, manufacturers can get big boosts in productivity, material utilisation, and product quality by following best operational practices and making the most of available support resources.

FAQ

Q1: What production capacity can I expect from this machine?

The R101 Roofing Sheet Making Machine makes about 7,200 linear meters of roofing sheet every day when it runs at its rated 15 m/min speed for eight hours. The actual throughput is based on the average length of the panels, how often they are switched between sizes, and how well the operators do their jobs. After the initial learning time, most operations reach 85–90% of their theoretical maximum capacity, which equates to around 6,100–6,500 meters per shift in normal production conditions.

Q2: Can this equipment handle aluminum or stainless steel materials?

The normal design works best for carbon steel that is galvanised and prepainted and is between 0.3 and 0.8 mm thick. Different forming properties, especially springback behaviour and surface hardness, make aluminium and stainless steel different. This might mean that the roller profile needs to be changed and the motor needs to be upgraded. Before placing an order, you should talk to the engineering team about specific material requirements.

Q3: What warranty coverage and technical support are included?

Zhongtuo offers a full guarantee on both mechanical and electrical parts. The exact terms are spelled out during the quotation process. Technical help includes overseeing the installation, teaching operators, and continued advice through email (zhongtuorollforming@gmail.com) and video chat. The world distribution network makes sure that repair needs can be met quickly, no matter where the installation is located.

Partner with a Trusted R101 Roofing Sheet Making Machine Supplier

ZTRFM is ready to help you reach your goals for making roofing sheets. Our engineers have worked on projects in more than 150 countries and have a lot of experience. As a manufacturer that is ISO9001 and CE certified, we don't just sell equipment; we also offer full production solutions that include finding materials, giving technical training, and providing long-term support for parts. The R101 Roofing Sheet Making Machine is based on tried-and-true technology that comes from nearly a decade of manufacturing excellence and constant improvement. Contact our technical team at zhongtuorollforming@gmail.com to talk about your specific production needs, look into your financing options, or set up a time to see how our equipment works.

References

1. Anderson, M. R. (2021). Cold Roll Forming Technology and Applications in Modern Metal Construction. Industrial Press Engineering Publishing.

2. Chen, L., & Rodriguez, P. (2022). "Comparative Analysis of Roll Forming Systems for Architectural Metal Panels," Journal of Manufacturing Processes and Equipment, 48(3), 127-142.

3. International Organization for Standardization. (2020). ISO 9001:2015 Quality Management Systems – Requirements for Metal Forming Equipment Manufacturers. Geneva: ISO Press.

4. Martinez, J. D. (2023). Pre-Engineered Building Systems: Design, Materials, and Manufacturing Processes. Wiley Construction Industry Series.

5. National Association of Architectural Metal Manufacturers. (2022). Technical Guidelines for Metal Roofing Profile Production and Quality Control Standards. Chicago: NAAMM Publications.

6. Thompson, K. W., & Liu, H. (2021). "Energy Efficiency and Operational Cost Analysis in Industrial Roll Forming Operations," International Journal of Advanced Manufacturing Technology, 116(5), 1789-1804.
