AG Panel Roll Forming Machine Troubleshooting Common Issues

Unexpected downtime can throw off whole plans and cost thousands of dollars in lost productivity on a high-volume AG panel roll forming machine production line. AG panel roll forming machines are highly precise systems made to make consistent 36-inch coverage roofing and siding profiles. However, they have to deal with operational issues like any other industrial equipment. From finished panels that aren't the right size to hydraulic cutting problems and control system mistakes, these problems need to be found and fixed right away. Manufacturers can keep output quality high, reduce scrap rates, and keep production lines running easily by figuring out what's causing the problems, whether it's variations in the material, worn-out parts, shifting calibrations, or human mistakes.

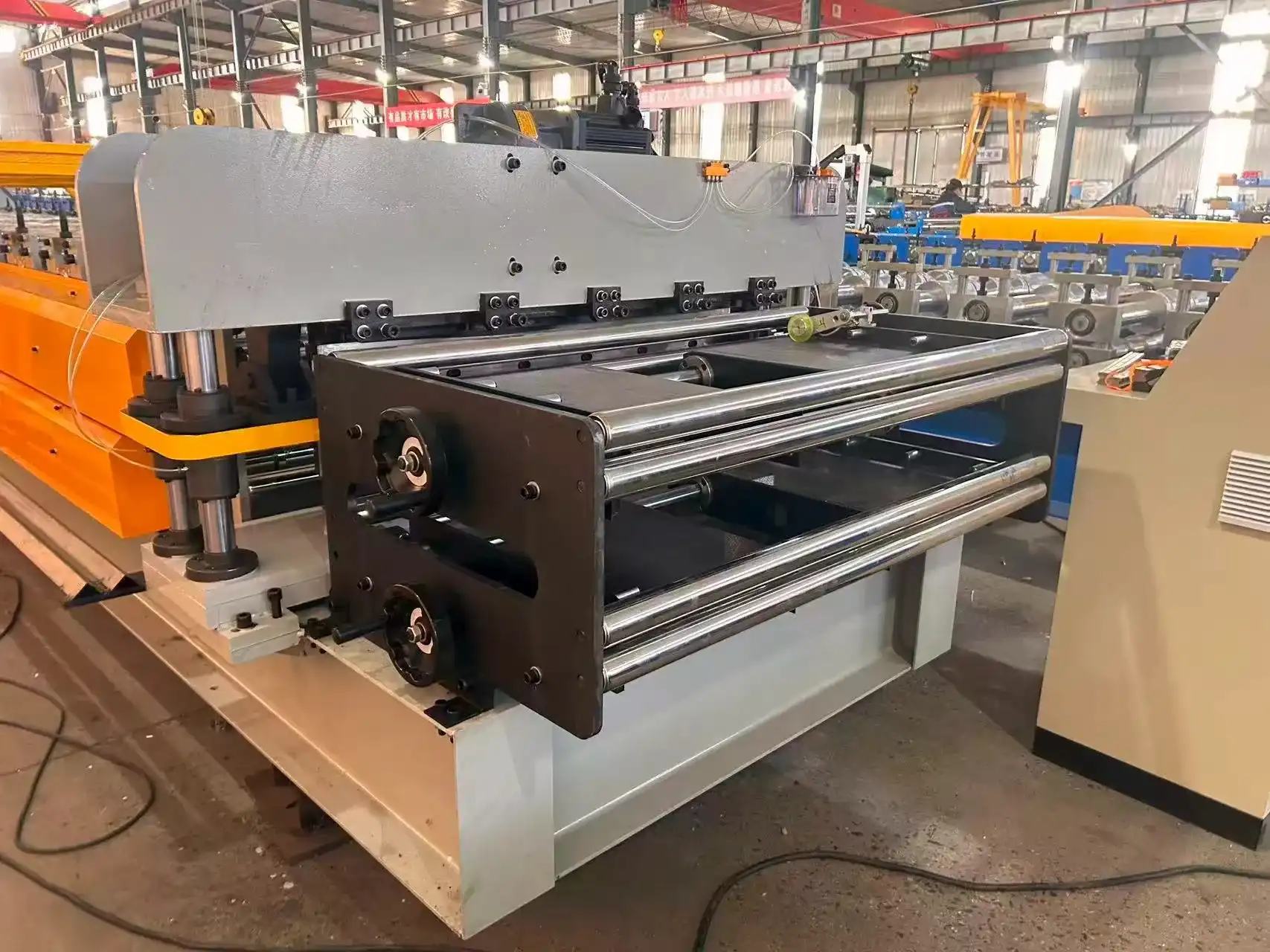

Step-by-Step Troubleshooting Process for AG Panel Roll Forming Machines

To fix equipment problems quickly and correctly, you need to follow a thorough process that starts with noticing the symptoms and ends with finding the root cause. Jumping to conclusions wastes time and might make the problem worse.

Precise Problem Identification

Start by asking machine workers to give you specific information about when the problem started, what conditions make it happen, and whether it happens sometimes or all the time. Write down any signs that can be seen or heard, like error codes on the HMI screen, strange sounds, damaged parts that can be seen, or problems with the quality of the final panels. Looking at production logs can help you find patterns. For example, does the problem happen after long run times, when materials are changed, or after maintenance?

Detailed Analysis of Symptoms and Machine Data

Modern forming lines with IoT-enabled monitors show motor power, hydraulic pressure, temperature readings, and output numbers in real time. When this data is analysed, trends that managers can't see are often found. Gradual rises in motor current draw may mean that mechanical binding is happening, and sudden rises in the temperature of hydraulic reservoirs may mean that the fluid is breaking down. When you compare present performance metrics to standard values recorded during commissioning, you can figure out how far things are off from how they should be.

Standard Diagnostic Procedures

Set up a systematic inspection process that starts with an eye check of all the parts that can be reached. Be sure to look at the roller surfaces for signs of metal scoring or coating buildup. Check the tightness on the drive chains and the way the sprockets fit together. Check the amount of hydraulic fluid and look for leaks or damage to the lines. Check the electrical connections for signs of overheating and to make sure they are tight. Use the machine in manual mode at a slower speed to find the stations that are causing the problem.

Every step of fixing must follow safety rules. Lockout/tagout methods keep machines from starting up by mistake while they are being inspected or fixed. Technicians can avoid getting hurt by turning off electrical panels, lowering hydraulic pressure, and putting warning tags on control stations. High-voltage cabinets and software changes to PLC programs should only be done by people who are trained to do so.

Real-World Case Studies

A company in the Midwest that makes farm panels had problems with flat AG panel parts that kept rippling. At first, people thought the problem was with the quality of the material, but after a thorough investigation, it turned out that the forming rollers were under too much pressure and the entry coil tension wasn't high enough. By changing the setting for the tension brake and lowering the roller gap by 0.3 mm, the oil-canning effect was gone without having to switch material sources. This case shows how methodical analysis can help avoid expensive vendor disputes and changes to equipment that aren't needed.

In another location of the AG panel forming machine, the cutting would sometimes stop because the hydraulic shear would stop in the middle of a run. The operators thought the pump might be broken, but a pressure test showed that there was enough hydraulic force. After more research, it was found that tainted fluid was blocking the proportional valve that controls the blade's fall. The problem was fixed for a lot less money than replacing the pump by flushing the hydraulic system and adding better filtration.

These examples show that structured troubleshooting is better than reactive part swapping because it saves money and gets production back up and running faster.

Preventive Maintenance Tips to Minimize Troubleshooting Needs

Preventative maintenance cuts down on emergency breaks by a huge amount and increases the service life of machines. The total cost of ownership is much lower for manufacturers who use proactive maintenance programs than for those who use reactive repair methods.

Regular Inspection and Component Servicing

Important parts need to be checked at set times during business hours, not on a set plan. Every 2,000 hours of production, forming rollers need to be checked for surface wear. This is especially important on stations that make sharp curves, like the anti-siphon gap. Roller shaft bearings need to be replaced every 8,000 hours, even if they look fine, because damage to the internal races can't be seen from the outside. When used normally, hydraulic cutting blades made from Cr12MoV steel stay sharp for about 6 to 8 months, but they need to be sharpened more often when working with high-tensile Grade 80 material.

Maintaining a drive chain means both adjusting the tension and lubricating it. When modest thumb pressure is applied, the chain should bend 1/2 inch at the mid-span if the tension is right. Too much slack leads to tooth jumping and uneven panel feeding, while too much tightening speeds up bearing wear. By using chain lubricant every 500 hours of use, you can keep the sprockets from wearing out and the chain from stretching too soon.

Scheduled Lubrication Programs

Automated lubrication systems apply the right amount of lubricant to multiple bearing spots at the same time, making sure of even coverage and cutting down on human work. Systems that don't have automatic lubrication need written grease plans that list the type of lubricant, how much to use, and how often to apply it to each bearing position. If you use the wrong type of lube, like high-temperature grease on high-speed bearings that need lighter oil, they will break down early even if you keep an eye on them.

Sensor Calibration and System Verification

Cut-to-length accuracy depends on how accurate the encoder is. Every year, certified measuring tools are used to make sure that the number of encoder pulses matches the real length of the panel within the acceptable range. To make sure that the numbers shown on the PLC are accurate, hydraulic pressure sensors need to be checked against master gauges on a regular basis. If you don't calibrate your sensors, the quality will slowly get worse until customers complain and take action to fix the problem.

Predictive Maintenance Technologies

Condition monitoring systems with vibration sensors, thermal cameras, and oil analysis programs are used in cutting-edge facilities to find problems before they become functionally unusable. Bearing problems can be seen in vibration patterns weeks before they can be heard. Thermal imaging finds electrical connections that are hot and can't be seen when the system is running normally. Hydraulic fluid research finds metal bits that show wear and water contamination that lowers performance. These technologies change the way upkeep is done from replacing parts on a regular basis to intervening based on conditions. This reduces the need for spare parts and increases the availability of equipment.

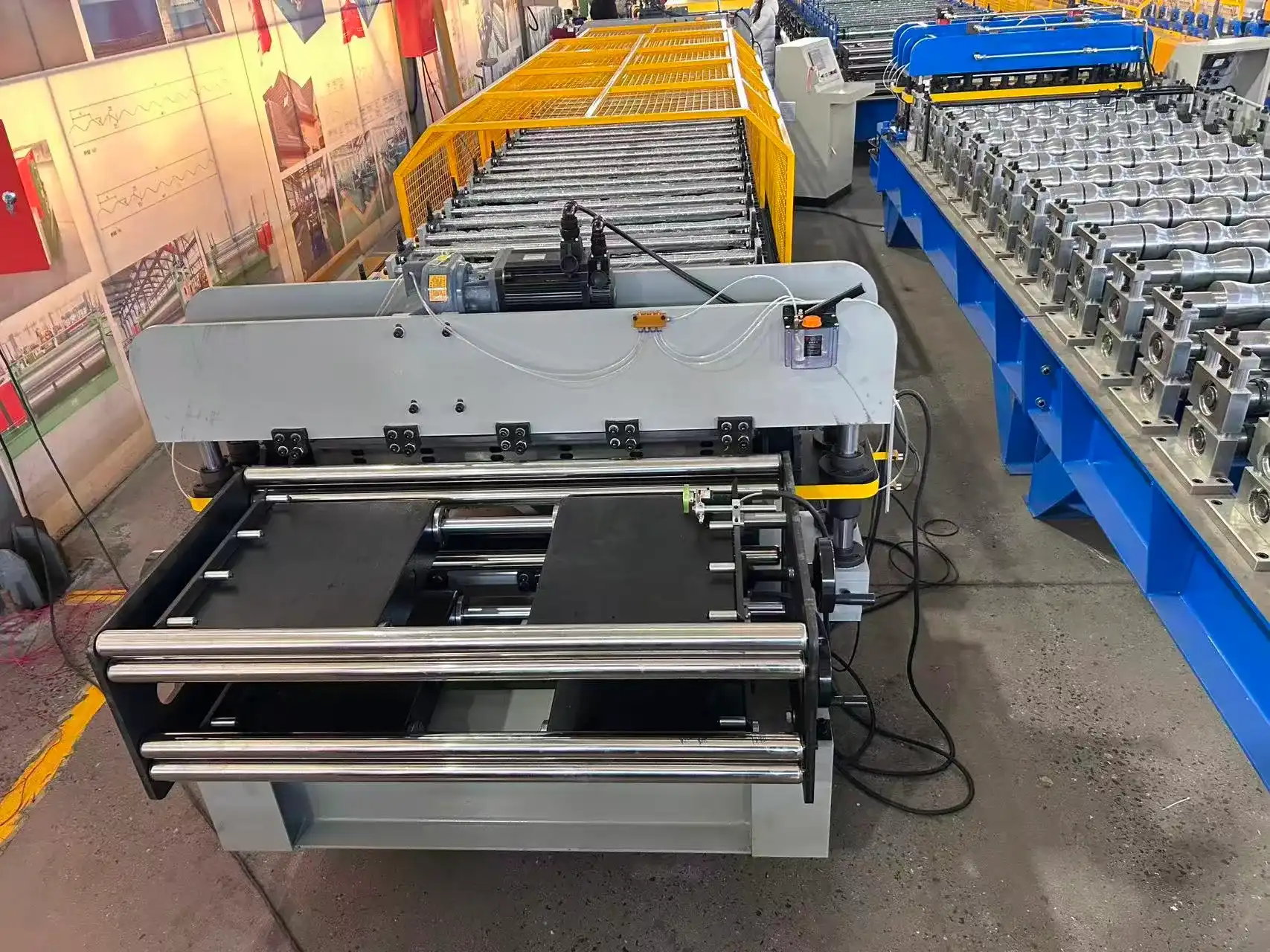

Operator training may be the best way to save money on preventative upkeep. People who are well-trained can notice small changes in how machines work that computers might miss. They know how to handle materials properly so that the edges of the coils don't get damaged. They also know how to change entry guides so that they work with different sizes of materials and how to interpret warning signs so that small problems don't get worse. Comprehensive training programs that teach workers how to use machines, fix simple problems, and do regular maintenance tasks build a skilled workforce that can keep up the quality of production with little help from technicians.

Comparison of Troubleshooting in AG Panel Roll Forming Machines vs. Traditional Roll Forming Machines

When compared to older standard systems, modern AG panel roll forming machines have design features that make troubleshooting very different. Knowing these factors helps make decisions about capital investments and affects what the repair department can do.

Enhanced Automation and Diagnostic Tools

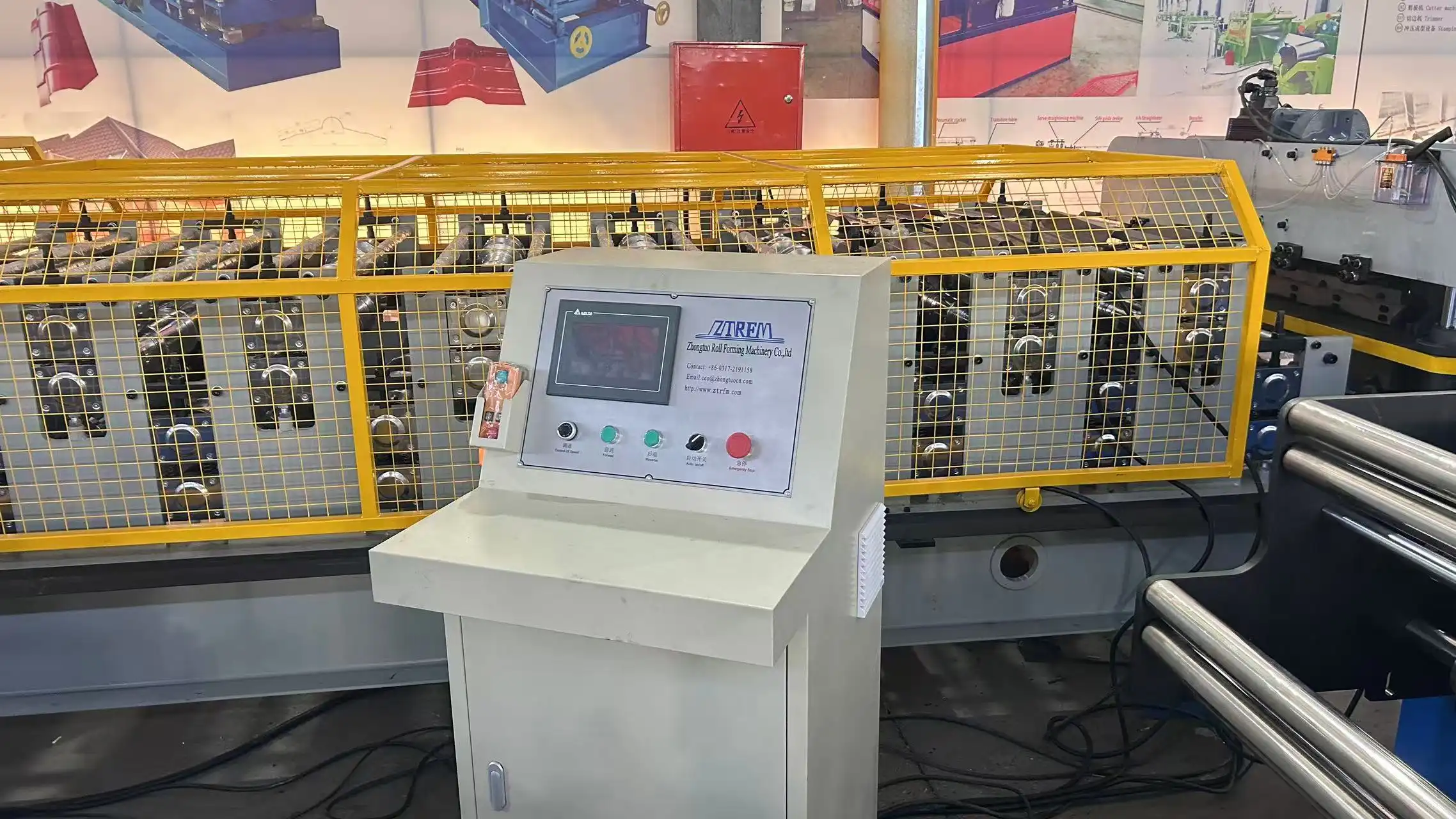

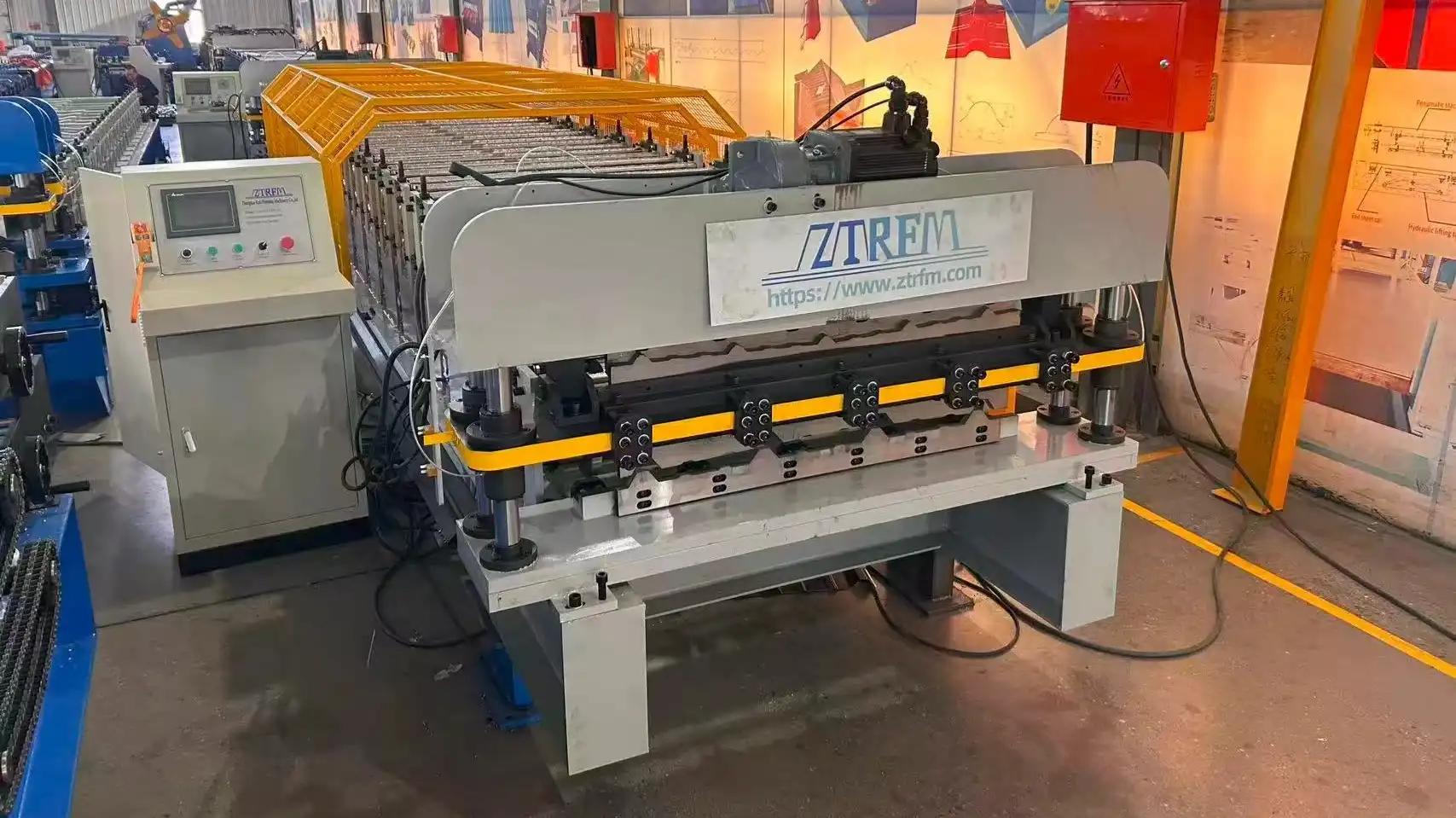

Modern machines have HMIs with touchscreens that show operating data in real time, past alarm logs, and step-by-step troubleshooting instructions. When problems happen, the system records timestamps, sensor readings, and production counts. This gives techs accurate details about how things were running when they failed. In the past, machines only had basic indicator lights, so workers had to use their knowledge and gut feelings to figure out what was wrong. This clear diagnostic information speeds up the process of fixing problems and lowers the need for relying on seasoned technicians with decades of experience.

Sophisticated Control System Architecture

PLC-based control systems allow for complicated sequencing reasoning that stops many mistakes made by operators. If safety guards stay open, emergency stops stay in place, or critical parameters fall outside of acceptable ranges, interlock circuits stop the machine from starting up. Software-based parameter storage makes it easy to switch between product specifications, and password protection stops unauthorised changes that could hurt quality. To fix problems with these systems, you need to know how to write ladder logic and how to communicate over networks, which are skills that you don't need to fix problems with electromechanical switch systems in regular machines.

Modular Component Design and Accessibility

Modern making stations have standard mounting ports for quick-change tool systems. It only takes hours to take out and put back in place worn-out roller sets, so output isn't interrupted as much. Hydraulic manifolds combine valves in easy-to-reach places and include test holes for measuring pressure. International standards say that electrical panels must have labelled terminal blocks and colour-coded wiring. Because of these design choices, upkeep takes a lot less time than it did on older machines, where special AG panel parts had to be made, and deeply hidden assemblies had to be taken apart in order to be reached.

Cost-Benefit Analysis

The initial costs of buying advanced AG panel roll forming machines are 30 to 40 percent higher than those of traditional options. Less downtime, on the other hand, immediately leads to more useful capacity from current equipment. Faster troubleshooting cuts down on the cost of maintenance workers and the amount of money that is lost from production. Better stability in dimensions lowers the amount of scrap, which is especially helpful when working with expensive pre-painted coil stock. Modern equipment has a lower total cost per linear foot produced over typical seven-year ownership periods, even though it costs more to buy.

When to Contact Suppliers and Brands for Technical Support?

Self-sufficient troubleshooting can fix many common problems, but in some cases, you need manufacturer expertise and resources that you don't have in-house. Knowing about these situations stops long periods of downtime and expensive mistakes in diagnosis.

Complex Electrical and Software Issues

To fix PLC programming mistakes, damaged configuration files, or contact problems between control system parts, you need to know a lot about them. If you try to change software without the right training, you could make problems worse or break safety interlocks. Manufacturer technical support teams have access to diagnostic tools that end users don't have and know a lot about how systems are put together. These experts can watch how machines work in real time, look at operational data, and walk local technicians through problem-solving steps without having to visit the site.

Significant Mechanical Failures

For an AG panel forming machine, major harm to rollers, catastrophic failures of drive systems, or cracked frame parts are beyond the normal skills of the repair staff. In these cases, engineering research is needed to figure out whether a fix or replacement is the best option. Manufacturers keep thorough specs for all structural parts and can approve changes or additions that keep the purity of the equipment and get it working again.

Genuine Parts Procurement

If you use non-OEM substitute parts, the performance could go down, and the guarantee could be voided. Generic options can't be used consistently in place of important parts like forming rollers that are machined to exact shapes and heated according to unique instructions. To keep the system working, hydraulic parts must meet exact flow and pressure ratings. By making deals with makers, parts suppliers can be sure that real parts are always available, with warranty support and technical compatibility checks.

Evaluating Technical Support Quality

When making B2B purchasing decisions, equipment specs and the supplier's ability to help should be taken into account. Response time is important. Suppliers with technical hotlines open 24 hours a day and area service centers are more valuable than those who are only occasionally available. Technical competence is shown by the skills of support staff and their ability to use engineering tools. The terms of the warranty show that the maker trusts the stability of the equipment, and the policies protect buyers from early failures.

Manufacturer services go beyond helping with problems. Proper setup of equipment according to best practices is supervised during installation. This stops problems from happening in the future that could have been caused by bad commissioning. Operator training programs taught by factory-certified instructors teach important skills for using machines properly. Long-term maintenance contracts set costs in a way that can be predicted and ensure expert care during key production times.

Conclusion

To run AG panel roll forming machines well, you need to balance the daily production needs with regular upkeep and quick problem-solving. Production lines run smoothly when operators know how to fix common problems, follow planned troubleshooting steps, and keep up with proactive service plans. Modern equipment design makes it easier to diagnose problems and speeds up fixes compared to older systems. This makes the higher original investment worth it because it leads to higher efficiency and lower running costs. Strategic relationships with skilled suppliers give manufacturers access to technical know-how and original parts when their own resources aren't enough. This ensures the long-term success of their manufacturing.

FAQ

Q1: What causes rippling on AG panel flat sections?

If there is too much forming pressure or not enough entry coil tension, it can cause ripple flaws, which are also known as oil-canning. When the cloth is stretched too far, it breaks between the ribs. This needs to be fixed by lowering the roller gap sets on the intermediate stations and raising the tension brake resistance so that the coil stays taut while it is being formed. The thickness of the material is also important. 29-gauge steel tends to ripple more than larger 26-gauge stock because it is less stiff.

Q2: How often do cutting blades require sharpening?

When used by themselves, hydraulic shear blades made from Cr12MoV tool steel usually keep their good edge quality for 6 to 8 months. Working with high-tensile materials speeds up dulling, which could mean that they need to be serviced every four to five months. Monitoring the quality of the cuts is a better way to decide when to do things than sticking to a set schedule. Burrs on the ends of panels or incomplete cuts are signs of blade wear that need immediate attention, no matter how much time has passed.

Q3: Can AG panel equipment process aluminum coils?

Yes, but because aluminium doesn't spring back as steel does, the roller pressure needs to be changed to keep it from cracking. Some makers make setups just for aluminium that have extra forming units that use softer progressive bending. For a clean edge, operators must also change the cutting blade clearances because aluminium is softer than steel and needs a different shear geometry.
