Best corrugated sheet making machine explained

When business-to-business buyers look for industrial forming tools, it's important to know what the best corrugated sheet making machine is. A corrugated sheet making machine is a special kind of roll forming equipment that turns flat metal coils, which are usually made of galvanised or pre-painted steel, into profiled corrugated sheets that are widely used in industrial construction, roofing, and wall cladding. Metal sheet roll forming machines are different from standard corrugators used for packing. They use sequential roller stations to shape metal into wave-like profiles, which are stronger and more resistant to weather for building uses.

Understanding Metal Corrugated Sheet Roll Forming Technology

Core Working Principles and Components

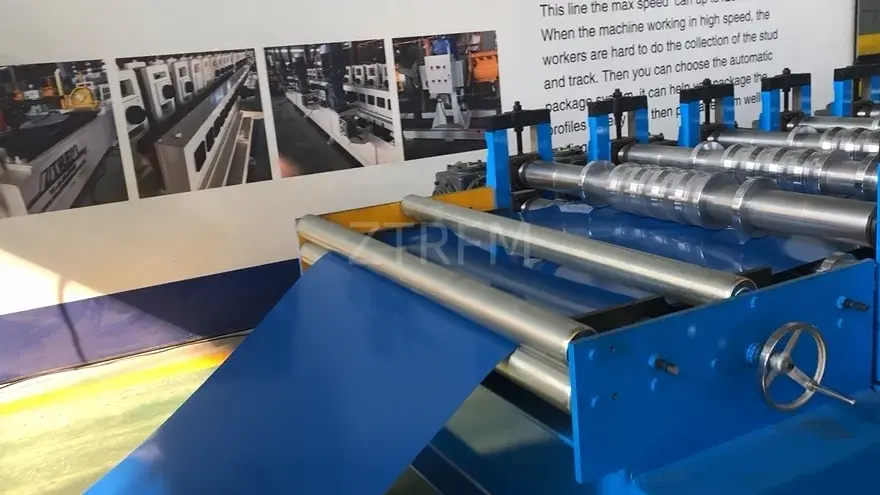

The procedure of corrugating metal sheets on a roll differs from newsprint. The system rolls a continuous metal coil via well-planned roller stations. Each station gradually bends the material into the desired wave shape without damaging it. Each of the modern machine's 18 roller stations has custom-tooled, heat-treated 45# steel rollers. By gradually shaping the material, stress is evenly distributed, preventing tiny cracks that could weaken the sheet.

Precision welding connected 350H steel to form the machine structure. This provides it with the stiffness to keep the rollers in place during ongoing manufacturing stress. A 5-ton hydraulic decoiler feeds raw materials into the manufacturing line, which can handle heavy coils for extended runs. Gearboxes equally transfer power to all roller stations. This maintains the forming pressure regardless of material thickness (0.3–0.5 mm).

Machine Configuration and Automation Levels

Roll forming machines range from fully automated production lines for large producers to hand-operated systems for new businesses. Semi-automatic devices are inexpensive and productive. Hydraulic cutting systems with 5.5kw motors prevent burrs on completed sheet edges. Automation largely affects material movement, profile change speed, and cut precision. The basic making process remains unchanged.

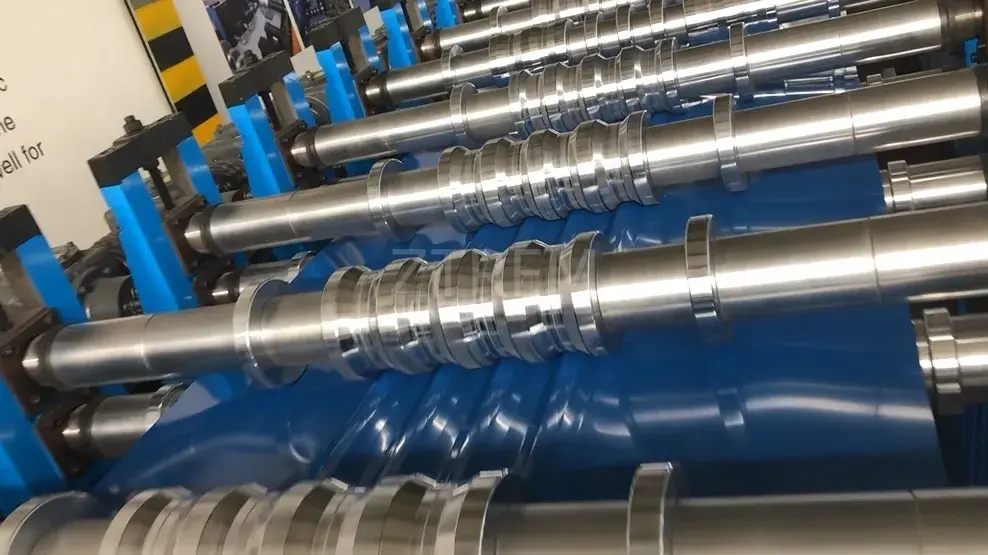

Roller stations are the most crucial part of rolling. Shaft diameter matters. Even with tougher pre-painted steel, our regular 80mm tempered 45# steel shafts have the torsional strength to maintain the profile true. Tools treated with quenched rollers become hard and wear-resistant. Treating tools extends their lifespan. This combination ensures profile dimensions remain constant across millions of linear meters of manufacture.

Material Compatibility and Profile Versatility

These tools perform well with 0.3–0.5 mm galvanized and pre-painted steel. These are North America's most prevalent roof and wall panel steels. Galvanized steel is cheap and rust-resistant, making it ideal for agricultural structures and industrial facilities. Pre-painted steel offers greater color options and UV protection. It suits business buildings that need both function and appearance.

For a corrugated sheet making machine, how roller tools are made determines profile flexibility. Strength and water drainage are the goals of standard corrugated profiles, which repeat wave patterns. Complex forms like trapezoidal, sinusoidal, and unique architecture profiles are achievable due to gradual shaping at numerous phases. Tooling switching capabilities determine how quickly a company can switch types to meet customer orders without waiting.

How to Choose the Best Roll Forming Equipment for Your Production Needs?

Evaluating Your Production Scale and Objectives

Before choosing roll forming tools, be honest about how much you need to create and how fast you want to expand. Metal roofing startups may discover that simple equipment with manual decoilers is enough for their first orders to save capital expenditures. These systems are ideal for local builders and specific fabrication firms that produce 500 to 2000 square meters per day. The operation requires less technical expertise due to its simplicity. With proper training, smaller teams can produce high-quality work.

Mid-sized manufacturers who collaborate with contractors or control regional distribution networks need automated, flexible machines. Hydraulic decoilers and cutting tools reduce operator workload, increasing productivity to 3,000 to 6,000 linear meters per day while maintaining precision. Fully automatic lines can handle more work than capacity, making these setups ideal for growing businesses. Better labor efficiency and lower scrap rates pay for the investment in 18–24 months.

Critical Technical Specifications That Impact Performance

Throughput capacity depends on production speed, but requirements must be understood. In the best circumstances, with competent operators and optimal material qualities, nominal speed ratings are determined. After coil changes, profile adjustments, and quality checks, output is usually 70–85% of capacity. Profile accuracy depends on roller station count. For example, 18 stations provide progressive forming stages for complicated features without overstressing the material, which would fail early.

The forming forces your target material needs determine motor power. Standard 0.3–0.5mm steel works well with a 5.5kw drive motor, but stronger materials or alloys may require more power. When power is low, form dimensions vary, rollers wear out faster, and the motor overheats during lengthy runs. The gearbox system design is crucial. Gearbox systems evenly distribute power across all roller stations, ensuring forming pressure that chain-drive systems struggle with.

Energy Efficiency and Total Operating Costs

Hydraulic systems, control electronics, and other non-motor devices utilize energy. Hydraulic cutting systems with 5.5kw pumps consume energy dependent on cut frequency. Solar panels and peak demand facilities benefit from this sporadic load pattern. Energy costs account for 8–12% of running costs, so efficiency is crucial for long-term profits.

Maintenance accessibility reduces downtime and speeds repairs, lowering operational expenses. Standard and adaptable machines make repairs and part replacement easy. Roller stations with quick-change tooling systems speed up profile changes, increasing equipment use. A welded steel frame will survive decades without breaking down. Unlike bolted assemblies, which need frequent adjustments and replacement.

Maintenance Protocols for Sustained Performance and Longevity

Preventive Maintenance Schedules

Disciplined repair routines prevent most output issues and extend tool life beyond the business average. Daily checks should ensure that rollers are aligned, bearing points are greased, and there is no metal waste surrounding cutting stations. These five-minute measures catch issues before they become costly failures with significant downtime.

The weekly maintenance inspection includes gearbox parts, hydraulic fluid levels, and electrical connections. Check gearbox oil for contamination, which may indicate worn seals or bearings. Pressure fluctuations in hydraulic systems can indicate pump wear or clogging, which can influence cut precision. Wear patterns on the roller surface indicate misalignment or material feed issues that must be addressed before profile quality degrades.

All moving parts must be properly lubricated monthly with manufacturer-recommended grades for your working conditions. Chain tensions must be examined and adjusted to prevent premature wear and noise. Control system checks ensure sensor accuracy and safety interlock functionality. These more in-depth repair discussions take three to four hours but prevent equipment from breaking down and being unusable for days until parts arrive.

Troubleshooting Common Operational Issues

Roller misalignment, material thickness variances, and obsolete tools generate inconsistent profile measurements. Measurements at numerous sites along the forming line might pinpoint roller stations or material qualities. Consistent discrepancies across all parameters indicate a misaligned frame that needs inspection. However, localized variations may indicate that a roller is worn or needs adjustment at certain stations.

For a corrugated sheet making machine, dust or dirt on roller surfaces or material guides can cause scratches or marks on the surface finish. Pre-painted surfaces can be protected from abrasive particles by washing regularly. Roller surface treatments should wear evenly. Localized wear indicates alignment or material feed issues generating unequal contact pressure. Taking care of these issues immediately will prevent further harm and need merely adjustments instead of replacement.

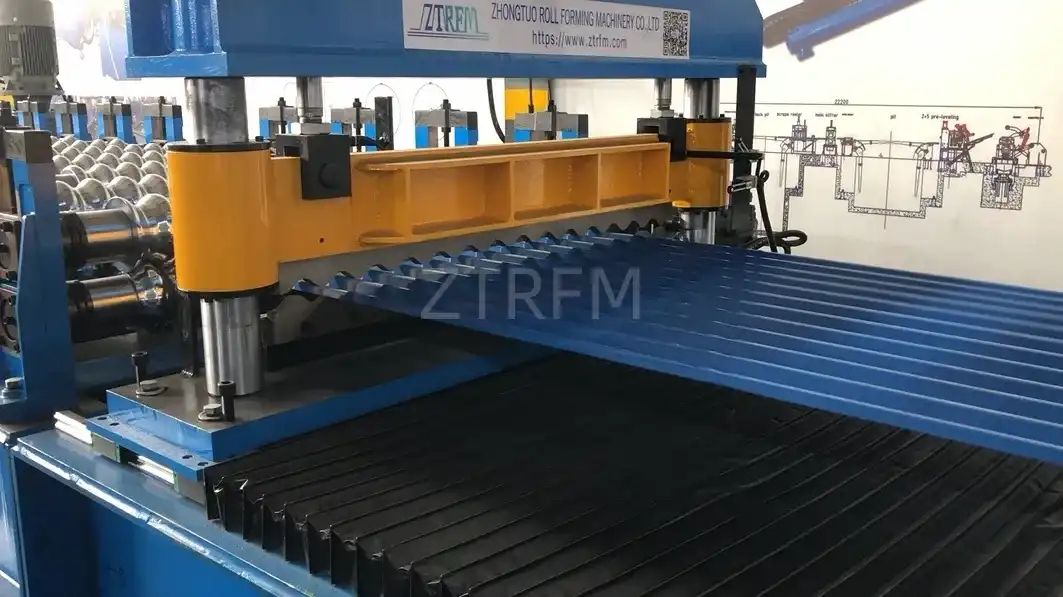

Cutting flaws include rough edges, unclosed shears, and misaligned sheet lengths. Hydraulic pressure verification ensures cutting blades have enough force throughout their stroke. Expect blade sharpness to degrade with time. Planning replacements by linear meters prevents quality loss. Because frame heat expansion during long production runs can cause small misalignments that affect edge quality, the cutting station position must be checked regularly.

Spare Parts Strategy and Supply Chain Management

Building relationships with reliable parts suppliers before an emergency reduces downtime. Based on use and delivery time, rollers, cutting blades, hydraulic seals, and drive belts should be stored on-site. We provide procurement teams with part specs and appropriate choices. This allows them to discover cheap, working parts.

Roller tooling is the most expensive consumable, and its lifespan depends on production, material hardness, and maintenance. Setting up refurbishment relationships with tooling specialists can extend roller life without spending as much on new ones. Some companies allow old rollers to be exchanged for rebuilt sets. This boosts cash flow and output.

Strategic Procurement Approaches for Roll Forming Investment

Direct Manufacturer Engagement Versus Distributor Networks

Buying directly from makers like ZTRFM has benefits like the ability to customise, access to expert support, and usually better prices than buying through distributors who add a markup. Direct relationships make it easy to see what manufacturing capabilities, quality control processes, and infrastructure for after-sales support are available. Manufacturer involvement allows collaborative engineering that distributors can't do well for companies that need custom profile tools or specialised configurations.

Regional wholesalers are useful because they keep goods in stock locally, can get parts right away, and offer hands-on fitting help. This closeness helps buyers who want to launch quickly or who don't feel safe managing foreign logistics. But distributor networks tend to focus on standard setups rather than custom solutions. This could make it harder to optimise tools for specific production needs. Hybrid methods that use ties with manufacturers to buy tools and with distributors to get everyday supplies often get the best of both worlds in terms of cost and support.

Pricing Dynamics and Value Assessment

The cost of roll forming equipment is based on the quality of the materials, the level of automation, the accuracy of the manufacturing process, and the services that come with it, not just its production capacity. Most machines that cost less than $15,000 have basic cutting systems, manual decoilers, and controls that are easy to use for low-volume production. Mid-range equipment with hydraulic automation, precise roller tooling, and a strong frame usually costs between $20,000 and $35,000. This is the best price for manufacturers who are growing. Premium systems that cost more than $50,000 have improved automation, the ability to change profiles quickly, and longer guarantee coverage, which makes them worth the money for high-volume producers.

Looking at the total cost of ownership gives you a better idea of worth than just looking at the buying price. Over the course of five years, the running costs of equipment can be higher than the original investment. These costs include energy use, repair needs, tooling lives, and output scrap rates. Quality parts and well-thought-out engineering in machines lower these continuing costs by a large amount, and the extra cost is usually recouped within two to three years through higher efficiency and less downtime.

Installation, Training, and Operational Support

A successful deployment of equipment includes more than just delivering it. It also includes proper installation, thorough operator training, and easy access to technical support. Installation difficulty and cost are affected by the needs of the foundation, the power requirements, and the layout of the space. We provide full installation paperwork and can work with local contractors who know the building codes and utility standards in the area to speed up the commissioning process.

For a corrugated sheet making machine, how quickly technology gets its full productivity depends on how well its operators are trained. Full programs teach how to move things, set up profiles, check for quality, do regular upkeep, and fix basic problems. By spending money on thorough initial training, you can avoid bad habits that speed up wear or lower the quality of the output. Technical support that is available by phone, email, and video chat helps solve problems quickly, so work doesn't have to stop. Our global support network, which we built by helping customers in more than 150 countries, makes sure that you can get help quickly, no matter what time zone you're in.

Conclusion

To choose the best corrugated sheet making machine, you have to weigh the technical specs against the needs of your business and your budget. Before making an investment choice, it's important to understand the basic ideas behind roll forming and then look at individual machine configurations, upkeep needs, and supplier capabilities. Quality equipment with strong construction, precise roller cutting, and well-thought-out engineering lasts for years and years of reliable service while keeping costs low by using less energy and needing less upkeep.

The metal making business is always changing because of new materials, better control systems, and more automated processes. Working with well-known companies that offer both tried-and-true technology and ongoing development will make sure that your equipment investment keeps working for a long time. Whether you're adding new production capacity or getting rid of old equipment, using these criteria to do a full review will set your business up for long-term success in competitive markets.

FAQ

Q1: What distinguishes metal corrugated sheet roll forming from traditional corrugated cardboard production?

Metal sheet roll forming gradually shapes steel coils into building panels by moving them through a series of roller stations. Cardboard corrugation, on the other hand, uses adhesives to join layers of paper together to make packaging materials. Forming metal needs a lot more force, precise tools, and strong machinery that can handle material stresses and forming pressures that would destroy paper-based systems. For example, metal sheets are used to make weatherproof building covers that last for decades, while corrugated cardboard is used for short-term packing needs. These basic differences in applications are reflected in equipment specs, operational requirements, and upkeep routines.

Q2: How frequently should roller tooling be replaced or refurbished?

How long a roller lasts depends on how much it is used, how hard the material is, and how well it is maintained. Standard 0.3-0.5 mm galvanised steel is usually processed by heat-treated 45# steel rollers that can deliver 2–5 million linear meters before the accuracy of the shape starts to slip. Pre-painted steel may last a little longer because the covering makes it easier to work with, but harder materials wear out faster. Regular inspections that find early signs of wear allow for planned refurbishment during planned downtime instead of replacing the profile right away when the quality stops being acceptable. When compared to buying new rollers, repairing them with the help of experts in woodworking greatly increases their economic life.

Q3: Can one machine produce multiple corrugated profiles economically?

Profile flexibility depends on how the tools are made and how the switching systems work. Standard machines need to have rollers replaced by hand in order to switch profiles. The whole process, which includes checking the alignment, usually takes 4 to 8 hours. This method works best for companies that make a lot of the same profile at once instead of switching profiles often. Machines made to make multiple profiles have quick-change shaping systems that cut the time it takes to switch between tools from 30 to 60 minutes. This is cost-effective when order patterns need to be flexible. When choosing a machine configuration, you should think about the types of products you sell and how often you place orders. Being flexible comes at a higher cost, but it's only worth it when production needs it.

Partner with ZTRFM for Your Roll Forming Solution

To improve your ability to make metal roofs or wall panels, you should start by choosing a corrugated sheet making machine provider that offers both tried-and-true technology and quick customer service. ZTRFM has ten years of experience in specialised roll forming and can give equipment configurations that are tailored to your unique production needs instead of forcing you to make compromises with standard models. Our engineering team works with your operations team to make sure that the machine specs, equipment designs, and levels of automation are the best they can be for both present capacity needs and planned growth.

We are an ISO9001 and CE-certified manufacturer with delivery experience in more than 150 countries. This means we know what North American producers need in terms of technical help and standards. Our machines are built to last with heat-treated parts, precise roller tools, and dependable hydraulic systems that keep them running smoothly and keep output high. We offer honest advice to help you make smart investment decisions, whether you're a new business looking for a cheap way to get into metal forming or a well-known company looking to increase your production capacity.

Please email our technical team at zhongtuorollforming@gmail.com for full details on the corrugated sheet making machine for sale, customisation choices, and current prices that match the market in 2024. We give detailed quotes that include installation help, training for operators, and warranty coverage to make sure that deployment goes smoothly and productivity goes up quickly.
