In the last few years, the building sector has seen amazing technical progress. For example, Q tile making machines have changed the way tiles are made. These advanced machines offer a lot of great benefits, such as better quality control, more production efficiency, and lower costs compared to traditional manufacturing methods. Q tile producing machines help producers make tiles that are always high quality and follow strict building codes. They do this by using automated systems and precise engineering to make the process as efficient and profitable as possible.
Key Technical Specifications and Performance Indicators

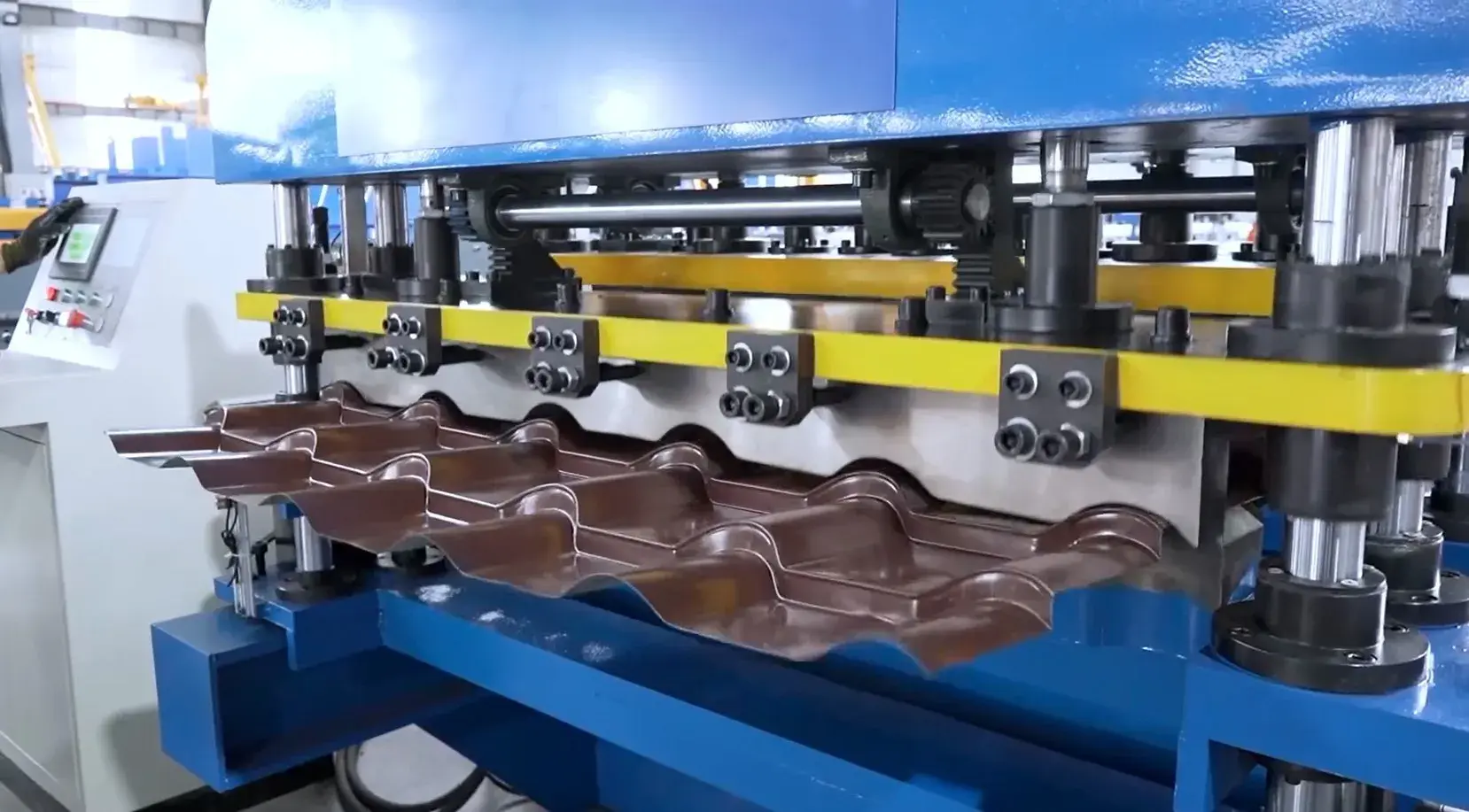

Modern tile-making machines work with amazing accuracy and dependability. Our high-tech devices can handle raw materials like GI and PPGI that are 0.3 to 0.5 mm thick and can feed coils that are up to 1250 mm wide. The strong construction includes 14 roller stations that make sure the forming quality is the same throughout the whole procedure.
Performance measures show that the punching speeds can reach 0 to 6 meters per minute, which is very fast. The 5.5 KW motor gives you steady power for continuous use, and the hot-rolled H-beam machine frame keeps its shape even when production is tough. The internal bevel gears in the gear box transmission system make sure that power is transferred smoothly and that the system lasts longer.

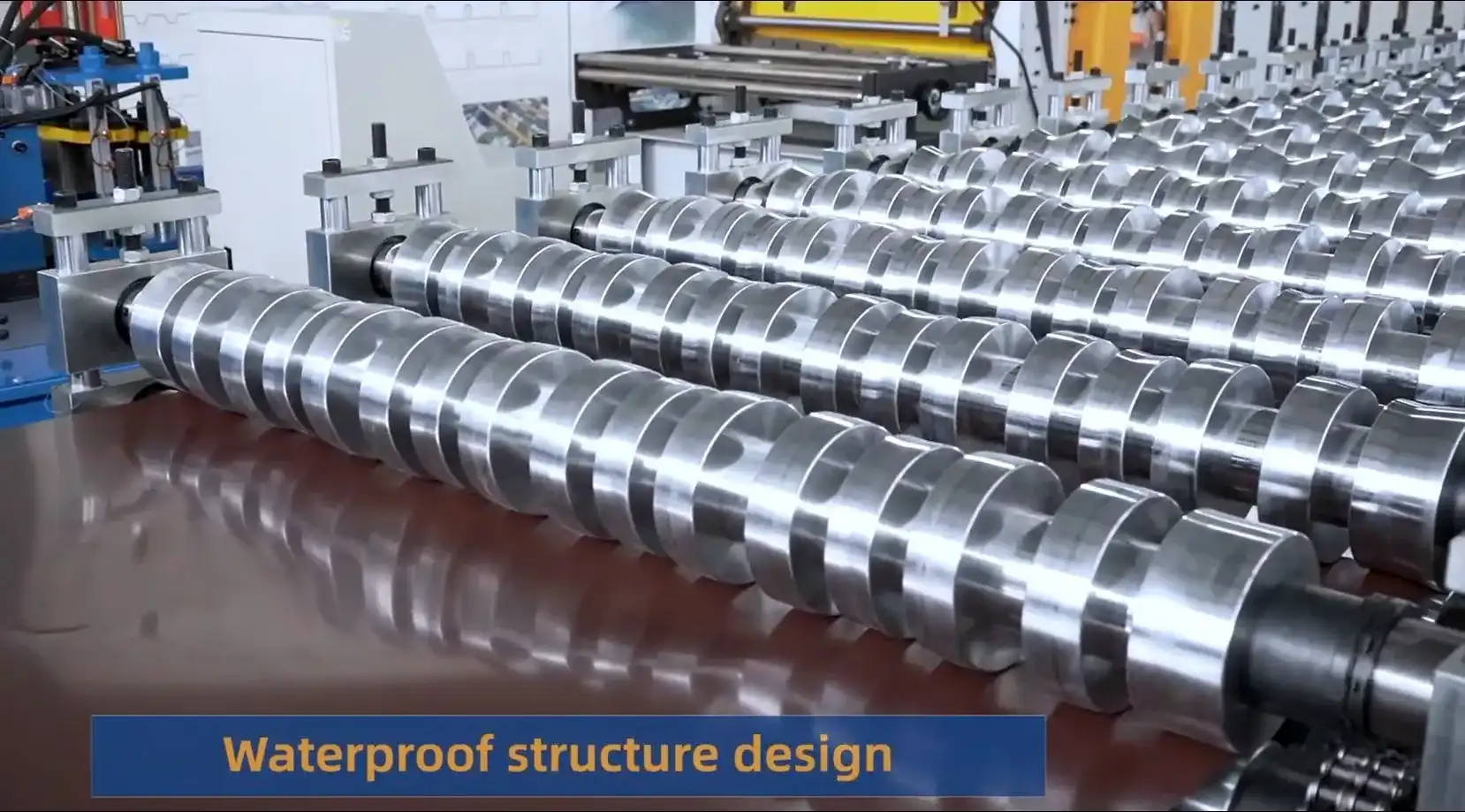

Long-term performance is all about using high-quality parts. High-quality 45# steel rollers don't wear out and keep their shape throughout thousands of production cycles. The 80mm shaft diameter makes the machine very stable while it runs at high speeds, which cuts down on vibration and makes sure that the tiles are always the same quality.
Core Production Benefits and Efficiency Gains
Automated tile press systems, particularly the Q tile making machine, make manufacturing much more efficient by getting rid of manual bottlenecks and lowering the chance of human error. These machines always make tiles that are the same thickness, size, and surface quality. The Q tile making machine and similar automation cut down on the need for workers by up to 60% and greatly increase the overall production capacity.
Quality control reaches new heights through integrated monitoring systems. Each tile undergoes automatic inspection, ensuring defects are detected and corrected before final production. This process minimizes waste material and reduces secondary processing requirements, directly impacting cost savings.
Energy efficiency represents another crucial advantage. Modern ceramic tile machines optimize power consumption through intelligent control systems that adjust motor speeds based on production requirements. This approach reduces energy costs by approximately 25% compared to conventional manufacturing methods.
Material utilization improves dramatically through precision cutting and forming capabilities. Advanced tile cutting machines minimize waste through optimized layout patterns, achieving material efficiency rates exceeding 95%.
Competitive Advantages of ZTRFM Manufacturing Solutions
ZTRFM distinguishes itself through comprehensive engineering expertise and proven manufacturing excellence. Our tile production line solutions incorporate cutting-edge automation technology with robust construction that ensures reliable performance in demanding industrial environments. Unlike generic equipment providers, we offer complete customization capabilities tailored to specific production requirements.
Our technical support goes beyond just setting things up. ZTRFM offers a lot of training, detailed documentation, and quick technical help to make sure that machines work at their best during their entire life. This dedication to helping customers succeed sets us different from other companies who don't give much help after the sale.
We are committed to following worldwide production standards, as shown by our quality certifications like ISO9001, CE, and CAS. These credentials show that our equipment satisfies strict quality standards for markets around the world. We have delivered projects in more than 150 countries, which shows that we can effectively support multinational projects.
Our efforts to produce new products are driven by innovation. ZTRFM always puts money into research and development to make machines better, more efficient, and able to use new technology. This forward-thinking attitude makes sure that our customers get the most up-to-date production technology.
Optimization Strategies for Maximum Performance
Achieving optimal results with the Q tile making machine requires proper machine setup and operational practices. Regular maintenance schedules prevent unexpected downtime and ensure consistent tile quality. We recommend daily inspections of roller alignment, lubrication systems, and control system functionality.
The quality of the final product is greatly affected by how the raw materials are prepared. Make sure that the coil materials fulfill the required surface quality and thickness tolerances. Handling materials correctly keeps them from getting dirty and keeps the surface from getting damaged, which might make the tiles seem bad.
Operator training is very important for getting the most out of machines. Operators can find and fix problems before they affect production if they fully grasp control systems, how to troubleshoot, and quality requirements. ZTRFM offers in-depth training packages that cover every part of operating and maintaining machines.
Production planning optimization involves balancing throughput requirements with quality standards. Adjusting punching speeds based on material characteristics and tile specifications ensures optimal results. Higher speeds work well for standard applications, while complex profiles may require reduced speeds for precision forming.
Regular calibration of tile molding machines maintains dimensional accuracy and ensures consistent product quality. We recommend monthly calibration checks using certified measurement tools to verify machine performance against established standards.
Conclusion
The adoption of advanced Q tile making machine manufacturing technology represents a strategic investment in operational efficiency and product quality. Modern automated systems deliver consistent results while reducing labor costs and material waste. ZTRFM's comprehensive approach to equipment design, manufacturing, and customer support ensures successful implementation and long-term operational success. The combination of precision engineering, robust construction, and responsive technical support creates a compelling value proposition for manufacturers seeking to enhance their competitive position in the construction industry.
Frequently Asked Questions
Q1: What maintenance requirements are necessary for optimal machine performance?
A: Regular maintenance includes daily lubrication of roller systems, weekly alignment checks, and monthly calibration verification. ZTRFM provides comprehensive maintenance schedules and training to ensure peak performance throughout the machine's operational life.
Q2: Can the equipment handle different tile materials and thicknesses?
A: Yes, our machines accommodate various materials including GI and PPGI with thickness ranges from 0.3 to 0.5 mm. The adjustable roller systems and programmable controls enable quick changeovers between different tile specifications without compromising quality.
Q3: What support services does ZTRFM provide for international customers?
A: ZTRFM offers comprehensive global support including installation assistance, operator training, technical documentation, and responsive customer service. Our experience delivering to 150+ countries ensures reliable support regardless of location.
Choose ZTRFM for Superior Tile Manufacturing Solutions
ZTRFM stands ready to transform your tile production capabilities with industry-leading manufacturing equipment and comprehensive support services. Our proven track record spanning a decade demonstrates unwavering commitment to customer success and manufacturing excellence. As a Q tile making machine manufacturer, we understand the unique challenges facing modern construction projects and provide tailored solutions that deliver measurable results.
Our team of engineers and technical specialists collaborates closely with customers to develop optimized production strategies that maximize efficiency and profitability. Whether you're establishing new production facilities or upgrading existing operations, ZTRFM provides the expertise and equipment necessary for success in today's competitive marketplace.
Experience the difference that precision engineering and dedicated support can make for your operations. Contact us at zhongtuorollforming@gmail.com to discuss your specific requirements and discover how ZTRFM can enhance your tile manufacturing capabilities with cutting-edge technology and proven reliability.
