Bamboo tile making machine
Raw material thickness 0.3-0.5 mm
coil feeding width 1250 mm
Roller station 14stations
Punching speed 0-6 m/min
Motor for roll forming 5.5 KW
Machine frame Hot rolled H-beam
Transmission Gear box transmission(bevel gear inside)
Roller material High grade 45# steel
Shaft diameter 80 mm
- Product Description
Bamboo Tile Making Machine
Precision Roll Forming for Bamboo-Pattern Roofing
The Bamboo Tile Making Machine is a specialized roll forming and pressing line for producing bamboo-style roofing sheets.
With its distinct curved ridges and bamboo joint embossing, this profile combines the elegance of traditional Asian architecture with the strength and durability of modern steel roofing.
Our machine ensures perfect pattern alignment, smooth edges, and a scratch-free finish, making it ideal for both residential and commercial projects worldwide.
🔹 Machine Highlights
Accurate Bamboo Joint Pressing – Hydraulic embossing system with adjustable depth and spacing
Smooth Forming Process – CNC-machined, hard chrome-plated rollers prevent paint damage
Heavy-Duty Structure – Welded steel frame for vibration-free operation
Stable Transmission – Chain or gearbox drive to ensure consistent forming
Dual-Speed Options – Standard 4–6 m/min or High-Speed 6–8 m/min
Full PLC Control – Length programming, batch counting, fault detection
Machine Workflow
Hydraulic Decoiler
Coil capacity: 5–10 tons
Motorized expansion for quick coil change
Leveling & Feeding Section
Ensures straight sheet feeding with edge guide system

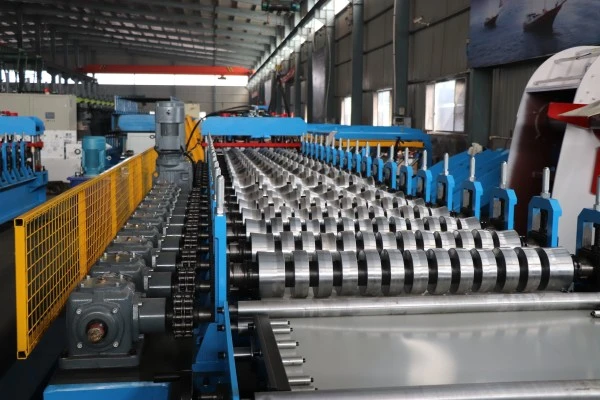

Roll Forming Unit
14–20 forming stations (customized)
Bamboo curve shaping with perfect profile symmetry

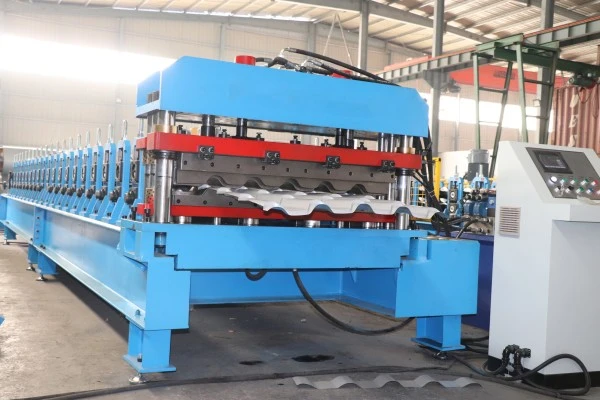

Hydraulic Pressing System
Embosses bamboo joint patterns with uniform depth
Multiple joints pressed per cycle for efficiency
Cutting System
Hydraulic post-cut with heat-treated Cr12Mov blades
Burr-free, clean cutting

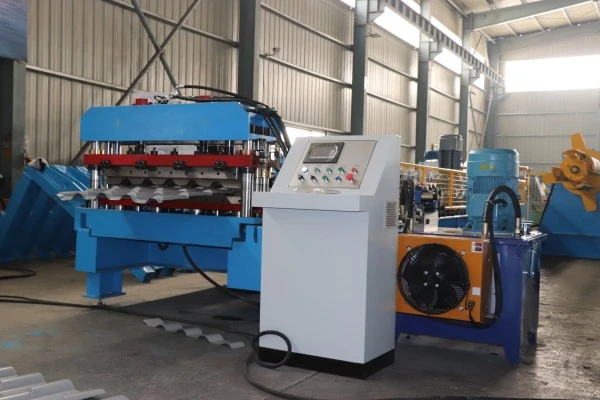

PLC Control Cabinet
Siemens / Delta / Schneider components available
Run-Out Table or Automatic Stacker
Efficient handling of finished sheets
📐 Technical Specifications
| Parameter | Standard Model | High-Speed Model |
|---|---|---|
| Material | PPGI / GI / Aluminum | PPGI / GI / Aluminum |
| Thickness | 0.3–0.6 mm | 0.3–0.6 mm |
| Coil Width | 1200 mm | Customized |
| Forming Speed | 4–6 m/min | 6–8 m/min |
| Tile Pressing | Hydraulic pressing | Fast response hydraulic pressing |
| Roller Material | GCr15 + hard chrome | Same as standard |
| Drive | Chain / Gearbox | Gearbox |
| Cutting Blade | Cr12Mov, heat-treated | Same as standard |
| Control System | PLC + Touchscreen | PLC + Touchscreen |
🔧 Build & Maintenance
Industrial-grade bearings for extended lifespan
Quick-change pressing dies for different bamboo patterns
Safety guards and emergency stop system
Lubrication points for easy maintenance
🌍 Applications
Traditional-style villas and temples
Garden pavilions and cultural architecture
Tourist resorts and themed buildings
Roofing for tropical and coastal regions
🚀 Optional Upgrades
Servo feeder for higher accuracy
Automatic stacking system
Double-layer roll forming for multiple profiles
Remote operation & diagnostic module
