Construction Sheet Metal Machines: Advantages of Automated Trapezoidal Sheet Formers

Getting the right tools is very important if you want to make more metal roofs or wall panels. A trapezoidal sheet roll forming machine takes flat metal coils, usually made of galvanized steel, PPGI, or aluminum, and shapes them into high-strength roofing and cladding panels with a unique trapezoidal shape. Through a continuous cold-forming process that uses multiple roller stations, these machines shape metal piece by piece without changing its thickness. This gives modern construction the structural rigidity and accuracy in dimensions that they need. Automation takes this process to a higher level by adding PLC-based controls, hydraulic cutting systems, and real-time tracking. This gets rid of mistakes made by hand and greatly increases output.

Understanding Automated Trapezoidal Sheet Roll Forming Machines

It's not just about speed when it comes to metal forming automation; it's also about control and consistency. Modern automatic systems are made up of several important parts that work together to make sure that every panel is perfect.

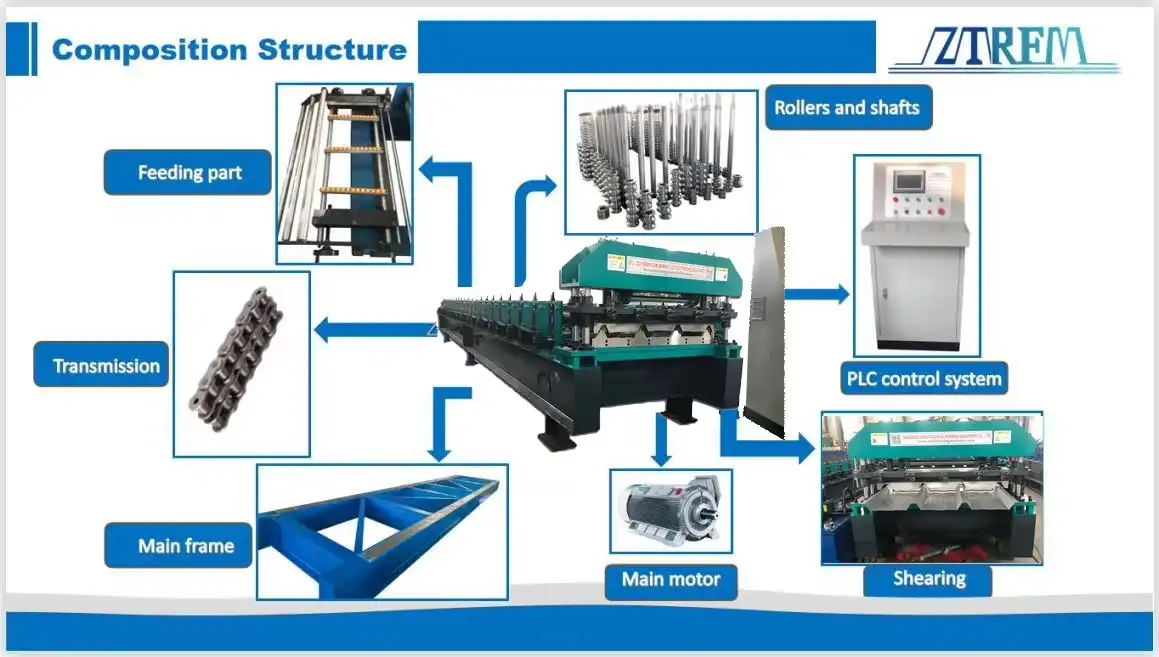

Core Components and Their Functions

A group of carefully designed forming stations is at the heart of every trapezoidal sheet roll forming machine. Decoilers easily unwind metal coils, sending the material into leveling units that get rid of any remaining stresses. After that, the material goes through a series of roller stations, usually 26 rows for trapezoidal shapes. At these stations, 45# steel rollers with a hard chrome finish slowly bend the sheet into its final shape. An 80 mm solid shaft keeps the alignment even when it's under constant load, so the panel doesn't bend, which would change its shape.

With CR12MoV blades, hydraulic cutting systems can make clean, burr-free cuts that are accurate to within ±1 mm. This level of accuracy is important when installing panels that need to fit together perfectly. The PLC control system manages the whole process, including the speed of the machine (up to 60 meters per minute), the accuracy of the cut length, and the order of the batches, all without constant input from a user.

The Roll-Forming Process Demystified

You can judge a machine's powers better if you know how automation turns a raw coil into a finished panel. As the material comes in, it is under controlled compression and moves through progressive making stations, where each pair of rollers gradually bends the sheet closer to the desired shape. Unlike stamping or brake-forming, this method prevents work-hardening and surface damage, so coatings on already-painted materials stay intact.

Automation makes this process better by using a trapezoidal sheet roll forming machine with synchronized drive systems that make sure the line speed stays the same at all stations. Servo motors and encoder feedback make sure that every panel gets the same amount of forming pressure. This gets rid of the profile changes that happen when equipment is operated by hand. The end result is consistent product quality that meets strict building standards for rib height, pitch, and flatness.

Advantages of Automated Trapezoidal Sheet Formers in Construction Manufacturing

By investing in automation, you can see measurable benefits in many areas of your business. When production managers switch from semi-automatic or human systems to fully automated ones, things always get a lot better.

Production Speed and Throughput Optimization

High-speed operation significantly alters production costs. Panel-forming machines at 60 meters per minute can make custom-length sheets from 3 to 20 feet in seconds. With this pace, one shift may manufacture thousands of square feet per day, fulfilling tight project objectives that slower equipment cannot.

Automation speeds up operations and reduces waste. In typical setups, operators hand-measure, place, and verify each cut. Automated systems follow patterns to complete these tasks, so output flow continues. Managing many orders or supplying items for large company initiatives requires this level of efficiency.

Quality, Consistency, and Defect Reduction

Dimensional precision distinguishes professional panels from inferior ones. Automated formers maintain profile tolerances that manual processes can't. The gearbox transmission mechanism reduces roof-forming vibrations. This prevents tiny variations from causing waves or oil-canning on the roof.

Material waste is reduced when every panel fulfills standards on the first pass. Scrap rates may drop below 2% with correctly configured automated systems. Unlike human-dependent systems, which waste 5-8%. While PPGI and aluminum are expensive per ton, these savings mount up fast over multiple manufacturing runs.

Energy Efficiency and Cost Savings

Modern drive systems maximize motor power by matching output to the forming load. By keeping large portions idle, a 5.5 kW main motor and a 7.5 kW hydraulic unit offer adequate power without consuming too much energy. Smart management of idle motors during setup or material loading reduces operating costs even further.

Work efficiency is another perk. Automated systems need one person to manage duties that formerly required three or four. This cuts salaries and benefits for places with a shortage of skilled personnel. New workers may reach production targets with minimal training when robots perform sophisticated timing and measurement duties.

Enhanced Workplace Safety

Construction equipment often has pinch spots, flying metal bits, and overuse injuries. Automation conceals risky elements and reduces physical material handling. Automated measurement lets workers operate from control panels away from shearing machinery and cutting blades.

PLC systems monitor bearing temperatures, hydraulic pressure, and drive motor performance with predictive maintenance. Early warning indicators allow repair during scheduled breaks rather than after a calamity. This preventive approach prevents equipment damage and safety issues caused by machine breakdowns.

Applications and Use Cases of Trapezoidal Sheet Roll Forming Machines

Because they are strong for their weight and don't hold water, trapezoidal sheet roll forming machines are used a lot in the building business. Figuring out where these machines give you the most value helps you match their abilities with market opportunities.

Roofing Systems for Commercial and Industrial Buildings

Trapezoidal roofing plates are very important for pre-engineered metal buildings. The profile's structural ribs make it possible for panels to span at least 6 feet between purlins, which cuts down on the need for a framework and the cost of building it. Manufacturers of building systems like that they can make unique lengths up to 20 feet 10 inches long, which gets rid of the need for gaps in the middle of the roof that could let water in.

Coastal areas and places with a lot of rain should really value panels made from Aluzinc or PPGI painted materials. The making process needs to protect these special coatings. To do this, hard chrome-plated rollers and synchronized line speeds keep the coatings from getting scratched, which would weaken their resistance to rust. Automated systems keep up the careful handling of materials that is needed for high-quality building finishes.

Wall Cladding and Architectural Facades

When it comes to vertical uses, they need the same level of accuracy as roofs, but there are often extra aesthetic concerns. Architects choose trapezoidal wall panels for their clean lines and shadow effects, so the quality of the surface is very important. Automation makes sure that the ribs are always defined and that the finishes are smooth all the way around the outside of buildings.

Manufacturers can serve both the structural and cosmetic markets because they can work with materials ranging from 0.3 mm to 1.0 mm thick. Thinner gauges work well for indoor partition walls or siding on homes, while heavier materials are better for warehouse exteriors or farm buildings that are subject to harsh conditions because they can handle being hit.

Structural Components and Infrastructure Projects

In addition to roofing, trapezoidal sheet roll forming machines make structural decking for mezzanines, bridge formwork, and temporary barriers for construction. The rigidity of the shape and its standard sizes make engineering estimates easier and speed up the approval process for projects. International EPC companies really like equipment that can make ISO-compliant panels no matter where they are made. This makes sure that the quality of all projects around the world is the same.

How to Choose the Right Automated Trapezoidal Sheet Roll Forming Machine?

Several technical and business factors must be taken into account when choosing a trapezoidal sheet roll forming machine that fits your production goals and marketplace. Making smart choices during the design stage keeps machines from not meeting the real needs of the business, which can be very expensive.

Production Capacity and Scale Considerations

Whether a standard or heavy-duty design is best for your business depends on how much power you need. Frames made of 350 H steel and cast iron are strong enough to support machines that work nonstop, which would wear out smaller equipment. If you're keeping panels on hand for distribution networks or sending panels to multiple building groups at the same time, put reliability requirements ahead of initial cost savings.

The ability to move things around is just as important. Different coil sizes can be accommodated by widths of 1000 mm or 1250 mm, and roller stations that can be changed to fit different profiles can be used without having to buy all new equipment. This adaptability comes in handy as your product line changes or as customer needs vary.

Automation Level and Control Sophistication

Basic automated systems measure lengths and set up cutting sequences. More advanced models store recipes for multiple profiles, automatically change thickness, and connect to ERP systems to keep track of production. If you're making a lot of standard profiles, over-specified rules will cost you money without helping, and if you're not automating enough, it will slow down your process when you have to make a lot of changes or special orders.

There is a need for long-term support for PLC brands. Systems with controllers made by Mitsubishi or Siemens have worldwide repair networks and new parts that are easy to find. This is especially important for makers who work in more than one country or who supply tools for time-sensitive building projects where downtime directly affects contract penalties.

Maintenance Requirements and Total Cost of Ownership

The price of the tools is only one part of their total cost. Machines that need to have their rollers replaced often or specialized repair eat away at earnings through downtime and service costs. Cutting blades made of Cr12MoV usually last 100,000 cuts or more before they need to be reground, which is a lot longer than blades made of regular steel. Hard chrome-plated rollers don't wear down easily, even when working with rough galvanized coats. If they are properly oiled, they can often keep their accuracy for more than ten years.

Along with machine specs, you should look at how well the supplier can support you. When manufacturers offer thorough training, detailed technical documents, and quick access to replacement parts, they lower the practical risks that come with complex equipment. Companies whose installation teams know the local safety and electrical codes can speed up commissioning and reduce problems that come up during startup.

Maintenance Tips and Troubleshooting for Automated Trapezoidal Sheet Formers

Reliable production relies on taking care of tools and fixing problems quickly. Setting up regular repair plans for machines makes them last longer and stops the quality problems that happen when systems aren't taken care of.

Routine Maintenance Best Practices

Roller surfaces should be checked every day to make sure they don't get any metal shavings or coating buildup that could move to the final panels. Using the right chemicals to clean keeps the hard chrome plating in good shape and gets rid of any leftover glue from protection films or adhesive-backed coil wrapping. Schedules for lubrication are important. Modern machines use centralized systems that automatically send grease to bearing points, but the amounts in the reservoir and the stability of the lines that carry the grease need to be checked on a regular basis.

To make sure you get clean cuts without too many burrs, check the gaps between the blades once a month. As blades wear down, the space between the upper and lower cutting edges gets bigger. This makes the ends of panels look rough and need to be trimmed again. This gap needs to be measured and adjusted before quality problems show up. This stops waste and keeps the production flow going. The quality of the hydraulic fluid affects both how well it cuts and how long the system lasts. Contaminated fluid speeds up component wear and makes cutting force less consistent.

Common Issues and Diagnostic Approaches

If the profile bends or twists, it's usually because the roller gaps aren't lined up right. Even small differences add up over many forming stations, making panels that won't lay flat when they're installed. Automated systems make corrections easier because they let you change the positions of each roller digitally instead of by hand. When you run test pieces after making changes, you can be sure that the changes fixed the shape problem without creating any new problems.

If there is an electrical problem with the trapezoidal sheet roll forming machine's PLC or the drive motors, work can stop without warning. These days, controllers record error codes that point to specific parts or sensors, which makes troubleshooting much faster. Keeping extra drives for important parts, like the main forming motor and hydraulic pump, lets you quickly replace and fix broken units without having to stop production for repairs in the field.

When complicated issues arise or performance drops indicate that a part is wearing out beyond repair, professional help is needed. Technicians with a lot of experience bring diagnostic tools and replacement parts that quickly get things back to how they were.

Conclusion

For manufacturers looking to compete successfully in the tough construction markets, trapezoidal sheet roll forming machines are an excellent investment. Higher output speeds, consistent quality, and lower operating costs all work together to provide clear benefits in the production of roofing systems, structural parts, and architectural cladding. Today's high-tech tools, like PLC-based process control and precision-engineered roller systems, solve the main problems of shape accuracy, material handling, and production efficiency that make human or semi-automatic tasks hard to do. If you choose equipment that fits your production size, automation needs, and upkeep skills, your business will be able to keep growing while still meeting the high standards that commercial and industrial customers expect.

FAQ

Q1: Can steel and aluminum be formed by automated trapezoidal formers?

These days, tools can work with PPGI, galvanized steel, and aluminum that is between 0.3 mm and 1.0 mm thick. Some things that need to be thought about, depending on the material, are changing the roller pressure for softer aluminum and changing the line speed to keep pre-painted surfaces from getting marks. To avoid premature wear, manufacturers should make sure that the roller strength specs are right for the mix of materials they use.

Q2: How does technology cut down on the amount of energy used to make panels?

Instead of running at full power all the time, automated systems match the drive output to the actual forming loads to get the best motor operation. Smart controls turn off motors when materials are being loaded or when the machine is being set up, and synchronized roller speeds get rid of the energy waste that comes from friction or material slippage that happens when machines are operated by hand.

Q3: What kind of guarantee and customer service should people who buy tools expect?

Most warranties from reputable manufacturers cover mechanical parts and electrical systems for 12 to 24 months. Full support packages come with things like training for operators, expert documents, and quick shipping for important parts and fast parts supply. Global suppliers with experience in many areas can give help in more than one language and know how to put things in different regions, which makes commissioning easier.

Partner with ZTRFM for Advanced Trapezoidal Sheet Roll Forming Solutions

Nearly ten years of work have been put into making automatic forming systems that solve the problems that metal building makers face every day at ZTRFM (Cangzhou Zhongtuo Roll Forming Technology). Our high-speed trapezoidal sheet roll forming machines are made with a combination of tried-and-true mechanical design and modern technology to give your output the dependability and accuracy it needs. Our team can help you with custom solutions that are backed by ISO9001 and CE certifications, whether you're looking to increase the capacity of your roofing panels, expand into architectural cladding, or find a reliable supplier of trapezoidal sheet roll forming machines.

We know that choosing equipment is more than just comparing specs; you need a partner who will be there for your business from the time it's installed until years of production have passed. Our engineering team will help you find the right machine configurations based on your material needs, output rate, and desires for automation. You can email zhongtuorollforming@gmail.com to talk about how our trapezoidal sheet roll forming machines can help your manufacturing process, and to find more technical information and case studies that show how the machines work in a variety of real-world situations.
