Corrugated Sheet Machine Specs: Thickness, Width, Speed & Profile Options

When we look at roll forming tools for metal roofs and building parts, it's important to know what a corrugated sheet machine is supposed to do. For standard uses, the thickness ranges from 0.3mm to 1.2mm, and the working widths range from 914 mm to 1250 mm, depending on what you need to make. Machine speeds range from 8 to 25 meters per minute, and manufacturers can change the profile to make different wave patterns and corrugation depths that fit the needs of each structure.

Understanding Corrugated Sheet Machine Specifications – General Overview

The basic features of roll-making tools directly affect how well it works and how much it produces. When choosing machinery for making metal sheets, industrial leaders must look at its material gauge capacity, working width, forming speed, and the variety of profiles it can make.

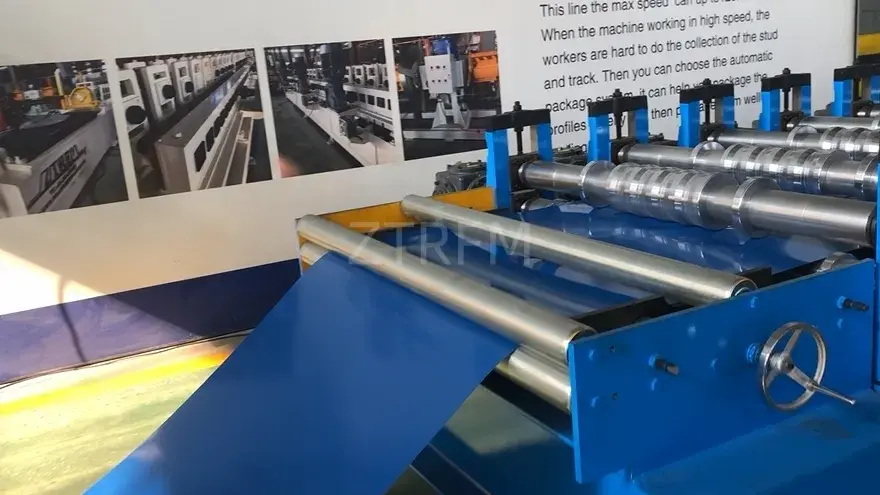

Material Thickness, Capacity, and Its Impact

Heavy-duty roll forming devices can handle steel sheets up to 2.0 mm thick and thicknesses from 0.25 to 1.5 mm. Thicker materials require higher roller pressure and torque, which affects machine and motor design. Many companies that shape galvanized steel, pre-painted metal, or aluminum use roller hardness values of HRC 58–60 to maintain uniformity without harming the surface. Thinner gauges are preferable for roofs on residences, whereas thicker gauges are better for commercial buildings that need to carry more weight.

Working Width Parameters and Production Flexibility

Effective width criteria determine your production line's maximum sheet size. Standard setups have working widths between 900mm and 1250mm, although custom alternatives can reach 1500mm. This figure impacts material utilization and garbage production. Machines with variable width settings allow manufacturers to alter product lines without retooling. Maintaining width within a ±0.5mm range ensures compatibility with downstream processes, particularly for correct panel alignment during installation.

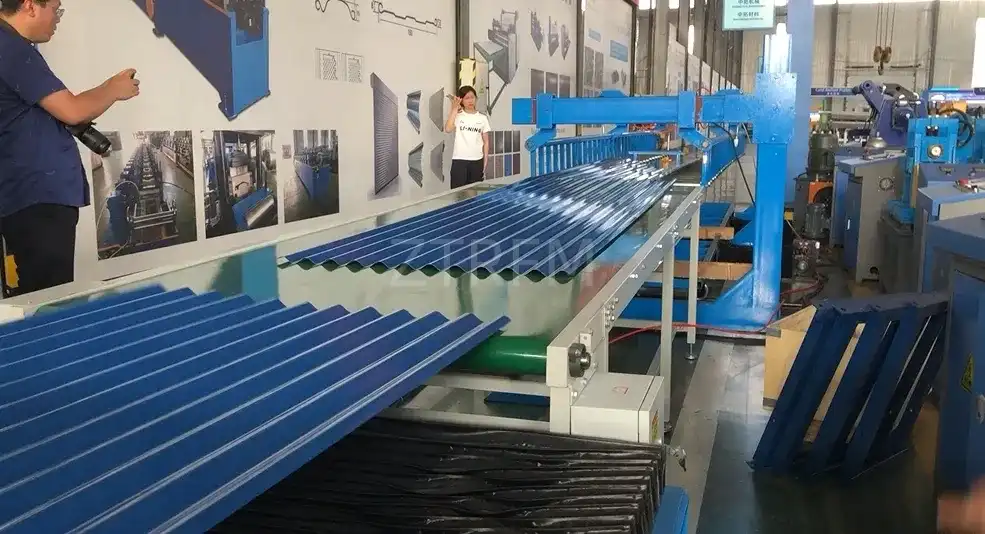

Forming Speed and Throughput Considerations

Production speed varies greatly per tool. Beginning systems can move 8–12 meters per minute, mid-range versions 15–20 meters per minute, and high-end automatic lines 25 meters or more. Forming speed and quality must be balanced. Speed can reduce profile accuracy and leave stress lines on finished objects. We recommend matching speed specs to your production volume rather than setting the default to maximum capacity. This maintains quality and extends equipment life.

Profile Options and Customization Capabilities

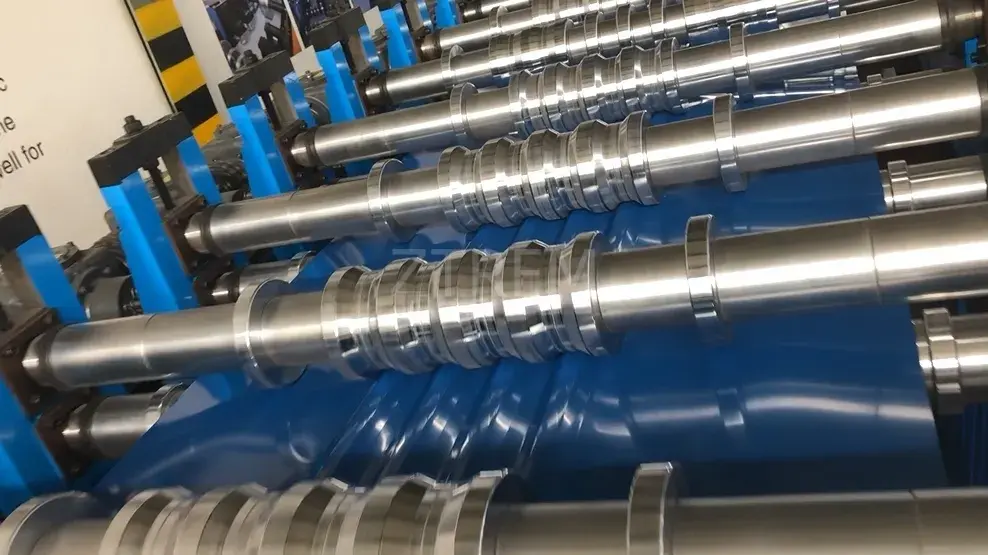

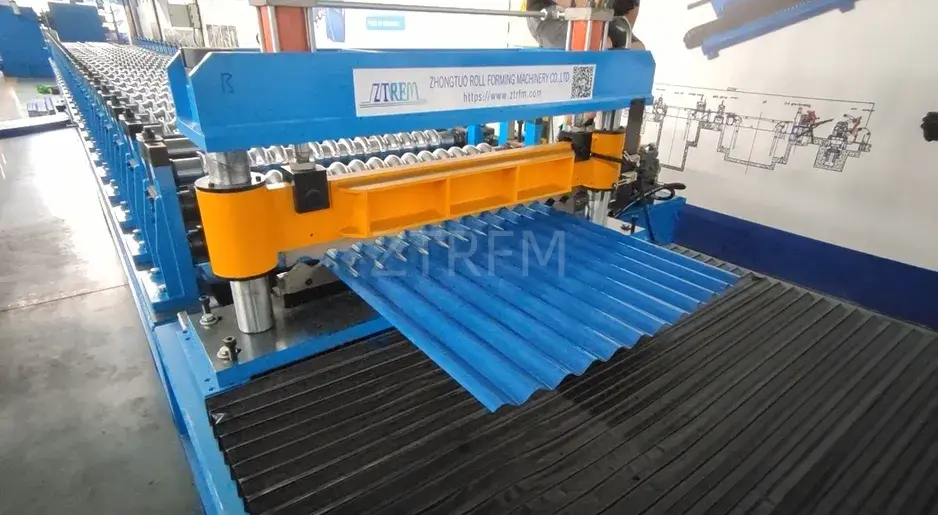

Because roller sets can be changed, roll forming machines can make different corrugations. Sinusoidal waves, trapezoidal ribs, and box-rib combinations are typical geometries with different structural and aesthetic functions. Wave height is 18–76 mm, and pitch is 76–200 mm for most. Advanced systems use quick-change cassettes to change profiles in 30 to 45 minutes, meeting product diversification needs without pattern-specific gear.

How these standards interact affects the efficiency of the corrugated sheet machine. Faster speeds require a stronger frame and better roller alignment. Wider working widths require more lateral rigidity to prevent material movement during formation. Thickness capacity impacts the hydraulic system and roller width required. Knowing these linkages helps buying teams make good choices to fulfill output targets and budget.

Types of Corrugated Sheet Machines and Their Spec Differences

Sorting equipment by level of automation and structural complexity shows a different set of specifications that work well with various production methods and sizes.

Manual and Semi-Automatic Systems

Manual machines are entry-level options with 8-10 m/min rates and 0.8mm thickness capacity. A person must operate these systems for material feeding, cutting, and profile changes. Semiautomatic models use powered feeding and hydraulic cutting technologies to increase throughput to 12-15 m/min while requiring an operator to monitor quality. Smaller manufacturers or companies that wish to test the market before automating infrastructure would benefit from both.

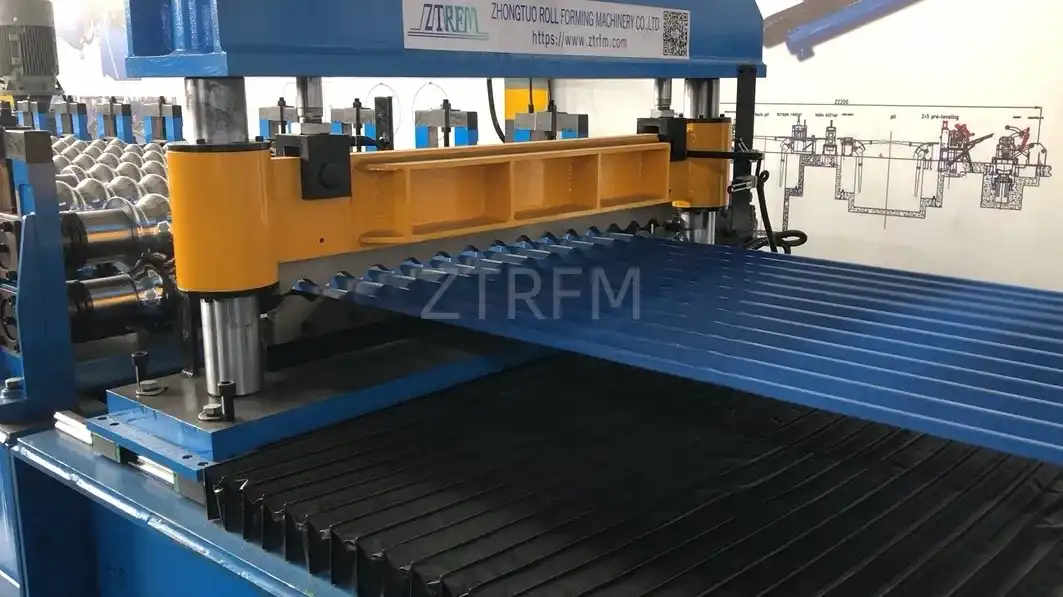

Fully Automatic Production Lines

Industries that create many products benefit from integrated systems with automatic feeds, in-line punching, servo-driven cutting, and PLC control. These machines can operate at 18-25 m/min without operator assistance and maintain dimensions within ±0.3 mm. Automated systems can change profiles quickly using programmable roller location, reducing changeover downtime by a lot. Variable-frequency motors and energy-saving hydraulic systems can reduce running expenses by 15–20% to classic designs.

Profile-Based Machine Variants

Single-facer machines manufacture simple corrugated siding and roofing panels. Double-facer machines add bends and embossments to build more complex geometries for architectural applications that need visual appeal. Multi-wall systems offer thermally efficient insulated panel profiles with foam or mineral wool cores for commercial buildings. Architectural profile machines can handle thinner materials (0.4–0.8 mm) across narrower widths, while structural systems can accommodate 1.5 mm gauges.

Energy Efficiency and Automation Advancements

Modern machines feature servo motors to accurately set rollers, saving energy while not in use and changing profiles. Automatic lubrication reduces friction and delays repairs. IoT-enabled sensors provide real-time production data analytics for maintenance planning and downtime prevention. These innovations save 12–18% of energy, 25% of upkeep, and 15% of tool performance.

Grouping machines by these variables helps purchasers ensure that the equipment's talents match the business's needs, workload, and growth objectives. Automation level and profile type specifications affect initial investment, system costs, and future growth.

Optimizing Production Through Machine Specs – Best Practices and Considerations

A strategic agreement between the specs of the tools and the goals of the production process increases the efficiency of manufacturing while keeping costs low.

Matching Thickness and Profile to Application Requirements

0.4 to 0.6 mm galvanized steel with mild wave forms is used in most residential roofing for its low cost and structural performance. For business and industrial operations, the thickness must be 0.7–1.2 mm and corrugations deeper (50–76 mm wave height). Building exteriors are increasingly covered in 0.5–0.8mm pre-painted aluminum with modest features to look good rather than strong. Instead of operating machinery at severe capacity limits, consider equipment that can handle your major materials and be flexible for different uses.

Balancing Speed with Quality Consistency

For the corrugated sheet machine, running fast usually lowers the quality. We recommend keeping production speed at 80–85% of maximum capacity to maintain form accuracy and reduce roller wear. Material variations are more noticeable at greater speeds. At 25 m/min, coil width discrepancies are more visible than at 15 m/min. Tension control devices and sensor-based speed modulation improve surface smoothness and output. Tracking quality at numerous locations throughout the line helps detect specification deviation before it affects finished product batches.

Width Flexibility for Custom Orders

When breadth can be altered, manufacturers can serve many clients without worrying about supplies or material loss. In 10–15 minutes, quick-adjustment systems can alter width using measured setting blocks, keeping production flowing while orders change. This flexibility is important for residential contractors who need standard panel sizes and commercial projects that need unique sizes. Precision in width adjustment affects edge quality and manufacturing efficiency; hence, this standard is crucial.

Always compare standard performance to output quality to optimize production. Baseline values for each material type and profile aid with operations changes and maintenance planning.

Maintenance, Troubleshooting, and Longevity of Corrugated Sheet Machines

Specification accuracy depends on preventative maintenance plans and organized repair methods that keep equipment precise for as long as it is used.

Routine Calibration and Preventive Maintenance

During busy production times, roller alignment should be checked every two weeks, and parallelism should be checked within 0.02mm of the limits set to stop profile distortion over time. Schedules for lubrication depend on the part—main drive chains need to be oiled once a week, while roller bearings need to be inspected monthly and repacked every three months. To keep the cutting power constant, hydraulic systems need to have their fluids and filters changed once a year. By keeping thorough maintenance logs tracking roller wear patterns, you can replace them before the quality starts to decline, which usually happens after processing 500,000 to 800,000 linear meters, based on the roughness and thickness of the material.

Common Specification-Related Issues and Solutions

Most of the time, profile dimension drift is caused by worn rollers or thermal expansion during long production runs. This problem can be fixed by setting up cooling breaks during high-speed activities and keeping an eye on the state of the roller surfaces. Feeding problems and changes in size are caused by materials that aren't always the same thickness. In-line thickness gauging with automatic speed adjustment keeps specifications constant even when material quality changes. Edge waviness usually means that the roller pressure isn't high enough or that the side guides aren't lined up right. Regular adjustments to the roller pressure and the guides resolve these symptoms. If the width range is more than ±0.5mm, it generally means that the positioning parts are worn out and need to be replaced.

Automated Diagnostics and Smart Maintenance Tools

Modern machines have vibration sensors that can find worn-out bearings before they fail completely. Checking the temperatures of all the wheel parts shows where there are problems with friction, which means there isn't enough lubrication. Production management systems look at changes in cycle times and speeds, pointing out changes in mechanical resistance that happen before major parts break. When compared to reactive maintenance methods, these diagnostic tools cut unplanned downtime by 30–40%, directly impacting the reliability of production and the longevity of equipment.

Sticking to regular repair schedules keeps machines working for longer than 15 to 20 years while keeping the accuracy needed to meet quality standards. Putting money into organized maintenance routines and diagnostic tools pays off in a way that can be measured: less downtime, lower repair costs, and consistent output that meets tolerance requirements.

Procurement Guide: Choosing Corrugated Sheet Machines Based on Specs and Business Needs

Choosing corrugated sheet machines based on specs and business needs is what this guide is all about. In order to buy strategic tools, you need to carefully consider technical specs, working needs, and long-term business goals.

Defining Production Capacity Requirements

Accurately predicting demand is the first step in choosing the right equipment. Figure out how much production you need each year, taking into account seasonal changes and expected growth paths. A company that wants to make 1.2 million linear meters a year needs machines that can keep going at 15 to 18 meters per minute and work reliably when they're not in use. While oversizing equipment can help with growth, it also raises the cost of starting capital and may make operations less efficient when demand is low. Undersizing leads to production problems that make it hard for a business to grow. Matching machine specs to realistic capacity projections that are optimized over a 3–5 year time frame strikes a balance between cost-effectiveness and operational adaptability.

Evaluating Total Cost of Ownership

The initial buying price is only 40–50% of how much the tools will cost over their lifetime. Different output speeds have a big effect on operational costs—a machine that uses 45 kW instead of 60 kW saves $12,000 to $15,000 a year in industrial power rates. Ongoing costs are affected by how hard it is to maintain and how easy it is to get replacement parts; standardized parts and easy-to-use service networks lower support costs. The level of automation affects labor requirements—fully automatic systems may be worth the extra 25–30% in price because they require less staff and are more productive. Conducting a full TCO study incorporating energy, maintenance, labor, and downtime costs over a 10-year period reveals true equipment value.

Specification Comparison Across Leading Models

The range of specifications for the modern corrugated sheet machine is very impressive. Premium types have servo-driven roller positioning that lets you change the shape in just 30 minutes, whereas regular systems need to be adjusted by hand for 60 to 90 minutes. Modern machines have automatic thickness detection that changes the forming pressure on the fly, keeping the quality even when the material changes without the operator having to do anything. When compared to fixed-speed motors, energy-efficient systems that use variable-frequency drives use 15-20% less power. Following the rules for ISO 9001 and CE certification ensures that equipment meets international quality and safety standards, particularly important for manufacturers serving global markets.

Critical Purchase Considerations Beyond Specifications

Warranty terms have a big effect on how risk is distributed—a 24-month warranty covering both parts and labor is safer than a 12-month warranty that only covers parts. The infrastructure for after-sales support, such as the availability and reaction times of expert help, affects the continuity of operations. If a supplier has delivered to your area before, it means they know how to handle logistics, follow rules, and set up service networks. Customization options that meet the needs of unique profiles or the ability to connect to current production systems are very valuable. Training programs that make sure operators and maintenance workers are skilled make equipment last longer and be used more efficiently.

Finding the best specs is only one part of successful procurement. Other factors include seller dependability, support infrastructure, and making sure that the equipment's capabilities are in line with the company's long-term goals. A thorough analysis of these factors lowers the risk of acquisition while setting up manufacturers for long-term competitive advantage.

Conclusion

When choosing the right roll forming equipment, you have to balance technical specs like thickness limit, working width, production speed, and shape flexibility with operating needs and budgetary limits. Knowing how these factors affect production results, quality, stability, and long-term costs helps people make smart choices about what to buy. How automated the equipment is, how often it needs to be maintained, and how well the provider can help are all important factors in the long-term success of manufacturing. When manufacturers regularly compare these factors to their specific production goals, they set themselves up to get the most out of their equipment investments while still remaining competitive in the market.

FAQ

Q1: What determines the ideal machine speed for my production requirements?

The choice of machine speed relies on the amount of work you want to do each year, the times you can work, and the quality standards you need to meet. Divide the number of annual linear meters by the number of available output hours to get the throughput you need. Then, choose equipment that is rated 20 to 25 percent above this standard to account for repair downtime and material changes. Higher speeds work best for normal runs of products made from consistent materials, while moderate speeds work best for special orders that need to change the shape a lot. Applications that care a lot about quality do better with slower speeds that keep the limits for sizes tighter.

Q2: How does material thickness capacity affect overall equipment cost?

Machines that work with thicker materials need stronger frames, drive systems that can handle more torque, and roller surfaces that are harder, all of which raise the cost of production. Equipment that can handle a maximum thickness of 1.5 mm usually costs 25 to 35 % more than similar machines that can only handle a maximum thickness of 0.8 mm. Carefully consider the real range of materials you need to work with—buying too much capacity will increase the starting cost and may make it harder to form thin materials at the lower end of the equipment's rated range.

Q3: Can one machine produce multiple corrugation profiles efficiently?

Profile changes can be made in 30 to 45 minutes with modern equipment that has quick-change roller carts, making multi-profile production possible for companies that serve a wide range of customers. Compare how often the profiles are changed to how much is being made—frequent profile switches favor advanced quick-change systems despite higher initial costs, while dedicated single-profile machines suit high-volume standardized production. The complexity of the profile also affects how well the shift works; moving between wave patterns that are similar works faster than switching between drastically different geometries requiring extensive roller reconfiguration.

Partner with ZTRFM for Your Roll Forming Equipment Needs

ZTRFM has been a specialist in cold roll forming technology for ten years and has helped manufacturers in more than 150 countries with their corrugated sheet machines. Our equipment is ISO9001 and CE approved, and it can handle thicknesses from 0.3mm to 2.0mm and working widths up to 1500mm, accommodating diverse production requirements from basic tasks to automatic lines. We offer full support, including technical advice, help with installation, training for operators, and access to extra parts around the world to keep production running smoothly. As a trusted national high-tech company and corrugated sheet machine manufacturer, we offer flexible OEM/ODM services, tailoring equipment specifications to your exact operational needs. Contact our engineering team at zhongtuorollforming@gmail.com to discuss how our custom solutions can optimize your production efficiency and product quality.
