A ceiling t grid roll forming machine takes flat steel coils and shapes them into the basic T-shaped patterns that make up the framework for hanging ceiling systems in homes and businesses. When contractors have to deliver precisely engineered Main Tees, Cross Tees, and Wall Angles, they are constantly under pressure to keep up high production volumes and meet tight tolerances. Standardized machines have problems that can't be solved by custom machines that are made to fit the needs of each project. These machines offer freedom, higher output, and better accuracy in measurements that are necessary for modern interior fit-out projects.

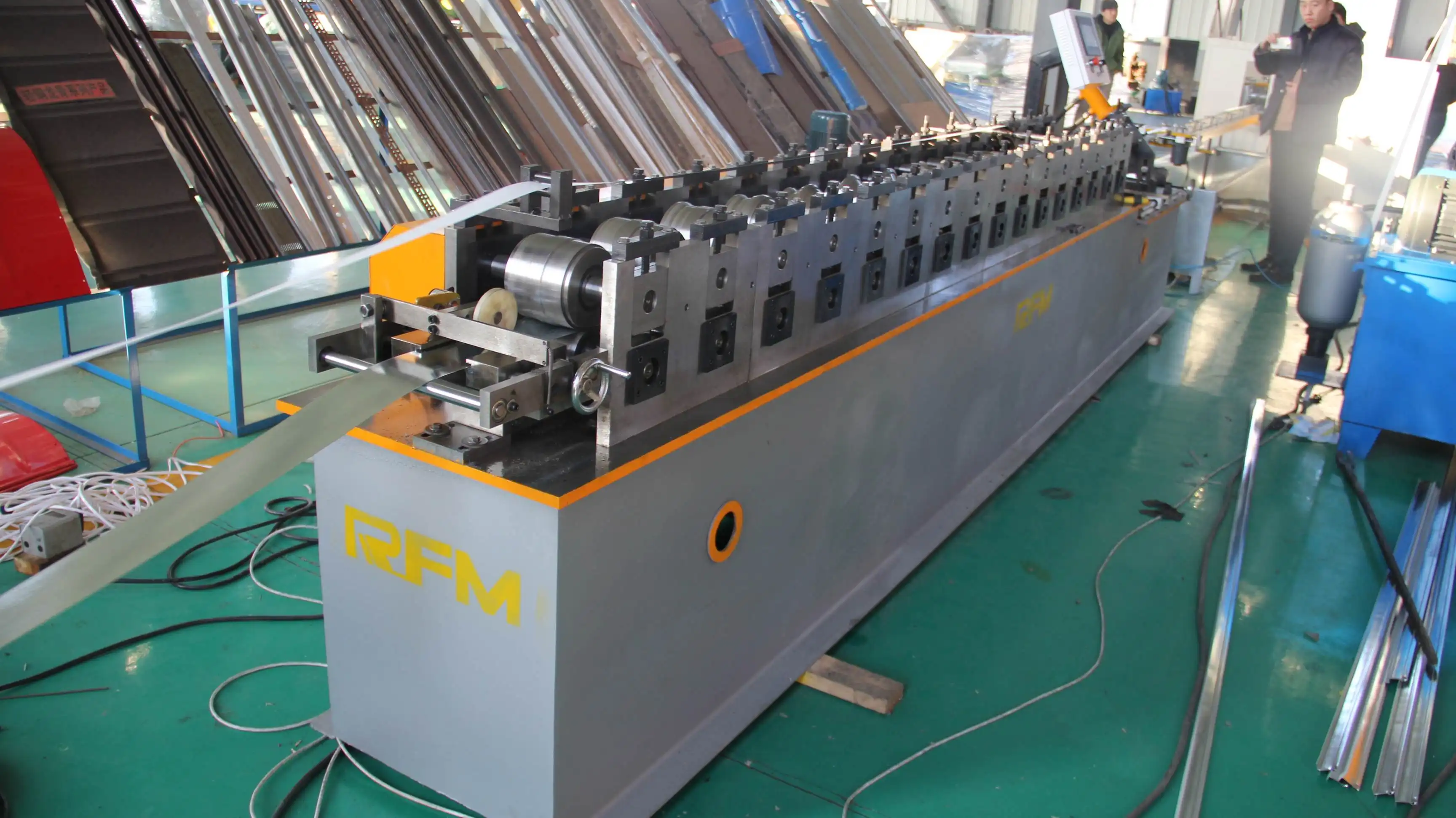

Continuous cold roll forming is how this special machine works. Galvanized (GI) or pre-painted galvanized (PPGI) steel strips move through a series of roller stations that shape the material into the right T-grid shape. Roll forming, unlike standard stamping or press-brake methods, keeps the thickness of the material constant and makes very little waste. This makes it a good choice for high-volume production settings.

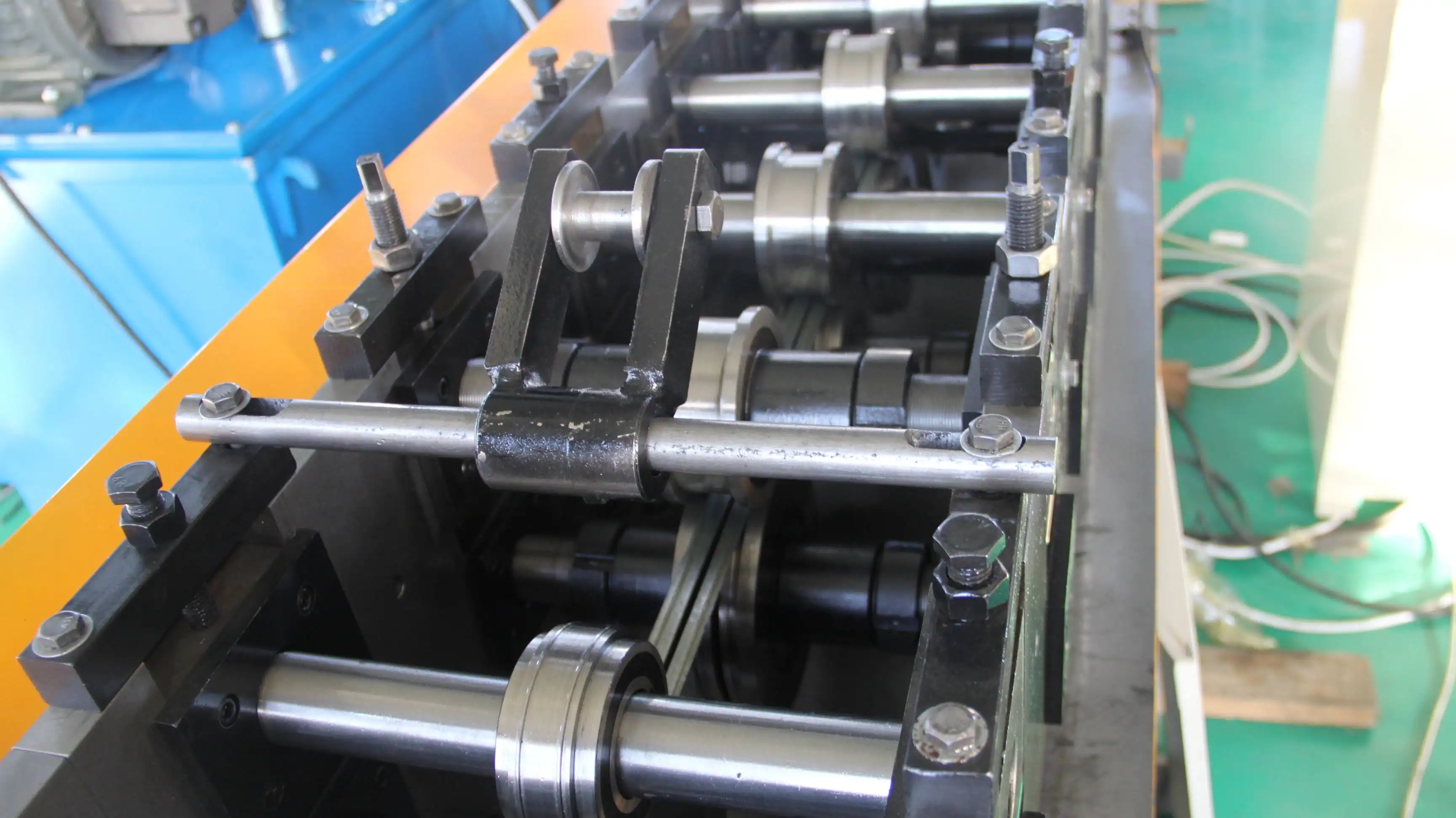

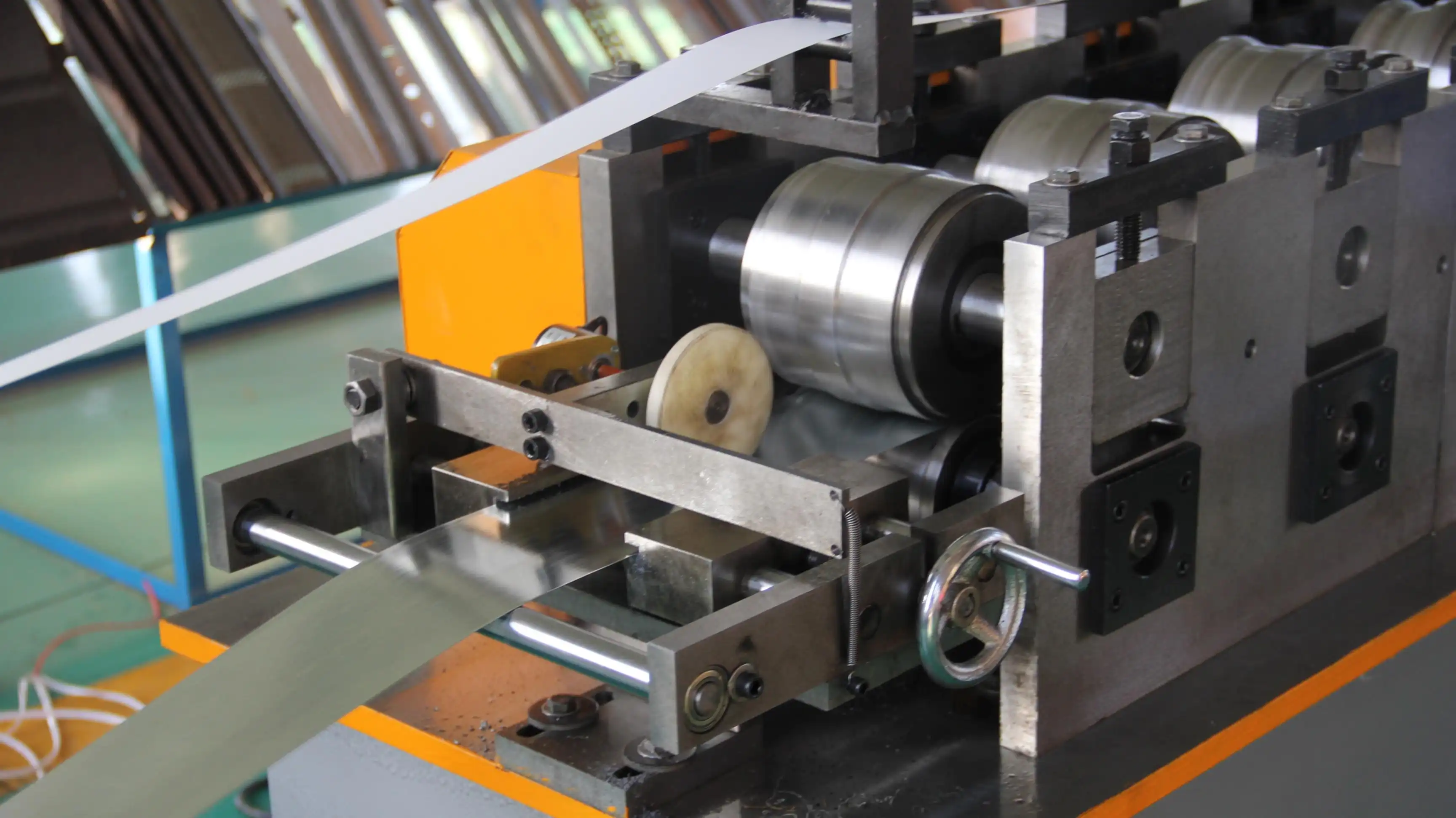

The machine starts with a decoiler that can hold steel coils that are up to 1.5 tons heavy and have inner diameters of 450 to 550 mm. With a diameter of 50 mm and made of sturdy 45# steel, the rolling shaft moves material easily into the forming section. In this case, GB-Cr12 steel precision-engineered rollers slowly shape the flat strip at 18 stations for Main Tee profiles and 16 stations for Cross Tee configurations. This multi-station method spreads the forming stress out evenly, which keeps the material from getting damaged and makes sure that the finished product stays within ±0.5mm of its original size.
The machine works with PPGI material that is between 0.1 and 0.3 mm thick to make T-bar top sections. It gives the surfaces the nice finish needed for applications that will be seen from above. The bottom parts are made of 0.2- 0.4 mm GI material, which is strong and doesn't rust. This ability to use two different materials lets builders improve both look and function while keeping material costs low.

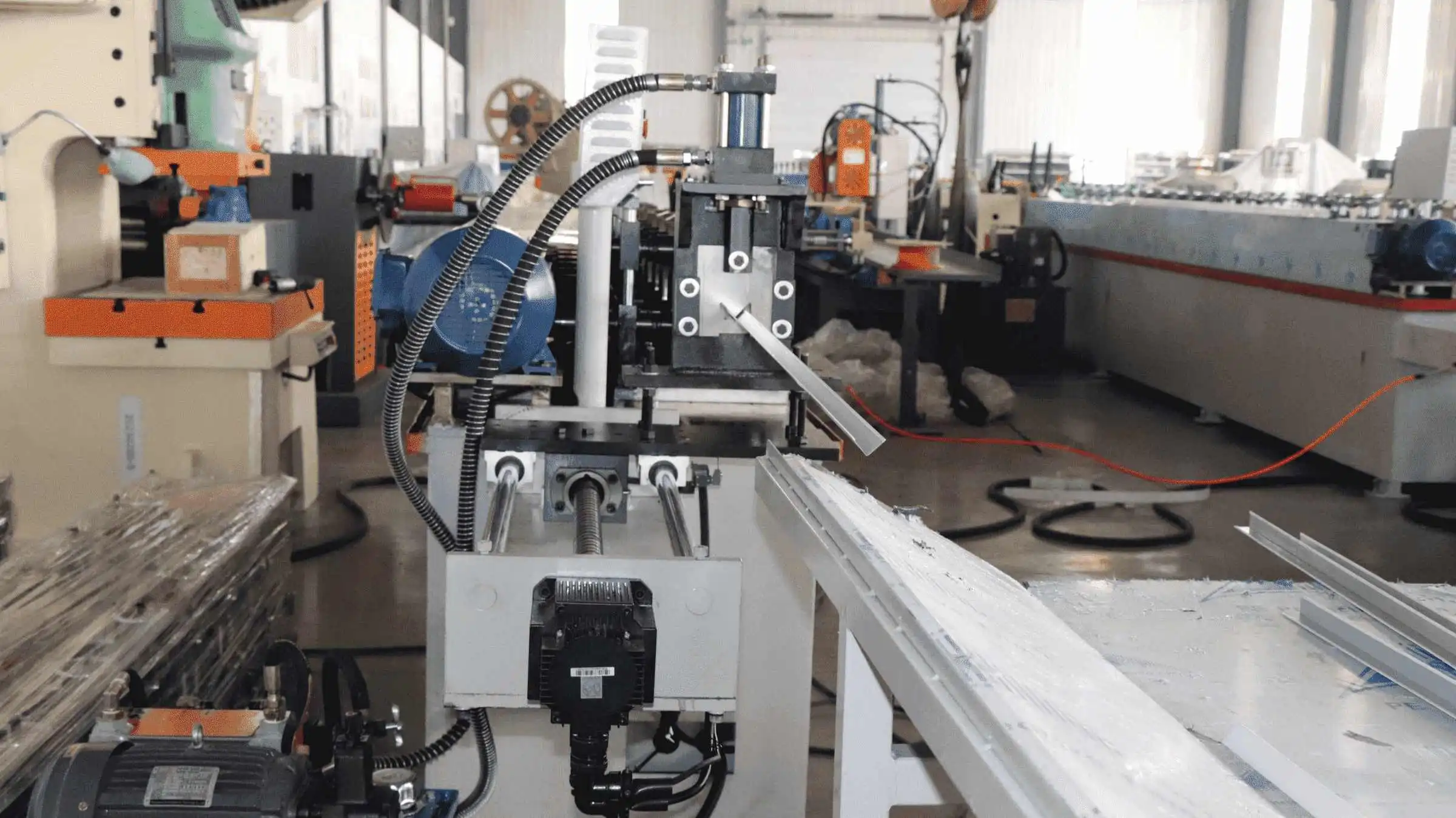

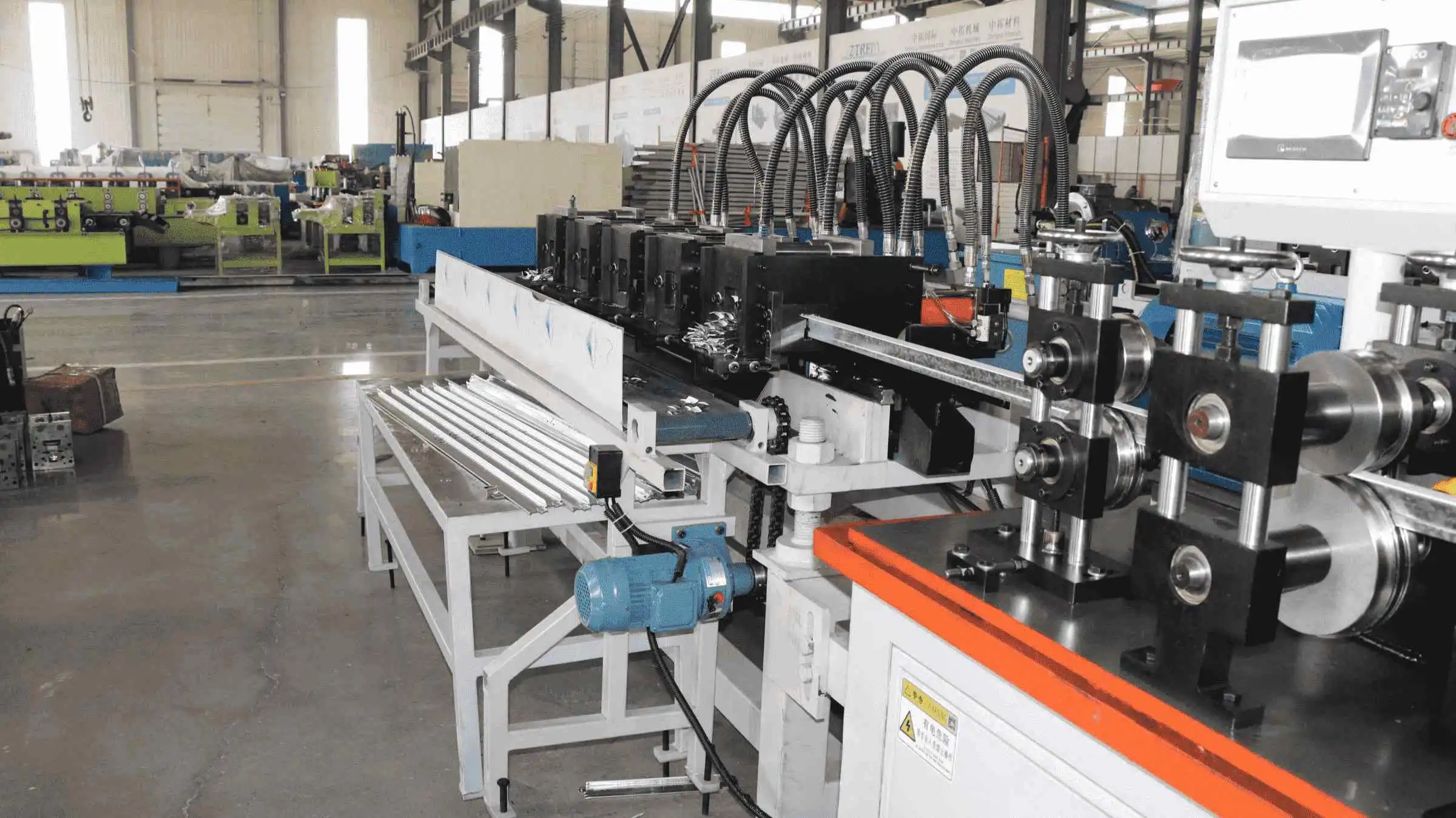

When both punching and cutting are going at the same time, the ceiling t grid roll forming machine, a modern T-grid forming line, can work at speeds of 0 to 20 meters per minute. This managed speed makes sure that the important tasks of making connector holes and cutting profiles to exact lengths are done precisely. The hydraulic cutting system makes clean, burr-free cuts that get rid of the need for extra finishing steps. This directly boosts production efficiency and lowers labor costs.
When contractors buy customized roll forming solutions, they get competitive advantages that go beyond just being able to make things. Custom configurations get rid of specific bottlenecks in current workflows, like those caused by odd profile sizes, special material handling needs, or problems connecting to existing manufacturing infrastructure.
Custom machines are made with design features that are exactly right for the amount of work you want to do. A contractor who mostly makes 3600mm Main Tees for business office projects can benefit from feeding systems and cutting processes that are optimized for these lengths. When running at high speeds, the vertical membrane frame structure keeps things stable, and gear-driven gearbox systems make sure that all forming stations get the same amount of power. This mechanical harmony directly leads to less downtime and steady output rates, which make it easier for contractors to meet project deadlines.
When you combine the 25mm frame width with the Cr12 roller material, you get a rigid platform that won't bend when loads are put on it. When rollers stay in the same place during production runs, the T-grid profiles that are made have uniform web height, flange width, and connecting hole placement. When ceiling tiles have to fit exactly into the grid framework without gaps or being out of place, these measurements become very important. During production, custom machines can be tuned to match the exact tolerances needed by different ceiling tile systems, whether they are working with standard 600x600mm layouts or unique architectural designs.
Consuming energy is still a high cost of doing business in production settings. When you pair a 4kW main motor with a cycloidal planetary gear speed reducer, you get high power economy. This means that you use less electricity than with less advanced drive systems. The tempered 40mm diameter shafts don't wear out easily, even when they're used nonstop, so they don't need much maintenance. The PLC control system gives maintenance teams diagnostic feedback that helps them fix small problems before they get so bad that they stop production.
When contractors work multiple shifts or have to meet tight project deadlines, responsive after-sales support is very helpful. Custom machine makers who keep extra parts on hand and offer technical support through email or direct messaging help keep downtime costs to a minimum, which can quickly cut into the profits of outsourced projects.
To choose the right making tools, you need to carefully weigh your current production needs against your predictions for future growth. Instead of just looking at the initial purchase price, a strategic approach takes into account technical specifications, the supplier's abilities, and the total cost of ownership.
First, look at your usual project portfolio. When it comes to business building, contractors may value high-speed Main Tee production, while contractors who focus on remodeling homes may value the ability to switch between different profile types easily. Figure out how much material you use each month to see if a normal 1.5-ton decoiler will work for you or if you'll need to handle bigger coils. Think about the thickness range of the materials you work with most often. Machines that are optimized for 0.12-0.3mm PPGI and 0.2-0.4mm GI can handle most ceiling grid applications, but some projects may need more processing power.

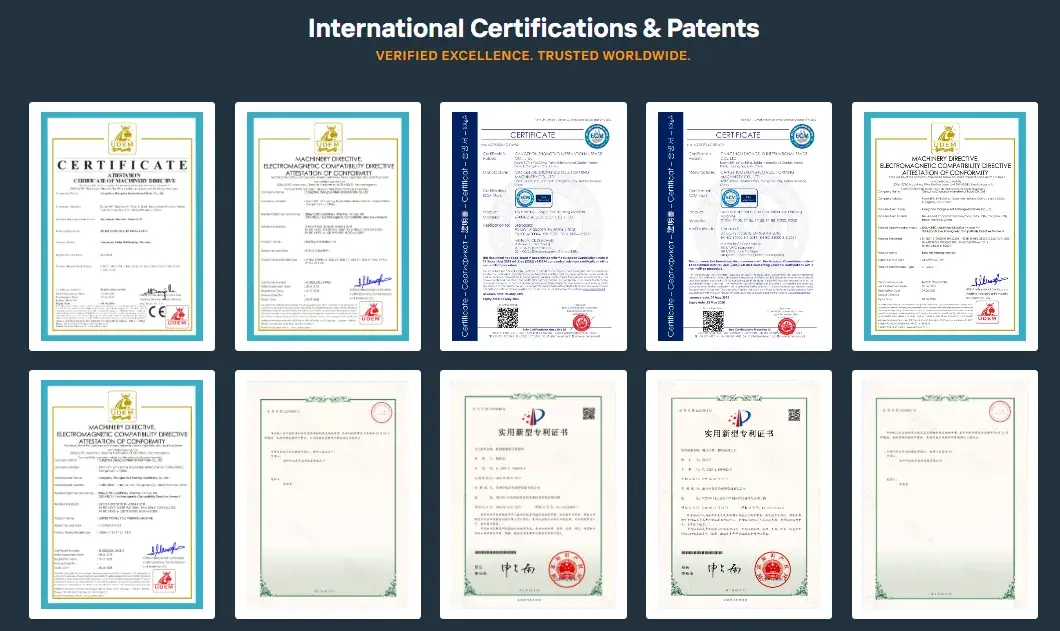

If a company has ISO9001 and CE certifications, it means they follow quality management systems and safety standards that are known all over the world. Companies that have exported to more than 150 countries have shown that they can handle logistics and make products that last in a variety of settings. OEM and ODM service offerings show how flexible manufacturing is—suppliers who can change the way machines are set up or create completely new designs have the engineering know-how to deal with specific production problems.
Factory visits for the ceiling t grid roll forming machine are a great way to learn things that you can't get from reading specifications. Procurement managers can tell if a seller can meet their quality standards by watching the manufacturing process, checking the quality of the parts, and talking to the engineering teams directly. Customer reviews from workers in similar markets can give you a good idea of how reliable the machines are, how fast they really work, and how quickly technical help responds to problems.
Standard tools are good for new businesses or workers who are getting into the ceiling grid market and need tried-and-true designs that work as expected. These units usually ship faster and cost less at first, but they might not have all the features that make production better for certain types of projects. Custom solutions have longer lead times and cost more, but they offer tailored features that can make things run much more smoothly. The choice depends on whether the extra cost is worth it for better production. High-volume companies usually get the extra cost back in the first year through better throughput and less material loss.
Regular repair extends the life of equipment and stops it from breaking down at the worst possible time, which can throw off production plans. Setting up regular inspection procedures helps maintenance teams find patterns of wear before parts break completely.
At the start of each shift, operators should check the material feeding arrangement to make sure that steel coils load correctly onto the decoiler and feed easily into the first forming station. When you turn on the machine, listen for any strange bearing noises. Grinding or screaming sounds usually mean that the bearings aren't well-oiled or are starting to get damaged. Check final profiles for accuracy in size and quality of surface on a regular basis during production runs. Any change from the normal specifications needs to be looked into right away to avoid making defective material.
As part of the weekly maintenance, the drive chains are oiled, the cutting system's hydraulic fluid levels are checked, and the roller surfaces are checked for damage or material buildup. The GB-Cr12 roller material doesn't wear down easily, but rough materials or dirty coils can cause it to break down too quickly. More thorough checks of electrical connections, confirmation that PLC systems work, and calibration checks on length measurement systems are all things that are done once a month. By keeping track of these upkeep tasks, you can use the past to figure out when important parts will need to be replaced.
Material flow problems are often caused by coil tension that is too low or guide rollers that are not lined up correctly. Usually, these problems can be fixed quickly by adjusting the decoiler brake tightness or moving the entry guides. Profile size changes are often caused by worn or misaligned rollers. Comparing roller spacing to original specs helps find stations that need to be adjusted. Cutting system problems are usually caused by either low hydraulic pressure or dull blades, which can be fixed by checking the pressure and replacing the blades according to the manufacturer's instructions.
When technology problems are bigger than what your company can handle, having clear communication rules with your equipment seller speeds up the process. Technical support teams can more accurately figure out what's wrong when you give them detailed descriptions of the problem, including what was happening with the system when the problem happened and any error codes that it showed. Keeping a stock of spare parts for things like cutting blades, drive belts, and hydraulic seals that are often changed cuts down on downtime while waiting for new parts.
Strategic procurement methods balance the need for instant tools with long-term practical goals. This makes sure that the machines bought provide value for a long time.
To get a good price, you should include specifics like the amount of work that needs to be done, the range of material thicknesses, the size of the profile, and any other features that are unique to your needs. Make your electricity needs very clear. Voltage, frequency, and phase setups vary around the world, and making sure they are compatible will keep you from having to make expensive changes after delivery. Ask about the space needed for installation, the type of foundation that should be used, and the utility connections that are needed for the machine to work properly. Major parts like the decoiler, main making machine, PLC control system, hydraulic station, cutting unit, and output table should be listed in detailed quotes so that prices can be compared accurately between providers.
When purchasing the ceiling t grid roll forming machine, there are often price breaks for buying in bulk, especially when you order more than one unit or set up a long-term supply relationship. Delivery schedules have a big effect on project timelines. Make sure you know the difference between standard configurations and custom designs and negotiate penalties for late deliveries on projects that need to be done on time. You should pay close attention to the warranty terms. Standard warranties usually cover problems with the way the product was made for a year. For larger purchases, longer coverage or performance guarantees offer extra safety. Make it clear what the warranty covers in terms of parts, labor, and the cost of travel for on-site service.
Close teamwork during the planning phase is helpful for contractors who have specific needs. Share specifics about your production space, such as the amount of floor space you have available, the amount of power you have, and the points where your existing equipment can be used to improve the workflow. Talk about how you'd like to handle materials, how much automation you'd like, and any special quality control features that would help your production standards. Based on their experience with similar uses, manufacturers who have worked on OEM development before can suggest design improvements that boost performance while keeping costs low. This way of working together makes sure that the machine that is given exactly matches what is needed for operations, instead of making changes to the workflow to fit the limits of the equipment.
Buying a custom ceiling t grid roll forming machine is a business choice that will affect how well the product is made, how competitive the company is in the commercial building market, and how efficient the production process is. Modern forming equipment, such as precise GB-Cr12 rollers and programmable PLC control systems, lets contractors meet strict project requirements while still running their businesses cost-effectively. To choose the right machine, you need to carefully consider your production needs, the skills of your suppliers, and the total cost of ownership. When contractors work with experienced manufacturers, they can get access to tried-and-true designs, quick technical help, and customization choices that make equipment work best for their needs. This sets the stage for long-term business growth.
For the obvious top parts, standard tools can handle PPGI material from 0.1 to 0.3 mm, and for the structural bottom parts, they can handle GI material from 0.2 to 0.4 mm. This range is big enough to cover most commercial and residential ceiling grid needs. For specific projects that need thicker gauge material, rollers may need to be set up in a way that allows for the extra forming forces without affecting the accuracy of the dimensions.
Standard versions usually ship 30 business days after the order is confirmed. Custom designs with unique features need more time for engineering and production, which usually means longer lead times of 45 to 60 days, depending on how complicated the changes are. Talking about delivery needs early on in the buying process helps sellers set priorities for production scheduling so that your project deadlines are met.
Technically, it is possible by changing the rollers, but in practice, dedicated machines or different roller sets are more efficient. When making the Main Tee and Cross Tee shapes, you need to use different forming processes and punching patterns. When contractors have the same amount of work to do on both types of profiles, they often find that investing in capabilities that are specifically designed for each type cuts down on changeover time and keeps production flowing smoothly instead of frequently reconfiguring machines.
As a manufacturer of ceiling t grid roll forming machines, ZTRFM has detailed knowledge and a wide range of skills that can meet all of a contractor's needs. Since our start in 2014, we've designed cold roll forming solutions for clients in more than 150 countries, making us a nationally recognized high-tech company. Our ISO9001, CE, and CAS certifications show that we are dedicated to making high-quality products that meet safety standards. We have a variety of ways to work with you, such as OEM, ODM, and full turnkey services that provide raw materials, tools, and extras all from one source. Custom configurations that are made to fit your production rate, material needs, and size standards will give you the best performance in your setting. Get in touch with our expert team at zhongtuorollforming@gmail.com to talk about how our ceiling T-grid roll forming tools can help you meet your project deadlines and improve your production capabilities.
