High-Precision Stud and Track Roll Forming Machine Solutions

High-precision roll forming machines take raw metal coils and shape them into the structural profiles that are used in modern buildings. This can be done with a stud and track roll forming machine, which can accurately shape galvanized steel into C-shaped studs and U-shaped tracks (within ±0.5 mm). Light-gauge steel framing systems, like those used in commercial buildings, modular homes, and interior partition projects, are held together by these profiles. Advanced cold roll forming technology gives producers reliable solutions that meet ASTM C645 and EN 14195 standards and cut scrap rates by up to 40% compared to manual methods. This is especially helpful when production speed, less material waste, and uniform quality are important.

Understanding Stud and Track Roll Forming Machines

In modern buildings, skeletal parts must fit together perfectly. This can be done with roll forming technology, which slowly shapes flat metal coils by moving them through a series of roller stations until the desired shape is achieved.

What Roll Forming Technology Does

Stamping and press braking are very different from cold roll forming. Roller stations slowly form metal as it goes through the production line instead of using a lot of force all at once. At each station, a small bend is made, which spreads the stress evenly across the material and protects the galvanized coating. This constant process makes profiles with the same sizes throughout the whole production run, which is hard to do by hand.

Core Components That Drive Performance

Several important features are built into our tools. The decoiler can hold steel strips that are up to 2.5 tons heavy and let go of the material while keeping the strain in check. Leveling rollers take away the coil set and make sure that the coils feed flat into the making stations. In the forming area, roller stations made of 45# high-grade steel that has been heated and cooled shape curves in 13 steps. A PLC control system manages the speed of feeding, the measurement of length, and the time of cutting. The hydraulic cutting unit has blades made of CR12 steel that can cut through finished shapes without distorting them. With this integration, no one has to do anything by hand, and production speeds stay between 8-10 meters per minute.

Benefits That Impact Your Bottom Line

The stud and track roll forming machine ensures that the installation labor cost is directly related to how consistent the dimensions are. Wall framing goes faster when the studs fit into the tracks smoothly and without any gaps or tightness. Controlling tolerances to within 0.5 millimeters means fewer parts are rejected and less material is wasted. Automated length cutting gets rid of mistakes made when measuring and speeds up the process of filling orders for custom-length profiles. Heat-treated rollers keep their shape even after millions of square feet of production. This lowers the need for upkeep and unplanned downtime. Because of these operational benefits, costs per linear foot are lower, and projects are finished faster.

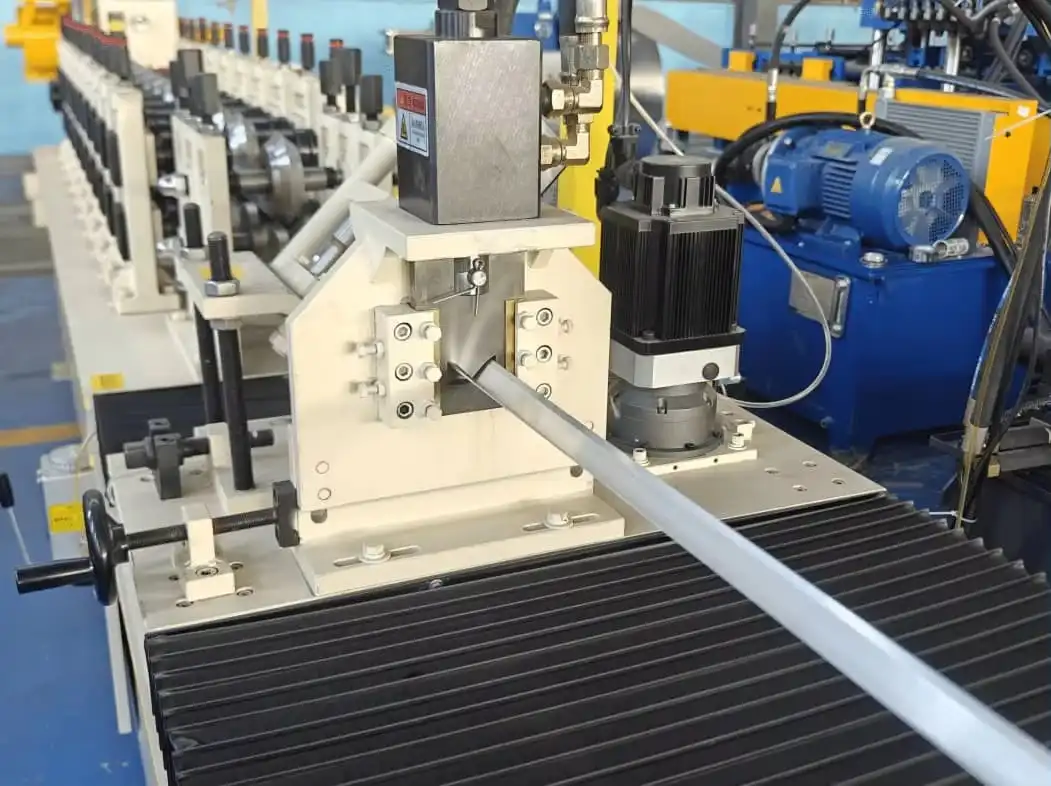

steel angle stud and track machine

Evaluating and Selecting the Best Track Roll Forming Machine for Your Business

To find the right equipment for your production needs, you need to compare the technical specs to your operational goals.

Critical Specifications to Match Your Needs

What your product range is based on is the material thickness capability. Our machines can work with steel gauges from 22 gauge to 16 gauge (0.3 mm to 1.2 mm), which is enough for most framing jobs. When serving a wide range of customers, profile width flexibility is important. Our equipment can make widths from 3 inches to 6 inches without any delays during the changeover. Different load requirements and finish material compatibility can be met by flanges that are 1¼", 1⅝", and 2". The maximum yield strength of 80ksi at 16-gauge thickness ensures that the equipment can handle high-strength galvanized steel without the rollers deflecting or the profile distorting.

Production Throughput Considerations

Line speed affects your ability to meet delivery deadlines. At 8-10 meters per minute, the equipment can produce about 480-600 linear meters per hour when running continuously. The hydraulic cutting cycle time shows if the system can keep line speed during length changes. Advanced flying shear systems cut profiles without stopping the flow of material, which increases throughput. If you make a lot of different profile types every day, you'll want systems that can quickly switch between profiles.

Investment Strategy and Total Cost Analysis

New equipment from well-known brands comes with a warranty, technical training, and easy access to spare parts. These things lower operational risk during production ramp-up. Standard models have been shown to work well and cost less than custom-engineered solutions. Custom machines are better for meeting specific needs or integrating with existing production infrastructure, but they take longer to build and cost more. Financing options spread out the cost of capital over the equipment's lifetime, keeping working capital for stocking up on materials and growing the market. To figure out the total cost of ownership, add up the amount of energy used, the cost of maintenance parts, and the number of times it is expected to be serviced every five years.

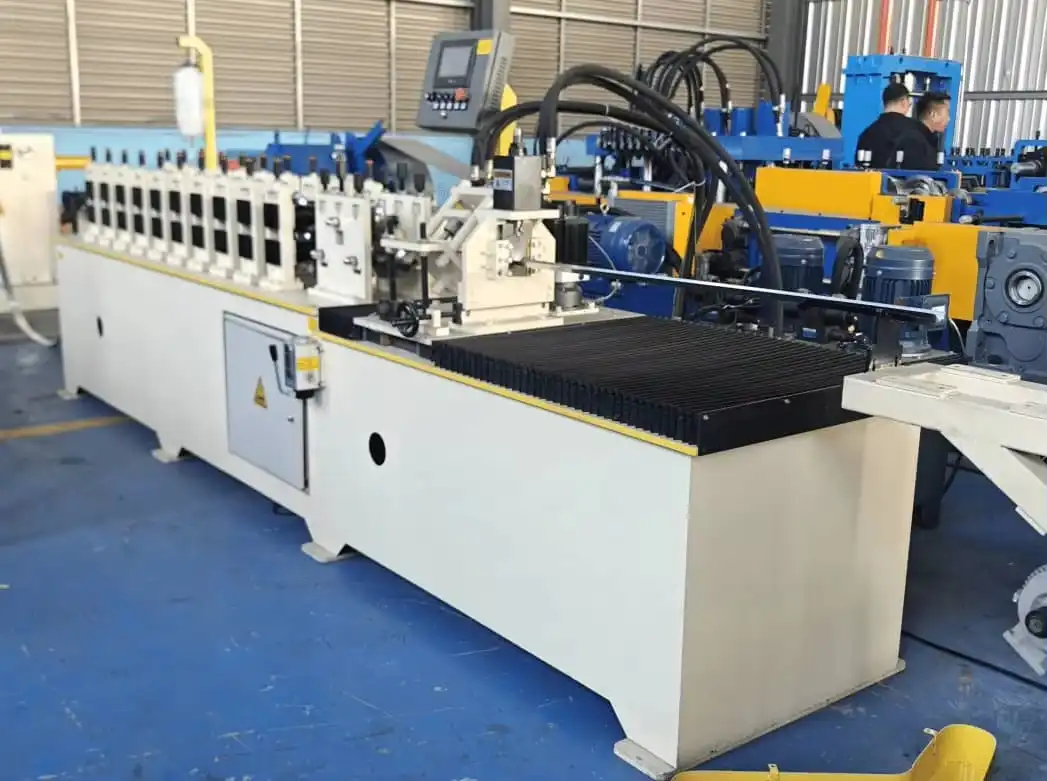

steel angle stud and track machine

Advanced Technology and Maintenance for Peak Performance

Reliable function over many years of output relies on the quality of the parts and the way they are maintained.

Technological Features That Enhance Reliability

PLC automation takes away the need for human error in production. Touchscreen interfaces let operators enter the desired length, and the system calculates cutting points based on encoder feedback from the roller rotation. This closed-loop control keeps length accuracy within 1 mm, no matter how thick the material changes or how fast the line speeds up or slows down. Chain drive systems make sure that motor torque is evenly distributed across all forming stations, which stops roller speed mismatch

Maintenance Protocols That Extend Equipment Life

Every day, checks should be made on the chain tension, hydraulic fluid levels, and condition of the cutting blades. Lubricating the roller bearings and chain drives once a week stops them from wearing out too quickly, and monthly alignment checks make sure the rollers stay parallel, which keeps the profile dimensions. CR12 steel cutting blades need to be sharpened or replaced every 50,000 to 80,000 cuts, depending on the thickness and hardness of the material. Heat-treated rollers keep their profile geometry for millions of linear feet, but they should be measured every so often to find wear patterns before dimensional drift happens. Having spare cutting blades, drive chains, and hydraulic seals on hand reduces downtime when parts reach the end of their useful life.

Engineering Principles Behind Dimensional Accuracy

The precision of the profile comes from the design of the rollers and the rigidity of the frame. Bearing-grade steel rollers keep their shape under forming loads, and the 300H high-grade steel frame doesn't bend, which would let the rollers spread apart under pressure. The 55mm shaft diameter provides stiffness that stops bending during peak loads when forming thicker materials. These mechanical design choices make sure that the stud and track roll forming machine always makes profiles that meet tolerance specifications, not just when it's first bought.

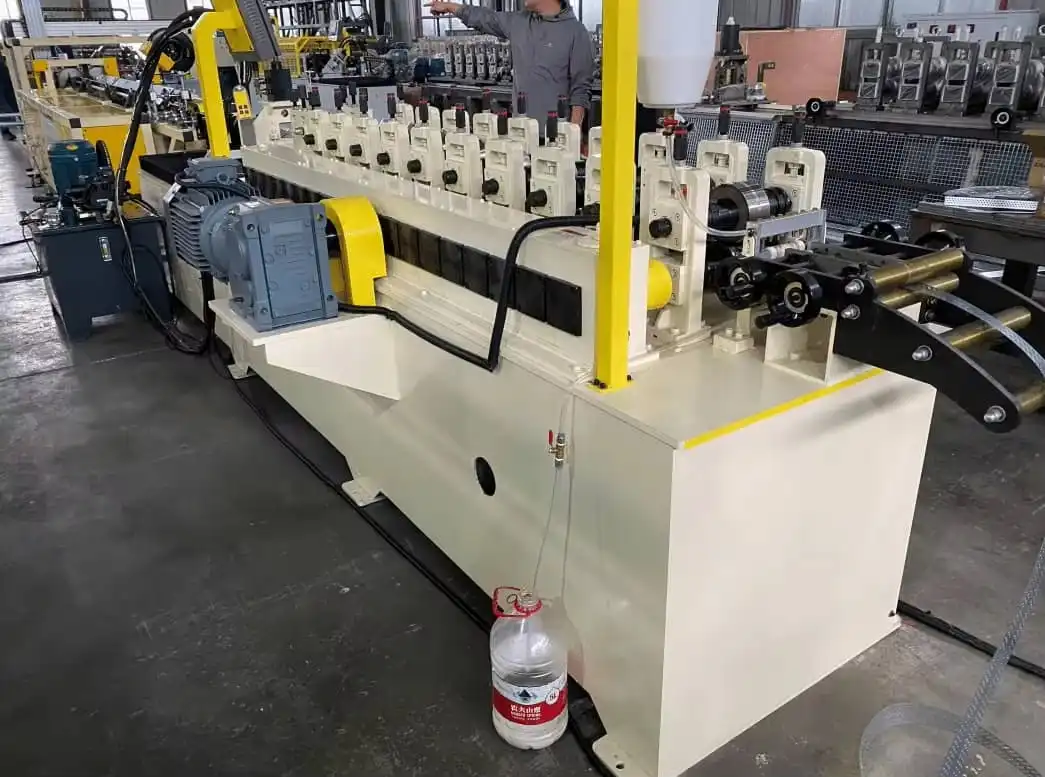

steel angle stud and track roll forming machine

Procurement Guide: Sourcing and After-Sales Support for Track Roll Forming Machines

Before choosing a seller, you should look at how well they can make things, how well they can provide services, and how likely they are to be a long-term partner.

Supplier Evaluation Criteria

Manufacturing experience shows that a process is mature. Cangzhou Zhongtuo has been specializing in cold roll forming equipment since 2014, getting better at it through customer feedback and continuous improvement. Being named a national high-tech enterprise shows that the company invests in research and development, which leads to new products. ISO9001 certification shows that the company has quality management systems that make sure products are consistently made. CE marking shows that the equipment meets the safety standards needed for use in regulated markets. Exporting to over 150 countries shows that the company is able to handle international logistics, paperwork, and different voltage needs.

Technical Support Infrastructure

Small problems can be fixed quickly with responsive technical support. Look for suppliers that offer multiple ways to communicate, such as email support at zhongtuorollforming@gmail.com, phone consultations, and video troubleshooting. Installation supervision makes sure that everything is set up correctly and that the machine is performing at its best. Operator training teaches them how to make basic adjustments, check for quality, and do basic maintenance. Detailed documentation, such as electr

Spare Parts Management

Critical wear parts need to be able to be accessed reliably. Reliable suppliers keep an inventory of electrical parts, cutting blades, drive chains, and hydraulic seals. Parts are easy to order because they are labeled with drawings and numbers, and they can be shipped internationally with DHL, FedEx, or freight forwarding. Keeping a recommended spare parts inventory when you buy equipment avoids delays when parts need to be replaced during routine maintenance windows.

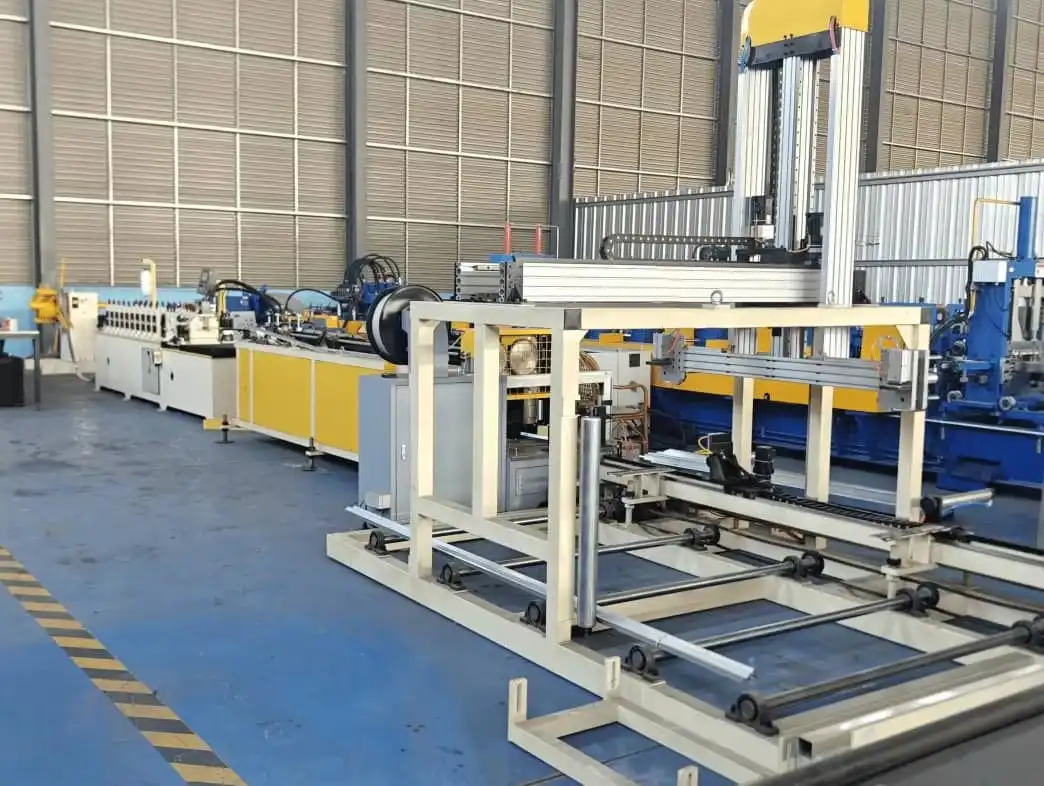

stud and track production line

Case Studies and Practical Applications of High-Precision Roll Forming Solutions

Real-life production settings show how the performance of equipment affects business outcomes.

Increasing Throughput for Modular Housing Production

To meet the demand for housing in North America, a company that makes prefabricated wall panels had to double its production capacity. Their old equipment could only make 350 linear meters per hour, but the tolerances weren't consistent, which slowed down assembly. We installed an automated system with PLC control and quick-changeover capabilities, which increased production to 600 linear meters per hour and improved the tolerances to ±0.5mm. This eliminated fit-up problems during panel assembly, cutting labor hours by 25% and letting the facility take on bigger jobs.

Reducing Scrap Rates for Commercial Framing Supplier

Material waste for commercial construction exceeded 8% because of mistakes made when cutting and profiles that didn't fit properly, because of old, worn-out rollers and manual length measurement. Upgrading to precision forming equipment with automated length control and heat-treated rollers cut down on scrap to 3%. This saved the company about $47,000 a year in material costs and made deliveries more reliable for general contractors.

Custom Profile Development for Specialty Applications

An engineering firm that was making acoustic-rated wall assemblies needed custom stud profiles with built-in service holes and stiffening embossments. Standard equipment, such as a stud and track roll forming machine, wasn't flexible enough to make these features, so they worked with our engineering team to make a customized roller configuration and an integrated punching station that made the profiles. This allowed the firm to offer its own wall systems that were priced higher than others in the healthcare and education construction markets.

angle steel stud and track roll forming machine

Conclusion

When choosing high-precision forming equipment, you need to weigh technical specs against production goals and total cost. Modern systems with ±0.5mm tolerance, automated length control, and production speeds of up to 600 linear meters per hour help manufacturers meet tight construction schedules while keeping costs down. Long-term reliability and consistency in dimensions depend on the quality of the parts, such as heat-treated rollers, CR12 cutting blades, and rigid frame construction. Working with experienced manufacturers who offer technical training, quick support, and spare parts availability protects your production ability throughout the equipment's lifetime. The right equipment choice boosts throughput, cuts down on waste, and positions your business to serve growing markets for light-gauge steel framing systems.

FAQ

Q1: How often does roll-forming equipment require maintenance?

It takes about 15 minutes a day to check the chain tension and hydraulic levels. Lubrication once a week and alignment checks once a month add little downtime. Cutting blades need to be replaced every 50,000 to 80,000 cuts, depending on how hard the material is. Heat-treated rollers usually last for years before they need to be replaced, so maintenance isn't as bad as it is for press brakes.

Q2: What advantages do automated systems provide over manual equipment?

PLC control gets rid of mistakes in measuring length and keeps cutting accuracy within 1 mm. Automated feeding gets rid of operator variation that hurts profile quality. Hydraulic cutting makes clean edges without the need for manual grinding. These features lower the amount of work that needs to be done, make measurements more consistent, and boost throughput by 35 to 50 % compared to manual operations.

Q3: Can equipment be customized for unique profile requirements?

Custom cross-sections, embossments, and built-in features can be added to rollers using punching stations, which also add service holes or mounting slots. Lead times for custom configurations are usually 8-12 weeks longer than standard models to allow for engineering design and roller fabrication. Talking about requirements early on in the procurement process makes sure that they are feasible and that delivery dates are accurate.

Partner with ZTRFM for High-Precision Metal Forming Solutions

We at ZTRFM have been making high-quality stud and track roll forming machines for over ten years. Our machines can handle profile lengths from 3" to 6" and flange choices of 1¼", 1⅝", and 2" on materials ranging from 22-gauge to 16-gauge. Our machines are reliable choices for tough jobs because they can produce 8-10 meters per minute, keep dimensions within ±0.5 mm, and have a maximum yield capacity of 80ksi at 16-gauge. As a producer with ISO9001 and CE certifications that serves clients in more than 150 countries, we offer full expert support, help with installation, and spare parts. Contact our team at zhongtuorollforming@gmail.com to talk about your production needs with experienced application engineers. They can help you find the best stud and track roll forming machine supplier setup for your business.
