High-precision trapezoidal roll forming machines are the most advanced way to process metal sheets. They offer amazing speed and accuracy in construction and manufacturing. These advanced machines make trapezoidal shapes with tolerances that meet the most exacting standards in the industry. This guarantees the strength of the structure and the best quality of the finish. These days, trapezoidal roll forming machine systems are so precise that manufacturers can make sure that each part is the right size, that no material goes to waste, and that they don't have to spend a lot of money to make it. Advanced control systems and engineered tooling ensure consistent results that meet the high standards of today's competitive market.
Understanding the High-Precision Trapezoidal Roll Forming Machine

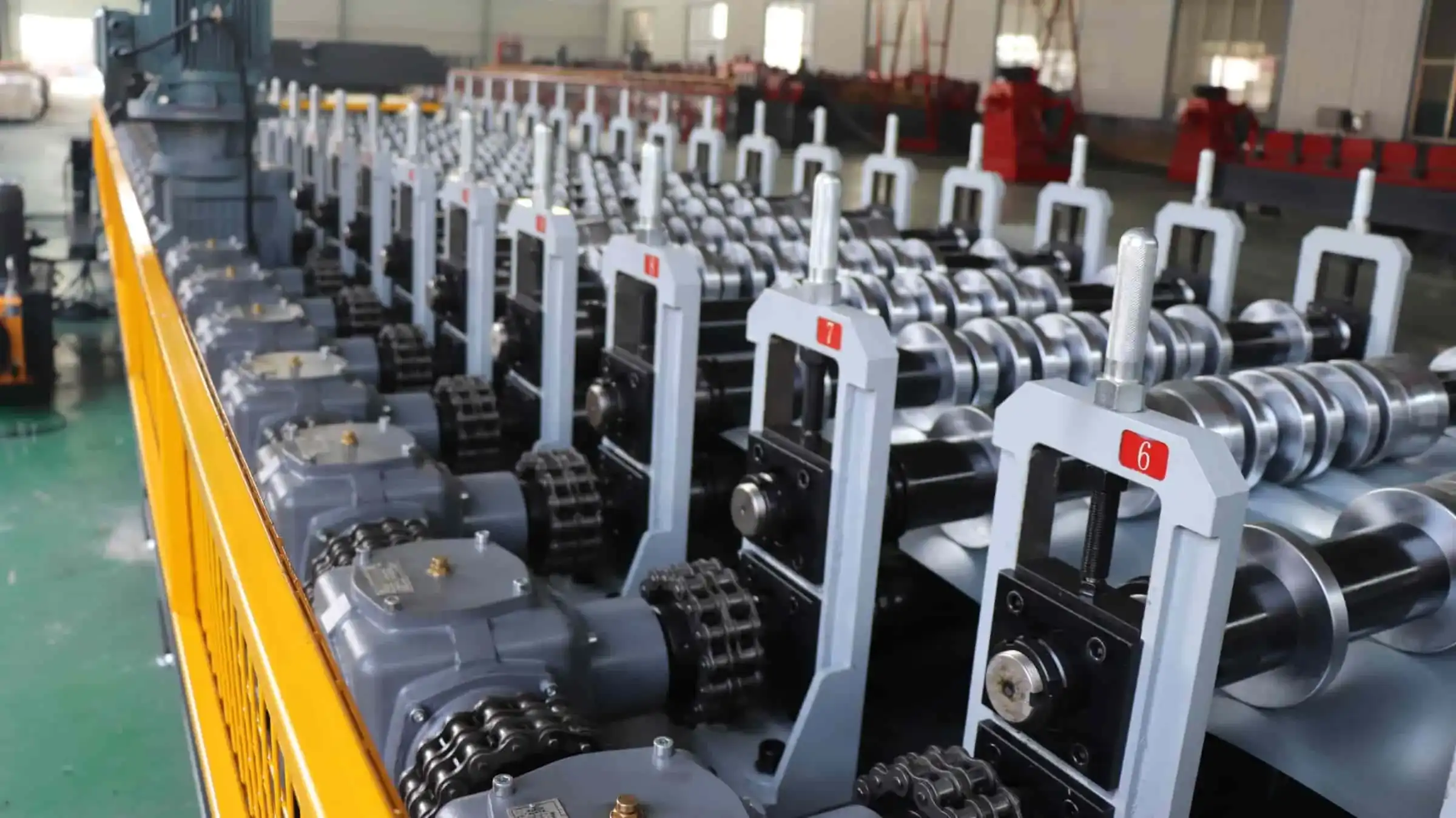

Precision roll forming machines use a methodical way of shaping metal that guarantees accuracy in every stage of production. Using roller dies that are carefully placed on metal strips, cold forming technology shapes them gradually into the unique trapezoidal form without hurting the integrity of the material.
Hardened steel rollers made to very exact standards, servo-driven control systems that keep feed rates steady, and hydraulic cutting systems that make clean, precise cuts are all important parts that help get the job done right. The frame of the machine is made with heavy-duty steel welding, which keeps things stable when they are moving quickly and stops vibrations that could impact the accuracy of the form.
Modern systems can handle a range of materials, such as 24 and 22 Tru-Gauge™ steel and aluminum that's .032″ thick. This makes them useful for a wide range of needs. Custom lengths from 3′ to 20′ 10″ let manufacturers make panels that fit the needs of different projects. Longer flashings up to 20′ 11″ also help with specialized construction needs.
The forming process on the trapezoidal roll forming machine starts with the material passing through precision guides that keep everything in the right position. As the shape is made over time in progressive forming stations, real-time monitoring systems check that the shape stays true to the intended dimensions. Automated length control makes sure that all of the panels are the same size, and built-in quality checks make sure that each piece meets the required standards.
Core Benefits of Using a High-Precision Trapezoidal Roll Forming Machine
One of the best things about modern trapezoidal roll forming machine technology is that it makes it easier to produce more goods. When automated feeding systems are used with high-speed forming capabilities, they allow for continuous production runs that make a huge difference in output compared to older forming methods.
Here are the main benefits that these machines provide:
- Better accuracy in terms of size: Precise tools and cutting-edge control systems keep tolerances within ±0.5 mm. This makes sure that each production run has the same quality and that a lot fewer parts are rejected.
- Making and cutting materials more accurately lowers the amount of scrap and waste that is produced, which saves money and is better for the environment.
- Structural panels that can be used in many ways: Panels that are up to 6 feet long can be used for roofs or walls that are vertical or horizontal, which helps them meet a wide range of building needs.
- Energy-efficient operation: modern drive systems and optimized forming sequences use less power while keeping high production speeds, which lowers the cost of running the system.
These benefits lead to real perks for manufacturers who want to get ahead of the competition while keeping quality high to meet the needs of their customers.
In metal forming, consistent quality is still very important, and exact machinery provides consistent outcomes that make customers trust your business. As long as the structural panels you make can reliably span, end-users will get products that work in tough construction settings.
Comparison and Selection Guide for Trapezoidal Roll Forming Machines
Understanding the differences between roll forming technologies helps procurement professionals make choices that are in line with specific production needs and business goals.
The value of manual and automatic trapezoidal roll forming machines differs based on the amount of production and the level of complexity needed. Because they are cheaper to buy and easier to take care of, manual machines are a good fit for smaller businesses or specialized uses. While automatic systems are more expensive upfront, they can do more work and require less labor, which makes them worth the cost.
The structural differences can be seen when trapezoidal and corrugated forming equipment are put side by side. While corrugated profiles focus on drainage and lighter-weight uses, trapezoidal ones are better at supporting weight and look nicer. The choice depends on the needs and performance expectations of the particular application.
The cost of the equipment is only the beginning of the pricing considerations. The cost of installation, training, and ongoing support also needs to be taken into account. When you buy a lot of something at once, it often costs a lot less, and a long warranty protects the value of your investment. Professional installers make sure that machines work well from the very beginning, and training programs help operators learn how to use all of the equipment's features.
Maintenance and Troubleshooting for Optimal Machine Performance
Regular maintenance is the best way to make sure that equipment works well and doesn't break. Preventative maintenance keeps equipment working right, so unplanned downtime is much less common.
Routine maintenance includes several important areas that need to be checked on a regular basis. Roller bearings will work properly and not break down too early if lubrication systems are checked often. Alignment verification procedures make sure that forming stations don't move around. Before they can have an impact on the quality of the product, tooling inspections look for signs of wear.
Material misalignment, inconsistent forming pressures, and changes in cutting accuracy are operational issues that happen a lot. Troubleshooting steps are structured ways of finding and fixing problems that take these issues into account. Material tracking systems help find problems with feeding, and pressure monitoring tools help find problems with the hydraulic system that could affect the quality of forming.
Real-world upkeep proves that preventive care plans for trapezoidal roll forming machines work. Over 95% of the time, manufacturers who use planned maintenance are able to keep their equipment working. They also keep production quality steady over long periods of time. These results show that systematic care procedures are a good way for manufacturers to stay competitive.
Control systems stay accurate over time as long as the software is updated and the system is calibrated. Regularly calibrating sensors and measurement tools makes sure they give correct information for process control. On the other hand, software updates make things run better and add new features.
Cangzhou Zhongtuo: Your Trusted Partner for Precision Roll Forming Solutions
Since 2014, Cangzhou Zhongtuo has become a top company that designs and builds cold roll forming machines. Our broad knowledge covers all metal forming solutions, from the first meeting to the ongoing support that makes sure customers succeed in the long run. Our products include customizable roll forming systems that can be used in a variety of industries while upholding the high standards of accuracy that are expected in modern manufacturing. Combining new technologies with engineering basics creates equipment that works well in tough production settings.
ISO9001, CE, and CAS certifications show that our quality assurance programs are committed to doing a great job in all areas of equipment design and manufacturing. These standards are known around the world. They give us confidence that our solutions will meet the tough needs of markets around the world while always performing in a way that justifies investment decisions.
OEM and ODM capabilities let us use our deep knowledge of trapezoidal roll forming machine technology to create custom solutions that meet our customers' exact needs. Our one-stop service approach includes the supply of raw materials, complete machine systems, and accessory parts that help with all production solutions.
Conclusion
High-precision trapezoidal roll-forming machines are important for modern metal forming businesses that need to make a lot of parts quickly and with consistent quality. The mix of advanced engineering, exact manufacturing, and full support services makes value propositions that give investors reasons to put money in demanding markets and give companies a competitive edge. Knowing the features, benefits, and selection criteria helps people make smart choices that match the equipment's capabilities with the goals of the operation. This will ensure long-term success in metal forming applications.
FAQ
Q1: What are some things that can be made using trapezoidal roll formers that are very precise?
A: Our machines can work with different types of materials, such as galvanized steel, aluminum alloys, stainless steel, and other coated materials for a variety of reasons. The machine can make very exact changes to material that is between 0.3 mm and 1.5 mm thick.
Q2: How many days ahead do you usually need to set up a machine and place an order?
A: After the order is confirmed, standard equipment normally gets here in 8 to 12 weeks. A custom system can take anywhere from 12 to 16 weeks to be finished, depending on how hard it is to make. It normally takes our tech team one to two weeks to do installation and commissioning in person.
Q3: Can you modify machines to make them better at meeting certain production needs?
A: Yes, definitely. Our engineering team makes custom solutions with the right size, capacity, and level of automation. We make sure that our equipment specifications meet our production goals and operational limits by working closely with our customers.
Partner with ZTRFM for Advanced Trapezoidal Roll Forming Solutions
ZTRFM is ready to help you with precision metal forming using cutting-edge trapezoidal roll forming machines that work very well and are always reliable. Our engineering team works with customers to come up with solutions that keep quality high and make production more efficient. These are the standards that define successful manufacturing operations.
As a trusted maker of trapezoidal roll-forming machines, we offer a range of support services that make sure your equipment continues to work well. Our service network covers over 150 countries, so you can get responsive technical support and quick access to spare parts. This keeps your business running smoothly and increases your productivity.
ZTRFM is the best partner for manufacturers who want to improve their metal forming skills because of its cutting-edge technology, great reputation, and full-service support. We are dedicated to our customers' success, and this goes beyond delivering equipment. We also work with our customers on an ongoing basis to support continuous improvement and operational excellence.
Are you ready to learn how precision roll forming technology can change the way you make things? Our tech experts are ready to talk with you about your needs and come up with custom solutions that get real results. To set up a meeting and learn about the benefits of working with the best roll forming experts in the business, email us at zhongtuorollforming@gmail.com. To learn more about all of our metal forming options, please go to rollformingmachinemanufacturer.com.
