How to Inspect and Align Roll Stands for Optimal Performance in Roll Forming Machines

It is very important to check and balance the roll stands in your Roll Forming Machine correctly if you want to get tight tolerances on dimensions, consistent product quality, and longer machine life. During the progressive shaping process, roll stands keep the forming rollers in place. If these stands aren't lined up correctly, either because of wear, bad fitting, or operating vibration, your production line will have more scrap, finished profiles will have surface flaws, and expensive roller tooling will wear out faster. Keeping things in line saves your investment and makes sure that the roofing sheets, purlins, or composite panels always meet the needs of the customer. This guide shows you useful ways to check for problems and line things up that are made for B2B makers who want to do reliable, high-performance metal making.

Understanding the Role and Common Issues of Roll Stands in Roll Forming Machines

Core Functions of Roll Stands in Metal Forming

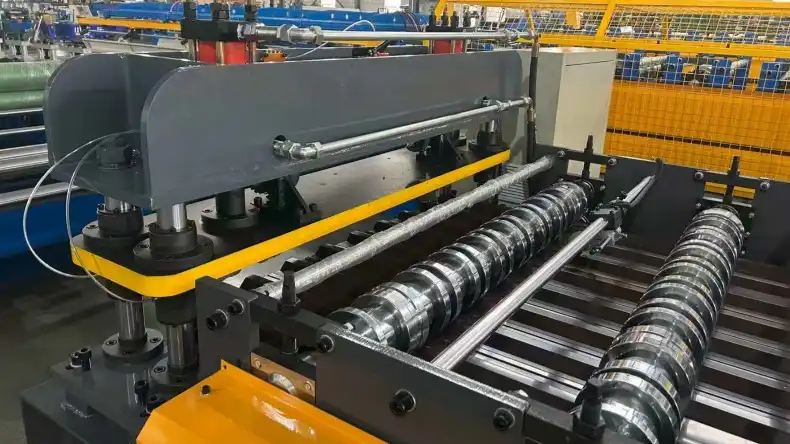

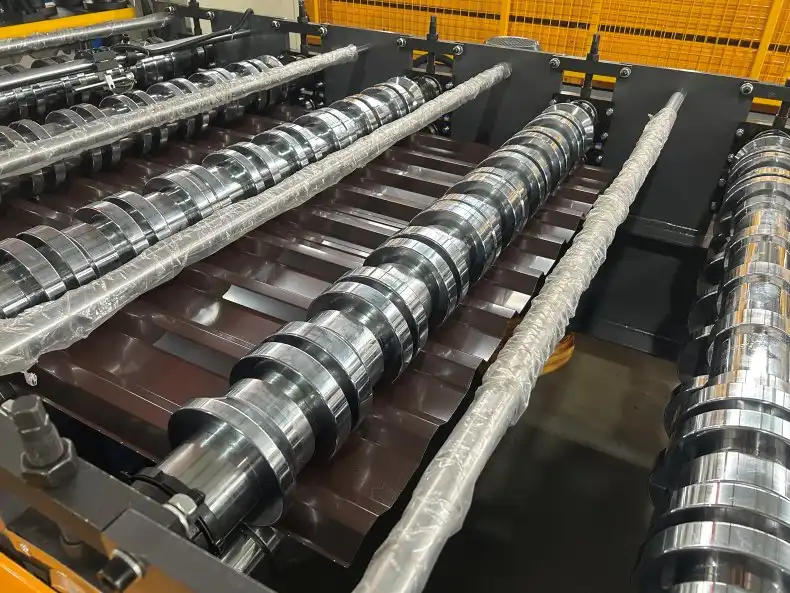

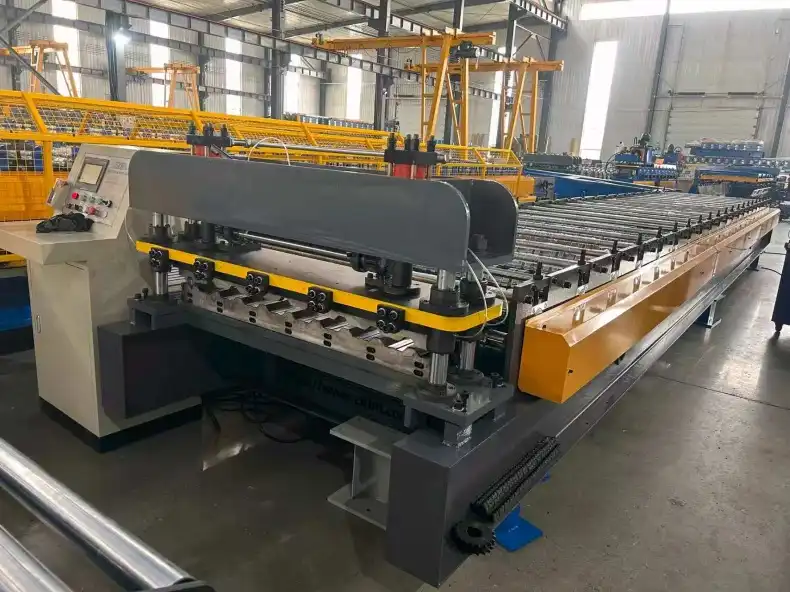

Roller stands are the most crucial portion of any Roll Forming Machine. Each stand has two upper and lower forming rollers on 75mm-wide 42CR steel shafts. Despite metal deformation, these shafts withstand twisting. Flat coil stock can be shaped into final cross-sections step by step using machines that cope with difficult patterns like Trimdek sheets or trapezoidal roofs, which have 18 shaping supports. The stands maintain precise roller spacing and ensure that the material travels smoothly from the entrance to the exit without tilting.

Common Problems That Compromise Roll Stand Integrity

Many things can worsen roll stand balance over time. Bearing housings and fastening points degrade naturally. This is especially true when working with high-tensile G550 steel or 0.3–0.8 mm thick materials at 15–20 m/min. Noise from unbalanced rollers or gearbox tension that doesn't match the chain and gear increases misalignment hazards. When the machine is improperly fitted, misalignment begins immediately. These issues cause camber or twist in completed profiles, inconsistent rib heights on corrugated panels, and too many burrs at cut edges if not addressed. These faults raise scrap costs and damage customer relations.

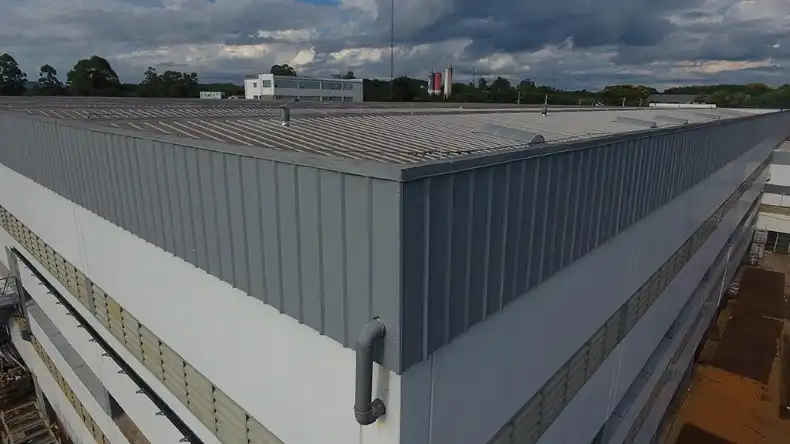

Real-World Impact on Roofing Sheet Production

A roofing tile manufacturer using a Roll Forming Machine for its triangular sheet line started receiving quality complaints about how the panels didn't fit together during installation. Loose foundation bolts and worn bearings caused three middle-sequence roll supports to shift 0.12 mm. A small alteration made the side-lap form less stable, preventing weathertight job locations. As technicians repositioned stands and replaced damaged parts, the company faced return shipments and lost production time. In competitive B2B markets, proactive inspection and alignment maintain operational uptime and brand reputation by preventing slight mechanical deviations.

Step-by-Step Guide to Inspecting Roll Stands for Optimal Performance

Visual and Mechanical Integrity Checks

Always begin with a visual inspection. Check roll stand frames for cracks, rust, and metal faults that could weaken them. Make sure mounting bolts and other fasteners are tight and bend-free. Check bearing lubrication. Without proper lubrication, wear accelerates and heat can bend stand parts. Each stand's base should be checked. Unlevel bases or loose anchor bolts can cause stands to shift. Take notes on any oddities to track their progression.

Measurement Tools and Techniques for Precision Assessment

For the best balance, use accurate measuring tools. Magnetic-base dial indicators assess vertical and horizontal roller centerline deviations. Goal margins often fall between ±0.05mm. Laser alignment is faster and more accurate. Sending reference beams across numerous stands at once makes it easy to spot problems. Feeler gauges can be used to monitor the roller gap's regularity and ensure that the upper and lower rollers are the proper size for the material's thickness. Rotary encoders from Omron help identify shaft movement irregularities that may indicate bearing wear or shaft deflection.

Identifying Warning Signs Through Noise and Vibration Analysis

Alignment issues often cause unusual machine behavior before they become defects. Listen for workplace noise changes. Grinding or clicking sounds may indicate a faulty bearing or loose parts. Higher vibration levels indicate improper balance or alignment, according to handheld vibration analyzers. Check these signs across the production stands during production runs to see which stations perform suspiciously. When vibration levels exceed commissioning baselines, inspections should be performed immediately. Siemens PLC systems with condition tracking can automate this process and inform you before alignment errors cause unplanned downtime or roller damage.

How to Properly Align Roll Stands: Principles and Best Practices

Fundamental Alignment Principles for Roll Forming Equipment

Aligning a roll stand correctly is based on three main rules. Parallelism makes sure that the roller tracks on each stand are parallel to those on the stands next to it. This stops the material from moving laterally, which can make edges look wavy. To achieve concentricity, the centerlines of the shafts must be perfectly lined up with the housings of the bearings. This is done by minimising radial runout, which causes uneven roller contact and faster wear on the 40CR sharpened and chromed roller surfaces. The spacing between stands must be exact so that the profile design formulas can be used to get the right bend angles and keep the material from breaking. By following these rules on all 18 stands of a current Roll Forming Machine, the profile shape will be the same from the first metre to the last.

Manual Versus Laser-Guided Alignment Systems

String lines, straight edges, and dial markers placed by skilled workers are used for traditional hand alignment. This method saves money, but it takes a lot of time and is prone to mistakes, especially in lines with a lot of stands. Laser alignment systems change this process by projecting reference planes across the whole machine. This shows any deviations at each stand right away. Technicians move the stands to align the roller centers with the laser plane. This cuts the time it takes to align from hours to minutes while improving accuracy. When companies buy laser systems, they get better quality control, less downtime, and longer roller life. These are all very important for companies that work with coated materials like PPGI, GI, Alzn, stainless steel, and aluminium, where surface finish is very important.

Step-by-Step Realignment Procedure

To keep everyone safe, start the realignment process with the machine turned off and the keys locked out. Either a taut wire strung along the axis of the machine or a laser alignment system can be used to set a reference standard. Start with the entry stand and measure how far up and down and side to side each roller midline is from the baseline. Keep track of all the data to make a variation map that shows which stands need to be adjusted. Loosen the mounting bolts on stands that don't meet the specs and move them using precision shims or mounting plates that can be adjusted. Tighten the fasteners again to the specifications, and then measure again to make sure the fix is right. Do this process on all of the forming stands, and then do a test run with scrap material to make sure the profiles are the right size. Keep a record of the final choices for future use and quality checks.

Maintenance Tips to Sustain Roll Stand Alignment and Machine Performance

Essential Maintenance Checklist for Long-Term Stability

To keep a roll stand aligned, you need to do regular preventative maintenance. Set up a regular lubrication plan for bearings and other moving parts using the greases that the maker recommends. Good lubrication stops friction-induced wear that causes parts to become out of alignment. Every three months, check all of the fastening bolts and tighten them again. Even normal operation can cause vibrations to loosen screws over time. Replace worn parts like bushings and bearings before they fail completely. Replacing them early keeps shafts and stands from getting damaged further. Chain-and-gear gearbox systems need to be checked for proper wear and tension, since loose chains cause vibrations that go through the whole forming line. Keep detailed maintenance logs to find patterns and plan repairs before they affect production.

Continuous condition tracking improves regular upkeep by showing how healthy a machine is in real time. When you put vibration sensors on important stands, they send data to your Siemens PLC. The PLC can then send out alerts when readings go above certain limits. Temperature tracking at bearing locations finds greasing problems or too much friction early on. Checking the regularity of the roller gap on a regular basis during production runs helps find alignment drift early on, before it causes parts to become faulty. These monitoring strategies change maintenance from fixing problems after they happen to managing problems before they happen. This cuts down on unexpected downtime and makes your equipment last longer.

Troubleshooting Recurring Alignment Problems

When alignment problems keep happening after fixes are made, the real problems are often not with the stands themselves. Check how the material is handled upstream. Unevenly feeding the coils or not aligning the decoilers correctly can cause forces that move roll stands over time. Make sure that your 7.5kW motor and 4kW hydraulic cutting system work smoothly and don't put any shock loads on the stands that could move them. Check the foundation of your building; settling or vibration from equipment next to it can affect the stability of machine levels. Talk to the company that sold you the equipment to see if the operating conditions match the machine's design parameters. Working with materials that aren't within the specified thickness ranges or running at speeds that are higher than the design limits will speed up wear and alignment loss. Partnering with companies like ZTRFM, which offers worldwide after-sales help and original new parts, gives you access to knowledge that quickly fixes problems that won't go away.

Comparing Roll Stand Alignment Approaches and Choosing the Right Solution for Your Business

Manual Alignment: Advantages and Limitations

Small businesses, companies, or makers on a tight budget can still use manual alignment methods. The main benefit is that it requires less money to start up. Simple tools like straight edges, dial signs, and feeler gauges are much cheaper than automatic systems. Skilled techs can get good adjustment results when they have enough time to do thorough, careful work. Manual methods are also flexible because they can be used with a wide range of machine setups without the need for special tools. But there are some big problems with this method. Manual alignment takes a lot of time and effort, which increases the amount of downtime during maintenance windows. Variability comes from human mistakes, and the quality of the alignment depends a lot on how skilled the expert is. When different people do alignments using their own judgment instead of objective measurements, repeatability is affected.

Automated Laser Systems: Precision and Efficiency

For mid- to large-scale Roll Forming Machine manufacturers, the higher cost of automated laser alignment systems is worth it because they offer measurable benefits. These systems give measurements that are objective, repeatable, and exact to within 0.01mm. This gets rid of the need for subjective perception. Laser guiding cuts alignment time by a huge amount. What takes a skilled expert four hours to do by hand can be done in less than an hour. Visual feedback from laser systems makes training easier, so people with less experience can do as well as experts. Over time, less downtime and more consistent products lead to an ROI that covers the original investment. For companies that work with expensive materials or tough customers, like those that make building panels that need a perfect finish, laser alignment is a must to keep quality standards competitive.

Tailored Solutions from ZTRFM for Diverse Production Requirements

Which alignment method is best for you depends on how much you need to produce, how complicated the product is, and how good you want the quality to be. Manufacturers of light steel structures that use C/Z purlin lines can benefit from laser systems that can quickly switch between different cross-sections while keeping tight standards. Roofing panel makers who focus on volume may choose strong hand alignment methods backed up by regular inspections. Composite sandwich panel lines with many layers of different materials need to be perfectly lined up to avoid delamination or surface flaws. ZTRFM offers advice to match alignment solutions with real-world operations, drawing on its experience working with clients in over 150 countries on a wide range of projects. Customised packages make sure that your investment gives you the most practical value, whether you need simple check routines for old equipment or cutting-edge laser alignment for brand-new installations.

Conclusion

Maintaining proper roll stand inspection and alignment practices has a direct effect on your bottom line by lowering the amount of waste, reducing downtime, and increasing the life of your equipment. Visual inspections and precise measuring tools used in a planned way can find misalignment early on, and regular preventive maintenance keeps things running smoothly between major overhauls. Whether you use manual or automatic alignment depends on how much you need to produce, the quality you need, and your budget. Either way, if done right, it will get the job done. By buying alignment technology and building relationships with knowledgeable providers, you can make sure that your business always produces high-quality goods that meet the needs of B2B customers. Roll Forming Machines can be turned from a maintenance headache into a reliable competitive advantage with proactive alignment management.

FAQ

Q1: How often should I inspect roll stands on my forming equipment?

The number of inspections depends on how much is being made and what the materials are like. Continuously moving at 15–20 meters per minute, operations that work with rough materials like aluminium or high-strength steel should do visual checks once a week and detailed measurements once a month. When lines work in spurts or with soft materials, the time between checks can be pushed back to once a month for eye checks and once every three months for precise measures. Always check right away if you notice any strange vibrations, noises, or quality problems.

Q2: What immediate signs indicate my roll stands need realignment?

Keep an eye out for rapid increases in profile flaws like twist, camber, or rib heights that don't match up. Material tracking issues where the coil stock moves side to side through the machine are a sign of horizontal misalignment. If the wear lines on the making rollers are all over one side, it means that they are not lined up vertically. Noise levels that are too high or vibrations that happen quickly during operation are signs of stand or bearing problems that need to be looked into and fixed right away.

Q3: Can misaligned roll stands damage other machine components?

Of course. When roller bearings are misaligned, they are loaded unevenly, which leads to early failure. Shafts are under more bending stress, which could cause wear cracks. Drive systems like motors and chain-and-gear drives have to work harder to avoid friction from parts that stick together, which shortens their useful life. When material comes out of alignment, hydraulic cutting systems may not make regular cuts. If you fix alignment problems right away, you can avoid expensive secondary damage along your Roll Forming Machine.

Partner with ZTRFM for Expert Roll Forming Machine Support

Getting the most out of your roll stand requires more than just regular maintenance. You need to work with a Roll Forming Machine supplier who understands the problems you face in your business. Cangzhou Zhongtuo (ZTRFM), which was founded in 2014 as a national high-tech company, designs and makes Roll Forming Machines. It has ISO9001, CE, and CAS certifications to back up its work. Our machines can work with coils of PPGI to aluminium that are between 0.3 and 0.8 mm thick. They can reliably produce 15 to 20 meters per minute with 18-stand setups that were carefully designed. To keep your production going easily, we offer full support, including OEM/ODM services, genuine replacement parts, and expert advice. You can email zhongtuorollforming@gmail.com or go to rollformingmachinemanufacturer.com to talk about how our unique solutions and global network of after-sales service can help you run your Roll Forming Machines better. Let the fact that we've worked with customers in more than 150 countries help you keep your alignment and production consistent.
