Tr4/ Tr5 Roof Sheet Machine for Peru Roofing Projects

The trapezoidal profile machine you use for roofing equipment for Peru's developing building sector can greatly impact your business and profits. A particular cold roll production technique, the Tr4/Tr5 roof sheet machine, makes robust trapezoidal roofing forms with four or five ribs. This equipment transforms galvanised steel, galvalume, or pre-painted coils into waterproof, load-bearing sheets for coastal residences, industrial warehouses, and large corporate structures in all Peruvian climate zones.

Understanding Tr4 and Tr5 Roof Sheet Machines

What Defines a Trapezoidal Profile Roll Former?

A trapezoidal profile roll forming machine continuously deforms metal through several forming stations. Raw metal strips pass through 13–15 roller stations in a straight line after decoiling. Each station bends the flat material incrementally until the trapezoidal shape is achieved. Tr4 and Tr5 machines form four-rib and five-rib panels, respectively, with each rib configuration distributing structural loads differently.

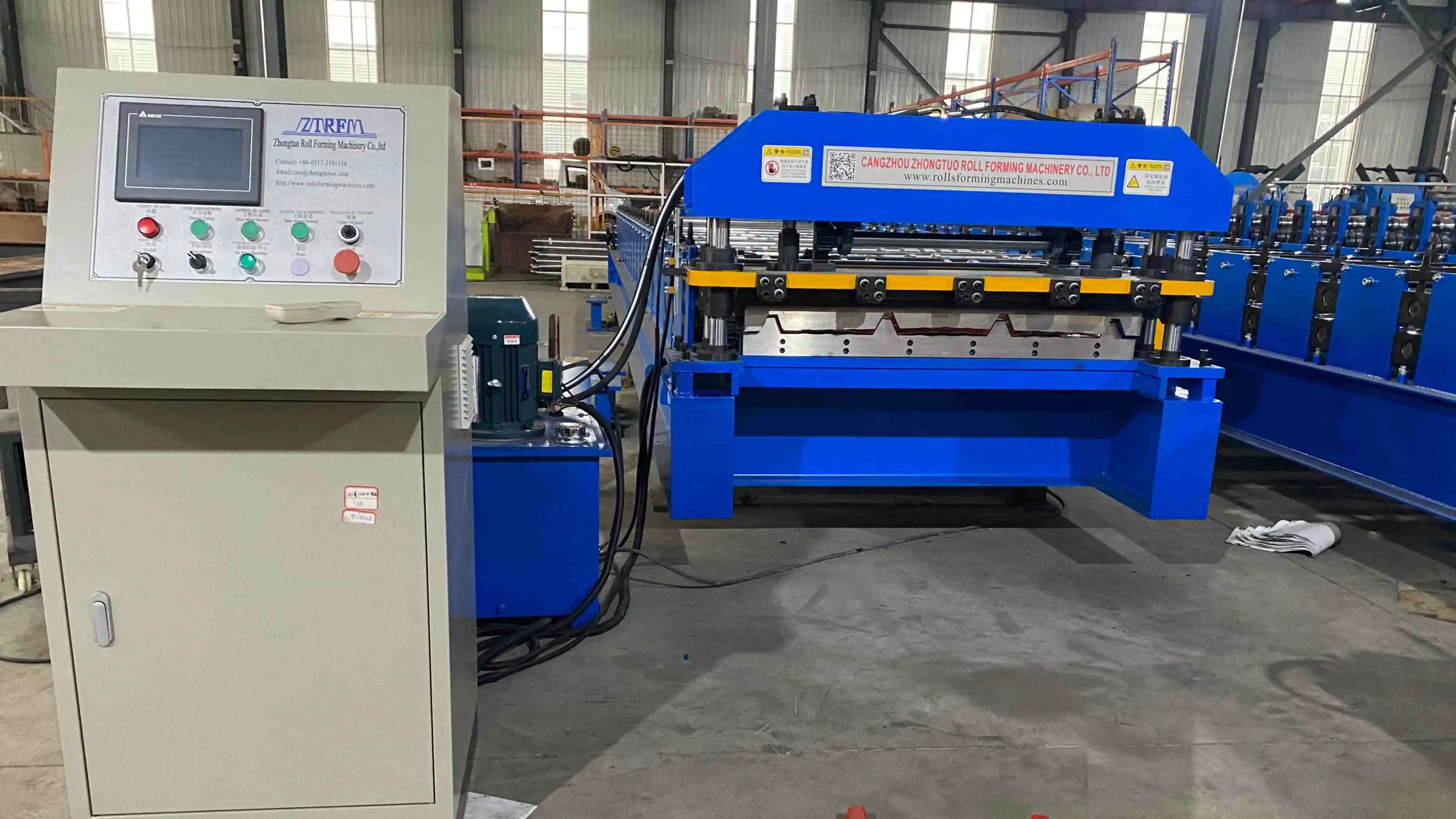

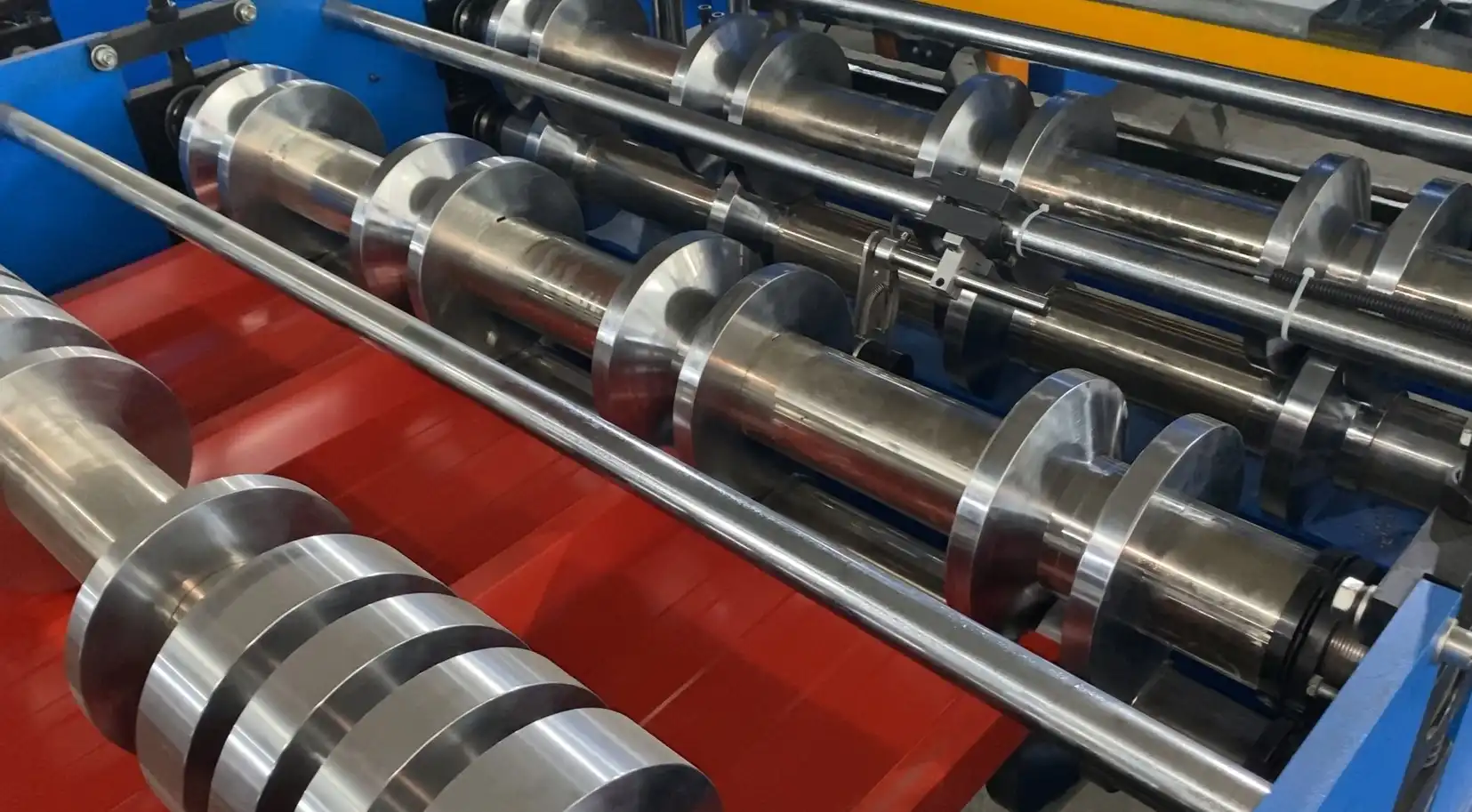

The primary mechanism uses two 45# steel wheels, chrome-plated to protect pre-painted surfaces. Proper roller alignment results in dimensional accuracy within ±1 mm for sheet lengths up to 12 metres. This level of precision is essential for installing panels on sloping roofs, such as Peru's steep terrain, ensuring exact fitment.

Technical Specifications That Matter

Modern trapezoidal roll-forming equipment can process 0.3 mm to 1.0 mm thick materials, making it suitable for both light-duty residential and heavy-duty commercial applications. Depending on profile complexity and material gauge, the production speed can reach 15 to 25 metres per minute, or 400 to 650 linear metres per eight-hour shift.

The roller shafts, typically 80mm in diameter, provide the structural rigidity to avoid deflection at high speeds. Cutting using a 4kW hydraulic shear produces clean, burr-free edges that are safe to handle. PLC touchscreen control systems enable operators to specify cut lengths, batch quantities, and production sequences without manual measurement.

Industrial Applications Across Peru's Building Sectors

Peruvian construction demands versatile roofing solutions. Rust-resistant PVDF or SMP profiles are needed for coastal projects around Lima or Callao. These protective layers persist for over 25 years in salty environments due to the identical forming mechanism.

The five-rib TR5 shape provides greater section modulus in alpine industry zones like Arequipa or Cusco. This structural advantage allows greater purlin spacing, lowering framework cost while maintaining wind uplift resistance over 3.0 kPa. Tr4 profiles acquire the maximum material from 1000mm or 1200mm coil diameters, making them popular in agricultural storage sites and government-funded housing developments.

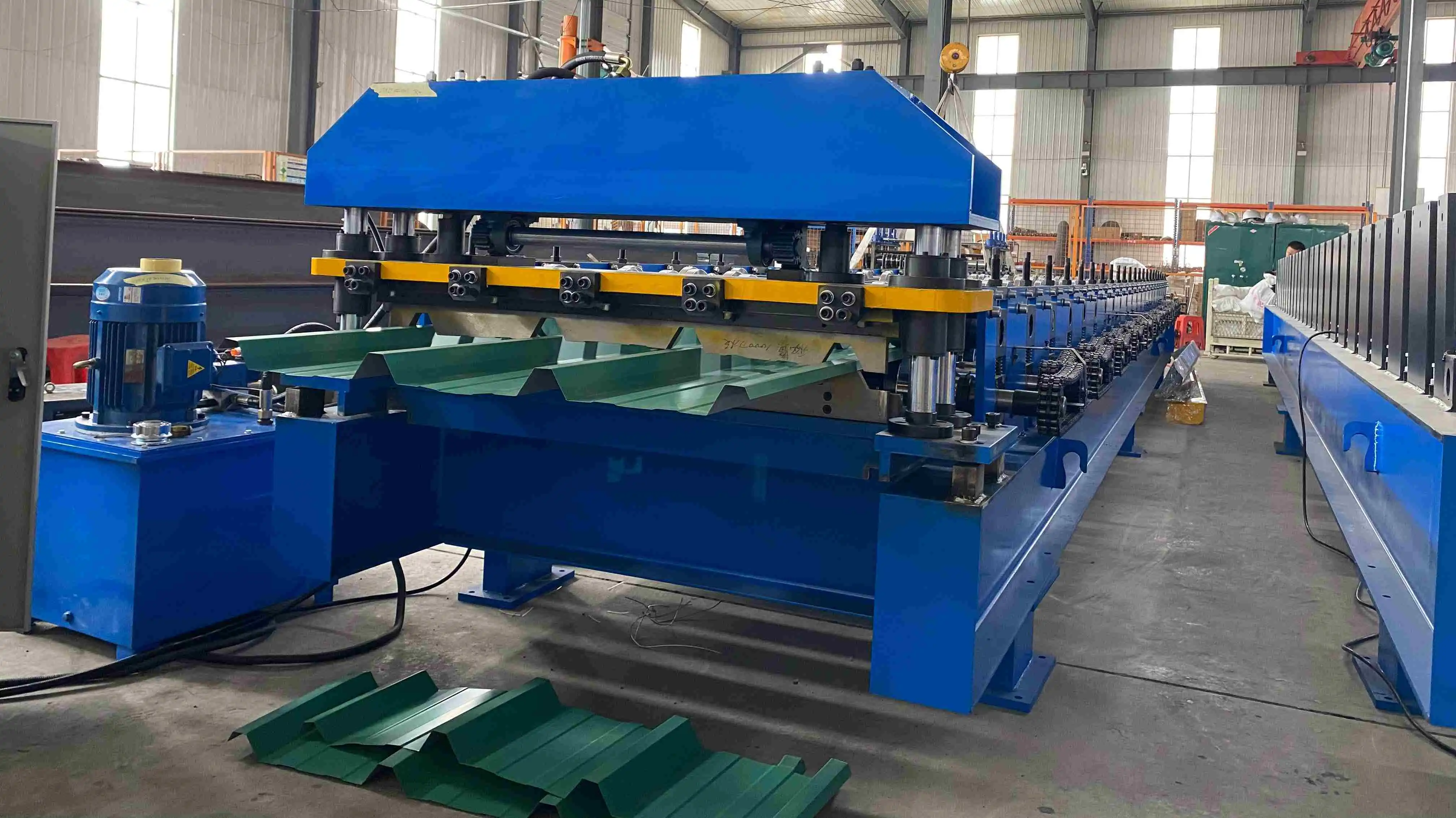

Comparing Tr4 and Tr5 Roof Sheet Machines for Industrial Use

Production Capacity and Operational Speed

The outline form and material quality affect manufacturing. Tr4 machines typically run at 15–25 m/min for sizes below 0.5 mm. A four-rib design requires less forming depth per stop and is simpler. This reduces friction and speeds up the line. Tr5 equipment, with five thicker ribs, works well at 15-20 m/min for sizes over 0.6 mm to prevent springback and surface markings.

Galvanised, aluminium-zinc alloy, and colour-coated steel are suitable. Both designs can handle varying yield strengths; however, for materials stronger than 550 MPa, the motor must be increased from 5.5 kW to 7.5 kW to maintain forming pressure.

Cost Analysis and Total Ownership Investment

A simple Tr4 system with a human decoiler and run-out table costs $15,000–$22,000, depending on automation. Similar Tr5 installations cost 15-20% more due to additional forming stations and complex roller tools. However, a more detailed cost study begins with these statistics.

The proposed schedules estimate yearly care expenses at 3–5% of the purchase price of the Tr4/Tr5 roof sheet machine. Cutting blades must be replaced every 1.2 million linear metres of output. Each Cr12MoV steel blade set costs $180–240. Roller reconditioning using hard-chrome replating can increase tool life by seven years at average production levels. Each whole roller set costs $1,200–$1,800.

Per linear metre of final product, 0.08–0.12 kWh is utilised. Facilities that manufacture 200,000 linear metres would spend $35 to $50 per month for power at Peru's industry prices. The hydraulic system uses 40% of the overall power; thus, filtering the oil and maintaining the temperature are crucial.

Real-World Performance in Peruvian Projects

An industrial metal building firm in Lima reported a 28% increase in output after moving from manual cutting to PLC-controlled automation equipment. Their TR5 machine cleans 180,000 square metres of Peruvian mining building roofs annually. The automated length control reduced scrap from 4.2% to 1.7%, covering equipment cost in 14 months.

Piura coastal home builders prefer Tr4 profiles because they offer the finest balance of cover width and raw material cost. One contractor offered equipment for 0.4 mm PVDF-coated galvalume, allowing 22-year guarantees on private maritime works. Chrome-plated rollers were needed since outdated steel roller machines damaged costly coatings, voiding manufacturer warranties.

Procurement Guide: How to Source Tr4 and Tr5 Roof Sheet Machines in Peru？

Identifying Qualified Suppliers and Manufacturers

Look for robust roll-forming equipment manufacturers with export experience and technical certifications such as ISO9001 and CE. Direct factory engagement avoids distributor markups of 25–40%. Verify whether suppliers offer OEM and ODM services, enabling customisation of roller profiles, control systems, and tooling. Request roller hardness certifications and shaft material composition reports, ensuring 45# steel components achieve HRC 58–62 hardness grades.

Purchase Process and Logistics Considerations

The factory usually takes 35–45 days to finish after receiving the money. Custom roller tools for unique forms take 10–15 days longer. A 40-foot container can transport a complete machine to Callao Port. Freight costs between $2,800 and $3,400, depending on the port of exit and season.

Customs brokers in Peru must manage import duties and clearance for HS code 8455.22, metal-forming equipment. You should budget 12–15% of the FOB value for landing expenditures, including customs taxes, processing, and transport to the final installation sites.

After-Sales Support and Maintenance Services

Transactional merchants don't provide skilled assistance like dependable providers. Video instructions, electrical schematics, and Spanish-language guidelines are included in our equipment installation kits. WhatsApp or email remote support can address 85% of practical issues in 24 hours.

Production is directly affected by spare part supply. Cut blades ($240), PLC touchscreen modules ($380), hydraulic seals ($65), and drive chains ($120) should be on hand. DHL Express delivers crucial emergency repair parts to Lima in 5–7 days.

Annual preventive maintenance contracts, including remote diagnostics, roller cleaning, and hydraulic system optimisation, cost $800–$1,200, depending on the unit. These arrangements reduce unnecessary downtime by 60% compared to reactive repair.

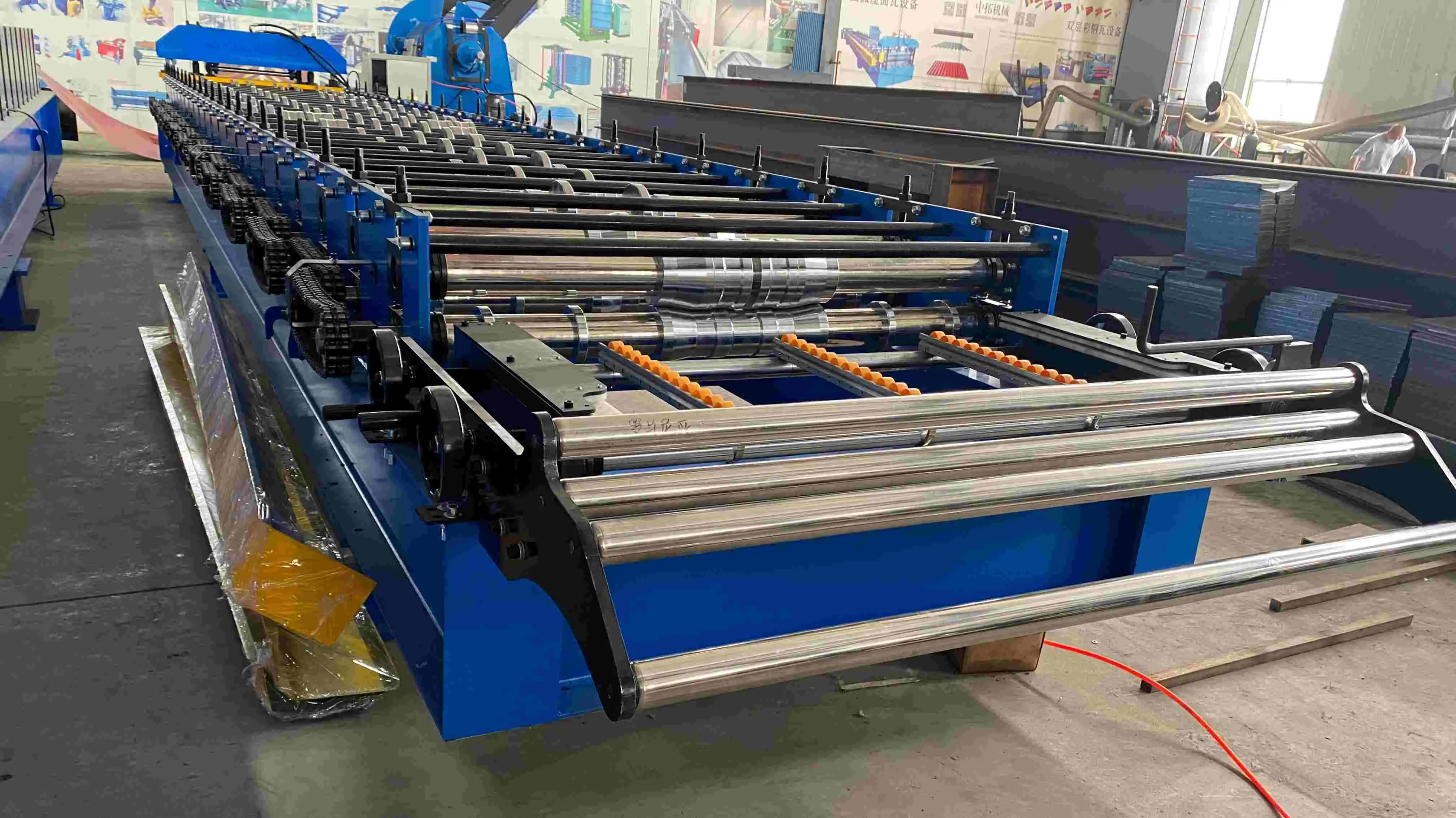

Optimising Roof Sheet Production with Tr4 and Tr5 Machines

Best Practices for Maximum Output

Getting good production starts with proper material preparation. Entry edges that bend or break create tracking errors at all forming stations; therefore, coil edges must be straight. For the Tr4/Tr5 roof sheet machine, check arriving coils for edge wave and camber and discard anything with more than a 3 mm variance per metre of width.

Roller alignment should be checked every 500 hours with precise straightedges and feeler gauges. Parallel alignment within 0.05 mm prevents uneven pressure distribution that might generate surface lines or size variances. The maintenance plans need to check the chain drive every 200 hours and change the hydraulic oil every 2,000 hours with ISO VG 46 hydraulic fluid.

Operators should watch sheet exit angles for up- or down-curls, which indicate unbalanced roller pressure. Minor top roller position modifications address these issues before they cause material loss. The roller spacing must be adjusted by 0.1 to 0.2 mm every season in cold buildings since temperature affects material springback.

Maintenance Schedules and Troubleshooting

Tools last longer, and production runs smoothly with preventive maintenance. Daily checks include cutting blade sharpness, chain tightness, and hydraulic pressure sensors. Weekly tasks include lubricating the driving gear, inspecting electrical connections, and reviewing the PLC error record.

Encoder calibration drift or material-feeding roller movement generates uneven cut lengths, a typical practical issue. Tuning takes 15 minutes using the PLC's built-in setup options. Most hydraulic cutting failures are due to filthy oil or outdated seals. Replace the filters and buy seal kits for about $100 to repair this.

High-speed vibrations indicate worn bearings or unbalanced rollers. Bearing replacement every 8,000–10,000 hours prevents major failures. We stock SKF or NSK bearings that match the originals and have the proper load values for your system.

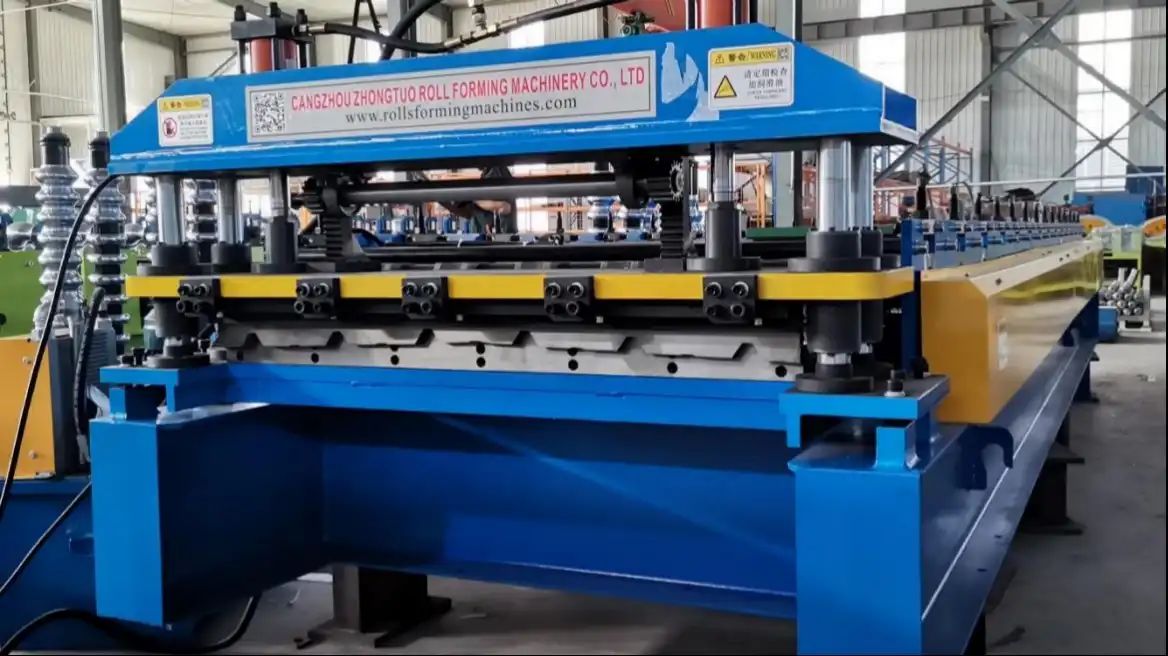

Making the Right Choice: Which Roof Sheet Machine Fits Your Project?

Evaluating Production Requirements

The project plan selects the optimal machine setup. Small enterprises that manufacture 50,000–150,000 linear metres a year find manual decoiler and run-out table methods sufficient to achieve quality standards with minimal capital. Medium-sized operations exceeding 200,000 metres benefit from hydraulic uncoilers that can handle 5-tonne coils and powered stackers that reduce manpower.

Material size affects machine selection. Standard 5.5 kW motors are sufficient for home roofs with 0.3-0.5 mm materials. Industrial applications that manufacture 0.8-1.0 mm structural panels daily require 7.5kW motors and stronger frames to accommodate higher forming loads.

Profile Selection for Specific Applications

Tr4 profiles are good for household and light commercial buyers who prioritise affordability. The four-rib design allows 1000 mm cover lengths from 1060 mm raw material with minimum trim waste. Normal residential wind zones may handle 2.5 kPa.

In heavy-duty industrial situations, Tr5 forms' improved structural performance justifies the increased material cost. The fifth rib increases section stiffness by 35–40% above Tr4. This increases purlin spacing from 1.2m to 1.5m. This structural advantage reduces shop framework costs by 12–18% for stores wider than 30 metres.

Coastal and corrosive locations require tools that don't damage high-end finishes. Chrome-plated rollers prevent C5-corrosivity PVDF topcoats, which is critical for sea-exposed Peru. Standard steel rollers create microscopic scratches that prematurely degrade coatings in 5–7 years.

Technology Trends and Scalability

New automation features include systems that stack and count products, cameras that check for surface faults, and IoT connections for remote production monitoring. In factories that create many profiles, these enhancements add 20–30% to the base cost of the equipment but save 40–50% on labour.

Dual-profile machines manufacture Tr4, Tr4/Tr5 roof sheet machines, and Tr5 using cassette-style roller switching. The conventional bolt-on roller replacement takes 4–6 hours, while changing the profile takes 45–60 minutes. This allows companies to service many consumers without maintaining many manufacturing lines.

Conclusion

Peru's roofing sector requires trapezoidal profile roll-forming equipment that balances production capacity, material compatibility, and long-term support infrastructure. Tr4 machines are suitable for cost-effective light commercial and residential applications, while Tr5 systems provide greater structural strength for industrial and coastal projects. Technical features, including 13–15 forming stations, 80mm roller shafts, and PLC-controlled cutting systems, ensure dimensional accuracy and surface quality across various material grades. Working with certified manufacturers that provide full after-sales support, quick access to replacement parts, and proven export logistics to Peru's main ports is key to procurement success.

FAQ

1. What delivery timelines should buyers expect for shipments to Peru?

From deposit confirmation to Callao port delivery, production and shipment take 50–60 days. Manufacturing takes 35–45 days, while shipping from a Chinese port takes 15–20 days. Custom roller tools for unique shapes delay lead times by 10–15 days. Air freight ships in 5–7 days but costs $3,800–$4,500 extra and is only worth it for urgent equipment replacement.

2. Can these machines process aluminium coils in addition to steel?

The Tr4 and Tr5 can handle 0.5–1 mm metal coils. Aluminium's lower yield strength requires slowing production to 12–18 m/min to minimise surface marking. Aluminium requires roller pressure changes and careful shaping since it doesn't spring back like steel.

3. How do maintenance requirements differ between Tr4 and Tr5 configurations?

TR5 machines feature 20% more bearing and chain maintenance stations due to additional manufacturing stations. However, both arrangements require the same maintenance. The biggest difference is the roller refurbishment expense. For Tr5 systems, chrome must be changed on 30–32 rollers but just 26–28 in Tr4. This means repair prices rise $240–$320 per 5–7 years.

Partner with ZTRFM for Your Roofing Production Needs

ZTRFM stands ready to support your roofing sheet manufacturing goals with proven Tr4/ Tr5 roof sheet machine solutions backed by ISO9001 and CE certifications. Our tech staff can configure our machines to match your production demands, from simple manual systems to fully automated lines with powered stacks. Over 150 countries have received roll forming tools since 2014, including many in South America's rugged coastline and highlands. Our technical specialists can provide detailed requirements, production samples, and affordable prices from a trusted manufacturer at zhongtuorollforming@gmail.com.
