It is still hard for building and industry companies to find the right mix between cost-effectiveness and reliability in manufacturing tools. A soffit panel roll forming machine is a strategic investment that makes exact soffit panels from metal coils by means of ongoing forming processes. These specialized machines offer consistent quality while keeping the cost of doing business low. This makes them important for companies that want to boost productivity without breaking the bank. Newer roll forming technology is very durable and precise. This helps companies meet tight deadlines while also making sure that panel quality standards are met.
Understanding Soffit Roll Forming Machines: Basics and Benefits

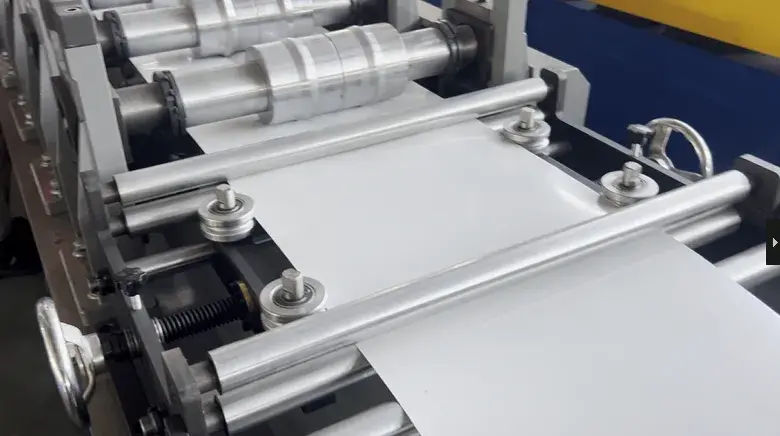

The making of soffit panels needs special tools that can work with different types of metal and keep the right measurements. Roll forming machines work by sending flat strips of metal through several progressive forming stations that give them the right shape. This method makes sure that all panels are the same size and have the same surface quality, even in different production runs.
The basic idea is to bend metal coils in a number of rolling machines that each do a certain bending job. To get the best making accuracy without stressing the material in one spot, most good machines have 18 rolling places. The progressive making method lowers material waste and gets rid of extra steps that raise the cost of production.
Modern soffit roll forming machine making tools speed up output, lower the amount of work needed, and make sure that parts are always the same size. Automated systems can handle materials that are between 0.3 and 0.8 mm thick, which allows them to work with different types of projects. Being able to change the length of the cuts makes these tools useful for a wide range of building projects because they can be used with panels of different sizes.
Choosing the Right Soffit Roll Forming Machine for Your Business
Choosing the right making tools depends on the needs of the production process, the details about the materials, and the limitations on how the business runs. Understanding these things helps procurement pros make smart choices that are in line with the goals of the business.
The amount of production that needs to be done affects how many tools will be used. Semi-automatic systems that balance the cost of setting up the system with the speed of the process may be helpful for small businesses. Large-scale makers usually need production lines that are fully automatic and can run all the time with little help from people.
The next most important thing to consider when choosing a material is whether or not it is compatible with soffit panel roll forming machine other materials. Quality tools can handle both PPGI and GI materials well, giving them the ability to work on a range of projects. The strong build with 45# steel rolling rods that have been cooled ensures that performance is the same with all types of material. Shafts with a diameter of 75 mm will be strong enough for tough jobs and will keep things running smoothly.
It is important to assess these precise specifications:
- Rolling Station Setup: Machines with 18 stations make better-formed products than machines with fewer stations. This setup lets the material change slowly without putting too much stress on it. This leads to a better surface finish and more accurate dimensions.
- Frame Building: Vertical arch frame structures with a width of 35 to 45 mm keep the machine stable when it's going fast. Construction with steel plates that are bonded together makes sure that the structure lasts a long time and stays perfectly aligned, even when it's being used to make things for a long time.
- Drive System Design: Chain transmissions move power reliably and don't need to be fixed very often. Harbin is one of many well-known companies that make high-quality bearings. These bearings will keep your machine running smoothly and prolong its lifetime.
These technical features have a direct effect on the quality of production and the dependability of operations. This makes them an important part of the decision-making process for getting new tools.
Maintenance and Troubleshooting to Maximize Durability and Efficiency
Proper care makes tools work better and last longer. Setting up regular repair plans keeps production quality consistent and avoids unexpected downtime.
Daily care should make sure that the cutting length is correct, that the rolling stations are working properly, and that moving parts are lubricated. Cleaning the rollers often stops material from building up and possibly changing the quality of the panel surface. Operators should keep an eye on bearing temperatures and listen for noises that don't normally happen. These could mean that a problem is starting to happen.
Chain drive systems in the soffit roll forming machine need to be fully lubricated, and electrical links need to be checked as part of weekly maintenance. Checking roller alignment makes sure that the quality stays the same and stops early wear. Checking the pressure in the hydraulic system keeps the cutting performance up and stops delays in the work from happening.
Here are some common problems that happen in business and how to fix them:
- Panel Size Changes: This usually happens because rollers are not lined up correctly or the making stations are worn out. Regular calibration and quick repair of old parts keep measurement accuracy and stop quality problems from happening.
- Surface Quality Issues: These often happen because the rollers are dirty or the material is handled incorrectly. Following cleaning rules and teaching operators gets rid of most surface flaws and makes the panels look better.
- Inaccuracy in Cutting Length: Usually caused by issues with the encoder or wear and tear on the cutting system. Regularly calibrating and replacing parts keeps panel lengths even and cuts down on material waste.
Proactive upkeep methods keep output on schedule and lower the cost of repairs. Minor problems can be avoided if workers are trained to spot early warning signs.
Procurement Guide: Buying and Partnering with Reliable Suppliers
Supplier evaluation and clear specification description are two important parts of getting tools. Knowing the choices in the market and what suppliers can do helps you make the best buying decisions that are in line with the long-term goals of the business.
When choosing a supplier, it is important to focus on scientific knowledge, high-quality manufacturing, and the ability to provide good service. Established makers with proven track records make people more sure that the tools will work and that help will keep coming. ISO9001 and CE licenses show that one follows global rules and quality standards.
When someone is trying to buy something, they have to think about more than just the price; they also have to think about how much it will cost to own it. Some ways to pay for it might be equipment rental, installment payments, or savings for buying in bulk. Understanding guarantee and service agreement terms helps you figure out the long-term value of things.
Procurement usually means figuring out exactly what you need, checking out potential suppliers, and coming to an agreement with one of them for a soffit panel roll forming machine. Clear conversation about customization needs avoids confusion and makes sure the equipment meets the exact needs of the business. To help with project planning, the delivery dates and assembly help should be clearly stated.
Energy Efficiency and Production Performance: Optimizing Your Investment
Today's shaping machines have great output power and don't use too much energy. Understanding how something performs helps you get the most work done with the least amount of money and time.
The thickness of the material and how hard the panels are to make affect the production speed, which usually ranges from 10 to 25 meters per minute. Automated systems keep the same speed during the whole production run, which gets rid of the differences that can happen with human operations. It is cheaper to make each item and easier to finish projects on time when production speeds are higher.
It takes different amounts of energy to run the machines depending on the thickness and shape of the material and how fast the machine is working. Efficient drive systems and improved roller designs keep the forming quality while lowering power needs. Proper upkeep keeps motors running at top efficiency, which lowers the cost of power over the lifetime of the equipment.
Roll forming technology uses less energy and makes better use of materials compared to other forming methods. The constant forming process gets rid of the trash that comes from pressing or cutting, which makes the process more cost-effective.
About ZTRFM: Your Trusted Manufacturing Partner
Cangzhou Zhongtuo (ZTRFM) has established itself as a leading manufacturer of cold roll forming equipment since 2014. Our all-encompassing method covers customer success across the board, from planning and production to continued help for the duration of the equipment's lifetime.
We offer both standard soffit panel roll forming machine tools that work well for most people and fully customized options that are designed to meet your exact needs. OEM and ODM services give customers the chance to create one-of-a-kind solutions that are just right for their business. One-stop services can give raw materials, make machines, and provide accessories.
Quality licenses like ISO9001, CE, and CAS show that we are dedicated to following international rules and standards. More than 150 countries use our goods, which shows that people around the world are happy with our technology and service. Our ability to innovate and scientific knowledge are confirmed by being named a national high-tech company.
Thorough help after the sale makes sure that the equipment works well with everything else and performs at its best. To get the most out of your equipment, our skilled expert team helps with installation, trains operators, and offers ongoing support for repair.
Conclusion
When you choose soffit roll-making tools, you need to think about the cost, how well they need to work, and how long they need to last. Today's tools have amazing features that make work more efficient and keep costs low. Understanding technical specs, upkeep needs, and what suppliers can do helps you make smart purchasing choices that are good for business. For operations to run smoothly and for businesses to stay ahead of the competition in tough markets, they need to use high-quality tools made by well-known companies.
FAQ
Q1: What factors should I consider when selecting a soffit roll forming machine?
A: Key considerations include production volume requirements, material specifications, available space, and budget constraints. Evaluate technical features such as rolling station quantity, frame construction quality, and drive system reliability. Consider long-term support availability and supplier reputation to ensure optimal equipment performance throughout its operational life.
Q2: How long does delivery and installation typically take?
A: Standard machines usually require 4-6 weeks for manufacturing and delivery, while customized solutions may take 6-8 weeks. Installation typically takes 1-2 weeks, including equipment setup, calibration, and operator training. Factors such as shipping distance, customs procedures, and site preparation can affect overall timelines.
Q3: What financing options are available for equipment purchases?
A: Multiple financing options include direct purchase, equipment leasing, and installment payment plans. Many manufacturers offer flexible terms to accommodate different budget situations. Consider the total cost of ownership when evaluating financing alternatives, including interest costs, tax implications, and cash flow impact.
Partner with ZTRFM for Superior Soffit Roll Forming Machine Solutions
Investing in quality forming equipment requires a reliable manufacturing partner who understands your operational challenges and business objectives. ZTRFM combines advanced manufacturing capabilities with comprehensive support services to deliver exceptional value for construction and industrial applications.
Our soffit panel roll forming machine manufacturer's expertise extends beyond equipment production to include ongoing technical support and optimization services. We understand the importance of reliable operation and consistent quality in competitive markets. Our commitment to customer success drives continuous improvement in product design and service delivery.
Ready to enhance your production capabilities with proven forming technology? Our technical team stands ready to discuss your specific requirements and develop customized solutions that meet your operational needs. Contact us at coo@zhongtuocn.com to explore how ZTRFM can support your business growth through reliable, efficient forming equipment.
