A trapezoidal sheet roll forming machine is a progressive fabricating framework designed to persistently shape level metal coils into exact trapezoidal profiles through dynamic shaping stations. This modern hardware changes crude materials like galvanized steel, pre-painted steel, or aluminum into solid material and siding boards with unmistakable trapezoidal cross-sections. The machine works through numerous roller stations that steadily twist the metal into the craved shape, making steady, high-quality items fundamental for development and building businesses worldwide.
Understanding the Core Components and Functionality
The heart of any compelling shaping framework lies in its mechanical components and operational plan, which determine both accuracy and proficiency. Cutting-edge roll shaping machines highlight strong steel outline development, ordinarily utilizing 350H steel for predominant quality, flexibility, and durability during nonstop operation. This solid system minimizes vibrations and guarantees exact forming indeed beneath high-speed, heavy-duty generation conditions.

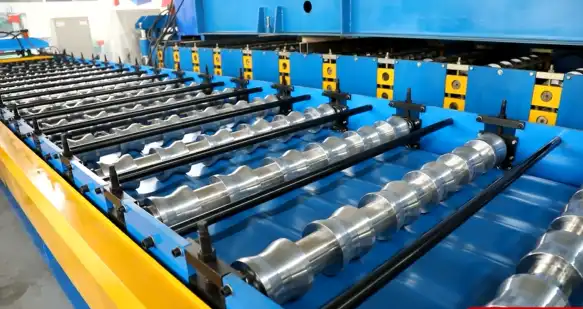

The shaping handle starts with a metal coil bolstered through an arrangement of precision-engineered roller stations. Each station performs particular twisting and forming operations, steadily changing the level fabric into trapezoidal or customized profiles. Quality machines consolidate strong shafts, more often than not 80mm in diameter, giving remarkable torsional quality and reliable execution beneath overwhelming generation loads, anticipating fabric twisting or uneven profiles.

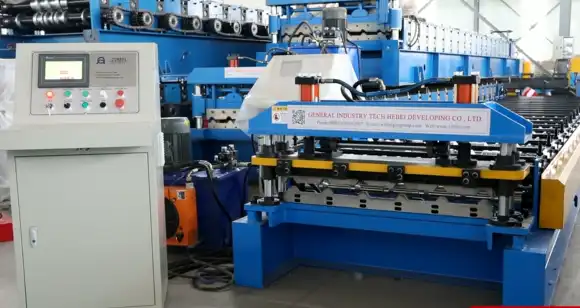

Control frameworks play an urgent part in guaranteeing consistent operation in a trapezoidal sheet roll forming machine. PLC-based controllers offer instinctive interfacing, empowering administrators to screen speed, synchronization, and cutting exactness in real-time. These mechanized frameworks diminish human error, optimize generation efficiency, and permit reliable replication of complex profiles over long generation runs.
Hydraulic cutting instruments total the fabricating handle by creating clean, burr-free edges. High-grade CR12MoV steel cutting edges give toughness, keep up sharpness over expanded periods, and avoid surface scratches or fabric misshapening. Cutting resilience regularly accomplishes ±1mm exactness, assembly rigid quality guidelines, whereas coordinates security highlights ensure both administrators and gear amid high-speed operation. This combination of exactness building, computerization, and strong development guarantees dependable and productive roll shaping execution for demanding mechanical applications.
Material Specifications and Production Capabilities
Versatility in fabric dealing with recognizes professional-grade trapezoidal sheet roll forming machines from fundamental choices, permitting producers to handle a wide extend of metals without compromising quality. High-performance machines can productively handle materials such as PPGI, galvanized steel, and aluminum sheets, with thicknesses extending from 0.3mm to 1.0mm. This flexibility guarantees compatibility with differing development and mechanical applications, from lightweight private boards to heavy-duty commercial cladding.
Production speed is another basic figure for producers to optimize proficiency and throughput. Progressed frameworks are capable of shaping at speeds up to 60 meters per minute while keeping up exacting quality measures, exact measurements, and uniform profiles. This high-speed operation underpins large-scale generation plans, making a difference for producers to meet tight extension timelines and bulk arrange prerequisites without relinquishing item consistency or surface finish.
Width customization advance improves operational adaptability. Standard arrangements ordinarily incorporate 1000mm and 1250mm widths, but machines can be adjusted to suit bespoke measurements for specialized ventures. Board lengths commonly extend from 3 feet to over 20 feet, empowering applications over both private and commercial development sectors.
Surface treatments of materials impact machine setup and strength. Chrome-plated rollers, built from 45# steel, give uncommon wear resistance when preparing coated or high-friction metals. This expanded strength diminishes upkeep frequency, minimizes downtime, and amplifies the operational life expectancy of shaping hardware. Combined with exact fabric handling and high-speed capabilities, these highlights guarantee professional-grade roll shaping machines reliably convey dependable execution for differing fabricating demands.
Technical Advantages for Modern Manufacturing
Precision engineering underpins the significant benefits that modern roll forming systems bring to manufacturing operations. Advanced gearbox transmission systems are designed to minimize vibrations while maintaining smooth and stable operation across extended production cycles. This mechanical stability ensures consistent profile dimensions, reduces the incidence of defects, and minimizes material waste, directly improving product quality and lowering operational costs over time.
Automation capabilities further enhance production efficiency in a trapezoidal sheet roll forming machine. Quick-adjustment mechanisms and PLC-controlled interfaces allow seamless changeovers between different profile specifications, minimizing downtime and labor requirements. For manufacturers producing multiple profile types within the same facility, these automated features are essential for maintaining high throughput without sacrificing precision. Integration with intelligent control systems also allows operators to monitor production in real-time, optimizing speed, tension, and cutting accuracy.
Energy efficiency is another critical consideration. Forming motors typically operate at 5.5kW, providing the power necessary for high-speed operations while balancing electricity consumption. Hydraulic systems, often equipped with 7.5kW motors, deliver precise cutting force for clean, burr-free edges while maintaining minimal energy use. This careful balance of power and efficiency reduces operational costs and supports sustainable manufacturing practices.
Customization options extend beyond basic machine specifications, enabling manufacturers to integrate additional functions such as multi-station punching, cutting, and embossing within a single production line. This level of integration reduces manual handling, accelerates workflow, and ensures uniformity across complex production tasks. Collectively, these technical advantages position modern roll forming machines as indispensable assets for high-efficiency, high-quality manufacturing environments.
Applications Across Industry Sectors
Building roofing system manufacturers rely on consistent, high-quality panel production to meet construction deadlines. Trapezoidal profiles provide excellent structural strength while maintaining weather resistance properties essential for roofing applications. These panels span up to 6 meters without intermediate support, reducing installation complexity.
Metal structure manufacturers utilize trapezoidal sheet roll forming machines for producing various architectural components. Channel steel, support profiles, and industrial structural elements benefit from the precision forming capabilities. Integrated punching systems enable complex hole patterns required for connection hardware.
International engineering companies demand equipment meeting global certification standards. ISO9001 and CE certifications ensure compliance with international quality requirements. Global deployment capabilities require robust construction and reliable performance across diverse operating conditions.
Small manufacturers and startups benefit from accessible entry-level options without sacrificing quality. Simplified maintenance procedures and comprehensive training programs reduce technical barriers. Cost-effective investment options enable smaller operations to access professional-grade manufacturing capabilities.
Quality Control and Maintenance Considerations
Consistent quality output depends on proper machine maintenance and operational procedures. Regular inspection schedules prevent unexpected downtime while maintaining production quality. Lubrication systems require attention to ensure smooth roller operation and extend component life.
Scrap rate control impacts profitability directly through material utilization efficiency. Precision forming reduces waste generation while maintaining tight dimensional tolerances. Quality control systems monitor output continuously, alerting operators to potential issues before they affect production.
Spare parts availability ensures uninterrupted production schedules in a trapezoidal sheet roll-forming machine. Established manufacturers maintain a comprehensive parts inventory supporting equipment throughout its operational lifespan. Quick replacement procedures minimize downtime during routine maintenance activities.
Training programs enhance operator competency and equipment utilization. Comprehensive instruction covers setup procedures, quality monitoring, and troubleshooting techniques. Well-trained operators achieve better results while reducing equipment wear through proper operation.
Investment Considerations and ROI Analysis
Equipment determination requires cautious assessment of starting speculation against long-term operational benefits in a trapezoidal sheet roll forming machine. High-quality machines command premium estimating but convey prevalent execution and unwavering quality. Lower upkeep necessities and amplified operational life counterbalanced higher introductory costs.
Production capacity calculations decide suitable gear measurements for particular operations. Shaping speed, fabric thickness capabilities, and width alternatives influence throughput potential. Exact capacity evaluation guarantees gear matches generation necessities without over-investment.
Global after-sales back gives peace of mind for worldwide operations. Built up producers offer specialized help over different time zones and dialects. Further diagnostic capabilities empower fast issue determination without on-site visits.
Financing alternatives suit different budget imperatives while empowering access to progressive innovation. Rent courses of action and installment plans decrease starting capital requirements. These adaptable approaches empower producers to overhaul capabilities without a significant cash flow impact.
Conclusion
Trapezoidal sheet roll forming machines speak to basic hardware for advanced metal fabricating operations. Their capacity to proficiently change crude materials into precision-formed boards addresses the developing industry's requests. Venture in quality hardware conveys long-term benefits through improved efficiency, decreased squander, and steady quality yield. Producers choosing progressive shaping frameworks position themselves competitively in advancing markets while building feasible, productive operations that meet client desires and industry standards.
Ready to Enhance Your Manufacturing Capabilities with ZTRFM?
Cangzhou Zhongtuo stands ready to transform your production capabilities with cutting-edge trapezoidal metal roofing roll-forming machines tailored to your specific requirements. Our decade of experience since 2014 has established us as a trusted trapezoidal sheet roll forming machine manufacturer, delivering innovative solutions to over 150 countries worldwide.
Our comprehensive approach includes raw material supply, custom machine design, and complete accessory packages. ISO9001, CE, and CAS certifications validate our commitment to international quality standards. As a national high-tech enterprise, we combine technical innovation with practical manufacturing expertise.
Whether you operate a large-scale roofing manufacturer or an emerging startup, our team designs solutions that match your production goals and budget requirements. OEM and ODM services accommodate unique specifications, while our one-stop approach simplifies procurement and implementation.
Global recognition from satisfied customers across diverse industries demonstrates our reliability and technical competence. Our automated changeover systems, precision forming capabilities, and comprehensive training programs ensure successful equipment integration. Contact us today to discuss your trapezoidal sheet roll forming machine supplier needs and discover how ZTRFM can elevate your manufacturing operations. Reach out to our technical team at coo@zhongtuocn.com to begin exploring customized solutions for your business.
