Roof Deck Roll Forming Machine - Professional Metal Decking Solution

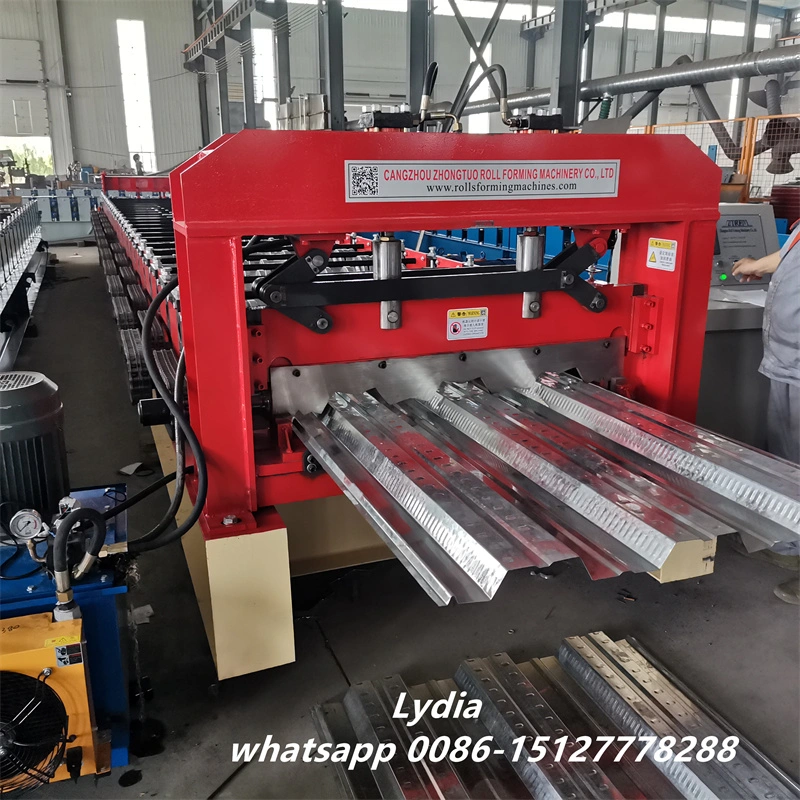

Cangzhou Zhongtuo's roof deck roll forming machine delivers enterprise-grade performance for high-volume production. Our system processes 0.8-1.2mm galvanized or galvalume coils at speeds of 10-20m/min, featuring 95mm diameter forming shafts (120mm for embossing), CR12 hardened steel cutters, and triple 11kw motors for balanced power distribution. With PLC control integration and chrome-treated No.45 steel rollers, you get consistent profile accuracy for commercial construction projects. Since 2014, we've served 150+ countries with proven cold forming technology.

What Makes Our Metal Decking Equipment Different

You need machinery that handles tough materials without compromising precision. Our equipment is engineered for structural applications where profile consistency matters.

The system processes galvanized steel with 235Mpa yield strength. Deep embossing capability creates the friction patterns your composite floor applications require.

Heavy-duty construction eliminates vibration during production runs. This stability translates to tighter tolerances across your entire output.

Chrome-coated forming rollers resist wear from abrasive coatings. You'll see longer intervals between maintenance cycles and consistent finish quality.

Technical Specifications at a Glance

Who Benefits from This Production Line

Steel Structure Contractors: When you're building multi-story commercial projects, composite floor decking serves as both formwork and reinforcement. The embossing feature ensures mechanical bond between steel and concrete.

Industrial Facility Builders: Warehouses and mezzanine floors demand long-span capabilities. Our profiles reduce secondary structural requirements, cutting your material costs and installation time.

Infrastructure Projects: Airports and public buildings need decking that meets acoustic and wind uplift specifications. The equipment produces profiles compatible with integrated insulation systems.

Quality Standards You Can Verify

Our national high-tech enterprise status reflects documented performance standards.

ISO 9001 Certification governs our manufacturing processes. Every machine undergoes quality control checkpoints before shipment.

CE Marking confirms compliance with European safety directives. Your investment meets international regulatory requirements.

CAS Certification validates conformity to North American technical standards. This matters when you're serving diverse export markets.

We've maintained these certifications through rigorous third-party audits. Documentation is available for your procurement review.

Research-Backed Engineering

Our partnership with Yanshan University's National Cold Rolled Strip Equipment and Process Engineering Research Center brings academic rigor to practical manufacturing.

Graduate researchers work on-site at our production facility. They focus on finite element analysis for roll design optimization and virtual commissioning protocols.

This collaboration has yielded two patented technologies. One covers innovative pattern roller design, the other addresses automatic slitting functionality.

AI-powered simulation tools optimize forming paths before physical prototyping. You benefit from reduced trial costs and faster custom profile development.

Remote monitoring systems enable cloud-based diagnostics. When you need technical support across time zones, our team accesses equipment data in real-time.

Smart Features for Modern Production

PLC Control Integration: Program batch runs with precise length specifications. The system maintains tolerances within ±1.0mm across production cycles.

Hydraulic Cutting System: The 5.5kw motor delivers clean cuts on 1.2mm material without burrs. Blade life extends to 100,000+ cuts using hardened CR12 steel.

Distributed Motor Power: Three 11kw motors provide even torque distribution. This configuration prevents drive chain stress and extends gearbox life.

Adjustable Embossing Depth: Screw-down mechanisms let you calibrate indentation patterns. Uniformity checks ensure consistent composite floor bonding performance.

Installation and Foundation Requirements

Heavy machinery demands proper foundation support. Your roof deck roll forming machine weighs 15-25 tons depending on configuration.

A reinforced concrete foundation is necessary. Level tolerance should stay within 1mm per meter to prevent frame twisting.

We provide foundation drawings with machine dimensions. Your site preparation team can coordinate with our installation engineers.

Electrical requirements include three-phase power for main motors. Hydraulic systems operate independently with dedicated power supply.

Our Service Commitment Since 2014

Zhongtuo started with a focus on cold roll forming technology. Today we're a one-stop supplier covering raw materials, machinery, and accessories.

Our product range includes roof tile systems, CZ purlins, light steel keel equipment, and high-frequency pipe welding lines. This breadth means you're working with proven manufacturing expertise.

We've exported to Europe, North America, the Middle East, Southeast Asia, and South America. Long-term partnerships in these regions validate our service reliability.

Strategic agreements with six universities support continuous innovation. Our 2023 Siemens partnership strengthens automation and control system capabilities.

Custom Solutions for Regional Requirements

Ten years of export experience taught us that specifications vary by market. European clients prioritize CE compliance. North American customers reference ASTM standards.

Your project might need profile modifications for local building codes. Our engineering team adapts designs while maintaining structural integrity.

Material sourcing flexibility accommodates regional supply chains. We guide you through galvanized versus galvalume decisions based on climate factors.

Training packages ensure your operators understand maintenance procedures. Video documentation and remote support supplement on-site commissioning.

Frequently Asked Questions

Can one machine produce multiple deck profiles?

Profile changes require significant station reconfiguration due to the complexity of structural decking. We recommend dedicated machines for each primary profile type to maintain accuracy and minimize downtime.

How do you prevent spring-back with high-strength materials?

Our forming sequences include over-bending stations calculated through finite element analysis. Side-roll adjustments compensate for material elasticity, ensuring final geometry matches specifications.

What maintenance intervals should we expect?

Chrome-coated rollers typically run 6-12 months between inspections in normal conditions. Hydraulic systems need quarterly checks. Cutting blades require sharpening every 100,000-200,000 cuts depending on material thickness.

Is the embossing pattern customizable?

Yes. The 120mm embossing shaft accepts various roller configurations. We work from your composite floor engineering specifications to create appropriate friction patterns.

What technical support comes with the machine?

Initial installation includes on-site commissioning and operator training. Remote monitoring systems enable our team to diagnose issues and provide guidance. Video calls and cloud-based data access speed troubleshooting.

How long does delivery take?

Standard configurations ship within 45-60 days. Custom profile designs add 2-3 weeks for roller fabrication and testing. We provide production schedules after order confirmation.
