Roof Deck Machine - Professional Metal Decking Manufacturing Solution

Cangzhou Zhongtuo's roof deck machine delivers enterprise-grade performance with robust construction and precision control. Our framework forms 0.8-1.2mm galvanized or galvalume steel coils at speeds of 10-20m/min, including triple 11kw fundamental engines for adjusted control conveyance and 95mm distance across shaping shafts (120mm embossing shaft). With chrome-treated No.45 steel rollers and CR12 extinguished steel cutters, this machine produces high-quality auxiliary profiles for composite floor frameworks and large-span development projects.

What Makes Our Metal Decking Former Stand Out

Built for Heavy-Duty Industrial Production

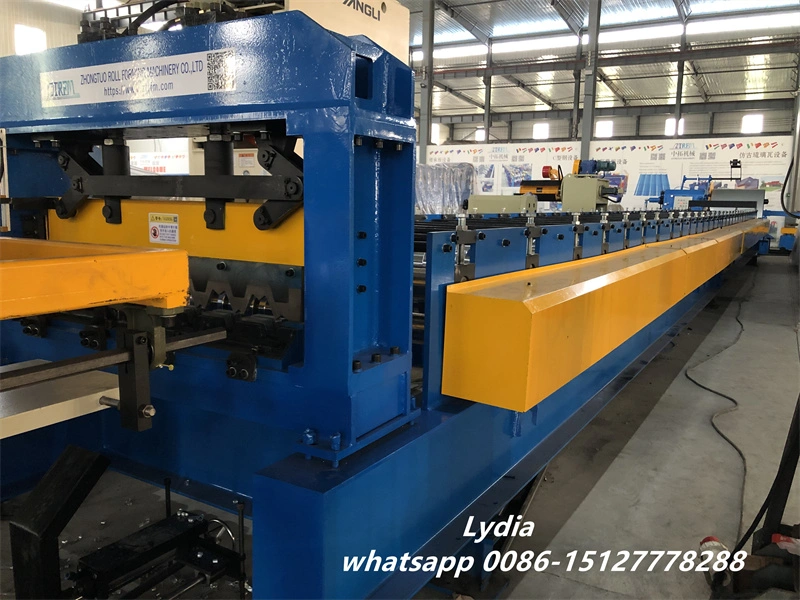

You need equipment that handles demanding production schedules. Our forming system features a welded H-beam frame that eliminates vibration during continuous operation.

The triple motor configuration distributes torque evenly across all forming stations. This prevents roller slippage and maintains consistent profile quality.

Your production won't slow down with our hydraulic cutting system powered by a 5.5kw motor. It delivers clean cuts on thick galvanized steel without burrs.

Precision Engineering for Structural Profiles

Creating deep-rib profiles requires careful material handling. Our multi-station design gradually shapes steel coils to minimize internal stress. This approach prevents micro-cracking in high-yield strength materials.

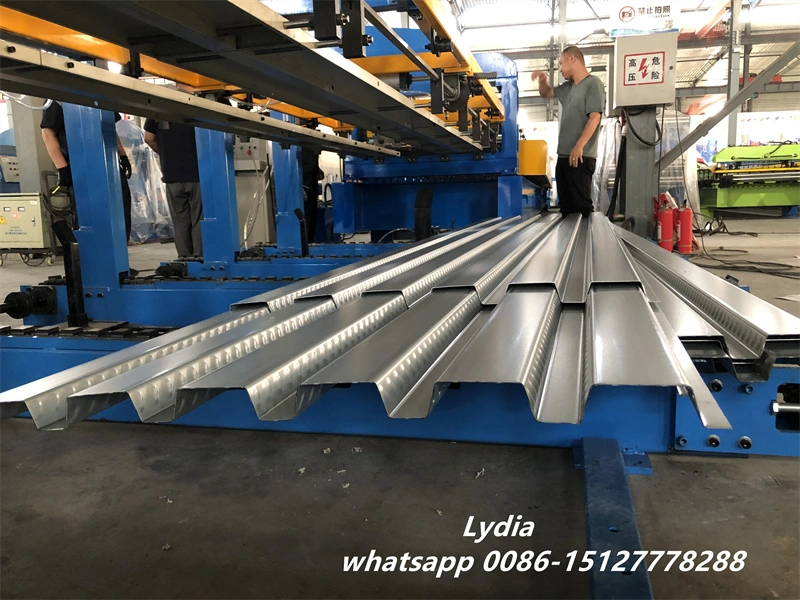

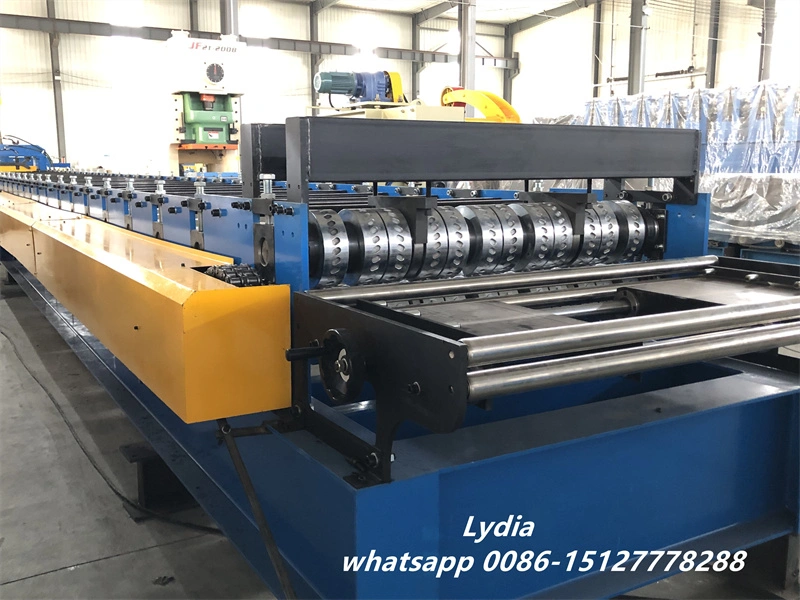

The 120mm diameter embossing shaft creates friction indentations essential for concrete adhesion. These embossments ensure mechanical bonding in composite slab applications.

You'll appreciate the PLC and converter control system. It maintains forming accuracy and allows you to adjust parameters for different profile requirements.

Material Compatibility and Performance

Our product works with galvanized and galvalume coils up to 235Mpa yield strength. The chrome-coated forming rollers resist wear from abrasive oxide layers on coated steel.

The system handles material thickness from 0.8mm to 1.2mm. This range covers most structural decking specifications in commercial construction.

Technical Specifications

Key Applications in Modern Construction

Commercial Steel Structure Projects

High-rise buildings require efficient floor systems. Your decking profiles act as permanent formwork and tensile reinforcement for concrete slabs.

The embossed surface creates mechanical interlock between steel and concrete. This composite action eliminates the need for temporary wooden shoring.

Industrial Facilities and Warehouses

Large-span structures benefit from our precision-formed profiles. You can reduce secondary structural steel requirements and accelerate construction timelines.

Mezzanine floors in logistics centers need load-bearing capacity. Our machine produces profiles that span greater distances between supports.

Infrastructure and Public Buildings

Airports, stadiums, and convention centers demand structural integrity. The forming system creates profiles that integrate with acoustic and insulation layers.

You'll meet requirements for wind uplift resistance and dynamic load performance in these demanding environments.

Why Choose Cangzhou Zhongtuo

Over a Decade of Manufacturing Excellence

Since 2014, we've specialized in cold roll forming machinery. Our national-level high-tech enterprise status reflects our commitment to innovation and quality.

We've exported to over 150 countries across Europe, North America, the Middle East, Southeast Asia, and South America.

Industry-University Research Collaboration

Our partnership with Yanshan University's National Cold Rolled Strip Equipment and Process Engineering Research Center brings cutting-edge technology to your production floor.

We've developed two patented technologies including innovative pattern roller designs. These innovations improve forming accuracy and reduce material waste.

Graduate researchers work directly in our factory. This collaboration ensures our roof deck machine incorporates the latest advances in finite element analysis and AI-assisted optimization.

Comprehensive Quality Certifications

You need confidence in your equipment supplier. We hold ISO 9001 Quality Management System Certification for consistent product quality.

Our European CE Safety Certification and North American CAS Certification demonstrate compliance with international standards.

One-Stop Service and Support

We provide ODM and OEM services tailored to your specifications. Raw materials, machinery, and accessories are available through our integrated supply chain.

Our technical team offers remote monitoring and diagnostic support. Cloud-based maintenance platforms reduce downtime for overseas customers.

Advanced Manufacturing Capabilities

Intelligent Control Systems

Our PLC-based control allows real-time parameter adjustments. You can optimize forming speed and pressure for different material specifications.

The converter system provides smooth acceleration and deceleration. This protects your material from sudden stress changes.

Precision Forming Technology

AI-powered finite element analysis optimizes our roller designs. Virtual modeling reduces trial costs and ensures accurate profile dimensions.

We use simulation tools to perfect forming paths before manufacturing. This approach guarantees first-time quality in your production runs.

Durability and Maintenance

Chrome-treated forming rollers extend service life. The hard surface resists wear from continuous processing of coated steel.

Quenched CR12 cutting blades maintain sharp edges longer. You'll experience fewer blade changes and reduced maintenance costs.

Frequently Asked Questions

What profiles can this machine produce?

The system creates trapezoidal and dovetail structural decking profiles. These shapes are standard for composite floor systems in steel construction.

How quickly can I change between different profile types?

Our modular roller design allows profile changes within a shift. The exact time depends on the complexity difference between profiles.

What training do operators need?

Basic PLC operation knowledge is helpful. We provide comprehensive training documentation and remote technical support during commissioning.

Can the machine handle higher yield strength materials?

While optimized for 235Mpa steel, the robust construction can process materials up to 350Mpa with appropriate roller adjustments.

What maintenance schedule should I follow?

Daily lubrication of moving parts and monthly inspection of roller surfaces. Annual comprehensive checks ensure optimal performance.

Do you provide spare parts support?

Yes, we maintain inventory of critical components. International shipping ensures quick delivery to your location.

How does the embossing function work?

The 120mm embossing shaft creates controlled indentations as material passes through. Depth and pattern are adjustable based on concrete bonding requirements.

What power requirements should I plan for?

Total connected load is approximately 40kw. Ensure stable three-phase power supply matching your regional voltage standards.

Your Partner in Metal Forming Solutions

Cangzhou Zhongtuo combines manufacturing excellence with responsive customer service. Our product represents proven technology backed by continuous research and development.

We understand your production challenges. Whether you're establishing a new facility or upgrading existing equipment, our team provides solutions matched to your specific needs.

From initial consultation through installation and beyond, we're committed to your success. Our global customer base trusts us for reliable equipment and lasting partnerships.
