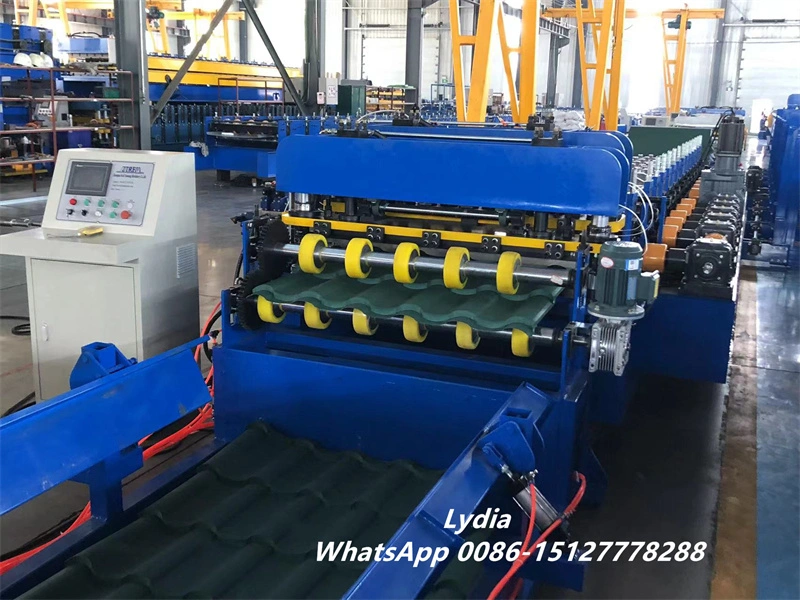

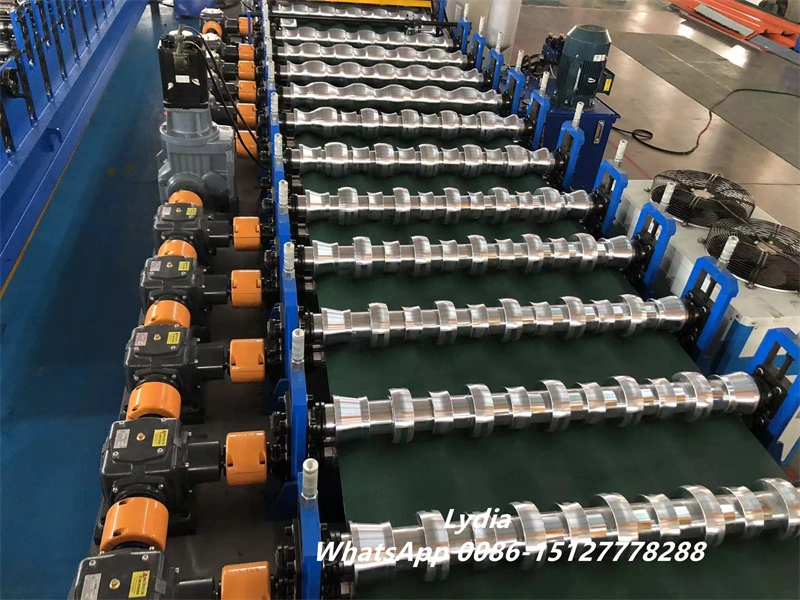

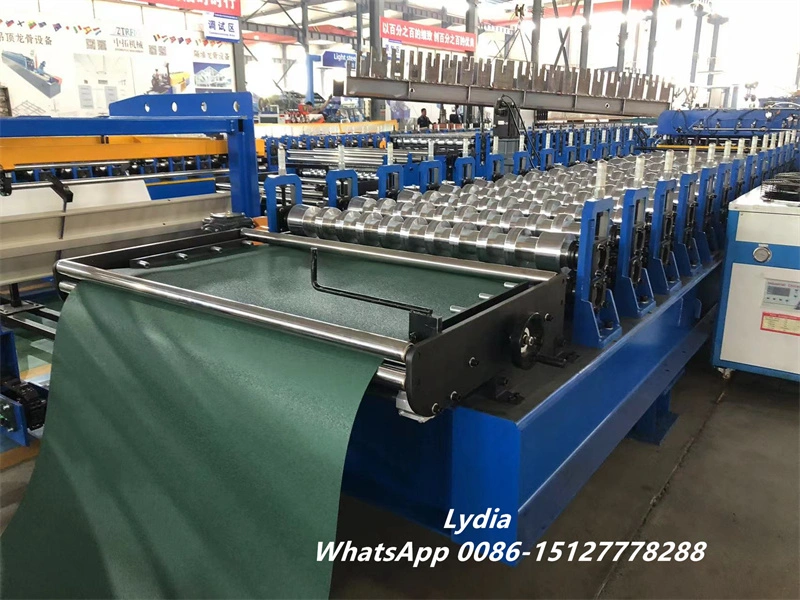

Q tile making machine

Revolutionary Q Tile Making Machine: Advanced Multi-Layer Composite Technology

Transform your production capabilities with our cutting-edge Q tile making machine, engineered to deliver superior composite panel manufacturing. Our innovative 8-layer multi-functional high-speed composite metal panel machine combines breakthrough technology with exceptional performance, ensuring your business stays ahead in the competitive building materials market. This product features advanced thermal bonding processes and intelligent control systems that guarantee consistent quality output while reducing operational costs by over 30%.

Core Advantages of Our Q Tile Making Machine

Revolutionary 8-Layer Composite Technology

Our product utilizes proprietary 8-layer composite technology that precisely controls different material stacking. This ensures sound insulation and anti-corrosion performance improvements of over 40%. The unique structure includes anti-corrosion layers, aluminum foil, polymer films, substrates, and foam layers, creating panels with exceptional durability and functionality.

Environmental Compliance & Sustainability

Supporting 100% recyclable core materials including rock wool and aluminum honeycomb, our machine complies with global environmental standards including REACH and ROHS regulations. The eco-friendly coating systems ensure your products meet the strictest environmental requirements across different markets.

High-Efficiency Production Capabilities

Achieve daily production capacity of 3,000 square meters with our advanced manufacturing system. The product supports customizable thickness ranging from 10-150mm and width specifications from 600-2000mm, providing flexibility for diverse project requirements.

Cost Reduction & Efficiency Enhancement

Experience one-touch process parameter switching that reduces material waste by 30%. The machine's compatibility with various materials including color steel, PVC, and fiber-reinforced composites maximizes your production versatility while minimizing operational complexity.

Technical Specifications

Equipment Model: Q Tile-8X Pro

• Processing Speed: 5-15 meters per minute (adjustable)
• Compatible Materials: Metal substrates, polymer films, non-woven fabrics, flame-retardant core materials
• Equipment Dimensions: Length 28m × Width 4.5m × Height 3.2m
• Supporting Production Line: Automatic cutting machine + CNC punching machine + edge sealing system
• Certifications: CE, ISO 9001, TÜV (customizable certification options available)

Advanced Control Features

The integrated Siemens cloud platform provides remote operation and maintenance capabilities, AI fault warning systems, and comprehensive customer equipment management. Our digital simulation system allows material and thickness modeling, enabling production plan verification before implementation.

Diverse Application Scenarios

Construction Industry Applications

Replace traditional sandwich panels in airports, high-speed rail stations for sound barrier walls, and industrial facility anti-corrosion roofing systems. Our Q tile making machine produces panels that reduce building carbon emissions by 15-20% while minimizing metal resource consumption.

Transportation Sector Solutions

Manufacture fire-resistant insulation layers for new energy vehicle battery compartments and composite materials for marine bulkheads. The versatility of our production system ensures compliance with various industry safety standards.

Environmental Value Creation

Contribute to sustainable construction practices by producing materials that significantly reduce environmental impact while maintaining superior performance characteristics compared to traditional alternatives.

Proven Customer Success Stories

German Environmental Building Materials Company

Utilizing our Q Tile-8X Pro for A2-grade fireproof rock wool panel production, purchasing 2 units annually. The implementation resulted in enhanced production efficiency and consistent quality output meeting stringent European standards.

Performance Comparison Data

Compared to traditional sandwich panel equipment, our product reduces energy consumption by 25%, significantly improving customer ROI while maintaining superior product quality standards.

Comprehensive Technical Support & After-Sales Service

Global Response Network

Providing 48-hour worldwide response including on-site installation, commissioning, and operator training programs. Our technical team ensures smooth implementation and optimal equipment performance from day one.

Lifetime Maintenance Guarantee

Critical components including heat pressing rollers and deviation correction systems come with 10-year warranty protection. This comprehensive coverage ensures long-term operational reliability and peace of mind.

Continuous Software Updates

Free remote software system updates adapt to new material processing requirements, ensuring your equipment remains current with evolving industry standards and technological advances.

Authoritative Certification & Industry Recognition

Laboratory Partnerships

Collaboration with SGS and Intertek provides comprehensive testing reports confirming 45dB sound insulation and C5M anti-corrosion grade performance. These partnerships ensure product quality verification through internationally recognized standards.

Quality Assurance Standards

All equipment undergoes 100% pre-delivery testing, ensuring defect-free delivery. Our experience spanning 150+ countries provides precise adaptation for both developing country cost-effectiveness requirements and developed nation high-end technology demands.

Frequently Asked Questions

Q: Can the product seamlessly integrate with existing 8-layer multi-functional composite machines to ensure continuous composite panel production?

A: Yes, our product is designed with universal compatibility standards. The equipment features standardized interfaces and automated conveyor systems that ensure seamless integration with existing production lines, maintaining continuous workflow and maximizing operational efficiency.

Q: What specific performance improvement indicators does the product provide compared to traditional sandwich panels?

A: Our testing results show 40% improvement in sound insulation performance, 35% enhancement in anti-corrosion capabilities, and 30% reduction in material waste. Additionally, the panels demonstrate superior structural stability with zero warping or deformation issues.

Q: How compatible is the product with different raw materials and environmental-friendly composite processes?

A: The machine supports over 15 different material combinations including metal substrates, bio-based polymers, nano-coatings, and recyclable core materials. Our flexible material handling system automatically adjusts parameters for optimal processing of each material type.

Q: What core technologies ensure the machine performs well in harsh environments with high salt spray and humidity?

A: Our proprietary multi-layer coating technology and precision climate control systems ensure reliable operation in temperatures ranging from -20°C to 70°C with humidity levels up to 95%. Special anti-corrosion treatments protect all critical components.

Q: Can the product meet large-scale order delivery schedules with its production efficiency?

A: With daily capacity of 3,000 square meters and 99.2% equipment availability rate, our machine easily handles large-scale orders. The automated production system operates continuously with minimal downtime for maintenance.

Q: Does the supporting precision processing line include automated cutting, edge sealing, and surface treatment functions?

A: Yes, our complete production line includes CNC automatic cutting with ±0.2mm precision, automated edge sealing systems, and customizable surface treatment options. Real-time quality monitoring ensures consistent dimensional accuracy.

Q: Do the energy consumption and waste rates meet green production standards for environmental material companies?

A: Our equipment reduces energy consumption by 25% compared to industry standards and maintains waste rates below 3.5%. The integrated recycling system captures and reprocesses material scraps, supporting circular economy principles.

Q: What is the operational complexity and what training requirements are needed for daily maintenance?

A: The user-friendly interface requires only 2-3 days of training for operation. Maintenance costs average 2% of equipment value annually, with 72-hour spare parts delivery globally ensuring minimal production interruption.

Q: How flexible is parameter adjustment for different composite panel thicknesses, and how long does production specification switching take?

A: The intelligent control system allows specification changes within 5 minutes through touch-screen operation. Automated adjustment mechanisms handle thickness variations from 10-150mm without manual intervention.

Q: Does the product provide process data monitoring systems for optimizing coating uniformity and adhesion?

A: Our advanced monitoring system tracks over 50 process parameters in real-time, including temperature distribution, pressure consistency, and coating thickness. AI-powered optimization automatically adjusts parameters to maintain optimal quality standards.

Contact Us

Ready to revolutionize your composite panel production? Contact our technical team today at coo@zhongtuocn.com for detailed specifications, pricing information, and customized solutions tailored to your specific requirements. Transform your manufacturing capabilities with the industry's most advanced Q tile making machine technology.
