Composite Floor Deck Machine – Enterprise-Grade Roll Forming Solutions

Cangzhou Zhongtuo delivers high-performance cold roll forming equipment engineered for structural excellence. Our composite floor deck machine produces high-strength galvanized steel floor decks with precision embossing patterns—critical for composite steel-concrete floor systems. With handling capacity from 16g to 22g steel thickness, progressed cassette quick-change frameworks, and high-speed pre-flying shear cutting, our arrangements serve high-rise buildings, mechanical offices, and commercial mezzanine applications. Supported by ISO 9001, CE, and CAS certifications, additionally key associations with Yanshan University's National Cold Rolled Strip Hardware Investigate Center, we combine demonstrated unwavering quality with cutting-edge innovation.

Understanding Composite Floor Deck Machines

You might wonder what makes this equipment different from standard roofing machines.

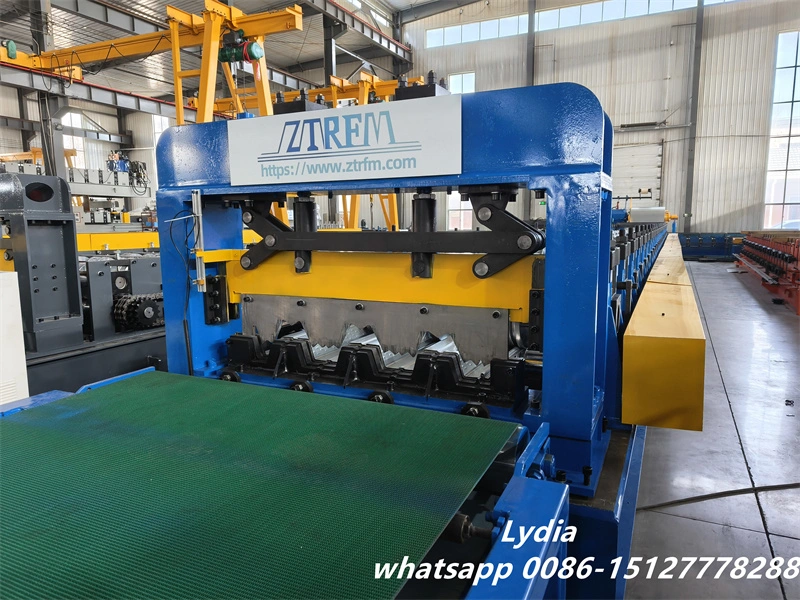

A composite floor deck machine is specialized industrial cold roll forming equipment designed to manufacture structural steel floor decks. These aren't ordinary metal sheets. The machine consolidates heavy-duty embossing rollers that press particular designs into the steel surface.

These embossments make mechanical shear bonds between steel and concrete.

Think of it as interlocking teeth that grasp the poured concrete immovably. This bond permits the deck to serve double purposes: changeless formwork amid development and outside ductile reinforcement in the wrapped up structure.

You dispose of the brief wooden formwork totally. Development timelines have recoiled significantly. The basic weight-to-load proportion gets to be optimized for cutting-edge high-rise projects.

The technology addresses real pain points in steel construction.

Where You'll Use This Equipment

Our machines serve three primary industrial scenarios.

When you're building high rises, speed things up. The decks delivered by our hardware gotten to be quick working stages. You do not require shoring between floors. Your groups can cast numerous floors at the same time, quickening vertical development dramatically.

Industrial Control Plants and Refineries

Heavy-gauge applications request strong arrangements. You're managing with gigantic energetic loads and apparatus weights. The embossing designs work productively with shear studs, giving pivotal seismic resistance in overwhelming mechanical zones.

Commercial Mezzanine Systems

Logistics centers and distribution centers advantage from large-span dovetail decks. You diminish auxiliary steel pillars. Deep-rib profiles maximize ceiling tallness whereas coordination benefit lines cleanly. Your capacity thickness increments without compromising basic integrity.

Technical Specifications

Here's what you get with our equipment:

What Makes Our Machines Different

You need equipment that delivers consistent quality.

Superior Roller Engineering

Our rollers use GCr15 high-grade bearing steel, heat-treated to HRC 58-62 hardness. This means they withstand immense embossing pressure without deformation. You're processing high-tensile G350-G550 steel, and our rollers maintain precision throughout.

Robust Frame Construction

We build frames using H-beam welded structures with 18mm+ sidewall thickness. This dampens vibration during high-speed operation. Your production remains stable even at 10-15 meters per minute.

Precise Embossing Control

The embossing depth stays consistent at 3-5mm across entire sheet lengths. This consistency ensures reliable shear bond with concrete. Your structural safety depends on this precision.

Separate Embossing Stands

We use replaceable embossing stands rather than integrated rollers. Maintenance becomes simpler. You reduce downtime significantly when components need servicing.

Post-Hydraulic Cutting

The cutting system operates after forming completes. This preserves profile integrity at sheet ends. Pre-cutting can distort complex embossed profiles, but our post-cutting maintains shape accuracy.

Quality Control Standards

You're investing in structural safety equipment.

Embossing Depth Verification

We maintain 3-5mm embossment depth consistency along entire sheet lengths. Insufficient depth compromises concrete bond. Our quality checks ensure every meter meets specifications.

Profile Tolerance Precision

Effective width tolerance stays within ±2mm. This ensures seamless side-lap interlocking during installation. You won't experience concrete leakage issues.

Straightness Assurance

Our specialized straightening units eliminate camber over long runs. Twelve-meter lengths come out perfectly level. This ensures proper floor casting without corrections.

Cutting Die Accuracy

Hydraulic cutting dies match profiles perfectly. End deformation doesn't occur. Your on-site welding and alignment proceed smoothly.

Research-Backed Innovation

You benefit from our university partnerships.

We collaborate with Yanshan University's National Cold Rolled Strip Equipment Research Center. This partnership brings academic research into practical manufacturing.

Advanced Design Tools

We use finite element analysis and AI-assisted simulation for roll design optimization. Virtual modeling reduces trial costs while ensuring high precision in profile formation.

Intelligent Control Systems

Our equipment integrates PLC programming with cloud-based monitoring. You get predictive maintenance alerts. Remote diagnostics support overseas operations effectively.

Proven Patents

We've developed two patented technologies, including innovative pattern roller designs. These technologies are applied across our production lines and exported globally.

Why Choose Zhongtuo

You need a partner with proven capabilities.

Since 2014, we've specialized in cold roll forming machinery. Our national-level high-tech enterprise status reflects our commitment to innovation and quality.

Global Certifications

·  ISO 9001 Quality Management System ensures consistent product quality

·  European CE Certification meets stringent EU safety standards

·  North American CAS Certification demonstrates technical compliance

·  Multiple regional certifications reinforce our commitment

Worldwide Experience

We've exported to over 150 countries across Europe, North America, the Middle East, Southeast Asia, and South America. You join a global network of satisfied customers.

Complete Service Package

We provide ODM, OEM, and one-stop services. Raw materials, machinery, and accessories come from a single reliable source. You simplify your supply chain significantly.

Strategic Partnerships

Our 2023 agreement with Siemens strengthens our intelligent automation capabilities. Collaboration with six universities ensures continuous innovation. Our Verified Pro Supplier status on Alibaba.com reflects our business credibility.

Frequently Asked Questions

Can your machine handle G550 high-tensile steel?

Yes, absolutely. We increase forming stations to 24-32 for high-tensile materials. This allows gradual forming that prevents spring-back and material fracture. You get consistent results even with challenging materials.

What components wear fastest?

Embossing rollers experience the highest stress. That's why we design separate, replaceable embossing stands. You can service them easily without replacing entire roller assemblies. Maintenance costs stay manageable.

Do you offer multiple profile capabilities?

Most machines are dedicated to single profiles due to roller complexity. However, we offer cassette-type systems where entire tooling rafts swap out in 30 minutes. You can switch between deck designs efficiently.

What power requirements should I expect?

Heavy embossing and thick material require substantial power. Typical installations use dual 15kW-22kW motors. Exact requirements depend on your forming station count and desired production speed. We'll specify precisely for your application.

How do you ensure consistent embossing depth?

Our advanced control systems monitor forming pressure continuously. Roller hardness stays consistent throughout production runs. Regular calibration procedures maintain the 3-5mm depth specification your structural applications demand.

Can you customize profiles for regional standards?

Definitely. We design equipment meeting SDI (Steel Deck Institute) and Eurocode 4 standards. Your profile geometry and cover width will match local structural requirements. Our engineering team works directly with your specifications.
