Door Frame Machine

Door Frame Roll Forming Machine

Precision Manufacturing for Steel Door Frames

The Door Frame Roll Forming Machine is a specialized equipment designed to manufacture high-quality steel door frames with accuracy, strength, and excellent surface finish. It integrates decoiling, punching, roll forming, cutting, and stacking into one continuous production line, providing high efficiency and consistent product quality.

Finished door frames are straight, dimensionally accurate, and scratch-free, making them ideal for both residential and commercial door systems.

🔹 Key Features

• Accurate Forming – Ensures precise dimensions and a smooth surface finish without paint scratches

• Integrated Punching System – Pre-punching holes for locks, hinges, and fasteners during production

• Flexible Configurations – Available in standard-speed models, high-speed models, and fully automatic lines

• Strong Frame & Rollers – Heavy-duty steel structure with hardened & chrome-plated rollers for long life

• PLC Control System – Easy-to-operate touchscreen interface with length and punching settings

• Customizable Profiles – Machine can be designed for different door frame sizes and shapes

🔄 Machine Workflow

1. Decoiler – Hydraulic/manual, 3–10 tons capacity

2. Leveling & Feeding Unit – Straightens sheet before punching

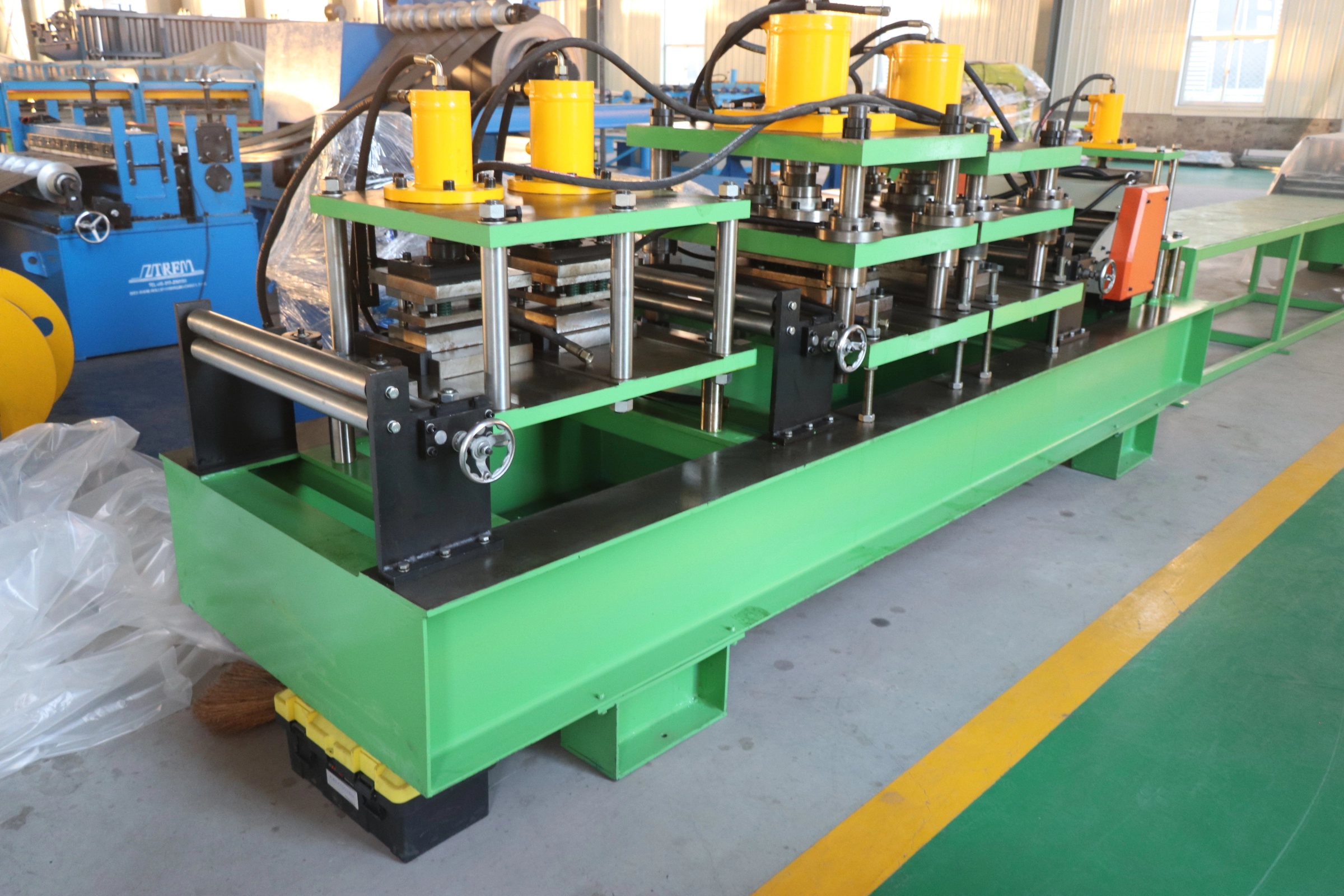

3. Punching Press – Pre-punches lock holes, hinge slots, and mounting points

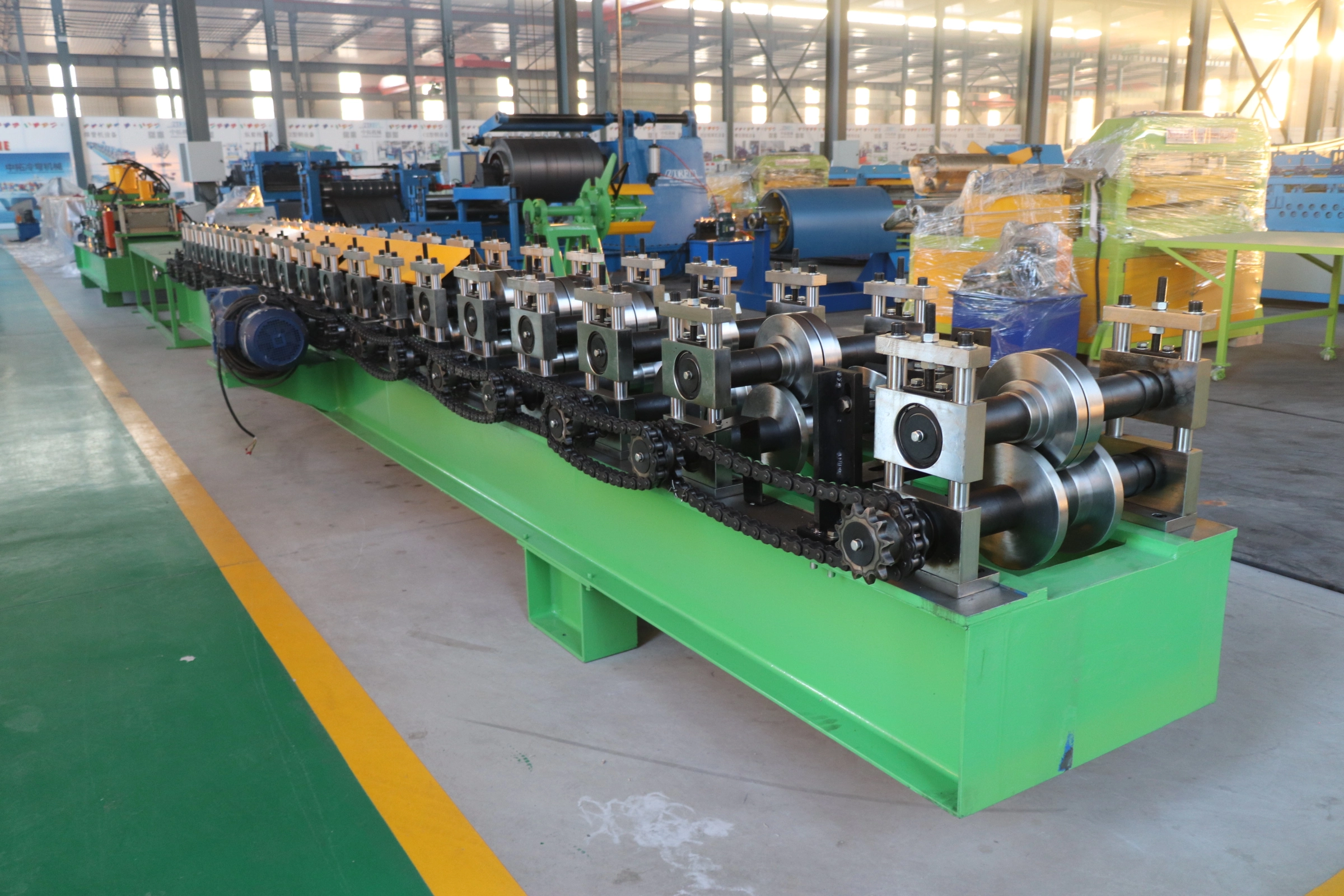

4. Roll Forming Section – Shapes the metal into precise door frame profiles

5. Cutting System – Hydraulic or flying shear cutting for clean edges

6. Output Table / Stacker – Collects and stacks finished frames

📐 Technical Specifications

🛠 Build Quality & Advantages

• Rollers made from GCr15 bearing steel, heat-treated & polished

• Strong welded steel frame for stable, vibration-free operation

• High-precision punching and cutting system for neat edges

• Long service life with low maintenance requirements

• CE/ISO certified machine with guaranteed reliability

🌍 Applications & Market

The door frames produced are widely used in:

• Residential Buildings – Steel doors, security doors, fireproof doors

• Commercial Complexes – Office doors, shopping mall entries, warehouses

• Industrial Facilities – Heavy-duty door systems for factories

• Public Infrastructure – Schools, hospitals, government buildings

With the rising demand for steel security doors and fire-rated doors, the door frame roll forming machine has strong market growth in Asia, Middle East, Africa, Eastern Europe, and South America.

🚀 Optional Configurations

• Automatic punching mold changeover

• Double-line system for different frame sizes

• Servo feeder for high-precision punching

• Automatic stacking and packing system
