Types of Roof Roll Forming Machines: Everything You Need to Know

It's important for manufacturers looking for efficient ways to make metal roofing to know how roof roll forming machines work. Through cold forming processes, these high-tech machines take flat metal coils R101 Roofing Sheet Making Machine and shape them into precisely shaped roofing profiles. The R101 Roofing Sheet Making Machine has one of the most common layouts in the business. It makes trapezoidal profiles that are 1,250 mm wide. From manual units suitable for small operations to fully automated production lines capable of processing various materials at speeds up to 15 meters per minute, these machines serve diverse manufacturing needs across construction, industrial, and residential sectors.

Understanding Different Types of Roof Roll Forming Machines

The world of roll forming equipment offers various configurations designed to meet specific production requirements and operational scales. These machines fundamentally operate through cold forming processes, where metal coils pass through progressive forming stations to achieve desired profiles without heat application.

Manual Roll Forming Systems

Manual roll forming machines are the most basic type of equipment used to make roofs. For feeding materials, measuring lengths, and cutting, these systems need a lot of help from an operator. While they offer lower initial investment costs, manual machines typically produce 5-8 meters per minute and work best for custom orders or low-volume production runs. When starting up, small manufacturers often choose manual systems because they are easy to change the profile of and don't need a lot of electrical infrastructure. But the skill level of the operators has a big impact on how consistently the machine makes things, and the cost of labor can add up over time.

Semi-Automatic Production Lines

There is a middle ground between fully automated machines and machines that only need to be operated by hand. These systems incorporate PLC controllers for length programming while maintaining manual material handling for feeding and stacking operations. Production speeds typically range from 10 to 15 meters per minute, making them suitable for medium-scale operations. The R101 Roofing Sheet Making Machine exemplifies this category, featuring Delta PLC control with a 5.7-inch touchscreen interface that allows precise length programming while maintaining cost-effectiveness for manufacturers.

Fully Automatic Manufacturing Systems

The most advanced roll forming technology is fully automatic production lines. With little to no help from a person, these all-in-one systems can decoil, feed, shape, cut, and stack materials automatically. The most advanced R101 Roofing Sheet Making Machine systems can go faster than 20 meters per minute and still be very accurate. They have high-tech sensors for quality control, automatic thickness compensation for materials, and built-in production management systems. Large manufacturers like these solutions for making a lot of things at once, where consistency and speed are very important.

In-Depth Features and Technical Specifications of the R101 Roofing Sheet Making Machine

To meet the needs of medium to large roofing manufacturers, the R101 strikes a perfect balance between performance and ease of use. This machine shows how new technology can improve old ways of rolling things out.

Core Technical Specifications

The machine's foundation rests on robust engineering principles that ensure long-term reliability. The R101 has 18 forming stations that shape the material gradually without creating stress concentrations that could lower the quality of the finished product. The 70mm shaft diameter provides exceptional rigidity, minimizing deflection during high-speed operation. Material compatibility spans 0.3-0.8mm thickness ranges, accommodating various steel grades from galvanized to prepainted materials. The 5.5kW main motor provides steady power, and the 4kW hydraulic unit makes sure that cutting operations are done accurately, with a tolerance of ±2mm.

Advanced Control Systems

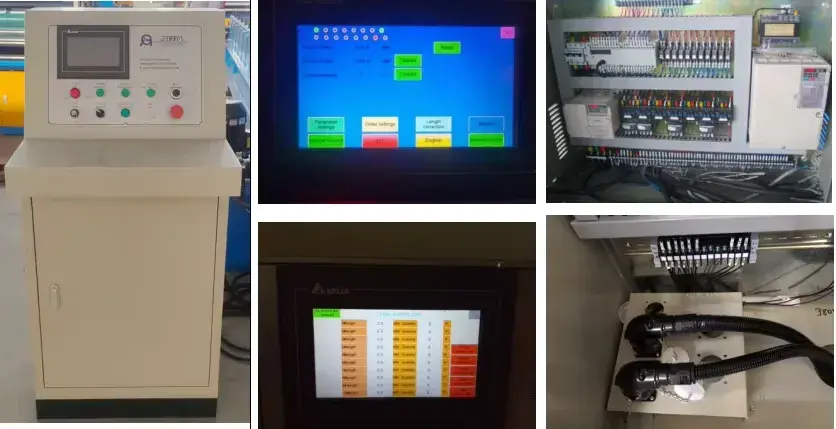

Modern manufacturing needs precise control, which the R101 gives you with its Delta PLC system and easy-to-use 5.7-inch touchscreen interface. With programming, operators can set specific length and quantity requirements for production runs. This cuts down on setup time and waste. The control system constantly checks operational parameters and warns operators of possible problems before they affect the quality of the production. This proactive approach cuts down on downtime and makes equipment last a lot longer.

Structural Engineering Excellence

The frame of the machine is made of 16mm wall-plate H-beam architecture, which makes it very stable during high-speed operations. This strong base keeps vibrations to a minimum, which would otherwise hurt the quality of the product or speed up the wear on parts. The R101 is only about 6,200 mm long, 850 mm wide, and 1,500 mm high, and it weighs 3.5 tons. Despite its size, it has industrial-grade performance. The design makes it easier to fit into existing production layouts without making a lot of changes to the facility.

The R101 Roofing Sheet Production Process

Knowing how the production process works helps R101 Roofing Sheet Making Machine companies run their businesses more efficiently and keep quality standards high. Through carefully designed automation features, the R101 Roofing Sheet Making Machine speeds up this process.

Material Preparation and Feeding

The production process starts with properly preparing the coil and feeding it through the 5-ton decoiler, which can be set up manually or automatically. The feeding system makes sure that the material moves forward steadily and protects coated surfaces from damage or scratches. To get an accurate profile, the materials must be lined up correctly. The entry guides can handle coils of different widths and keep their precise position during the forming process. The machine's strong forming stations automatically make up for changes in material thickness that are within the specifications.

Progressive Profile Formation

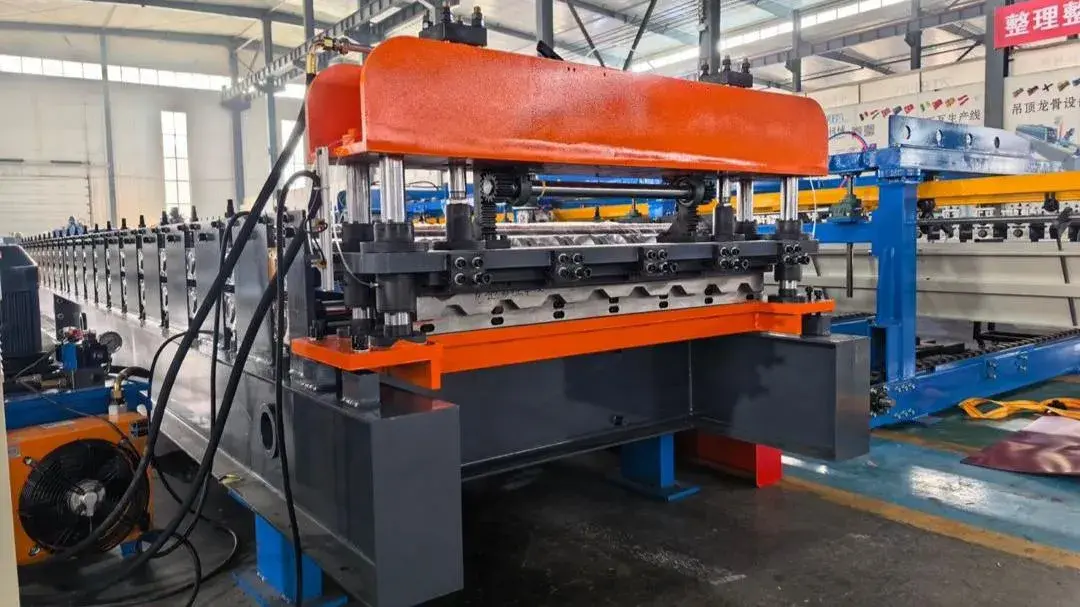

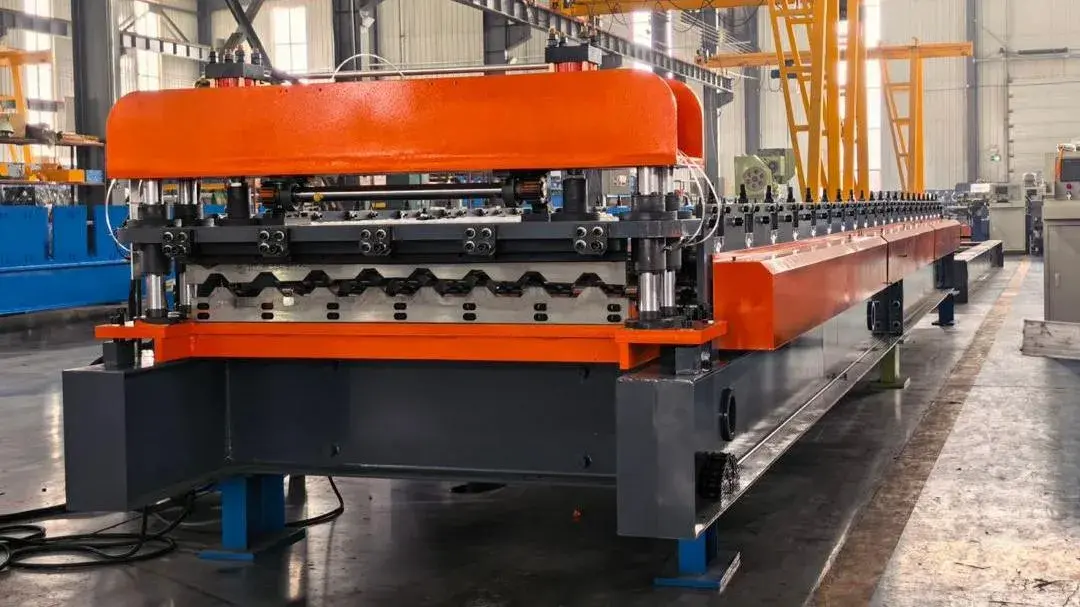

The 18 forming stations are where the real work of the machine happens. This is where flat material slowly changes into the unique R101 trapezoidal shape. Each station contributes a certain number of bending angles, which keep the stress distribution within safe limits. The progressive forming method keeps the dimensions of the part accurate while stopping the material from becoming too hard to work with. Station adjustments let the profile geometry be fine-tuned to meet specific customer needs or to account for changes in the material's properties.

Precision Cutting and Quality Control

The hydraulic cutting system is an important part of making production go smoothly. The cutting mechanism works with ±2mm accuracy, which makes sure that the length tolerance stays the same from one production run to the next. The Cr12MoV steel construction makes the blade last longer, which lowers the cost of operation and maintenance. As part of quality control throughout the whole process, measurements can be checked, and the surface can be inspected. These systems find potential problems right away, so bad products don't get into the finished goods inventory.

Automation Benefits and Energy Efficiency

Automation cuts down on the need for workers while also making things more consistent and safer. With a line speed of up to 15 meters per minute, the R101 can produce large amounts of goods quickly while still meeting high-quality standards that are hard to achieve with manual methods. Optimizing motor size and hydraulic system design are two things that can be done to save energy. The machine runs on a standard 380V/50Hz/3-phase power supply, which means it doesn't need a lot of electrical infrastructure and works reliably.

Comparing the R101 Roofing Sheet Making Machine with Other Models

Market analysis reveals significant variations among roof roll forming equipment, making informed comparisons essential for procurement decisions. The Roofing Sheet Making Machine distinguishes itself through specific performance characteristics and value propositions.

Performance Metrics Analysis

Manufacturers look at throughput, accuracy tolerances, and operational flexibility when they are buying production equipment. The R101's 15 meters per minute speed is on par with similar models, and its ±2mm cutting tolerance makes it even more accurate. The number of forming stations has a direct effect on the quality of the profile. The R101 has 18 stations that shape materials perfectly without making the equipment too complicated. When compared to machines with higher station counts for similar profiles, this configuration requires less maintenance.

Build Quality and Durability Assessment

How long an item lasts depends on how it's built and how well its parts are made. The H-beam frame construction of the R101 is more stable and less likely to vibrate than industry standards. When choosing components, proven reliability is given more weight than cost-cutting, which leads to longer operational life. The design of hydraulic systems focuses on making them simple and easy to fix. Standard components reduce the need to keep spare parts on hand while still making sure that service support is available all over the world. This method is different from proprietary systems, which might have small performance benefits but cost a lot to support.

Total Cost of Ownership Considerations

In addition to the initial purchase price, manufacturers must also look at the ongoing costs, such as the amount of energy used, the need for maintenance, and the effects on productivity. The R101's efficient motor sizing and sturdy construction keep running costs low and production uptime high. Training needs are still low because the control system is designed to be easy to use. When compared to more complex options, simpler PLC interfaces allow operators to become proficient quickly, cutting down on implementation times and training costs.

Practical Guide to Procuring the R101 Roofing Sheet Making Machine

To buy equipment successfully, you need to plan ahead and carefully evaluate each vendor. To make sure long-term satisfaction and operational success, the procurement process takes into account more than just the initial price.

Vendor Selection and Qualification

When you buy equipment from a well-known company like Cangzhou Zhongtuo, you can be sure that you will get expert advice and support from around the world. Since its start in 2014, the company has built a reputation for reliable delivery of high-quality goods and full-service support in more than 150 countries. Having ISO9001, CE, or CAS certifications shows that you are committed to quality standards and meeting international compliance requirements. These qualifications give manufacturers peace of mind when they work in regulated markets or supply safety-critical applications.

Technical Specification Verification

A thorough review of the specifications of the  Roofing Sheet Making Machine makes sure that the equipment's abilities match the needs of production. The R101 Roofing Sheet Making Machine's specs should be checked against the types of materials, thickness ranges, and expected production volumes. As part of site preparation, you need to make sure there is enough electricity, that the floor can hold weight, and that installation and maintenance workers can get to it. Because the machine is 6.2 meters long and weighs 3.5 tons, it needs to be properly planned out in order to fit into the space.

Installation and Commissioning Support

Professional installation services make sure that the equipment works at its best from the start. Experienced technicians put together the mechanical parts, connect the electrical parts, and do the initial calibration according to the manufacturer's instructions. Operator training programs teach important skills that are needed for safe and effective operation. Routine operation, basic maintenance, and troubleshooting techniques are all covered in detail in order to get the most out of the equipment.

After-Sales Service and Support

Long-term equipment satisfaction is greatly affected by the ability to provide ongoing support. Manufacturers should check to see if spare parts are available, if technical support is quick to respond, and if their service networks cover the areas where they do business. Warranty coverage protects against problems with the way the product was made and sets performance standards. Optional extended warranties may be more useful for important production tasks where downtime costs are high.

Conclusion

Roof roll forming machines come in a wide range of technologies that can be used for different production levels and needs. The choice of equipment has a direct effect on how well the business runs and the quality of the products it makes. Equipment ranges from fully automated production lines for high-volume production to manual systems that are good for starting up. This machine, the R101 Roofing Sheet Making Machine, shows how modern engineering can balance performance, dependability, and cost-effectiveness for medium to large-scale operations. Its 18-station forming process, precise hydraulic cutting, and intuitive PLC controls show how modern manufacturing technology addresses traditional production challenges. To successfully buy equipment, you need to carefully consider technical specs, vendor abilities, and the total cost of ownership to make sure that you will be happy with the equipment for a long time.

FAQ

1. What material thicknesses can the R101 process effectively?

The R101 Roofing Sheet Making Machine can work with materials that are between 0.3 mm and 0.8 mm thick, which is thick enough for most standard roofing jobs. This range includes galvanized, prepainted, and aluminum-zinc coated materials that are often used in building projects. To get the best forming results, when choosing a material, you should look at both its thickness and its yield strength.

2. How does the cutting accuracy compare to industry standards?

The hydraulic cutting system keeps an accuracy tolerance of ±2mm, which is higher than what is usually required for roofing applications. This precise level keeps the quality of the product consistent while reducing waste. The cutting mechanism is made of Cr12MoV steel, which gives the blades a longer life and keeps their accuracy over time.

3. What training is required for operators?

Operators need to know the basics of how PLC control systems work and how to shape metal. The easy-to-use touchscreen interface makes programming and operating things easier. Most operators achieve proficiency within one week of structured training, covering safety procedures, routine operation, and basic troubleshooting techniques.

4. How often does the machine require maintenance?

How often routine maintenance is done depends on how much is being made and how the machine is being used. Daily lubrication checks, weekly hydraulic system inspection, and monthly forming station adjustment verification maintain optimal performance. Annual comprehensive inspection ensures continued reliability and identifies potential component replacement needs.

5. What power supply requirements are necessary?

The machine runs on a standard 380V/50Hz/3-phase industrial power supply and uses about 9.5kW of power, which includes the main motor and the hydraulic unit. According to local electrical codes and safety standards, electrical installations should have the right safety features and the ability to stop power in an emergency.
